SG-450 Large Range Industrial Check Weigher Roller Checkweigher Sorting
The packaged products pass the large range industrial checkweigher weighing test, the qualified ones will be sent back to the original conveyor belt, the unqualified ones will be rejected (or alarm shutdown), and it has the functions of classifying and counting the products according to the settings. The automatic roller check weigher uses fast weight collection and easy integration of existing transmission equipment to check the integrity of packaged products and improve product quality. You are welcome to contact us at any time for further information.

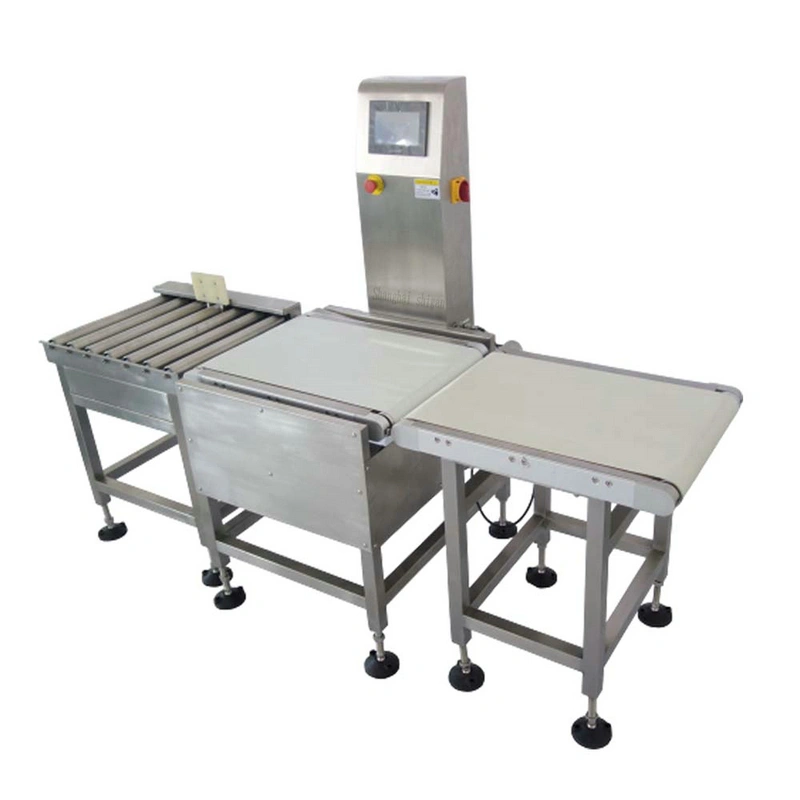

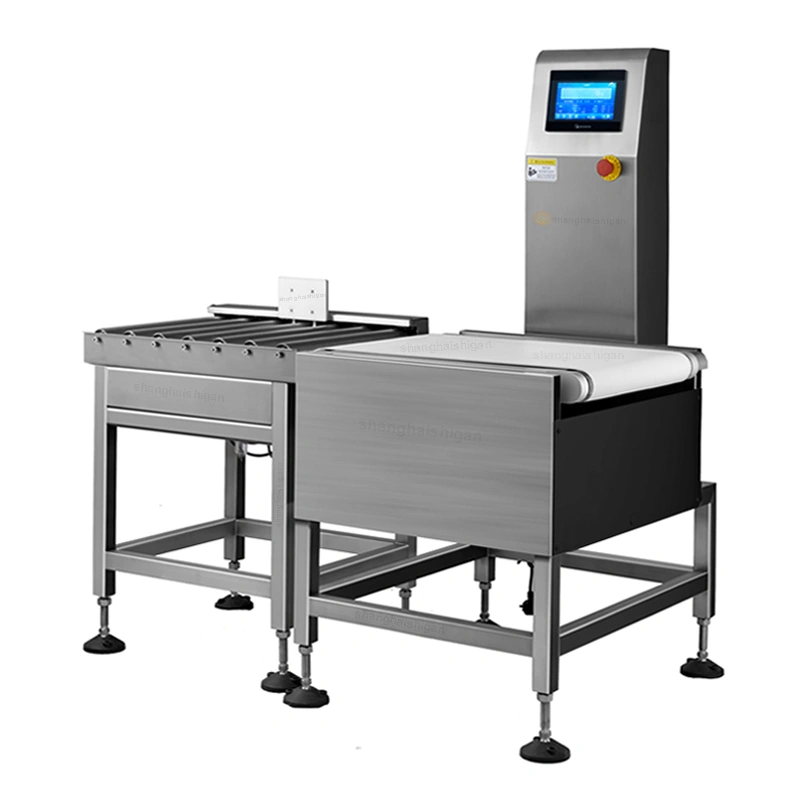

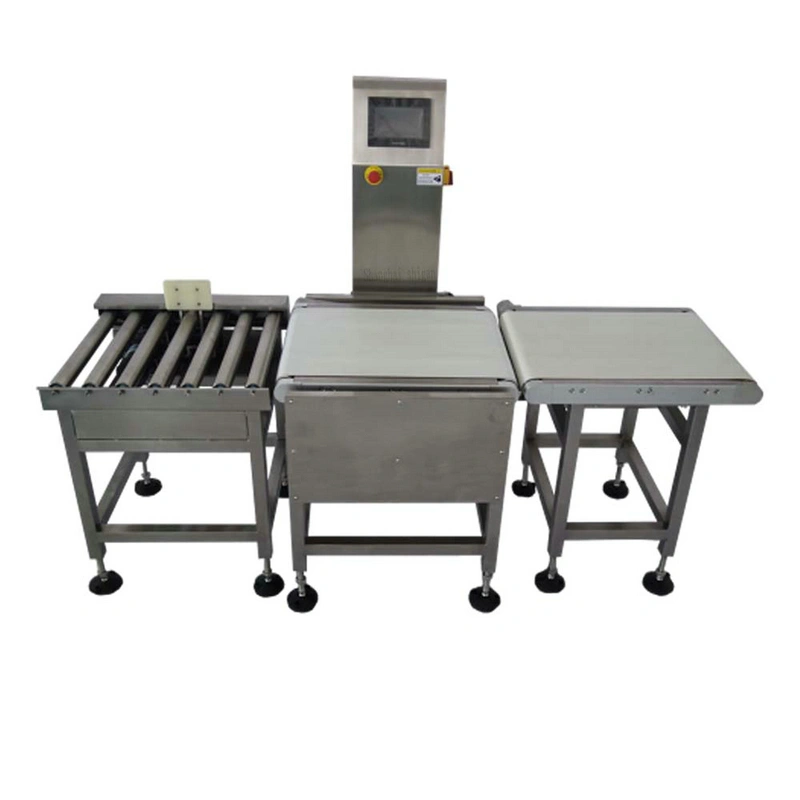

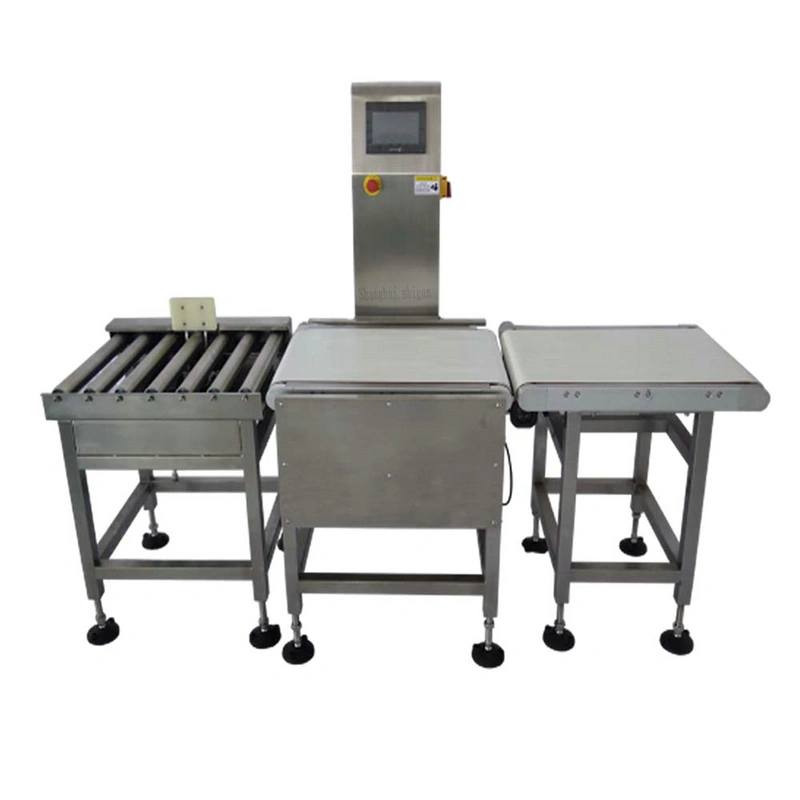

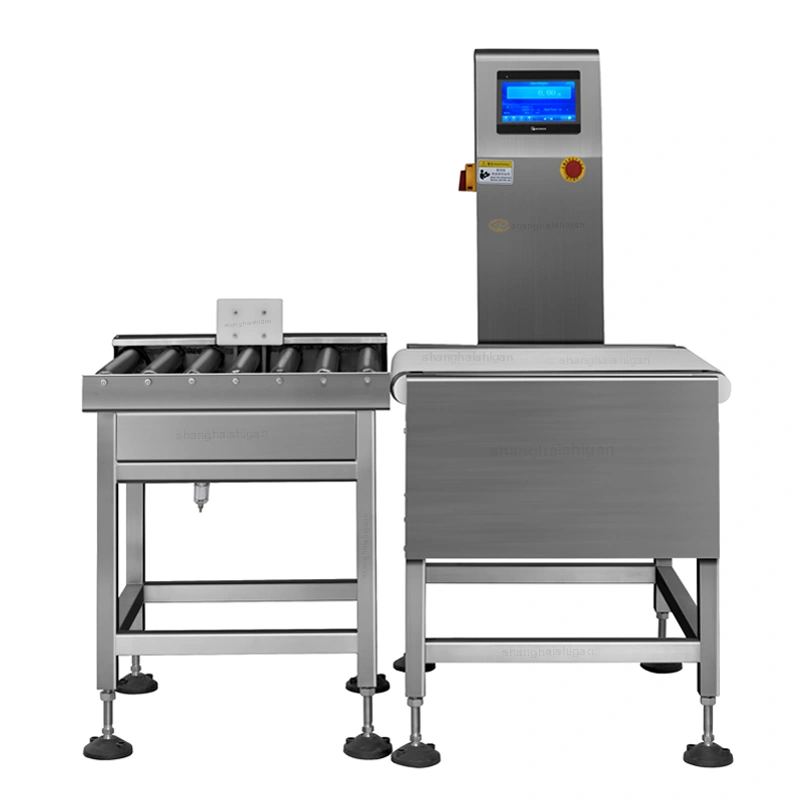

Large range industrial checkweigher photos
Type SG-450
Weighing Range 0.05-20/30kg
Limited of product L: 500 W:450 H: 3-400mm
Accuracy ±1g
Division Scale 0.1g
Belt Speed 0- 40 m/min
Max Speed 40 pcs/min
Belt Width 450mm
Machine Weight 100kg
Power Supply AC 110/220V ±10% 50HZ
Power 100W
Main Material SU304 stainless steel
Customization Philosophy:
The product demonstrating may not perfectly meet your requirements,
our philosophy is to customize your real need.
To minimizing idle capacity and function. To supply you performance and cost balanced products. Following are the factors shall be taken into account during customization:
1,Products to be packed
2,Container to be filled, type and specification.
3,Capacity requirement
4,Automation requirement
5,Protection requirement
6,Other specific requirement
1.High precision: use imported high-speed weighing module and weight sensor to ensure detection accuracy
2.Simple structure: The whole large range industrial checkweigher is made of stainless steel. The structure is simple and easy to maintain and maintain. It conforms to GMP and HACCP specifications.
3.Convenient operation: Schneider touch screen is used for simple operation, intuitive display and support for multiple languages (default Chinese and English)
4.Convenient external connection: Large range industrial checkweigher can be connected to other equipment in the production line, such as printer labeling machine and inkjet printer, etc.
5.Wide range of uses: for the weight detection of bagged filling products, a variety of rejection methods can be selected (dial lever type, air blowing type, push can type, etc.
6.Automatic feedback function: Large range industrial checkweigher can feed back the packaging accuracy to the front-end equipment signal in time to adjust the feeding status of the connected equipment
Large range industrial checkweigherr is mainly used for automatic weight detection, online and offline discrimination or weight classification selection on various automated packaging lines. It is widely used in online high-speed packaging checkweighing applications in pharmaceutical, food, health care products, daily chemicals, batteries, light industry and other industries.
Shanghai Shigan Industrial Co., Ltd. was founded in 2010 and is located in Shanghai. Shanghai Shigan has an independent large-scale R&D institution, a complete manufacturing system and a huge marketing service network. It is an international assembly line weighing and metal testing equipment manufacturer integrating R&D, manufacturing, marketing and service. At present, our company's products have passed the CE EU certification and exported to Europe, the United States, Singapore, Thailand and other countries and regions. The products are widely used in food, medicine, daily chemical, chemical, agricultural and veterinary drugs and other industries. Over the years, the company has continued to carry out technological transformations, and the product quality has been significantly improved, which has been highly recognized by customers at home and abroad.
The main products are:
Capsule and Tablet Checkweigher
Checkweigher and Labeling Machine Combo
Checkweigher and Metal Detector Combo
The Delivery Date: After receiving the payment, the delivery date will be within 15-30 working days
Packaging: Protective film + wooden case
Logistics: Air, sea or express (DHL, etc.)
The Freight: The cost of transport depends on the destination, mode of transport and the weight of the goods
Pay: T/T, Western Union, paypal
Shigan's service principle: Shigan's machines have a warranty period of 12 months. During the warranty period, the supplier will repair and replace parts damaged due to quality reasons free of charge. Damage to parts outside the warranty period will be provided. The accessories only charge the cost. If the equipment is damaged by the demander's human factors, the accessories repaired or provided by the supplier are calculated at the cost price.
Shigan's service goal: service quality to win customer satisfaction.
Shigan's service tenet: fast, decisive, accurate, thoughtful and thorough.
