Durable Biscuit Tunnel Metal Detector for Foil Aluminum Pouch
The special design of the biscuit tunnel metal detector structure can effectively avoid interference from external factors such as vibration, noise and product effects. The conveyor can provide a belt conveyor or a modular chain conveyor, and the detection head is also directly installed on the inclined chute for detection. The tunnel metal detector for foil aluminum pouch automatically analyzes the signal characteristics of the product, automatically sets the detection parameters of the specified product, simplifies the parameter setting process, and automatically stores 50 product parameters.

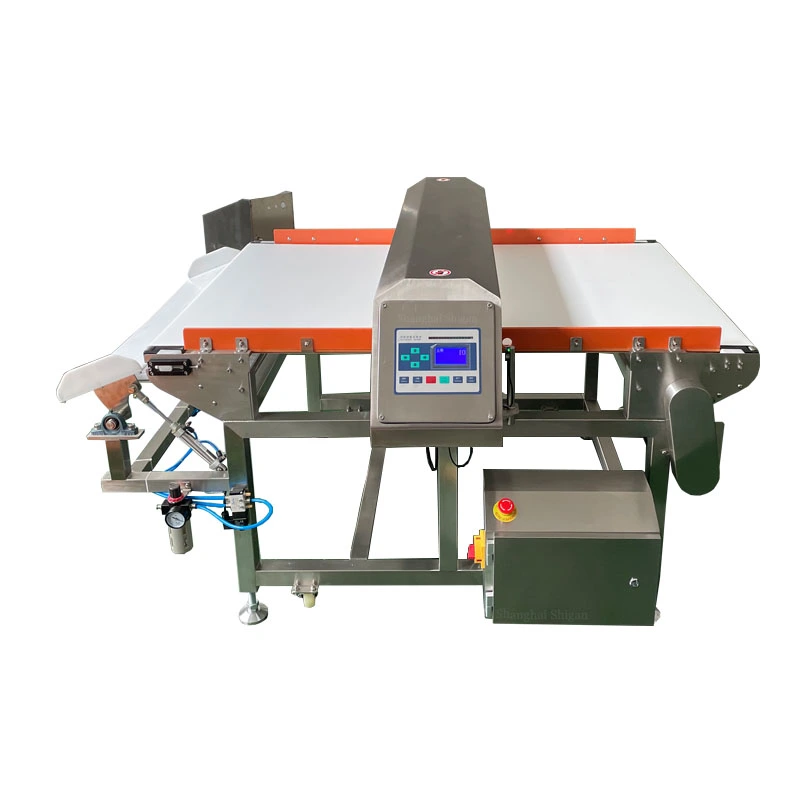

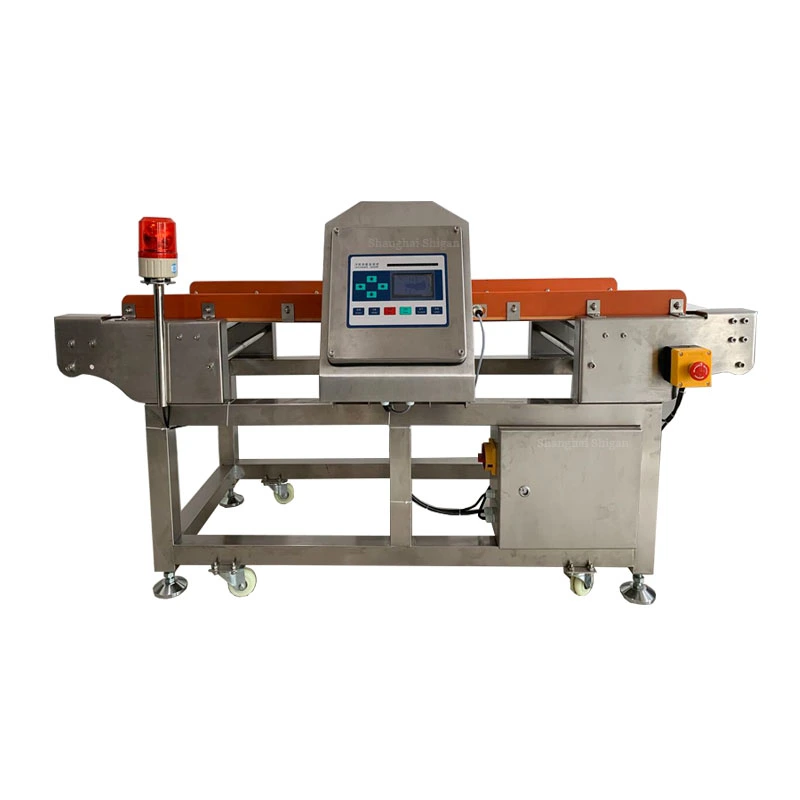

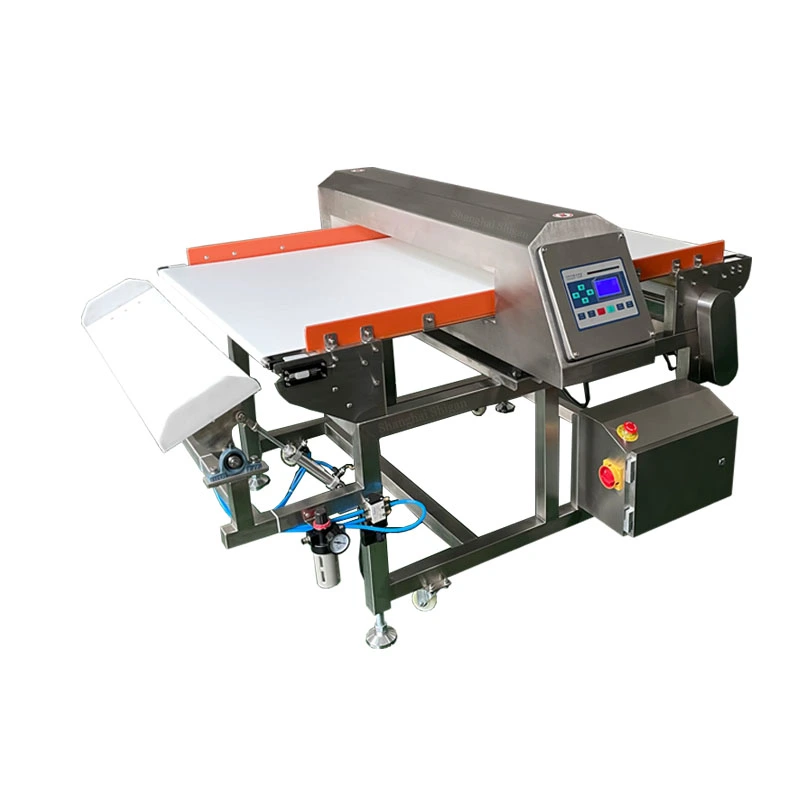

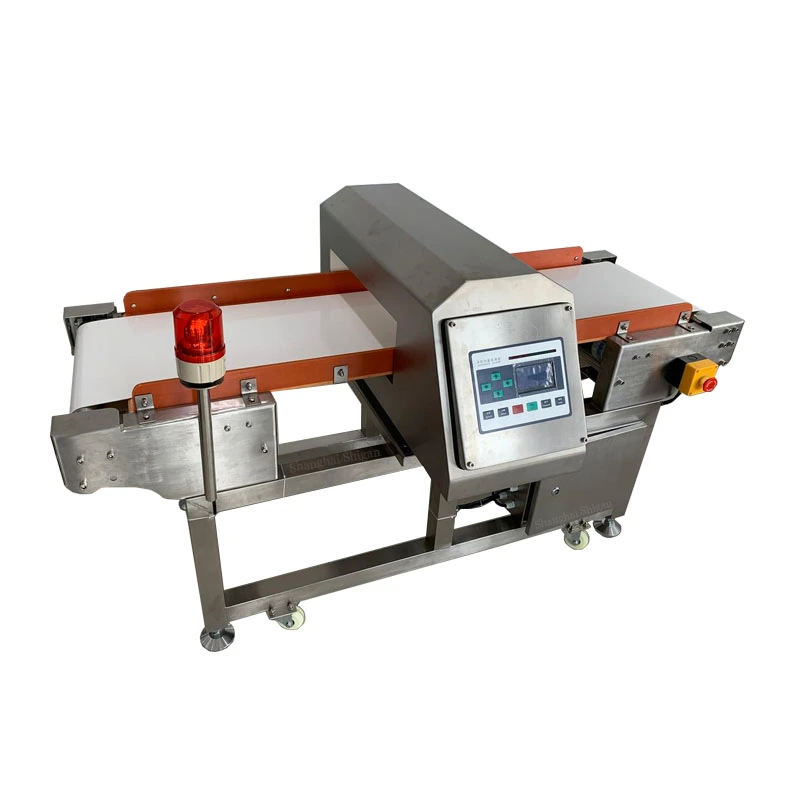

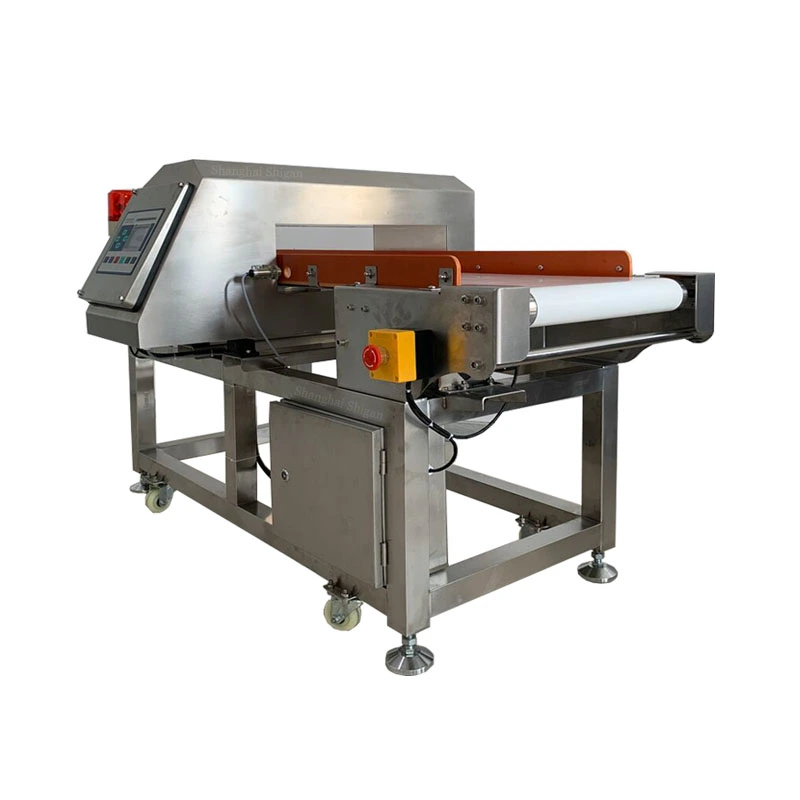

Food metal detection machine photos
1. Adopt intelligent recognition technology, with self-learning and memory functions
2. Good detection effect, equipped with anti-interference system to reduce the impact of other factors
3. Continuous work up to 1 million times, strong and durable
4. Shockproof and waterproof design, dustproof and waterproof function with international certification, can adapt to harsh working environment
5. Adopt leading digital technology and imported chips to carefully develop, with high detection accuracy and stable performance
6. Simple and friendly operation interface, using interactive LCD display, one-time setting can ensure extremely high detection accuracy.
Type: SG-M400 Digital All-metal Detector Machine (Accept custom)
Detection Sensitivity(Empty statue):H 100mm: Fe≥ φ0.8mm, Non-Fe ≥φ1.5mm , SUS≥φ1.5mm; H 120mm: Fe≥ φ0.8mm, Non-Fe ≥φ1.5mm , SUS≥φ2.0mm;H 150mm: Fe≥ φ1.0mm, Non-Fe ≥φ1.5mm , SUS≥φ2.0mm;H 200mm: Fe≥ φ1.28mm, Non-Fe ≥φ2.0mm , SUS≥φ2.5mm
Effective hole width detection: 150-1000mm (Accept custom)
Effective hole detection level: 80-500mm(Accept custom)
Conveyor belt,max speed: 25m/min
Material for conveyor belt: Food grade PU belt
Protection grade: IP65
Display and operation mode: LED flat key input
Deadweight of machine: About 120kg
Powder supply: AC220V 50Hz
Powder: 200w
Alarm way: Alarm and belt stop, or automatically reject
Overall dimensions: About L1500xW850xH950 mm(Design drawing prevail)
Parameters are for reference only. This configuration can also be customized according to customer requirements.
Customized items are as follows:
1. Customized countertop.
2. Customized height.
3. Customized materials.
4. The meter and roller can be wirelessly connected.
5. The meter can have its own USB storage function.
6. The meter can send weight data via Bluetooth.
7. The meter can select the automatic quantitative control output function.
8. External printer function.
9. Built-in upper and lower limit alarm light function.
10. External scanner function.
Durable Biscuit Tunnel Metal Detector for Foil Aluminum Pouch
Tunnel metal detector for foil aluminum pouch is suitable food, medicine, aquatic products, toys, clothing, footwear, chemicals, leather, knitting, printing and other industries detect metal impurities mixed into products or raw materials during the production process. For example: iron, non-magnetic metal objects (gold, silver, copper, aluminum, stainless steel and other non-ferrous metals can be detected), improve product safety factors, and reduce hazards.
Durable Biscuit Tunnel Metal Detector for Foil Aluminum Pouch
1. Packaging materials: Usually international standard export packaging boxes are used, which have good wear resistance, shock resistance and waterproof performance. The box material can be hard wooden boxes, plastic boxes or export-specific cartons.
2. Protective measures: To ensure that the machine is not damaged during transportation, it is necessary to add sufficient filling materials such as foam, shockproof cotton, etc. in the packaging box.
1. Equipment installation and commissioning: The company provides a detailed operation manual and free operation training to ensure that customers can use the equipment proficiently.
2. Technical support: The company provides 24-hour technical support to help customers solve problems encountered during use.
3. Accessories supply: The company provides original accessories to ensure the quality and stability of accessories.
4. Quality assurance: The company is responsible for the products sold and ensures that the quality and performance of the equipment meet industry standards.
5. Warranty policy: One-year warranty and lifetime maintenance to solve worries for customers.
