High Precision Conveyor Check Weigher For Small Bottle Dynamic Checkweigher

Description

High Precision Conveyor Check Weigher For Small Bottle Dynamic Checkweigher

Checkweigher as known as check weigher, check weight machine, check weighing machine, weight checker, weight sorting machine, and etc,.

The unique low center of gravity design of the high precision bottle conveyor check weigher greatly reduces the impact of vibration, thereby improving the detection accuracy. The extremely user-friendly operation interface is convenient and easy to understand. The small bottle dynamic checkweigher is used to detect whether the weight of a single (or a box) product is consistent with the set target, and the sorting device automatically removes substandard products. Our product specifications and sizes are rich, various styles, welcome to contact us for quotation information.

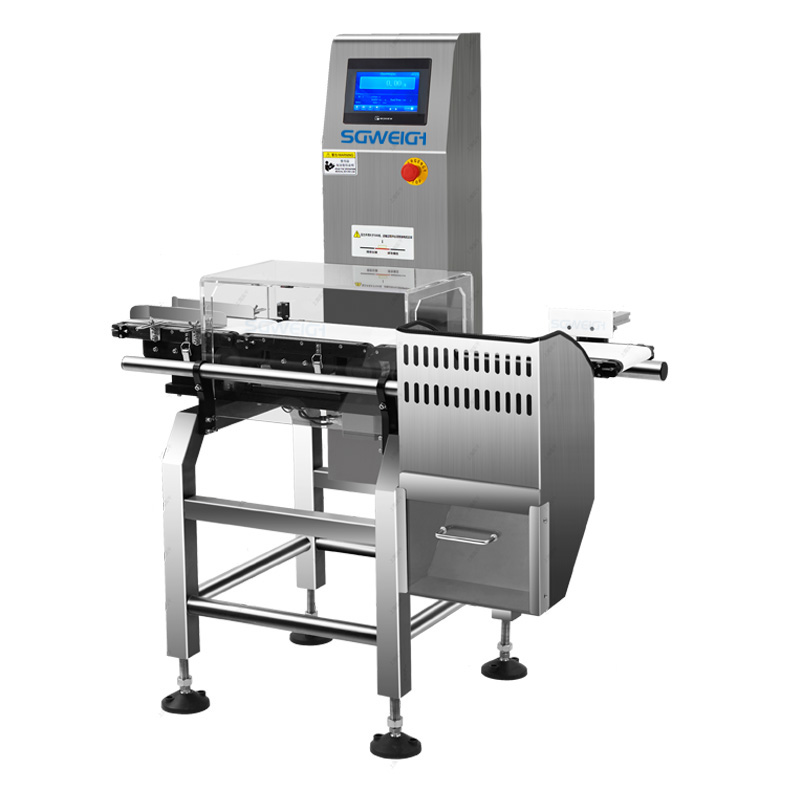

High precision bottle conveyor check weigher photos

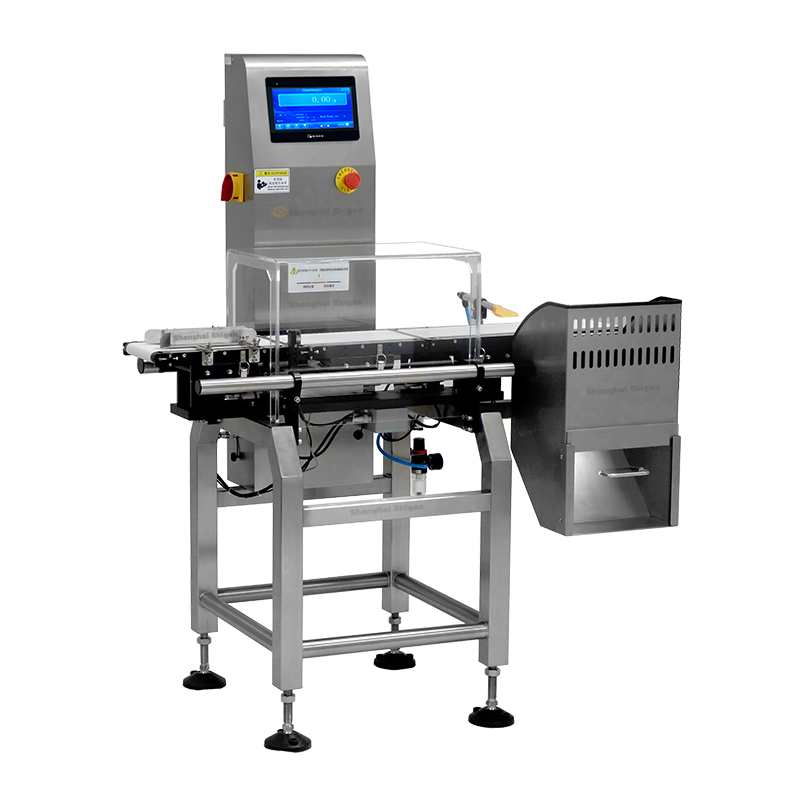

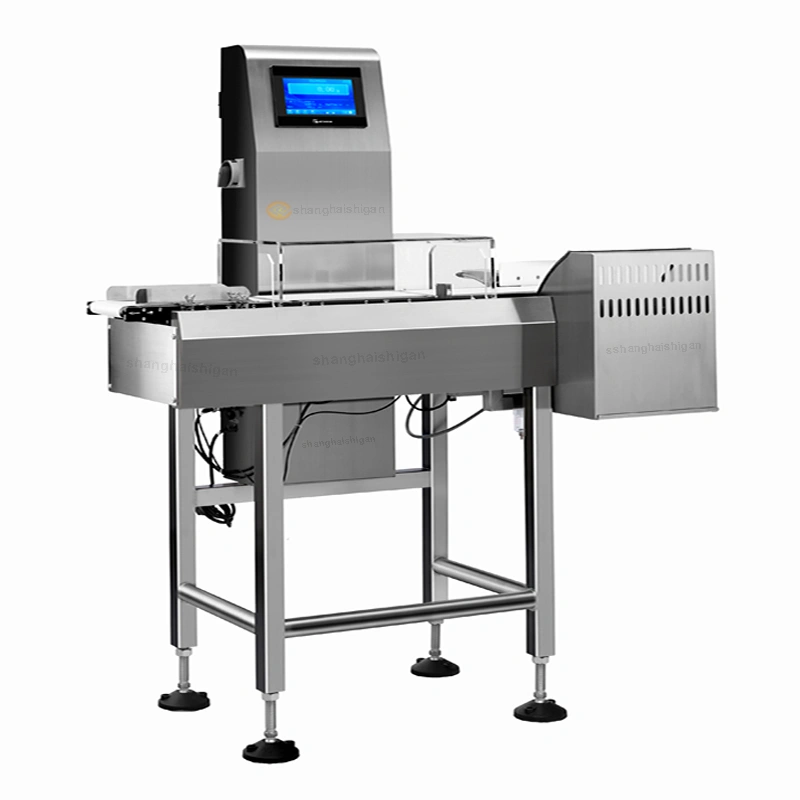

High Precision Bottle Conveyor Check Weigher

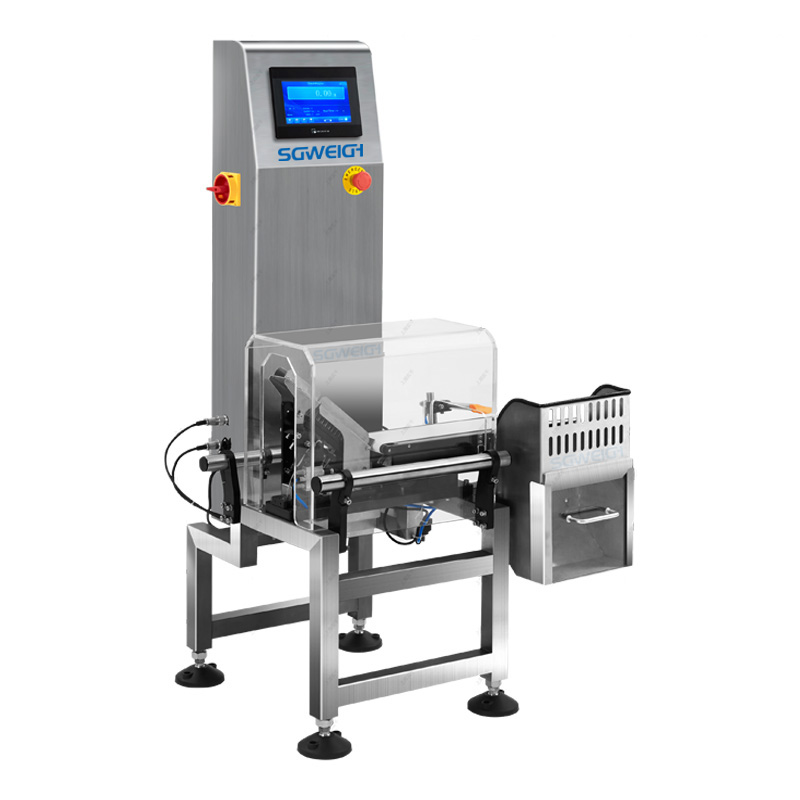

High Precision Check Weigher For Small Bottle

Small Bottle Dynamic Checkweigher

1. Solid stainless steel structure with fully sealed design

2. Structural design meets hygienic requirements

3. High-precision weighing sensor with digital filtering and automatic zero tracking function

4. Automatic zero tracking function

5. Large-capacity product storage function

6. Quick and simple product switching

7. System automatically adjusts belt speed according to product selection

8. Quick release design for both conveyor and conveyor belt

9. User-friendly human-machine dialogue interface

10. Comprehensive data statistics function

Type SG-150U

Weighing Range 3-500g

Limited of product L: 100 W:150 H: 3-200mm

Accuracy ±0.1g Depends on product

Division Scale 0.1g

Belt Speed 0- 60 m/min

Max Speed 150 pcs/min

Belt Width 150mm

Machine Weight 60kg

Power Supply AC 220V ±10% 50HZ

Power 100W

Main Material SU304 stainless steel

High precision bottle conveyor check weigher widely used in dynamic weighing, missing parts, multiple parts detection, etc. in food, medicine, packaging, printing, logistics equipment, IT digital, home appliances, stationery and toys, precision manufacturing, agricultural product processing and other industries

bottle (2).jpg

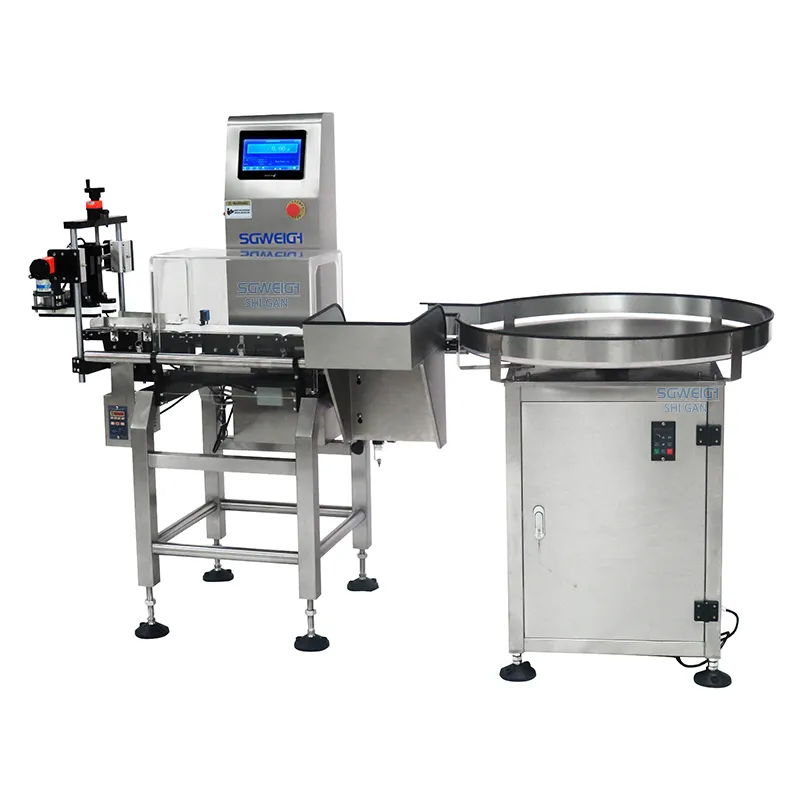

High Precision Conveyor Check Weigher For Small Bottle Dynamic Checkweigher

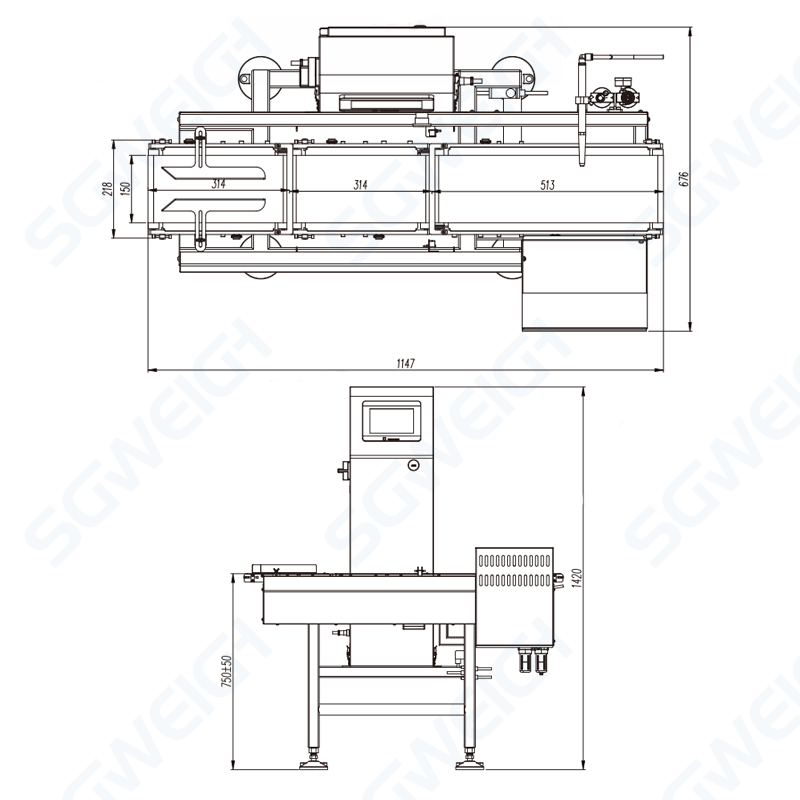

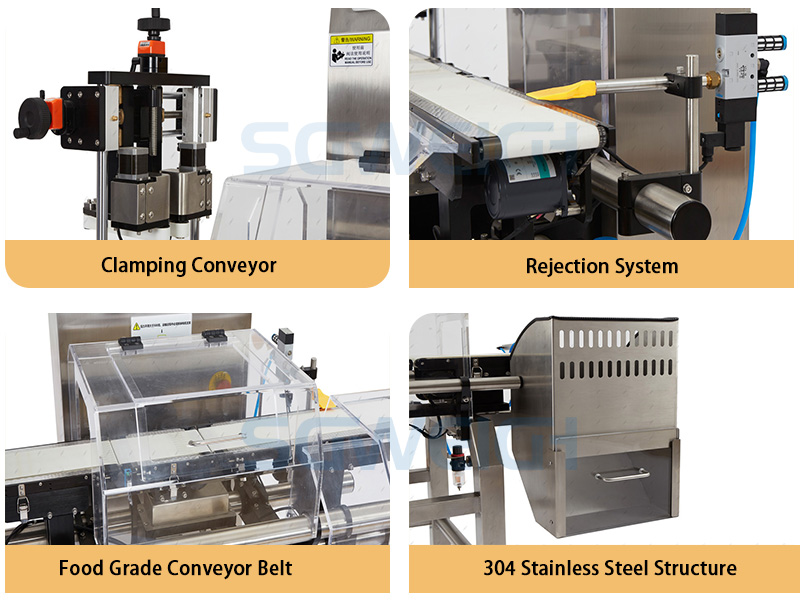

Clamping conveyor checkweigher details.jpg

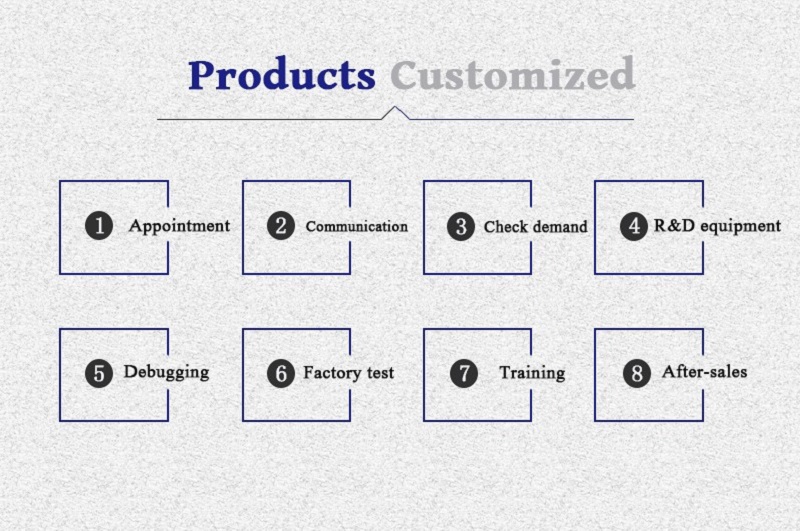

This configuration can also be customized according to customer requirements.

Customized items are as follows:

1. Customized countertops.

2. Customized height.

3. Customized materials.

4. The meter and roller can be wirelessly connected.

5. The meter can have its own USB storage function.

6. The meter can send weight data via Bluetooth.

7. The meter can select the automatic quantitative control output function.

8. External printer function.

9. Built-in upper and lower limit alarm light function.

10. External scanner function.

The high precision bottle conveyor check weigher can ensure that the product will not fall under extremely high running state. This series of bottle checkweigher is designed for round bottle or square bottle with a small diameter and high height than the diameter of the bottle body.


High Precision Conveyor Check Weigher For Small Bottle Dynamic Checkweigher

Packing Detail:

Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.

We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.

Delivery Detail :

Shipped in 25 days after payment

Q1: What is machine warranty?

Machine warranty for one year. During the warranty period, any non-vulnerable part of the machine is damaged. We will replace it for you for free. After the warranty date is issued by the machine, we receive the bill of lading.

Q2: I have never used this online checkweigher machine. How can I control it?

1. Each machine has related operation descriptions.

2. Our engineers can operate through video demonstrations.

3. We can send engineers to on-site teaching. Or welcome you FAT before installation.

Q3: Will you show us the following details when inquiry?

We can.

1. Product size (description/photo/sample can be)

2.accuracy

3. Speed

4. Other requirements
