Combination Metal Detector and Checkweigher System for Block Packing Line
The metal detector and checkweigher combo for packing line combines metal contaminant detection with precision weight detection, detecting even the tiniest metal particles while ensuring that every product meets weight specifications. The combination metal detector and checkweigher system is easy to operate, provides efficient dual detection, has real-time rejection, is equipped with quick-change components and intuitive touchscreen controls, is made of stainless steel, has a very small footprint, and ensures product integrity. Our products have a wide range of specifications, sizes, and styles, providing various customized solutions. Welcome to contact us.

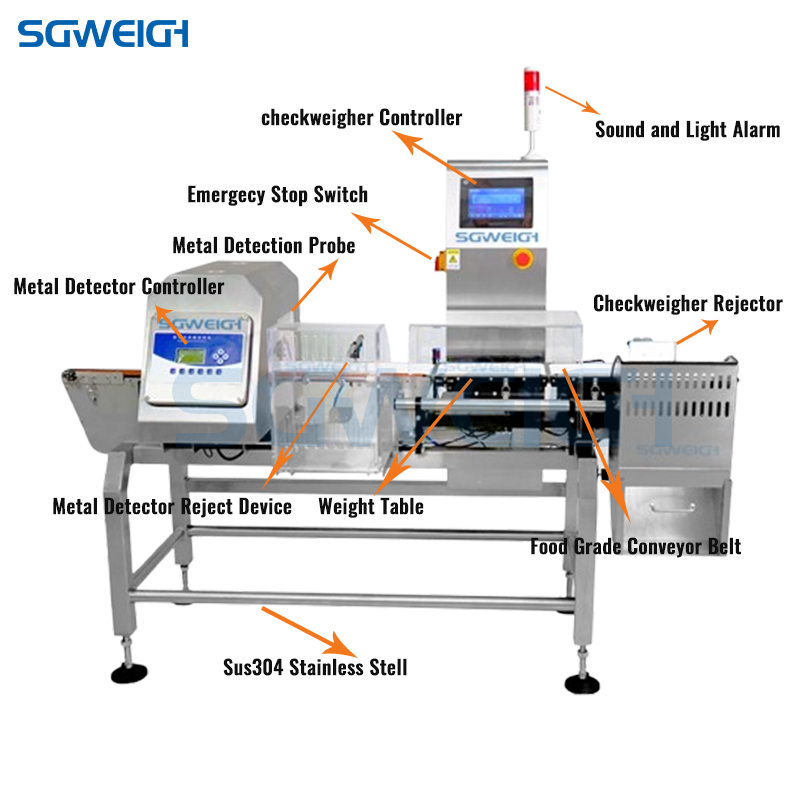

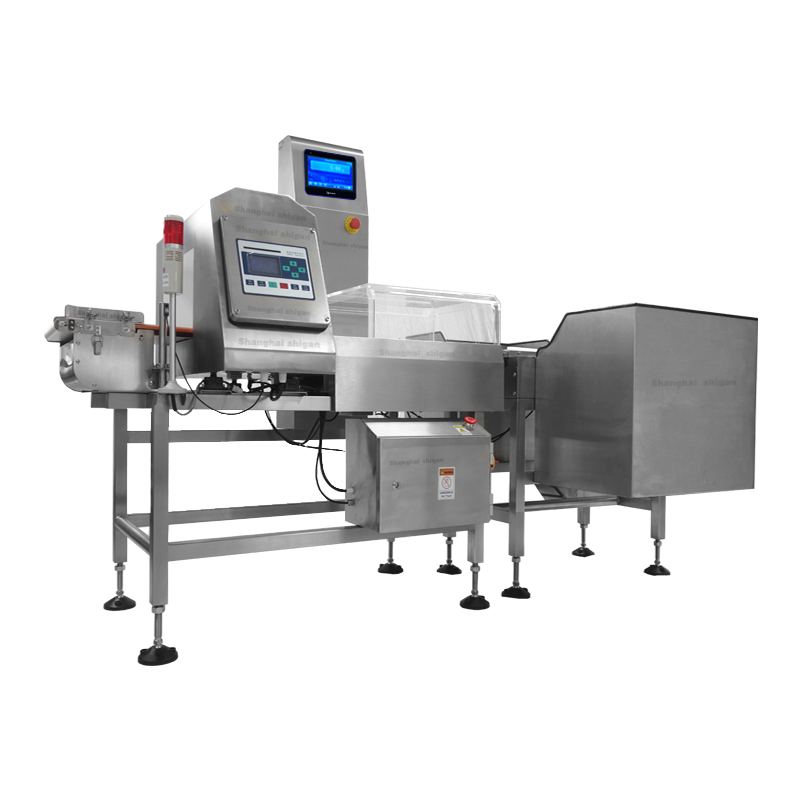

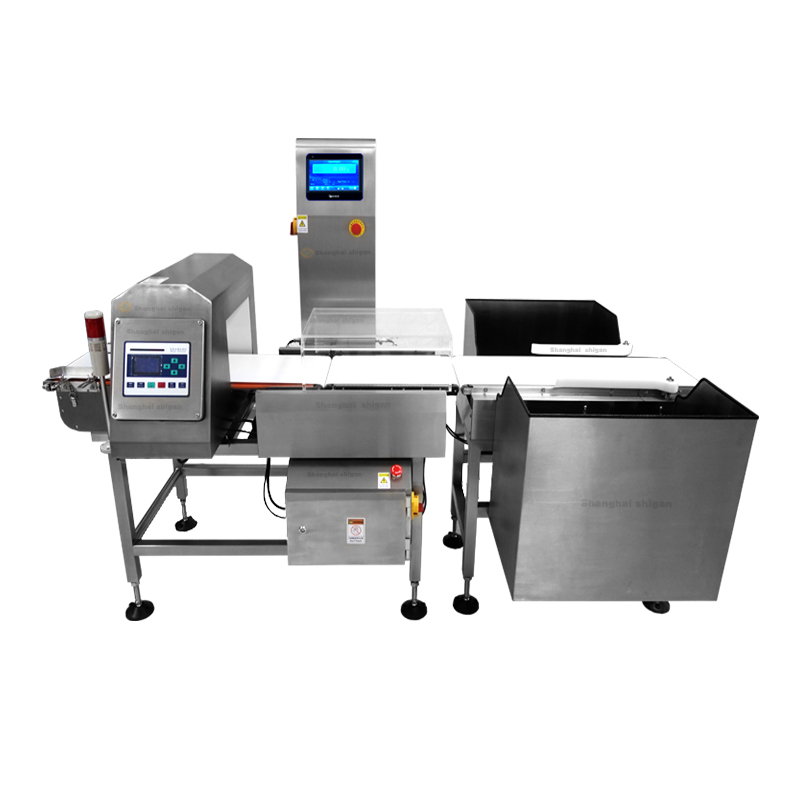

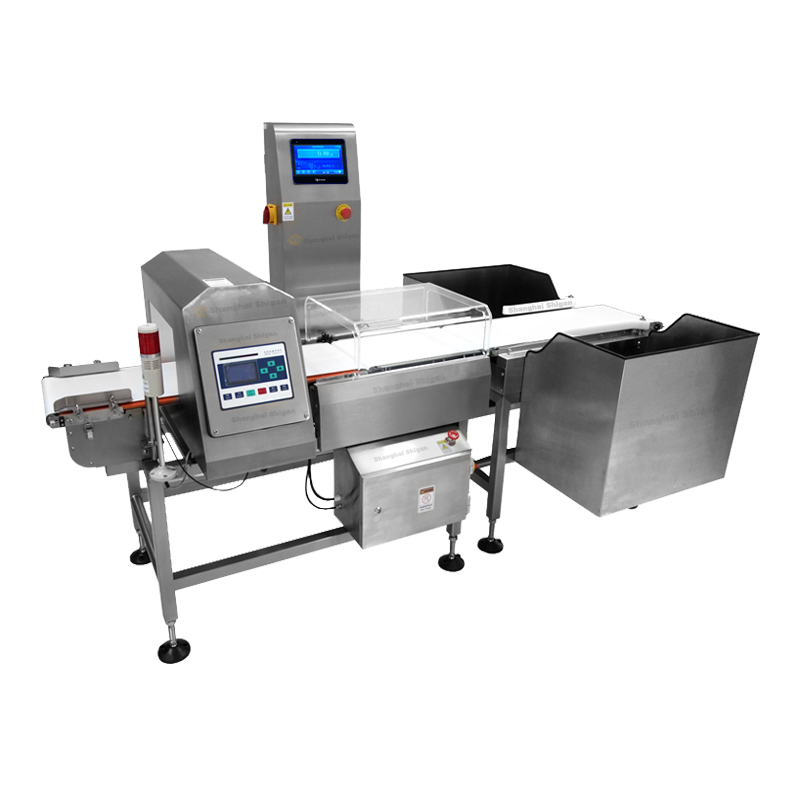

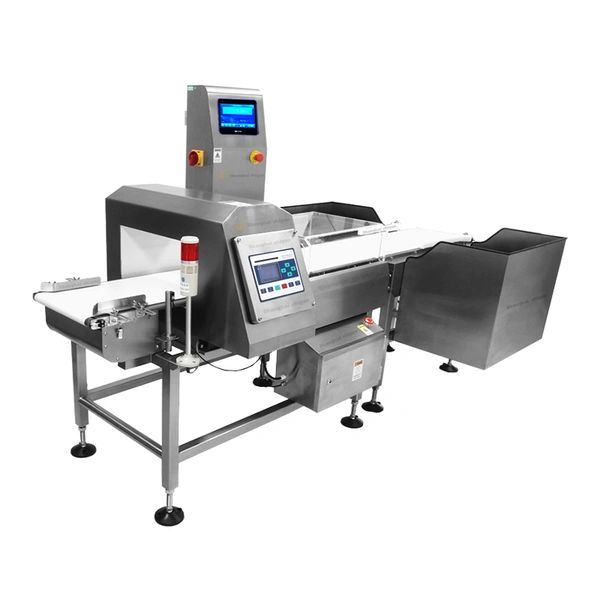

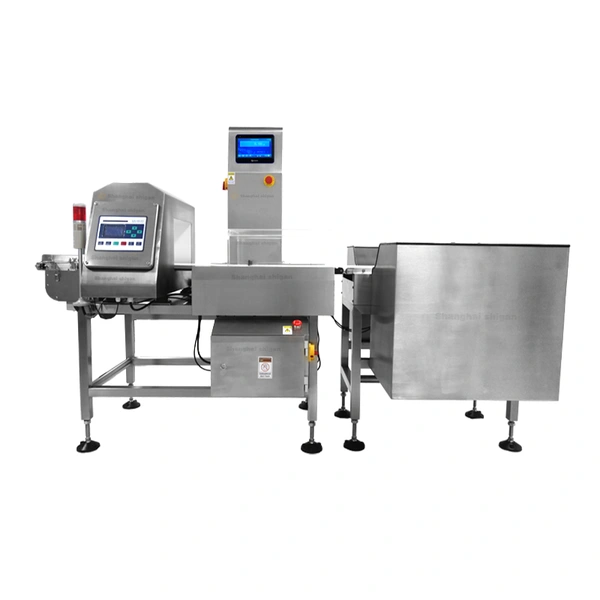

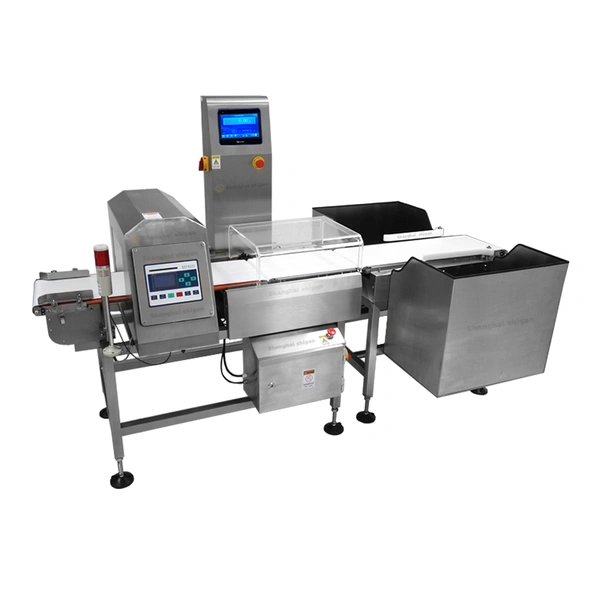

Metal detector and checkweigher combo for packing line photos
Model SG-JS150
Specifications 4010
Detection of hole width detection 150mm
Inspection hole height 100-200mm
Detection sensitivity
In empty state:(H)100mm ;Fe≥Φ0.8mm,SUS≥Φ1.2mm
(H)120mm ;Fe≥Φ1.0mm,SUS≥Φ1.8mm
(H)150mm ;Fe≥Φ1.2mm,SUS≥Φ2.0mm
(H)200mm ;Fe≥Φ1.5mm,SUS≥Φ2.5mm
Effective hole width detection 150mm
Effective hole detection level 100-200m
Weighing accuracy ±0.1g(Depend on product)
Conveyor height 750mm(±50mm)
Transmission capacity 10kg/times
Transfer direction From left to right
Conveyor belt max speed 25m/min
Material for conveyor belt Food grade PU belt
1. Simultaneous detection of weight and metal contaminants, high sensitivity detection of ferrous metals, non-ferrous metals and stainless steel
2. Compact design, seamless integration, designed for high-speed continuous production environment
3. User-friendly touch screen interface, simple operation
4. Automatic rejection of unqualified or contaminated products
5. High-speed operation without compromising accuracy
6. Stainless steel construction, durable and hygienic, easy-to-clean design, ideal for food-grade environments, fully compliant with international food safety standards
7. Advanced data logging and tracking functions, providing comprehensive audit support
8. Real-time alerts, allowing immediate corrective actions
9. Reduce the risk of fines, recalls and customer dissatisfaction
10. Minimal operator training required
Combination Metal Detector and Checkweigher System for Block Packing Line
The metal detector and checkweigher combo for packing line on display may not meet your requirements. We can customize it according to the different usage requirements of users to perfectly solve the problem of checkweighing and metal detecting in the production line.
Metal detector and checkweigher combo for packing line are mainly used for online detection and selection in pharmaceuticals, food, toys, hardware, chemicals and other industries.
1. Detect product weight and remove overweight and underweight products;
2. Detect whether the product is missing parts, such as whether the instructions, tablets, and boxes are missing in the medicine box;
3. Detect whether the product has foreign matter, such as iron wire, lead, copper, stainless steel and other metals and metal impurities in the product;
Combination Metal Detector and Checkweigher System for Block Packing Line

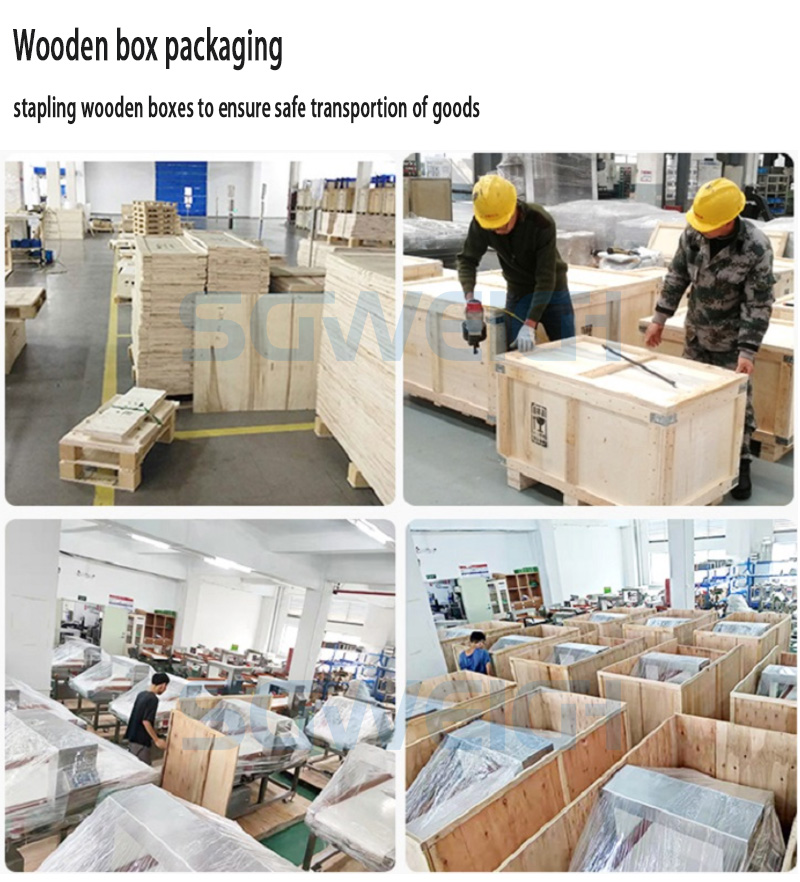

Plastic packaging is used inside, and stronger wooden box will be used for external packaging.
Our standard packing process:
1) Dust removal and cleaning
2) Lubricate driving parts
3) Divide the machine into modules
4) Wrap the modules with plastic film
5) Pack the modules into plywood boxes
6) Mark the shipping mark on the box
If there are any special requirements, we will pack as required.
Consultation and Evaluation: Understand the customer's requirements, production processes and quality control goals, and determine the machine solution that best suits their specific needs.
Product Demonstration: Visually see the operation of the equipment and directly evaluate its performance.
Installation and Commissioning: After purchase, the machine is installed and commissioned by trained technicians to ensure it operates correctly and integrates seamlessly into the customer's production line.
Technical Support: Provide ongoing technical support to resolve any questions, problems or maintenance needs that arise during the operation of the machine.
Warranty Coverage: 1 year warranty, lifetime repair.
We aim to provide customers with the right solutions, support and peace of mind throughout the life cycle of the equipment, ensuring that the machine meets the customer's needs and provides long-term value.

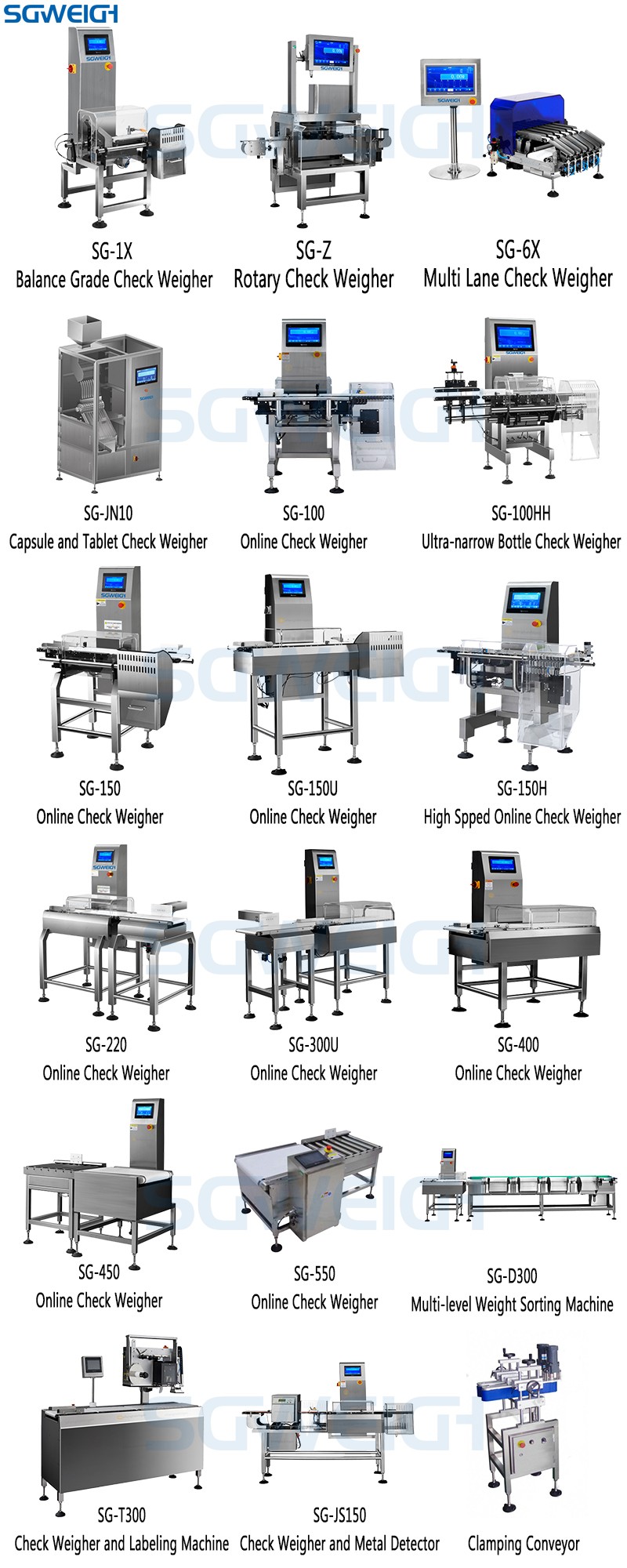

Related Products
