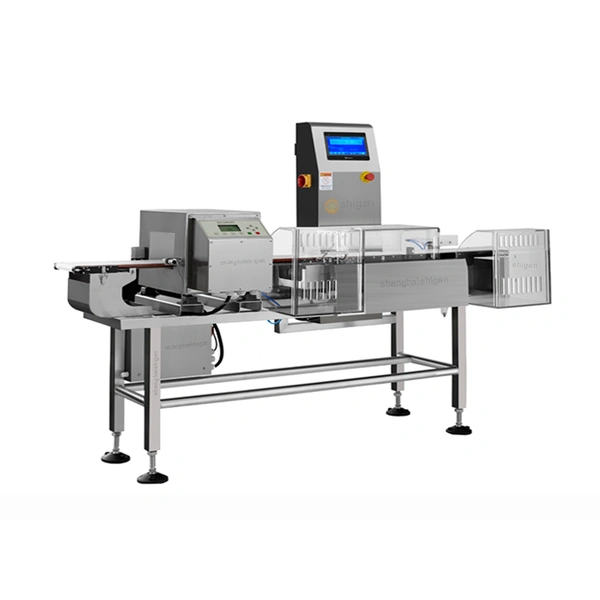

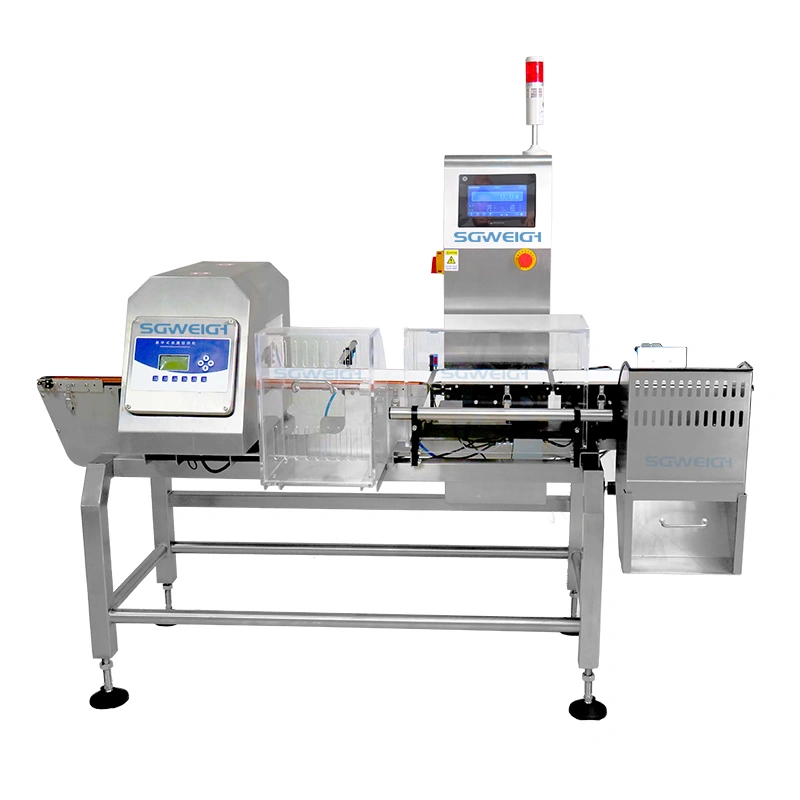

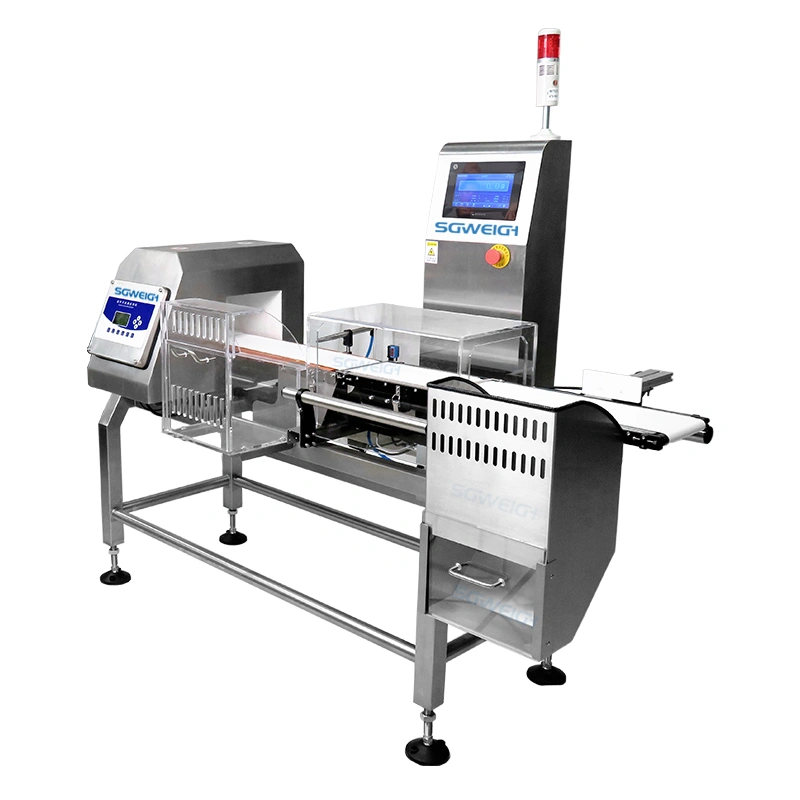

Dual Function Metal Detector and Checkweigher Combo For Quality Control
The dual function metal detector and checkweigher combo is an all-in-one solution that combines advanced metal detection and high-precision checkweighing technology to ensure that your products are free of metal contaminants and meet precise weight specifications before leaving the factory. The automatic metal detector and checkweigher combo is compact, modular, and equipped with a stainless steel housing, making it durable even in areas with high hygiene requirements. Any OEM and customer design orders are welcome! If you are interested in our products, please feel free to contact us.

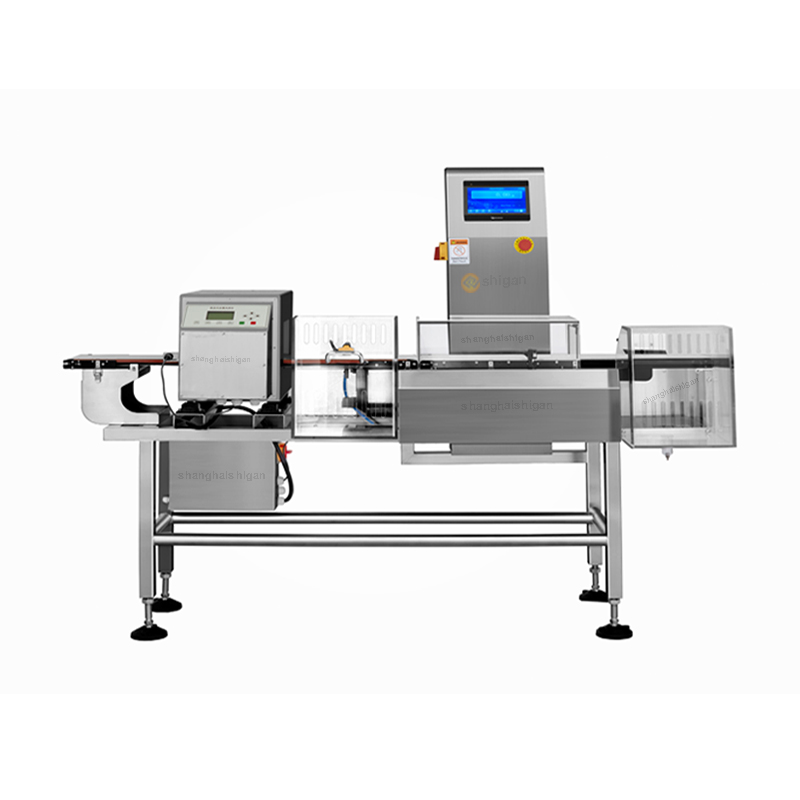

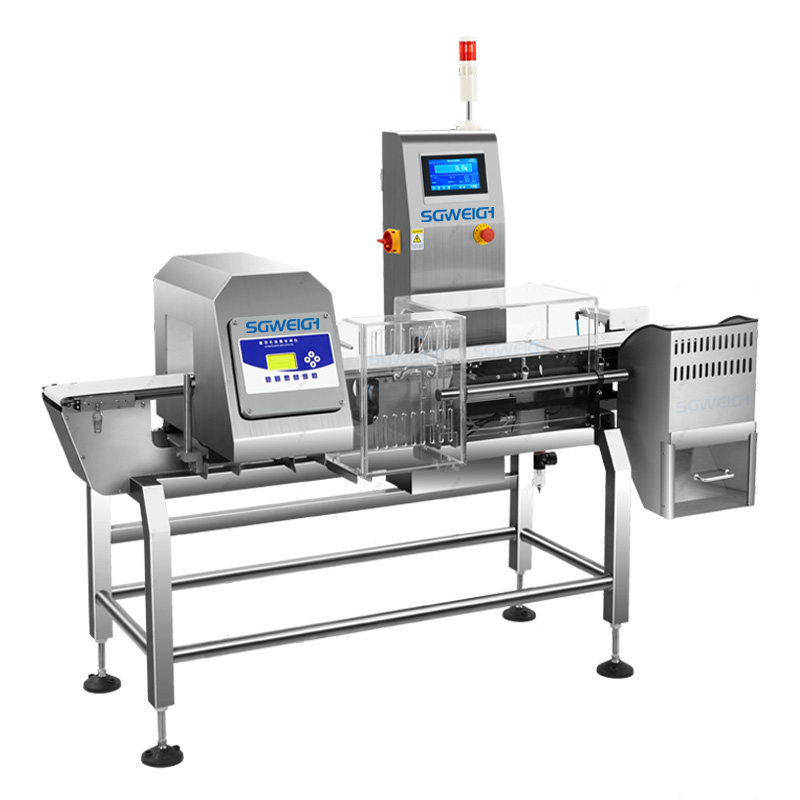

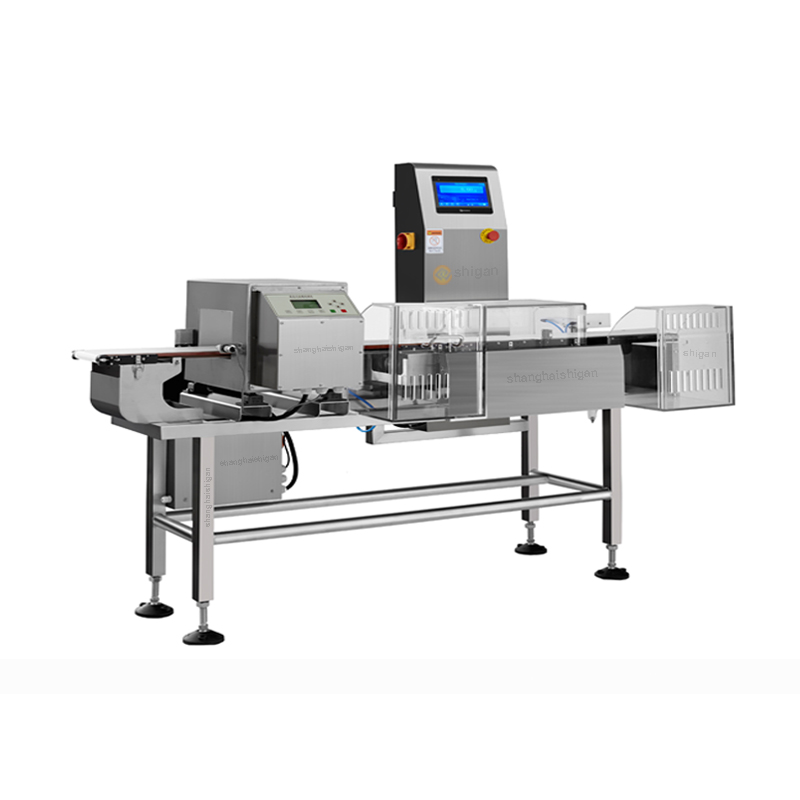

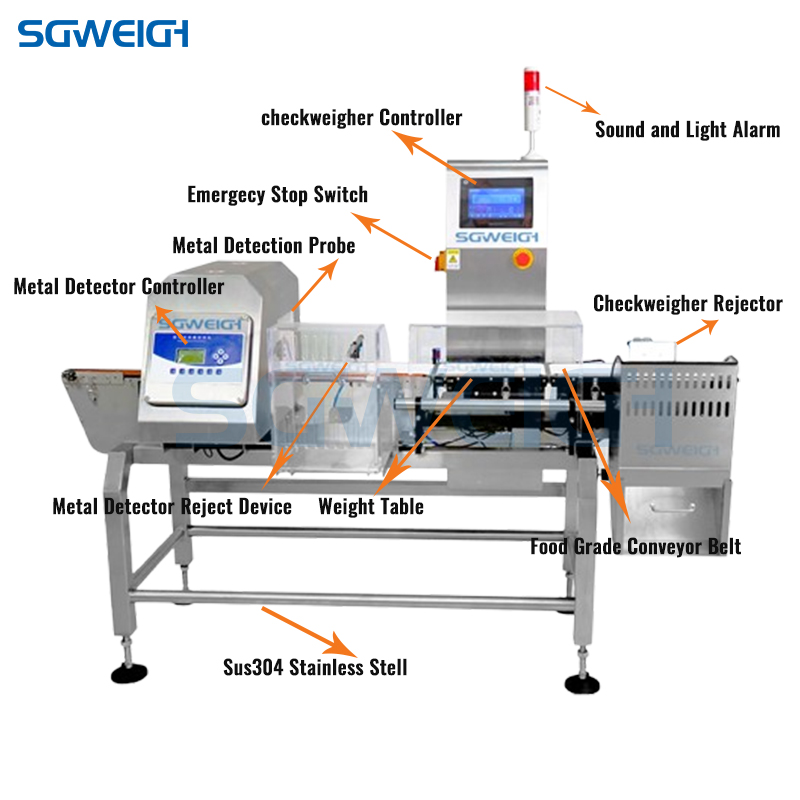

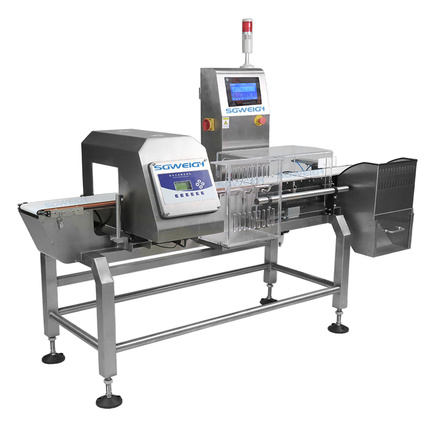

Dual function metal detector and checkweigher combo photos
Model SG-JS150
Specifications 4010
Detection of hole width detection 150mm
Inspection hole height 100-200mm
Detection sensitivity
In empty state:(H)100mm ;Fe≥Φ0.8mm,SUS≥Φ1.2mm
(H)120mm ;Fe≥Φ1.0mm,SUS≥Φ1.8mm
(H)150mm ;Fe≥Φ1.2mm,SUS≥Φ2.0mm
(H)200mm ;Fe≥Φ1.5mm,SUS≥Φ2.5mm
Effective hole width detection 150mm
Effective hole detection level 100-200m
Weighing accuracy ±0.1g(Depend on product)
Conveyor height 750mm(±50mm)
Transmission capacity 10kg/times
Transfer direction From left to right
Conveyor belt max speed 25m/min
Material for conveyor belt Food grade PU belt
Protection grade IP65
Display and operation mode LCD flat key input
Deadweight of machine About 240kg
Power supply requirements AC 220V 50HZ
Power About 300w
Overall dimensions About L2267*W589*H1500mm(Design drawing prevail)
1. High-speed operation: The checkweigher with metal detector combined system is designed to operate at high speed without affecting detection sensitivity or weighing accuracy, and is suitable for fast-moving production lines.
2. Space-saving design: By combining the checkweigher and metal detector into one machine, the system saves valuable floor space in the production facility.
3. Centralized control system: A single user-friendly interface allows operators to monitor and control the checkweigher and metal detector, simplifying operation and reducing training requirements.

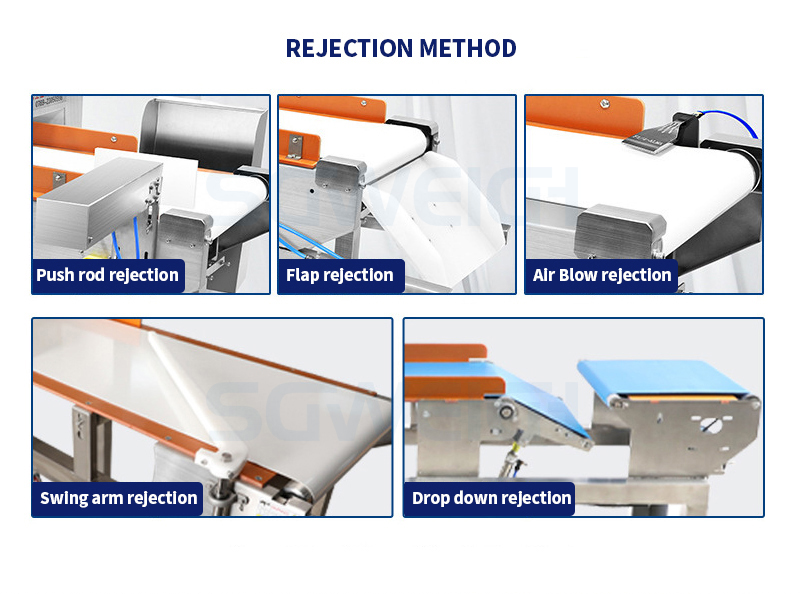

4. Modular design: The dual function metal detector and checkweigher combo can be customized with a variety of conveyor belts, rejection mechanisms, and detection sensitivity options to meet specific production requirements.
5. High sensitivity: The metal detector has high sensitivity and can detect the smallest metal particles in the product, ensuring a high level of product safety. The checkweigher provides accurate weight measurement to ensure that the product meets strict quality standards.
6. Improved efficiency: Integrating the checkweighing and metal detection functions into one unit reduces the number of detection stages, saving time and increasing production capacity.
7. Cost-effectiveness: By consolidating two systems into one, companies can save on equipment costs, maintenance, and floor space.
8. Enhanced product safety: The dual detection system not only ensures that the product is weighed correctly, but also that it is free of potentially dangerous metal contaminants.
Dual Function Metal Detector and Checkweigher Combo For Quality Control
A dual function metal detector and checkweigher combo is a specialized piece of equipment used across a variety of industries, particularly the food, pharmaceutical and cosmetic industries, to ensure product quality, safety and compliance.
The design of the dual function metal detector and checkweigher combo should take into account factors such as the speed of the production line, the accuracy of the detection, and the impact on the material. It can be customized according to specific requirements.

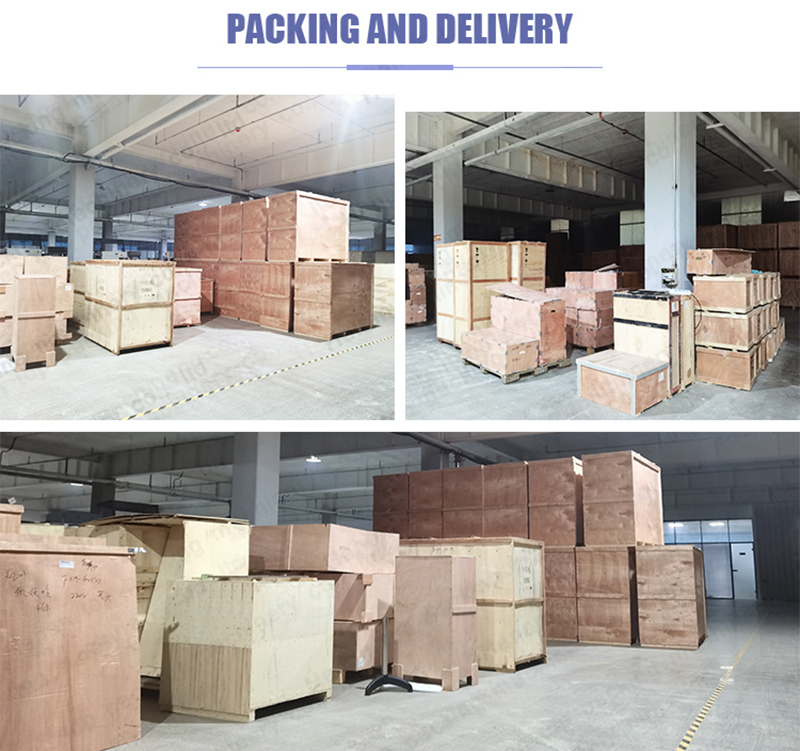

Plastic packaging is used for the inner packaging, and a stronger wooden box will be used for the outer packaging.
Our standard packaging process:
1) Dust removal and cleaning
2) Lubricate drive components
3) Divide the machine into modules
4) Wrap the modules with plastic film
5) Pack the modules into plywood boxes
6) Mark the shipping mark on the box
If there are any special requirements, we will pack as required.
Dual Function Metal Detector and Checkweigher Combo For Quality Control
12 Months Guarantee
★ 12 months free main parts change (Please return the damaged parts by airmail)
★ Overseas engineers available (You only have to pay part of the freight)
Customization
All our machines can be customized, according to your product's features and your workshop environment, or your production line.
After-sales Service Provided
one year warranty and lifetime maintenance. During the warranty period, accessories damaged by non-human factors will be free of charge; outside the warranty period, accessories will be provided at cost price.
