Feed Granules Pouch Quantitative Packing Machine Multi-head Combined Weigher System Automatic Vertical Packing Equipment
The auto packing machine multi-head combined weigher is a highly intelligent packaging machine that integrates full Chinese (or English) display and uses advanced microcomputer chips to control the photoelectric tracking and correction system. Packing machine multi-head weigher system can save manpower and resources, improve work efficiency, and the overall design meets GMP standards. The unit is composed of automatic packing machine, Multihead weigher, elevator and conveyor. Our product specifications and sizes are rich, various styles, welcome to contact us for quotation information.

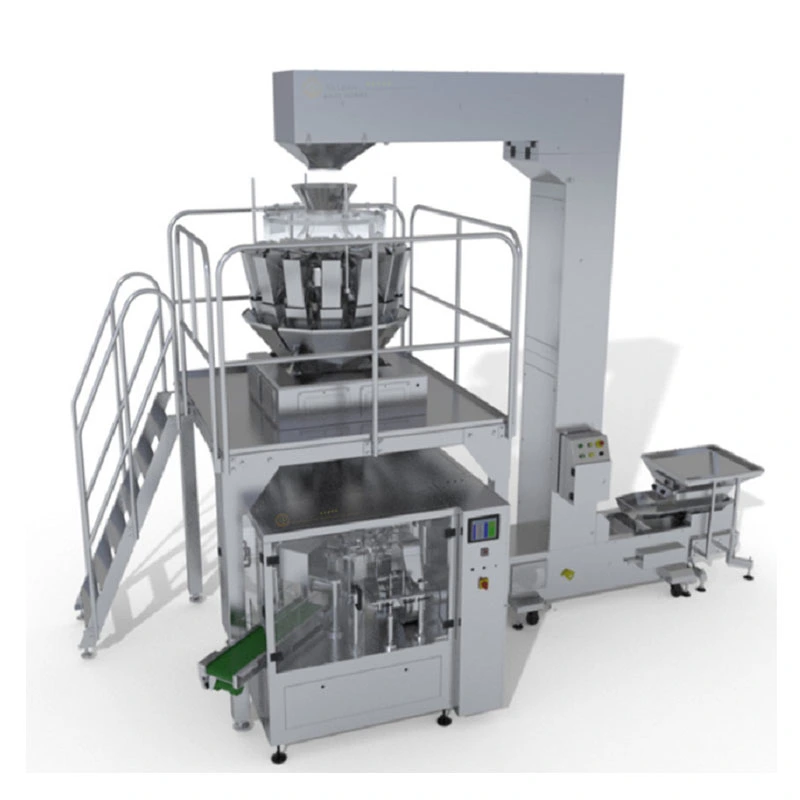

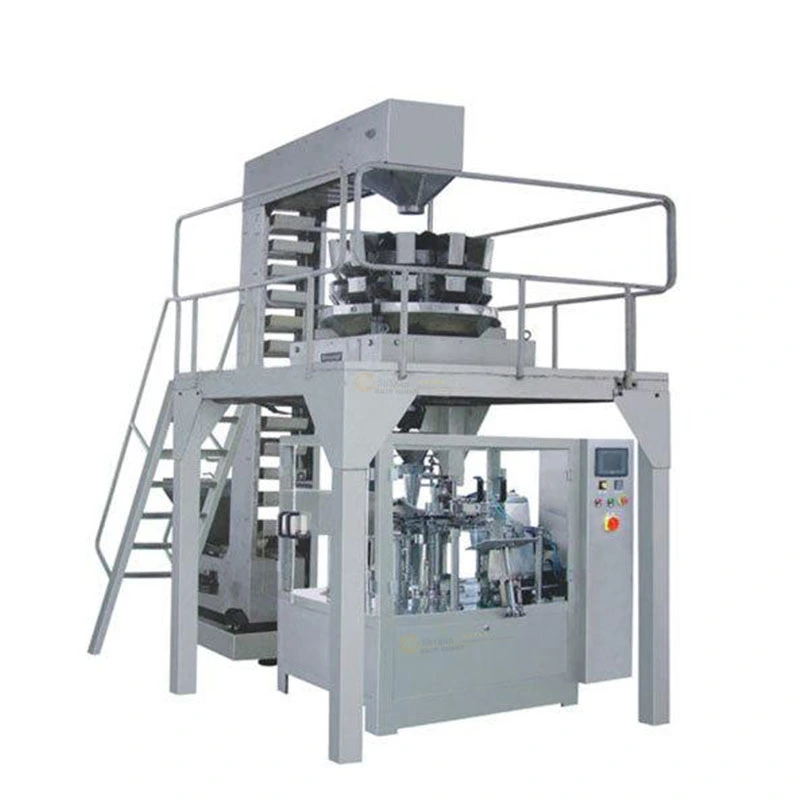

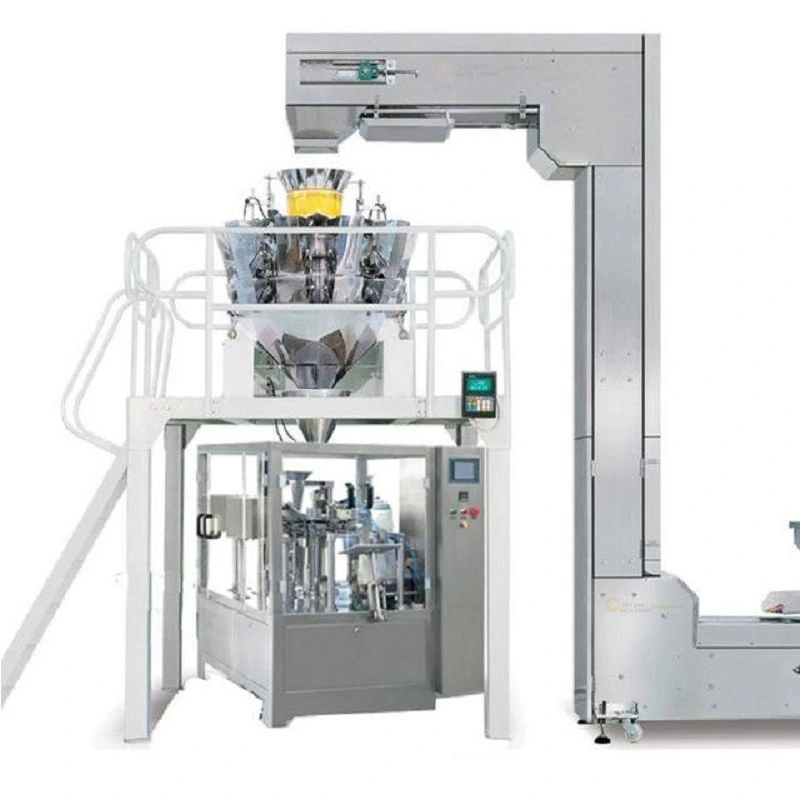

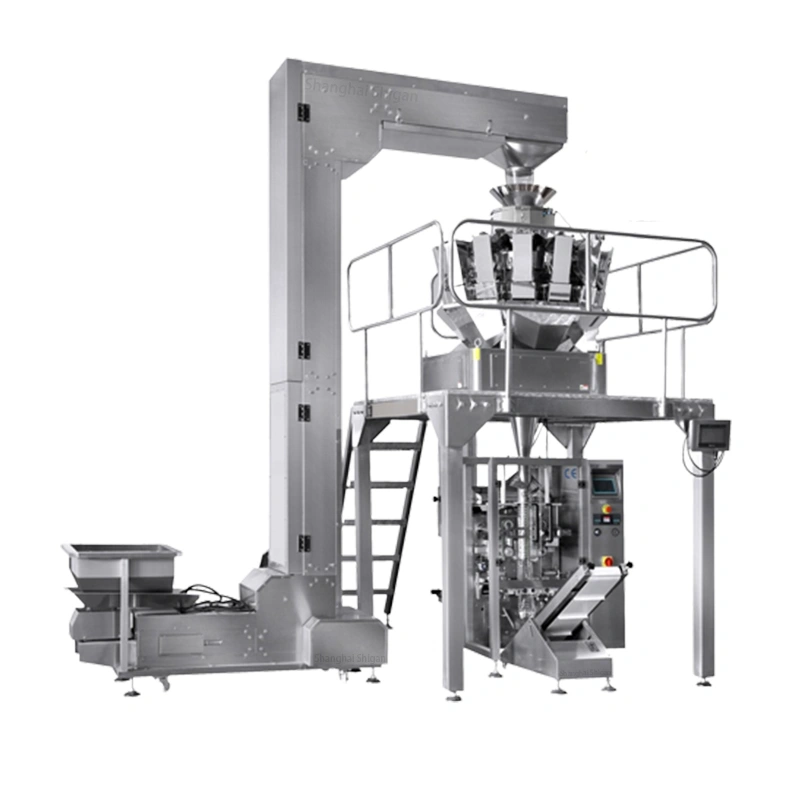

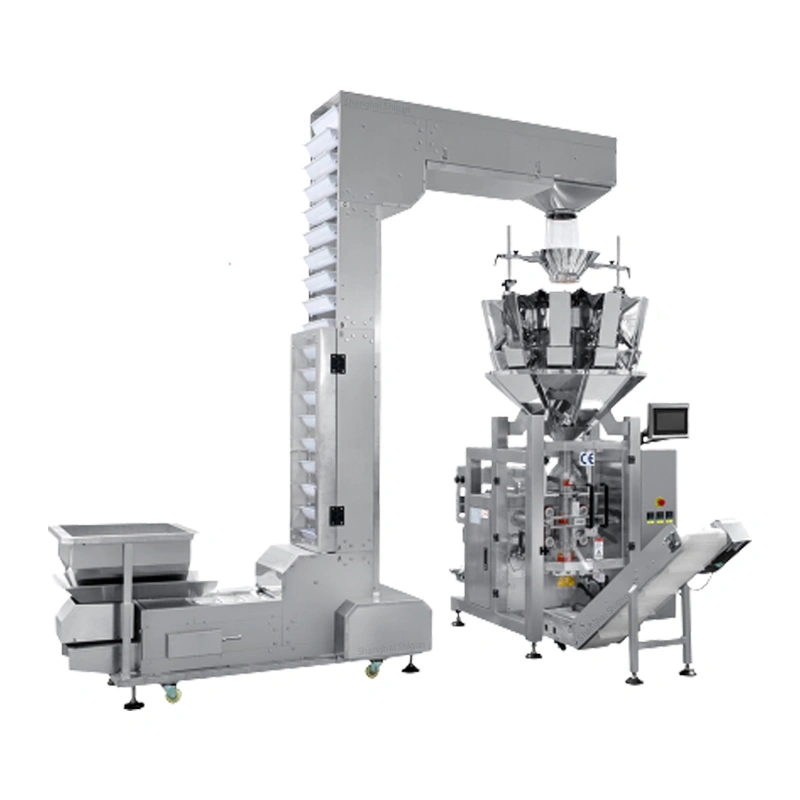

Automatic multihead weigher packing machine pictures
1. The contact part between the machine and the materials is made of SUS304 stainless steel material, with a single-chip microcomputer LCD display screen for intelligent control. The fault alarm and circulating air control box design is suitable for 24-hour operation, variable frequency speed regulation, and meets the EU CE certification standard. It has automatic bag making, measuring, filling, sealing, cutting, and counting.
2. Automatic stop alarm without film, step motor bag pulling, whether fixed length bag making or cursor tracking bag making, set and cut immediately, no need to adjust the air travel, one step in place, time-saving and film saving,.
3. The temperature adopts solid-state intelligent dual channel temperature control independent PID control, which is better suitable for various packaging materials. The automatic opening device of the shutdown heat sealing body prevents packaging materials and materials.
4. Can be equipped with devices first: ribbon printer, inflation device, exhaust device, molding machine tapping device.
5. The transmission Systems science is scientific and simple, the work is more reliable, and the maintenance is more convenient.
6. Packaging materials: polyester/polyethylene (PET/PE), paper/polyethylene (Paper/PE), polyester/aluminum plated/polyethylene (PET/AL/PE), OPP/polyethylene (OPP/PE).
Auto packing machine multi-head combined weigher is suitable for quantitative weighing of various loose solid materials, such as puffed food such as potato chips and crisps, nuts such as walnuts, hazelnuts and pistachios, candy, melon seeds, sweethearts, peanuts, nuts, chocolate and other snack foods, Pet food, small hardware and other granular, blocky and spherical materials.
Film width: maximum 320mm
Bag length: maximum 220mm
Bag width: 50-150mm
Packaging speed: 5-60 bags/minute
Measurement range: 50-500ml
Film thickness: 0.04-0.08mm
Power: 220V 50/60Hz 2KW
Machine size: 970 * 680 * 1950
Machine mass: approximately 300KG
Optional devices: date encoder, punching device (needle hole, round hole, butterfly hole), connecting bag control device, inflation device, exhaust device. Tear gap device, nitrogen inflation device, Gusset bag
The parameters are for reference only
Reminder:
Please tell us the following packaging details when you quote, so that we can check whether this model is suitable for you. We will provide different weighing and packaging solutions according to your requirements. Thank you
1. Product Details (What is your product?)
2. Bag size (width * length)
3. Bag type (pillow side pocket, crotch pocket, upright pocket, zipper pocket?)
4. Target weight per bag
Shanghai Shigan is located in Shanghai, China, with a young team specializing in the development and production of packaging machinery and equipment for pharmaceuticals, food, pesticides, daily chemicals, and chemical industries. Introduce domestic and foreign technologies and continuously improve products. Our products are distributed throughout the country and exported to various parts of the world such as the Americas, Europe, Africa, and the Middle East. We provide quality tracking services, free maintenance during the warranty period, and lifelong maintenance. Our main products: automatic packing machine, packing machine multi-head weigher system, multi-head weigher, linear weigher, check weigher, metal detector, weighing filling machine, vacuum packing machine, and a series of assembly line packaging testing equipment.
-Fumigation certification for wooden packaging used for overseas shipment
-Internal plastic film wrapping protects goods from salt, wind, or damage
-Shipping terms: EXWORK, FOB, C&F, CIF sea or air freight terms
The business philosophy of Shanghai Shigan Industrial Co., Ltd. is: "The same product quality, the same quality price, and the same price service
Our service tenet: the spirit of Shanghai Shigan, high-quality products, low prices, and thoughtful service.
Our service guarantees three aspects: quality assurance, time assurance, and price assurance.
We solemnly promise: to guarantee good products, good quality, low prices, and perfect services
