Capsule & Tablet Weight Inspection Machine 25-Channel Conveyor Checkweigher
This capsule tablet weight inspection machine is equipped with 25 detection channels, each with micron-level precision. Designed for high-volume production, it verifies weight in real time, identifying underweight, overweight, or missing units before the product enters packaging. This capsule tablet 25-channel checkweigher is designed for harsh pharmaceutical environments, supporting continuous high-speed operation while maintaining stable and reliable performance. Our products have a wide range of specifications, sizes, and styles, providing various customized solutions. Welcome to contact us for a quote.

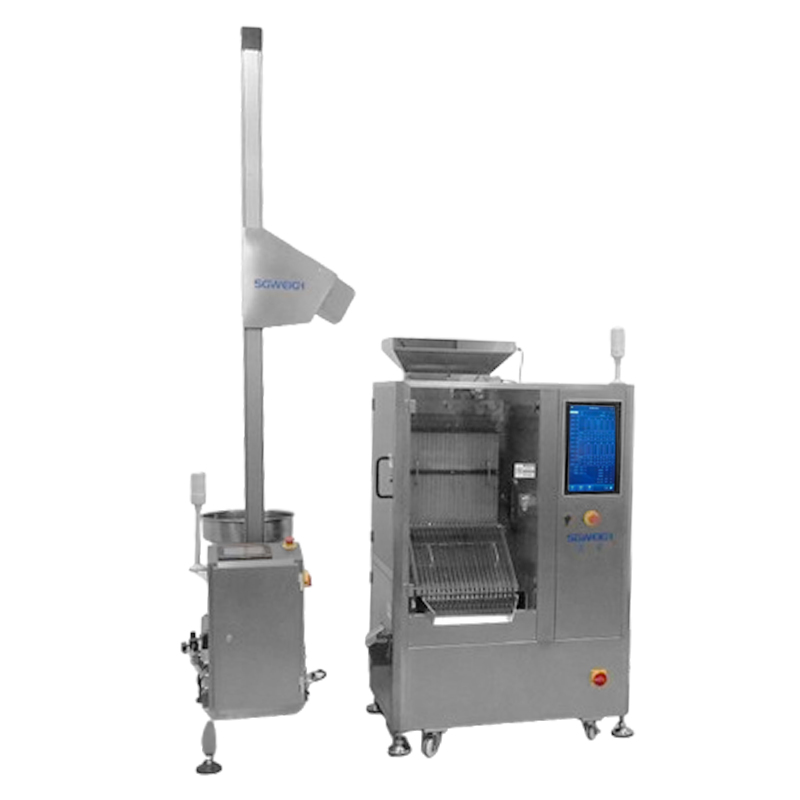

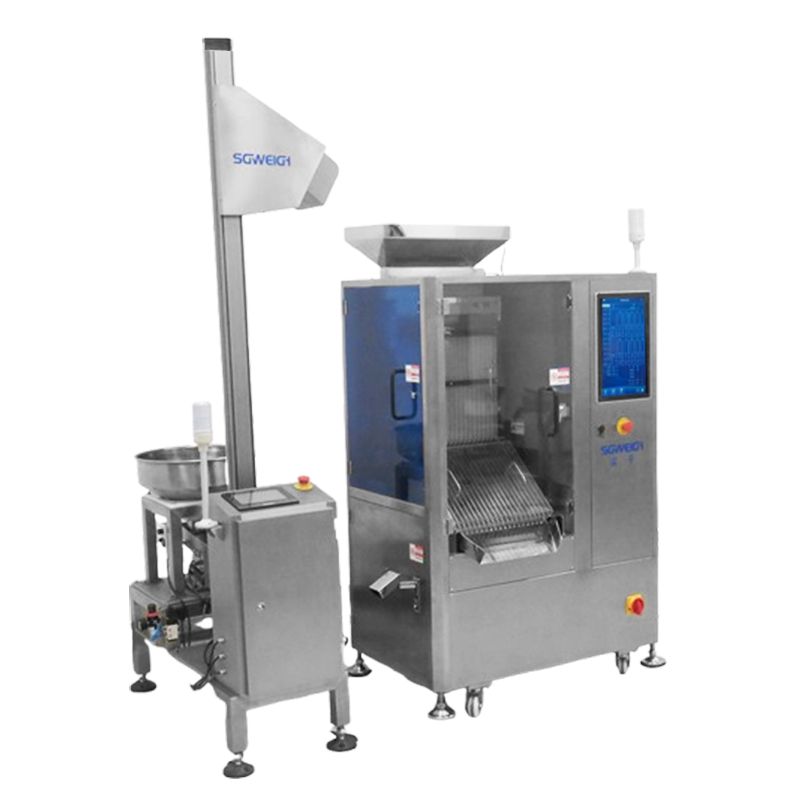

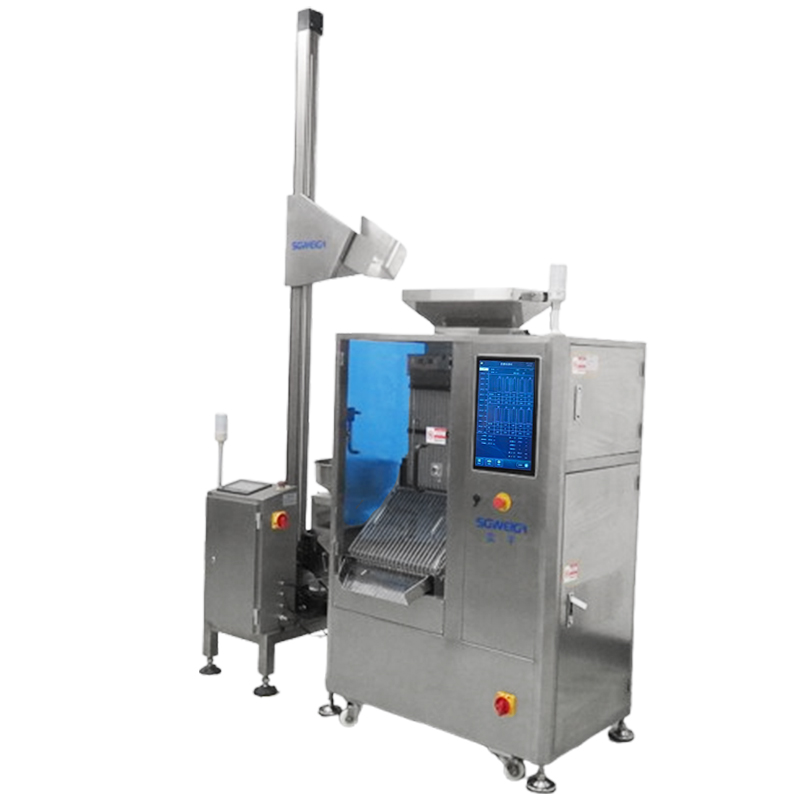

Capsule tablet weight inspection machine photos
Equipment model CM is ±1.0-2000
Design capacity 2000 tablets/minute (120,000 tablets/hour)
Actual capacity >120,000 tablets/hour
Weighing scale 10~2000mg
Resolution 0.1mg
Dynamic accuracy ±1.0mg (actual operation accuracy ±1.0mg, minimum ±1.5mg)
Applicable materials Capsules 000#~5#, conventional tablets
Working voltage AC220V/50Hz
Control voltage DC24V
Rated power 0.6KW (main machine 0.3kw, each single machine 0.15kw)
Working pressure 0.6~0.8 Mpa
Gas consumption 0.1m³/min
Equipment weight 200kg (main machine 60kg, single machine 70kg)

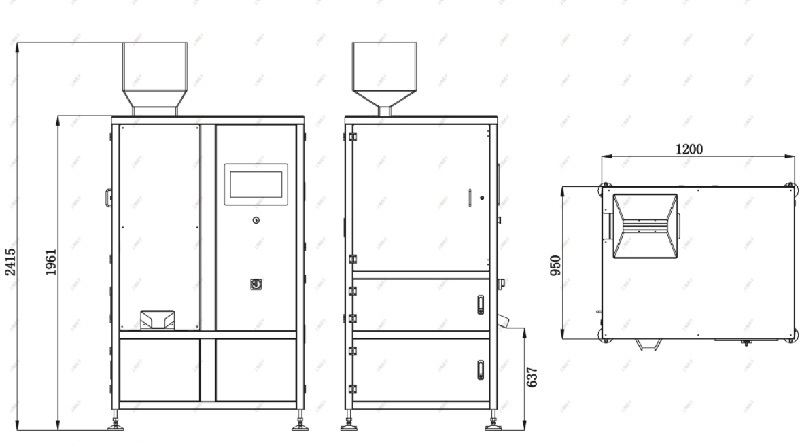

Overall dimensions 740*350*1480mm (main unit width 350mm, stand-alone unit width 190mm)
1. High-precision weighing: Equipped with a high-precision weighing sensor, it can accurately measure the weight of a single capsule, with an accuracy down to the milligram level.
2. Multi-specification weighing: The capsule tablet weight inspection machine can sample and weigh capsules or tablets of different specifications after sorting.
3. Access control: The equipment's interface operating system features three-level access control, allowing different permissions to be set for different personnel.
4. Automated operation: Capsule tablet 25-channel checkweigher can automatically complete capsule feeding, weighing, sorting, and rejection of defective products.
5. Reduced processes, improving production efficiency.
6. Rapid testing: Faster testing speed, adaptable to high-efficiency production lines, ensuring no disruption to the overall production process.
7. Sorting function: The capsule tablet checkweigher can automatically separate defective capsules (overweight or underweight) from qualified products according to preset weight standards.
8. Data recording and traceability: It can record weighing data, facilitating product quality traceability and statistical analysis.
Capsule & Tablet Weight Inspection Machine 25-Channel Conveyor Checkweigher
Capsule tablet 25-channel checkweighers have adjustable settings and can detect the weight of different capsule sizes (from #00 to #5) and regular tablets online.

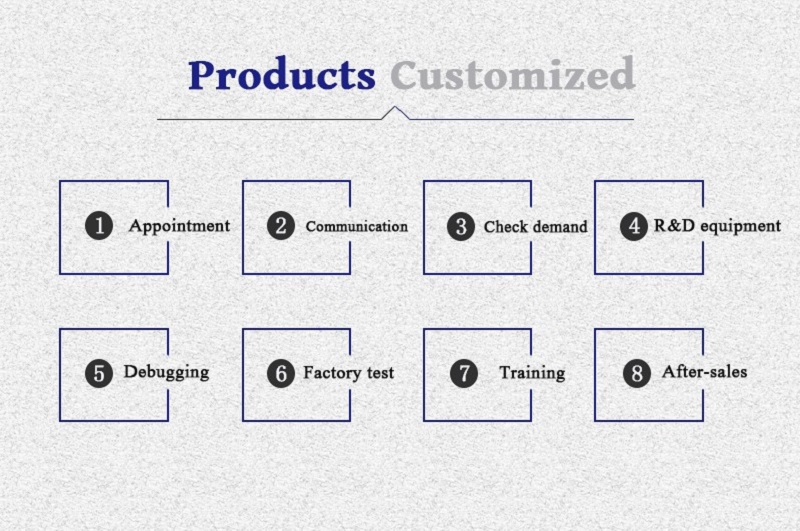

Our goal is to provide you with the perfect capsule tablet checkweighere solution, customized to your needs. The number of inspection rows can be customized. Please tell us about your capsule/tablet materials, dimensions, speed, expected output, etc., so we can provide you with a suitable model. We will do our best to resolve any other technical requirements.
Capsule & Tablet Weight Inspection Machine 25-Channel Conveyor Checkweigher
Packaging:
1. Outer Packaging: Standard export wooden crates
2. Inner Packaging: Products are carefully wrapped with stretch film, and the corners are secured with hardwood boards and strong bandages.
3. Inspection Team: Professional personnel will inspect and sort your shipment.
1. Is your company a trading company or a factory?
Factory + Trading (integrated), 17 years of experience focusing on capsule tablet checkweighers and exporting. We also accept OEM.
2. How to choose the most suitable product?
Just tell us what kind of test you need and the required specifications, and our professional team will give you the best advice.
3. What is the delivery time?
Most of the time, our factory has stock. If not in stock, the delivery time is usually 15-20 working days after receiving the deposit. If you have urgent needs, we can consider making special arrangements for you.
4. Do you accept customization services?
Yes, of course. We can provide not only standard machines but also customized machines according to your requirements. Don't hesitate to tell us your requirements, and we will do our best to meet your needs.
5. Can we visit your factory before ordering?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory.
6. What is your warranty period?
Our warranty period is 1 year, with lifetime maintenance.
