The automatic liquid packing machine adopts advanced high-performance dual frequency converter and PLC control system, the equipment operation interface is clear, the operation mode is simple, and the operation instructions are simple and easy to understand. The sachet bag auto packing machine is equipped with a color touch screen, which can quickly set and modify various parameters.Our product specifications and sizes are rich, various styles, welcome to contact us for quotation information.

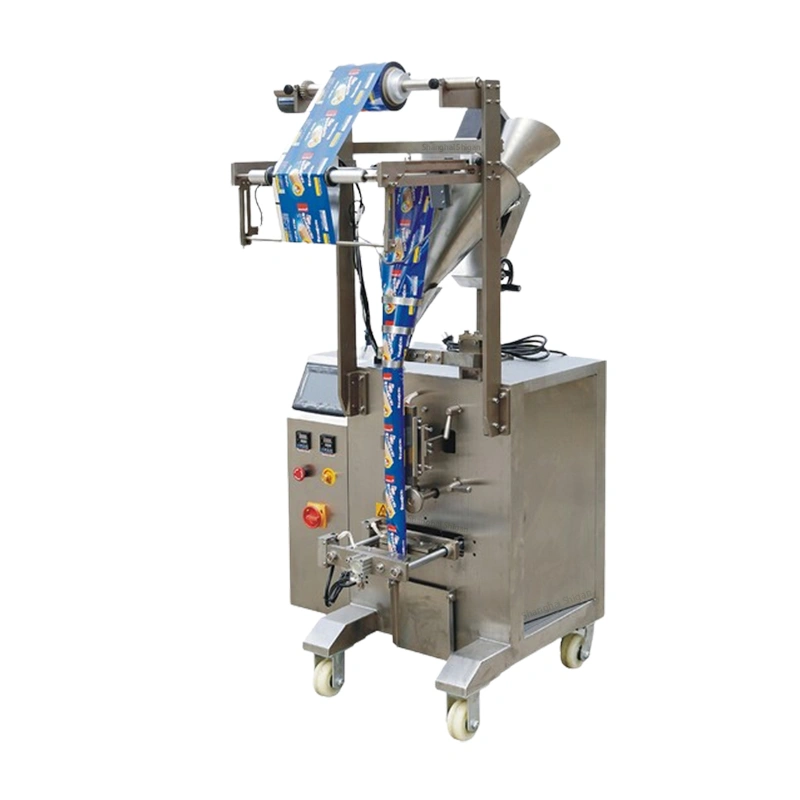

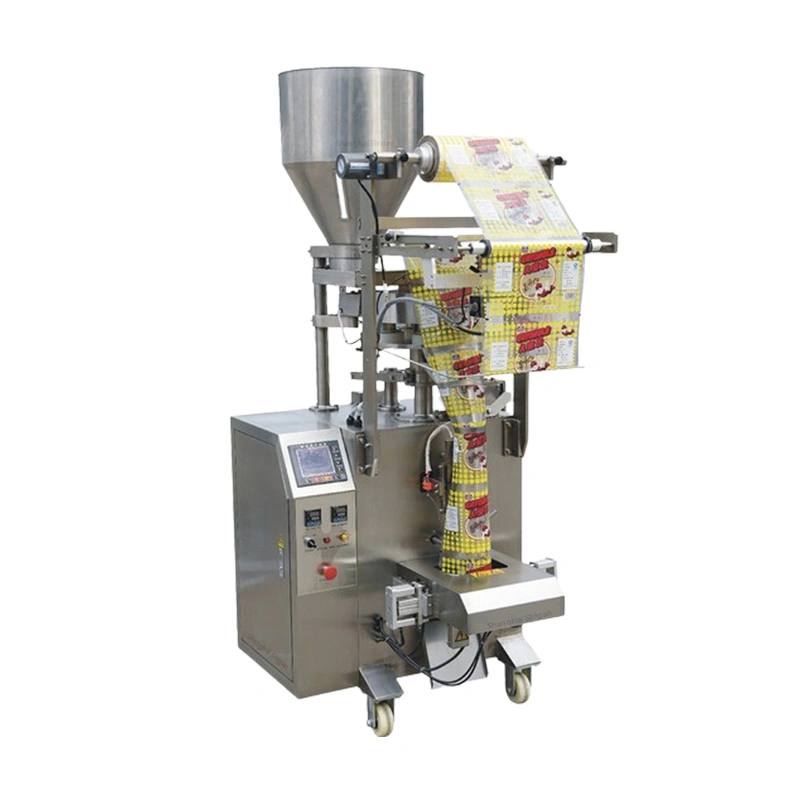

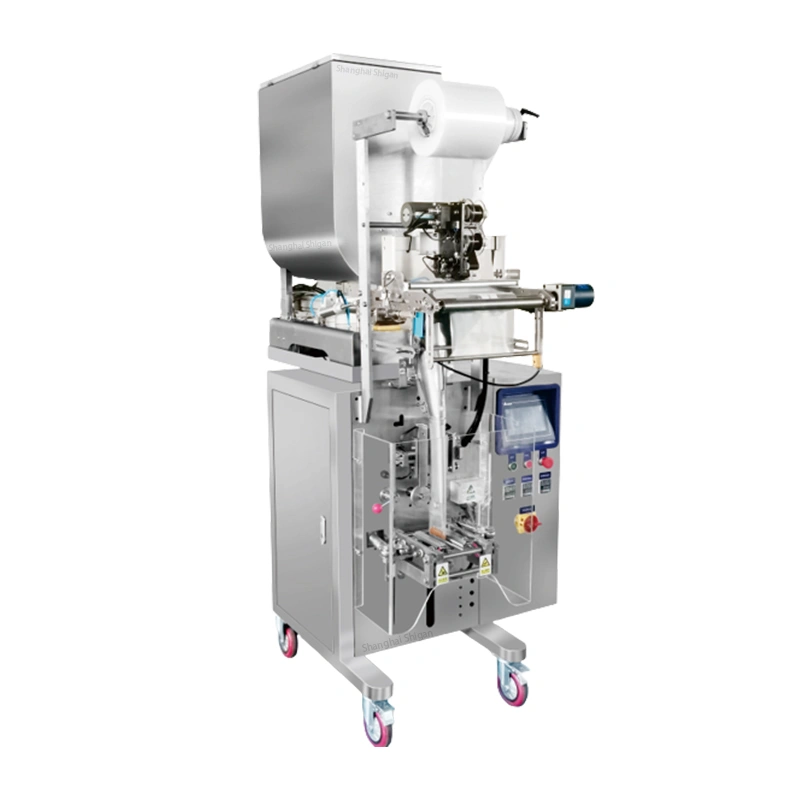

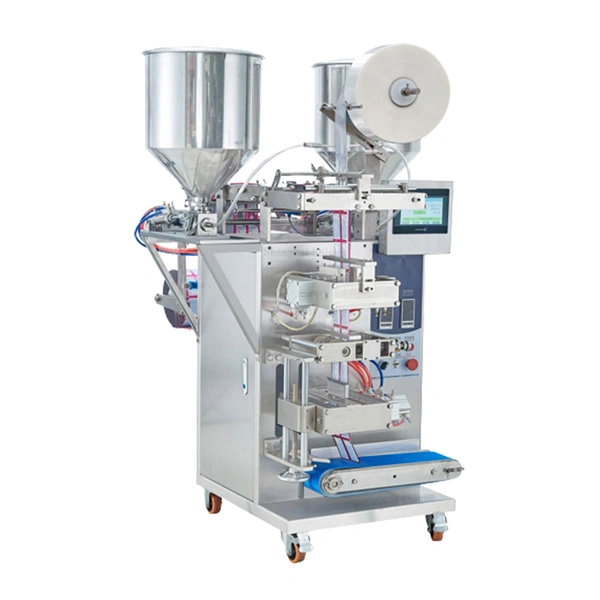

Automatic liquid packing machine pictures
Our goal is to provide you with the perfect auto liquid packing machine solution, support customization, and explain to our company the situation of packaging materials, packaging equipment (bag size, material), etc., expected output, etc., in order to provide you with suitable models. . If there are any other technical requirements, we will try our best to solve them.
Please provide the following information when sending your inquiry so that we can quickly provide you with accurate feedback and suitable solutions.
Product details (product name, min/max dimensions and weight).
Packaging details (packaging material, size, shape).
capacity and detection accuracy requirements.
Other special requirements.
Equipment name: liquid paste automatic packaging machine
Measurement range: 1-50ml (prefers to small measurement, the smaller the device, the higher the stability and performance, and the faster the speed)
Bag size: width 40-120mm length 40-140mm (over the range can be customized)
Bag shape: three-side seal or four-side seal (four-side seal should be customized)
Packing speed: 30-60 bags/min
Power supply voltage: 380V three-phase + N-phase, 50HZ (if there is no power supply, single-phase 220V can be customized)
Machine power: 0.9KW
Metering method: plunger pump
Machine weight: 170KG
Dimensions: 730X630X1680mm
Parameters are for reference only
1. This auto packing machine can automatically complete the functions of automatic measurement, automatic filling, automatic bag making (printable), sealing and cutting of product fixed packaging.
2. Adopt advanced technology, humanized design, Japan "Siemens" PLC+5.7" touch screen control system, high degree of automation.
3. Self-alarm, self-shutdown, self-diagnosis, safe and simple to use, fast maintenance, automatic display of the number of packages, convenient to count the workload of the machine.
4. Using the working principle of heat-sealing and pulling the film, the motor controls the film, and the bag is pulled quickly and smoothly.
5. High-sensitivity photoelectric sensor switch, which can automatically track and locate the printing cursor. When packaging materials with color labels, a full logo pattern can be obtained.
6. The integrated support frame is adopted, which is more convenient to adjust.
7. The liquid sachet packing machine is made of 304 stainless steel and aluminum alloy (comply with GMP standard).
Adaptation:
1. Liquids: seasoning liquid, seasoning package, soy sauce, sauce, chili oil, sesame oil, seasoning oil, vegetable oil, salad oil, milkshake. Daily necessities liquid, cosmetic liquid, skin lotion, skin lotion, essence, perfume, facial cleanser, shampoo, body wash, hand soap, disinfectant, toilet cleaning liquid, softener. Three-side sealing, four-side sealing and back-sealing packaging of various liquid semi-fluids such as medicinal liquids, traditional Chinese medicine liquids, pesticide liquids, insecticide liquids, herbicide liquids, and leaf fertilizer liquids.
2. Sauce types: seasoning sauce, seasoning sauce, hot pot sauce, base sauce, tomato sauce, peanut sauce, sesame sauce, seafood sauce, spicy sauce, chili sauce, seafood sauce, sweet noodle sauce, bean paste, sand tea sauce, salad sauce , sauce sauce, fruit sauce, blueberry sauce and other kinds of sauces and sauces are semi-fluid three-side sealing, four-side sealing and back-sealing packaging.
3. Semi-fluid paste: three-side sealing and four-side sealing of various semi-fluid pastes such as skin cream, skin cream, skin care products, vanishing cream, mask cream, face cream, moisturizing cream, skin lotion, body lotion, skin care lotion, etc. and back-sealed packaging.
Shanghai Shigan Industrial Co., Ltd. is a professional enterprise engaged in the research, development, production and sales of packaging machinery. The company has advanced production technology and experience, and indeed provides customers with more intelligent and systematic packaging solutions. The company's main products include automatic granule packaging machine, automatic liquid packaging machine, automatic powder packaging machine, automatic tablet packaging machine and automatic packaging machine for irregular materials; according to the appearance of the packaging bag, it is divided into three-side sealing automatic packaging machine and four-side sealing automatic packaging machine. , Back sealing automatic packing machine, triangular bag automatic packing machine and socket automatic packing machine. The equipment automatically completes the measuring, filling, sealing, slitting, coding and other processes, and the liquid crystal Chinese character display is simple and convenient to operate, stable and efficient. Sales are all over the country and exported to Russia, Siberia, Inner Mongolia, Vietnam, Myanmar, Southeast Asia, Africa and other regions. The company wholeheartedly welcomes new and old customers to visit us and cooperate sincerely to create a better future.
A. Pre-sale:
1. Provide real quotations for customers according to customer requirements, and record feedback in a timely manner if customers have special requirements;
2. Sign a standardized product order contract to clarify responsibilities and other related matters;
3. Provide one-year free warranty, life-long maintenance service, and be responsible for debugging the product before delivery;
B. After sales:
1. If the customer's product fails, we will provide you with a solution as soon as possible;
2. During the warranty period, product maintenance is free. If the warranty period is exceeded, maintenance can also be provided. If parts are replaced, the product parts will be provided at the cost price.
