The automatic packing machine adopts PLC servo system, pneumatic control system and large display touch screen to form the drive control core; it improves the control accuracy, reliability and intelligence of the whole machine. The horizontal sealing of small vertical packing machine adopts high-power servo motor, and the horizontal sealing pressure and opening stroke can be adjusted at any time, which is suitable for various packaging materials.Our product specifications and sizes are rich, various styles, welcome to contact us for quotation information.

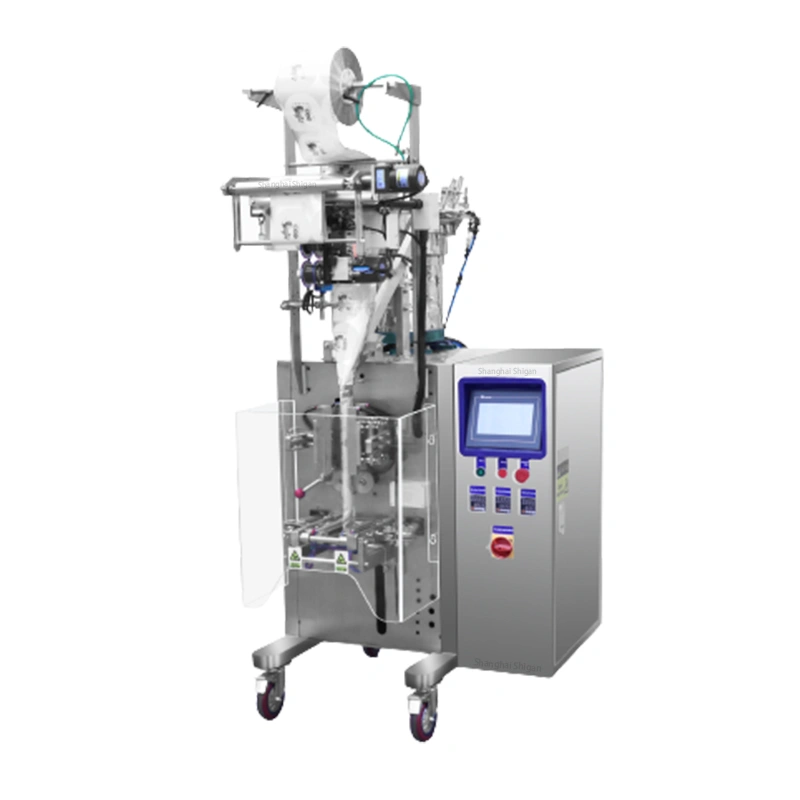

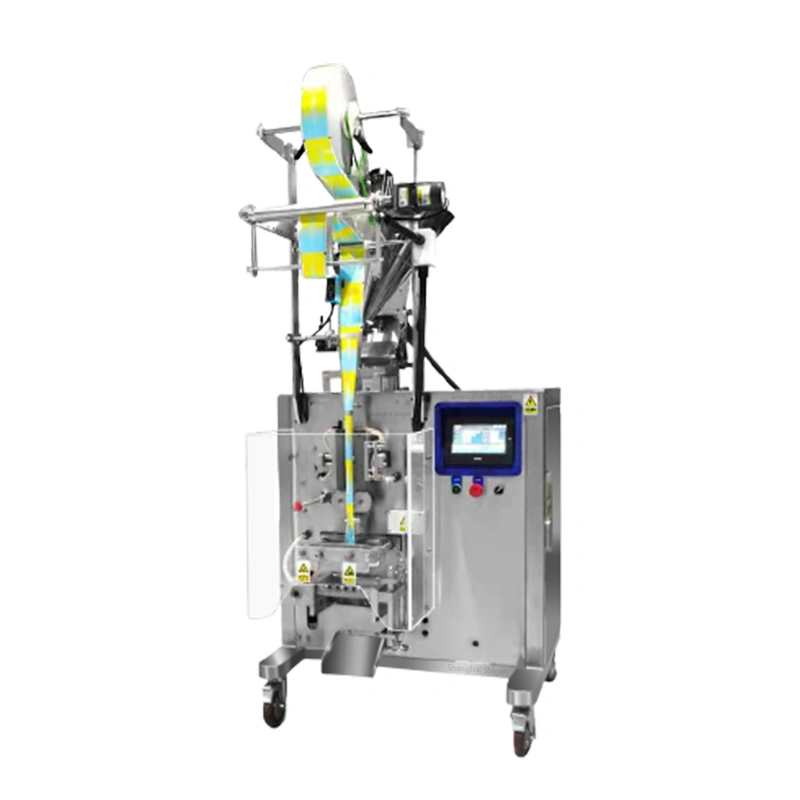

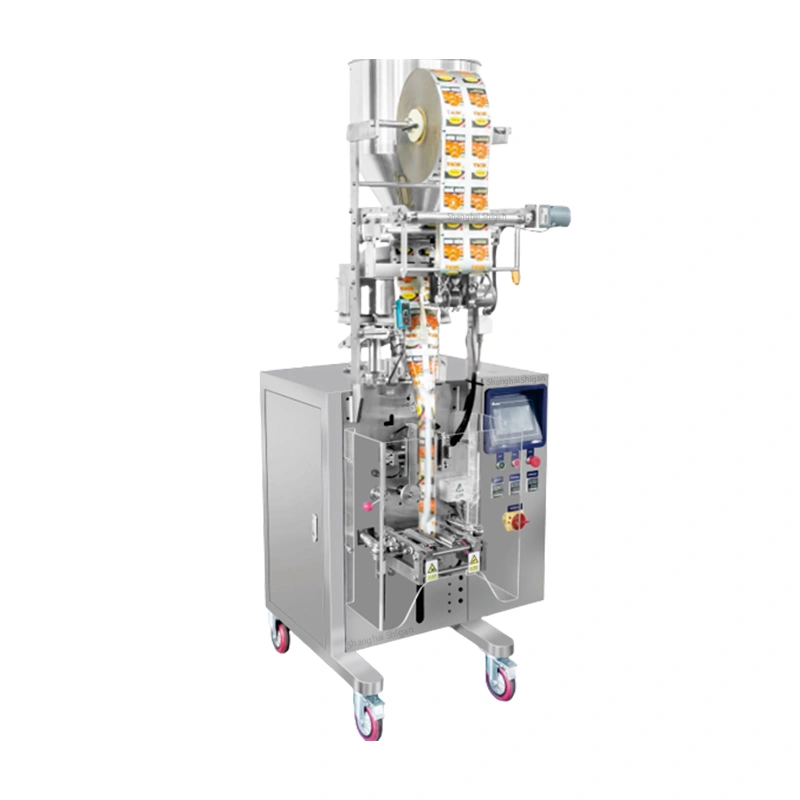

Small food vertical packing machine photos
Work station process: 1. Bag loading 2. Coding 3. Bag opening 4. Unloading 5. Dust cleaning 6. Heat sealing 7. Heat sealing 8. Shaping
Filling range: 5～1500g
Packing speed: 10～40 packs/min (speed is determined by product characteristics and filling amount)
Weighing Accuracy: Deviation≤±1%
Host weight: 1000kg
Dimensions of the host: 1645mm*1645mm*1640mm (length, width, height)
Host power: 4kw
Drive power: 380V three-phase five-wire 50HZ
Control power supply: DC24V
Compressed air consumption: ≥0.35m3/min (compressed air provided by the user)
Optional supporting equipment: screw scale, linear scale, measuring cup, screw feeder, weight sorting scale, metal detector, vacuum cleaner
Parameters are for reference only
Our goal is to provide you with the perfect automatic packing machine solution, support customization, and explain to our company the situation of packaging materials, packaging equipment (bag size, material), etc., expected output, etc., in order to provide you with suitable models. . If there are any other technical requirements, we will try our best to solve them.
Please provide the following information when sending your inquiry so that we can quickly provide you with accurate feedback and suitable solutions.
1.Product details (product name, min/max dimensions and weight).
2.Packaging details (packaging material, size, shape).
3.capacity and detection accuracy requirements.
4.Other special requirements.
1. Chinese and English touch screen display, intuitive and simple operation.
2. PLC computer control system, the operation is more stable, and any parameters can be adjusted without stopping.
3. Ten groups of parameters can be stored, and the replacement of varieties is more accurate.
4. Using dual servo motor control, the film pulling is more accurate and faster.
5. Independent temperature control system, the temperature can reach ±1℃.
6. The temperature of horizontal and vertical sealing is independently controlled, and it can be well applied to packaging materials such as film and PE film.
7. The styles of packaging are diversified (three-side seal, four-side seal, triangle bag, handbag), back seal, gusset, even bag, punching, etc.
8. The production of bag making, sealing, packaging, and date printing is completed at one time.
1. Block materials: dried tofu, fish, eggs, candy, red dates, oatmeal, chocolate, biscuits, peanuts, etc.
2. Granules: crystalline monosodium glutamate, granular drugs, capsules, seeds, chemical raw materials, sugar, chicken essence, melon seeds, nuts, pesticides, fertilizers, feed, etc.
3. Powders: milk powder, monosodium glutamate, flavoring agents, washing powder, glucose, chemical raw materials, fine sugar, pesticides, fertilizers, etc.
4. Liquid/sauce: detergent, rice wine, soy sauce, rice vinegar, fruit juice, beverage, ketchup, peanut butter, jam, chili sauce, bean paste, etc.
5. Pickled vegetables: pickled vegetables, pickles, sauerkraut, radishes, etc.
6. Other bagable materials
Our manufacturer has ISO9001, CE international certification,
1. More than 11 years of production experience
2. More than 10 years of foreign trade experience
3. More than 10 national technology patents
4. Cumulative overseas sales exceed 1,000 sets
5. Comply with EN60204 international standard
1. Service tenet: fast, decisive, accurate, thoughtful and thorough
2. Service goal: service quality to win customer satisfaction
3. Service efficiency: If the equipment fails within the warranty period or outside the warranty period, our company will arrange maintenance personnel to perform maintenance services for customers within 24 hours after receiving the notice.
4. Service principle: The product warranty period is one year. During the warranty period, our company will repair the parts damaged due to quality reasons for free. If the parts are damaged outside the warranty period, only the cost will be charged for the accessories provided. If it is due to human factors The equipment damage caused by our company, the accessories repaired or provided by our company are calculated at the cost price.
