Automatic Small Sachets Detergent Powder Filling Packing Machine Price Quote
The contact parts of the auto powder packing machine and materials are made of SUS304 stainless steel. The single-chip microcomputer liquid crystal display screen is intelligently controlled, with fault alarm, 4-hour work, frequency conversion speed regulation, in line with EU CE certification standards, with bag making, measuring, filling, sealing and cutting. , the counting is completed automatically. The automatic small powder packing machine adopts stepper motor to pull the bag, whether it is a fixed-length bag or a cursor tracking bag, it can be set and cut immediately, no need to adjust the air travel, one step, saving time and film.Our product specifications and sizes are rich, various styles, welcome to contact us for quotation information.

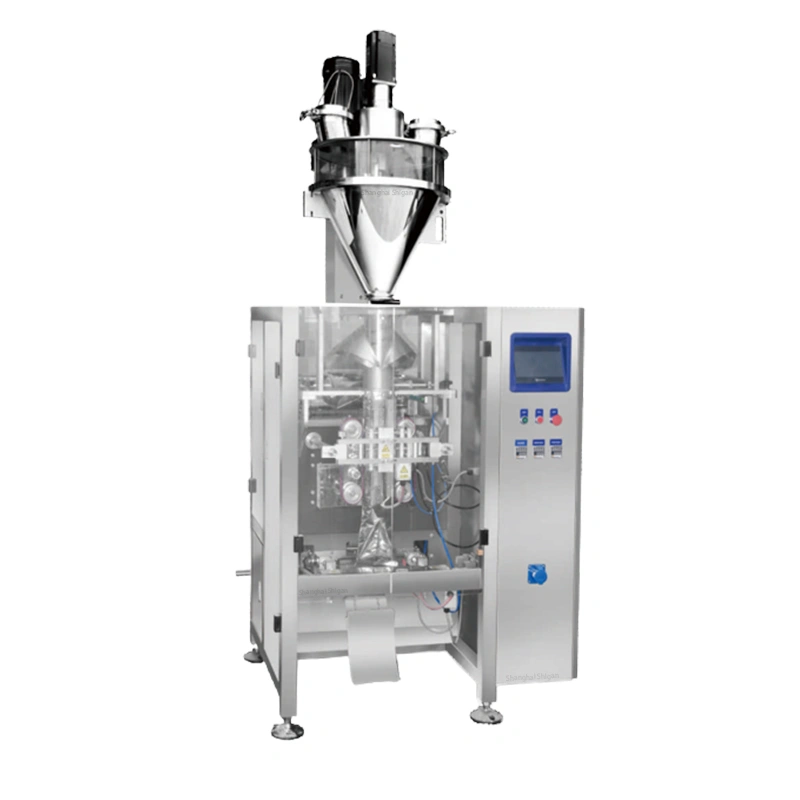

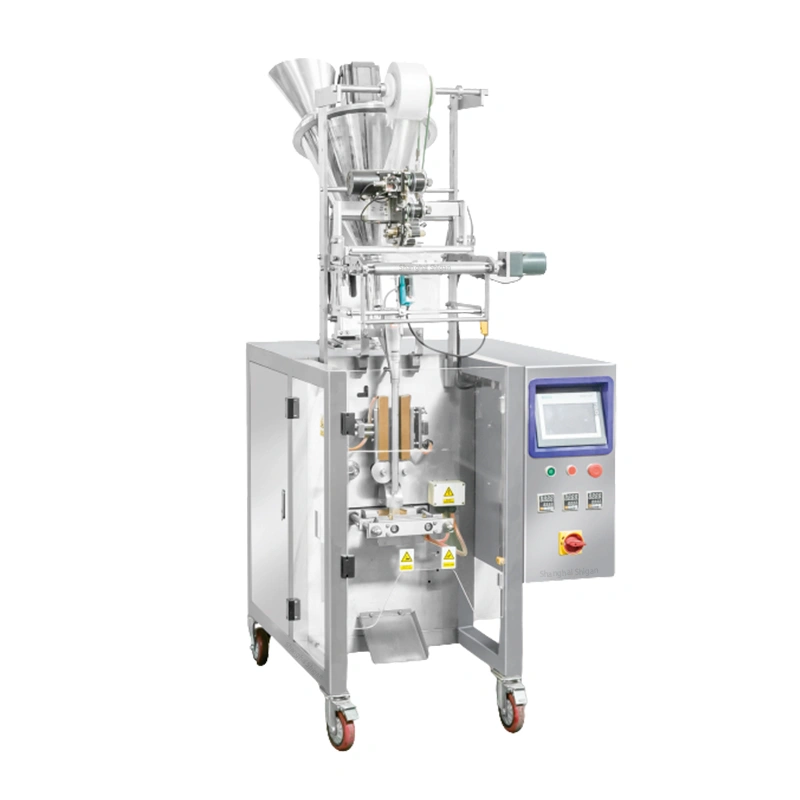

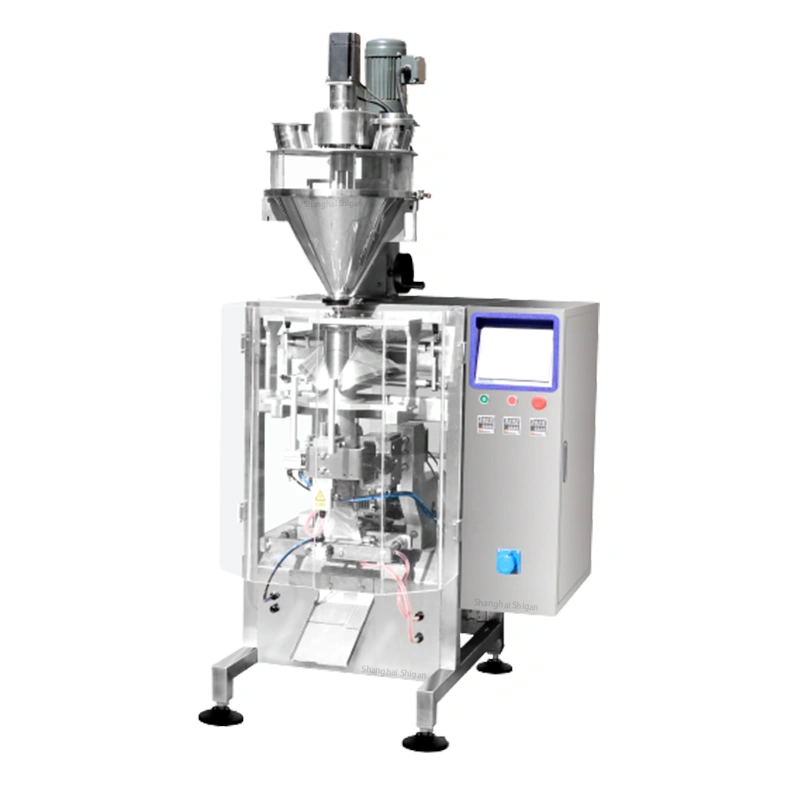

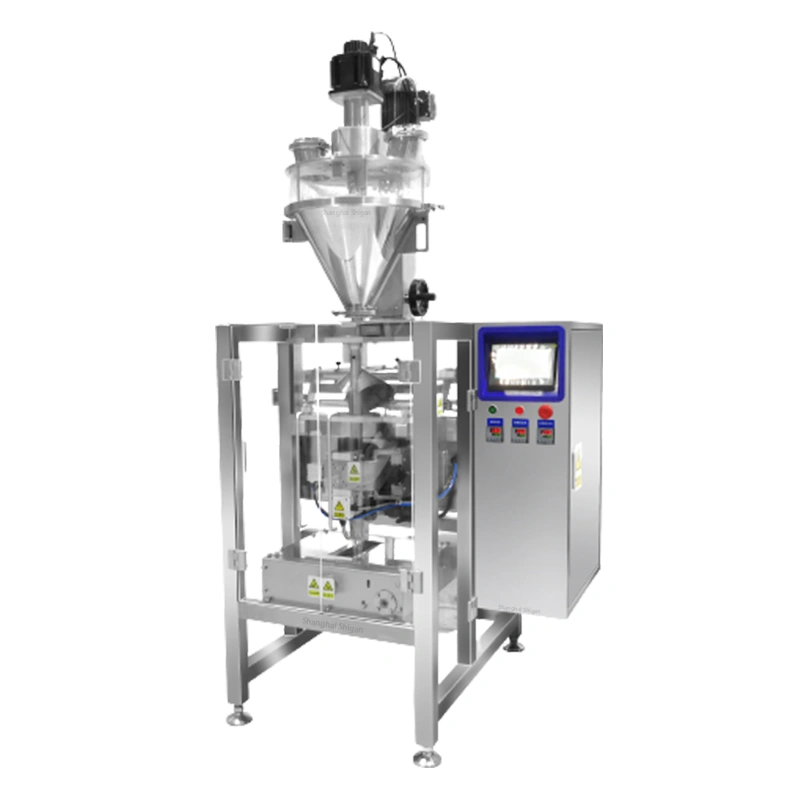

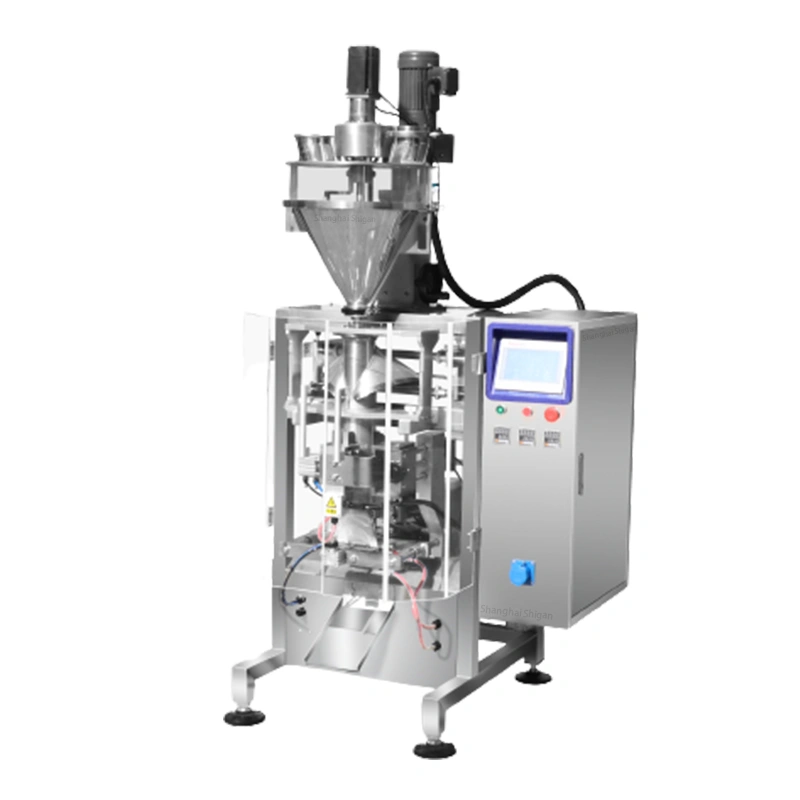

Auto powder packing machine pictures
Model：SG-400
Powder Supply: AC220V/50-60Hz
Hot Sealing Powder: 1.5
Speed:40-80
Big Size: L30-200,W20-150
Measuring Rang:50-2500g
Membrane Material:OPP/CPP/PE/PET
Machine Size:L700 W900 H1750
Weight:280kg
1. The auto powder packing machine is made of stainless steel, the hydraulic pressure rises and falls, and is especially suitable for GMP certification.
2. The mechanical transmission mode is adopted to make the structure simple, stable, and strong in overload capacity.
3. The filling adopts servo motor driven screw, accurate positioning, high precision, fast speed, large torque, long life, adjustable speed and good stability.
4. The agitation adopts Taiwan-made maintenance-free geared motor, which has low noise, long life and lifetime warranty.
5. The design feedback specific gravity tracking type overcomes the accuracy error caused by the change of material specific gravity.
6. The fully-sealed plexiglass stainless steel split-type material box, dust does not leak out, ensures high precision nitrogen filling, and the filling outlet is equipped with a dust suction device.
7. Equipped with a corresponding leak-proof valve at the discharge port for easy-flowing materials to prevent material drop.
The automatic small sachets powder packing machine is suitable for automatic packaging of various bag shapes of conventional powder materials in the food, chemical, daily necessities, agricultural supplies, medical supplies, feed, hardware and other industries.
Complete packaging system
① Vertical Filling Sealing Bag Making Machine
② 14-head multi-head scale
③ Z-type material conveyor
④ Platform
⑤ Finished product conveyor
⑥Checkweigher
⑦Metal detector
Our professional engineers will rigorously evaluate factors such as production line characteristics, specifications and environment, and design the most suitable automatic powder packaging machine solution for your production line to meet the different needs of various complex production lines.
Shanghai Shigan Industrial Co,.Ltd is located in Shanghai, China. It has a young team specializing in the research and development of packaging machinery and equipment for medicine, food, pesticides, daily chemicals, and chemicals. Introduce domestic and foreign technologies and continuously improve products. Our products are all over the country and are exported to America, Europe, Africa, the Middle East and other parts of the world, product quality tracking service, free maintenance during the warranty period, and lifetime maintenance. Our main products: automatic packing machine, packing machine multi-head weigher system, linear weigher, check weigher and a series of assembly line packaging and testing equipment .
1. Service tenet: fast, decisive, accurate, thoughtful and thorough
2. Service goal: service quality to win customer satisfaction
3. Service efficiency: If the equipment fails within the warranty period or outside the warranty period, our company will provide solutions at the first time after receiving the notice
4. Service principle: The product warranty period is one year. During the warranty period, our company will repair the parts damaged due to quality reasons for free. If the parts are damaged outside the warranty period, only the cost will be charged for the accessories provided. If it is due to human factors The equipment damage caused by our company, the accessories repaired or provided by our company are calculated at the cost price.
