Automatic Food Checkweigher Box Beverage Roller Conveyor Check Weigher

Description

Automatic Food Checkweigher Box Beverage Roller Conveyor Check Weigher

Automatic check weigher also called checkweigher, check weight machine, check weighing machine, weight checker, weight sorting machine, weighing scale, and etc,.

The automatic food checkweigher is an automatic device used to check the weight of products in automatic packaging production lines. It can check whether the weight of the product meets the standard weight we set in a continuous working process and automatically reject unqualified products. This beverage roller conveyor check weigher provides a range of functions for handling different products. By adding high-precision weight checking functions to your production line, your product quality can be improved without reducing efficiency. For further information about our services, or if you would like one of our professionals to contact you, please do not hesitate to contact us.

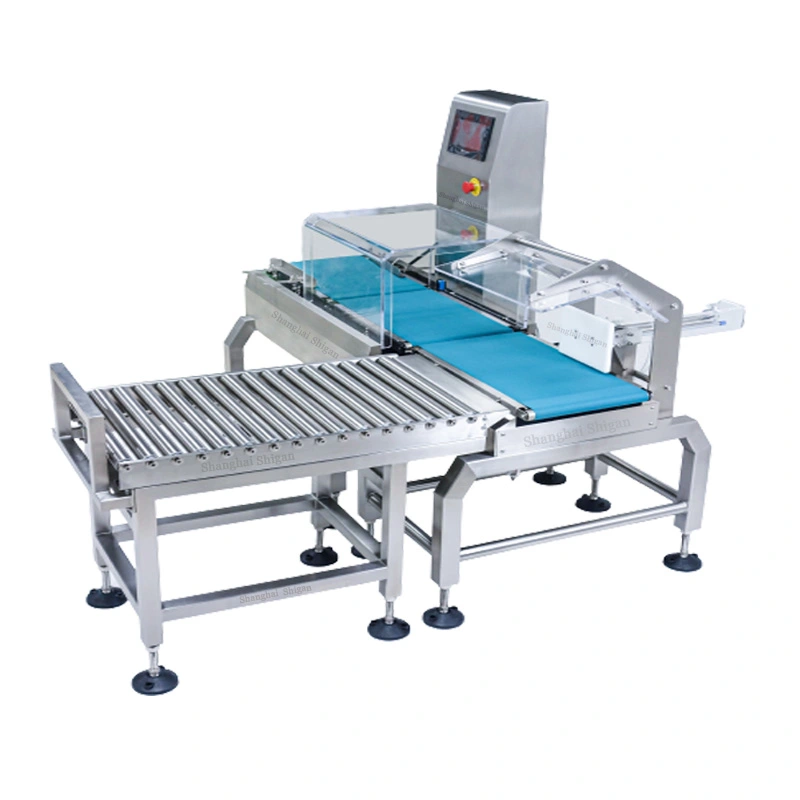

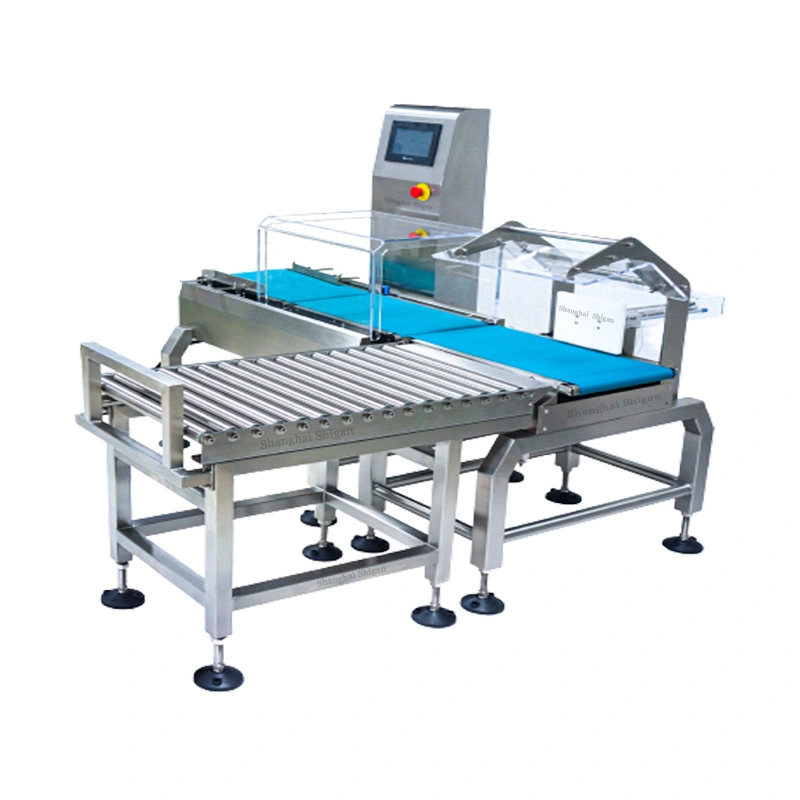

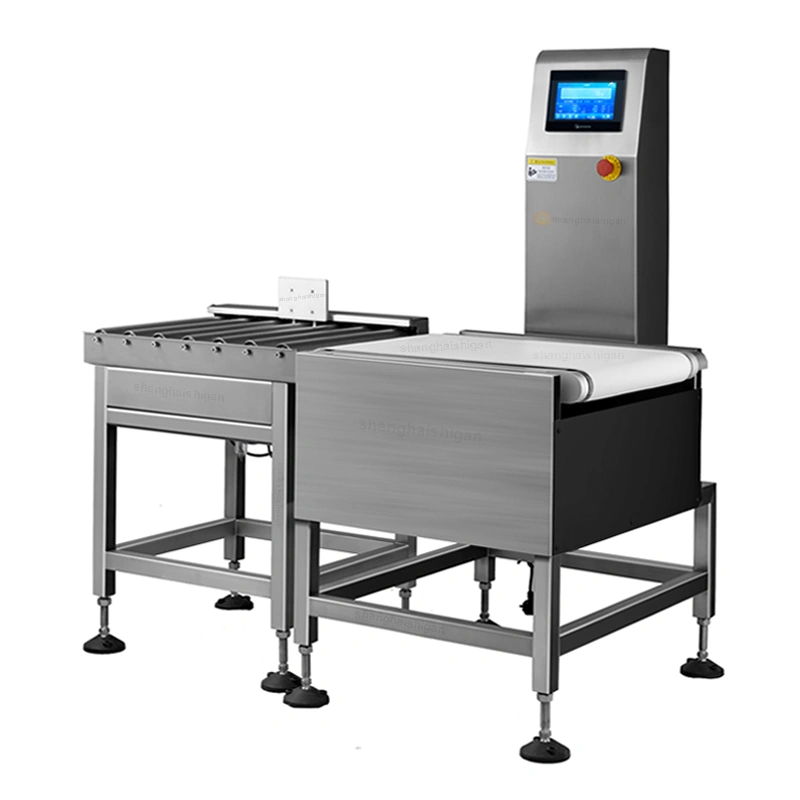

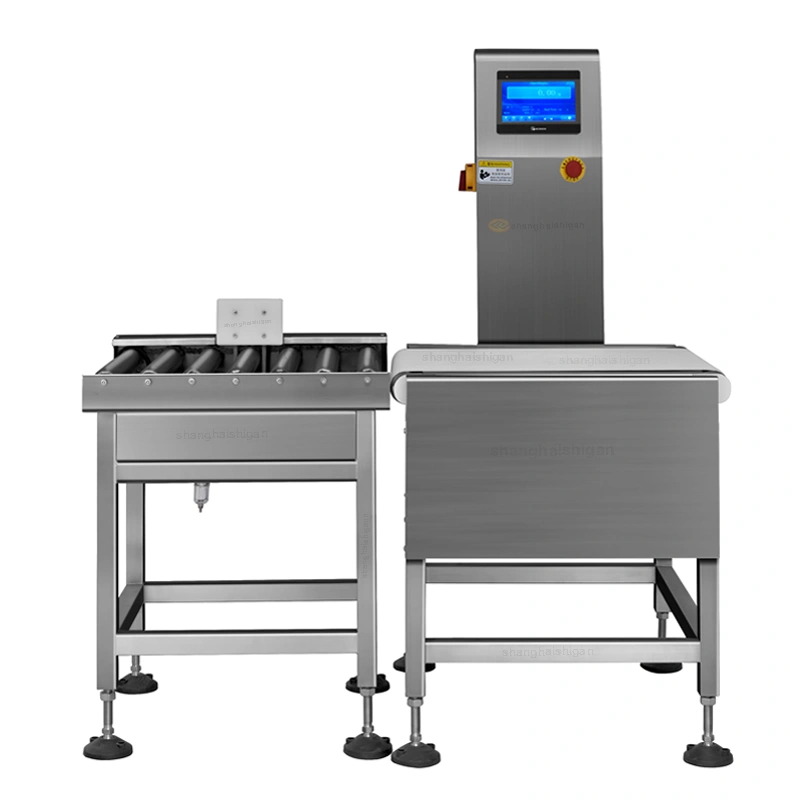

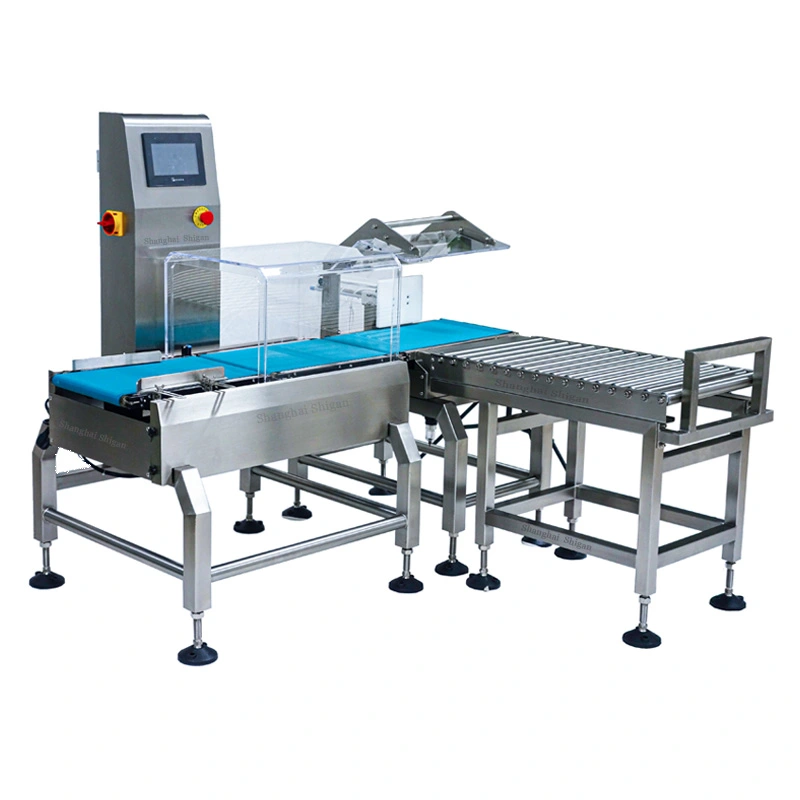

Automatic food checkweigher photos

Automatic Food Checkweigher

Beverage Roller Conveyor Check Weigher

Automatic Food Conveyor Check Weigher

Type SG-450

Weighing Range 0.05-25kg

Limited of product L: 550 W:450 H: 3-400mm

Accuracy ±5/10g

Division Scale 1g

Belt Speed 0- 60 m/min

Max Speed 40 pcs/min

Belt Width 450mm

Machine Weight 40kg+70kg+45kg

Power Supply AC 110/220V ±10% 50HZ

Power 400W

Main Material SU304 stainless steel

1. This automatic food checkweigher uses high-speed, low-noise bass motors and bearings as transmission components to reduce the hazards of noise and interference.

2. To prevent electromagnetic and radiation hazards, this machine uses excellent shielding materials to shield various electromagnetic hazards and interference.

3. Provide a high-definition touch screen as a simple user interface.

4. The conveying system consists of a brushless motor and a conveyor belt. The brushless motor drive module provides the motor with high torque, high precision, and a wide speed range drive, which realizes the uniform movement of the items and enables the weighing unit to detect the weight of the items more accurately.

5. The weighing system consists of a main weighing unit and a vibrating weighing unit. The high-speed checkweigher adds a vibrating weighing unit to prevent external vibration. The weighing vibration unit uses a high-precision, high-speed, and high-sensitivity weighing sensor. The information that the item is forced to rotate is converted into an electrical signal by the weighing module through the sensor, and is displayed on the touch screen after communicating with the microcontroller.

Automatic Food Checkweigher Box Beverage Roller Conveyor Check Weigher


In the application of assembly line automatic food checkweighers, Shanghai Shigan provides the following customized services to users in various industries:

1) Help users choose the automatic check weigher model that suits the current status of the production line;

2) Customize weight detection or quality abnormality solutions for users;

3) Design economical and practical online checkweigher solutions for users;

4) Customize the front-end and back-end connection auxiliary mechanisms of assembly line weight detection equipment for users;

5) Provide users with consulting and training services for assembly line food checkweighers.

This automatic food checkweigher is suitable for testing whether the weight of a single product is qualified, and is widely used in electronics, pharmaceuticals, food, beverages, health products, daily chemicals, light industry, agricultural and sideline products and other industries. Such as cosmetics of daily chemical products (including beauty cosmetics, cleaning cosmetics, skin care products, hair cosmetics, etc.); washing products (including soap, washing powder, detergent, etc.); oral products (including toothpaste, mouthwash, etc.); other chemical products (including shoe polish, floor wax, deodorant, insect repellent, etc.).

Automatic Food Checkweigher Box Beverage Roller Conveyor Check Weigher


Payment method: T/T, L/C, Western Union, PayPal, credit card, trade guarantee

Packing: export standard wooden boxes and cartons, honeycomb cardboard boxes

Delivery time: 1-3 days after payment

Transportation: sea, air, express (DHL, FEDEX, TNT, 4PX, ARAMEX, EMS, etc.)


Q1: What is machine warranty?

Machine warranty for one year. During the warranty period, any non -vulnerable part of the machine is damaged. We will replace it for you for free. After the warranty date is issued by the machine, we receive the bill of lading.

Q2: I have never used this online checkweigher machine. How can I control it?

1. Each machine has related operation descriptions.

2. Our engineers can operate through video demonstrations.

3. We can send engineers to on -site teaching. Or welcome you FAT before installation.

Q3: Will you show us the following details when inquiry?

We can.

1. Product size (description/photo/sample can be)

2. accuracy

3. Speed

4. Other requirements
