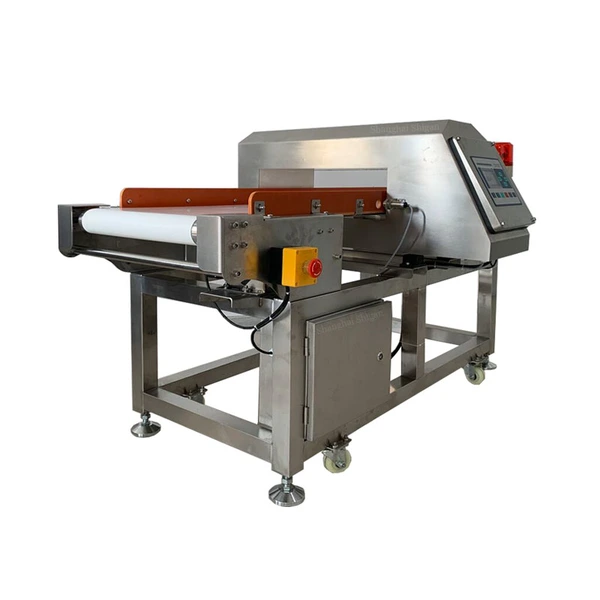

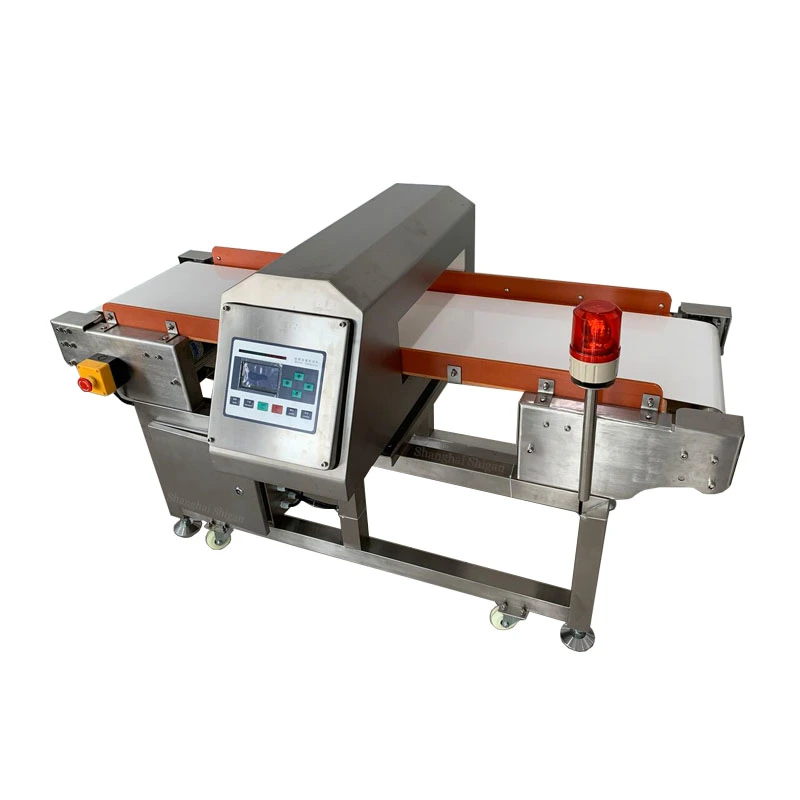

Profession Digital Metal Detector Online Custom Metal Detector Inspection Machine
The industrial digital metal detector can detect magnetic and non-magnetic metal impurities, even if the metal foreign body is embedded in the product, and the sensitivity can be adjusted individually. The online metal detector inspection machine has sound and light alarms, and has automatic exclusion, stop, and rewind functions, realizing the full digitalization and intelligence of metal detection technology, excellent performance, simple operation, and improved the production efficiency of enterprises. Any OEM and customer design orders are welcome! If you are interested in our products, please feel free to contact us.

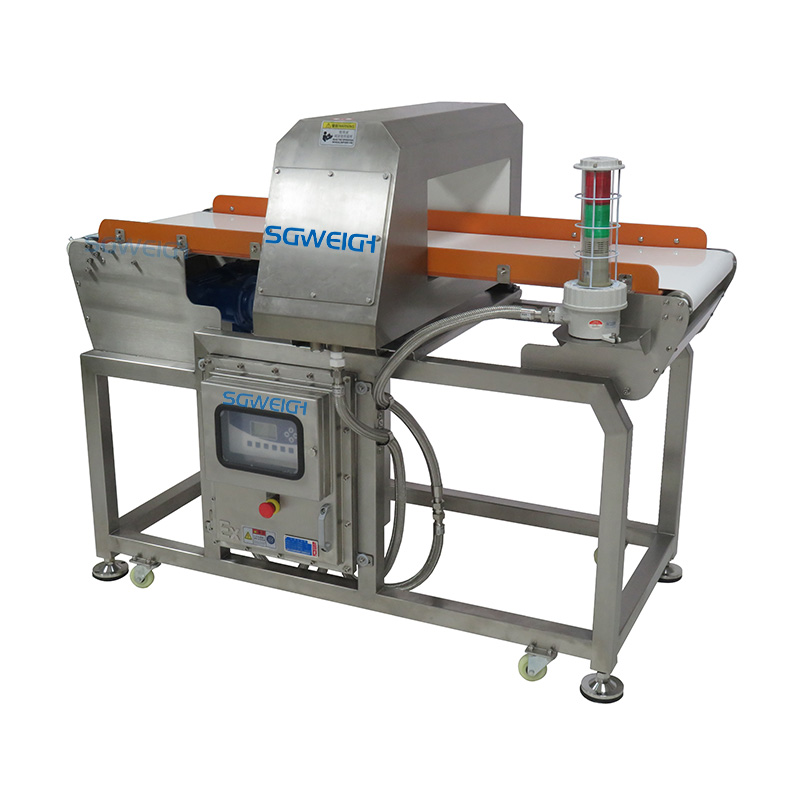

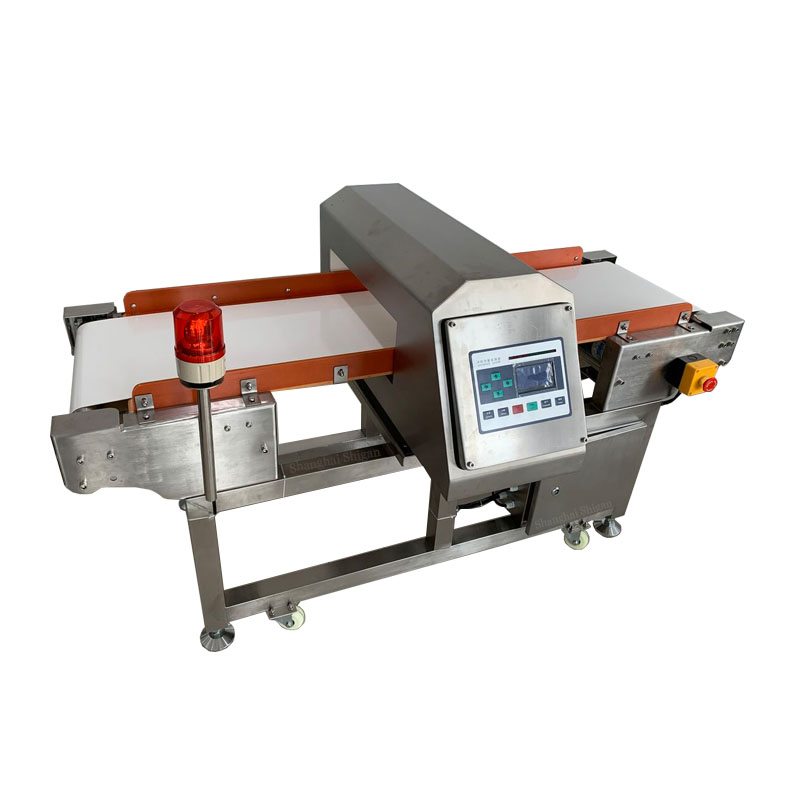

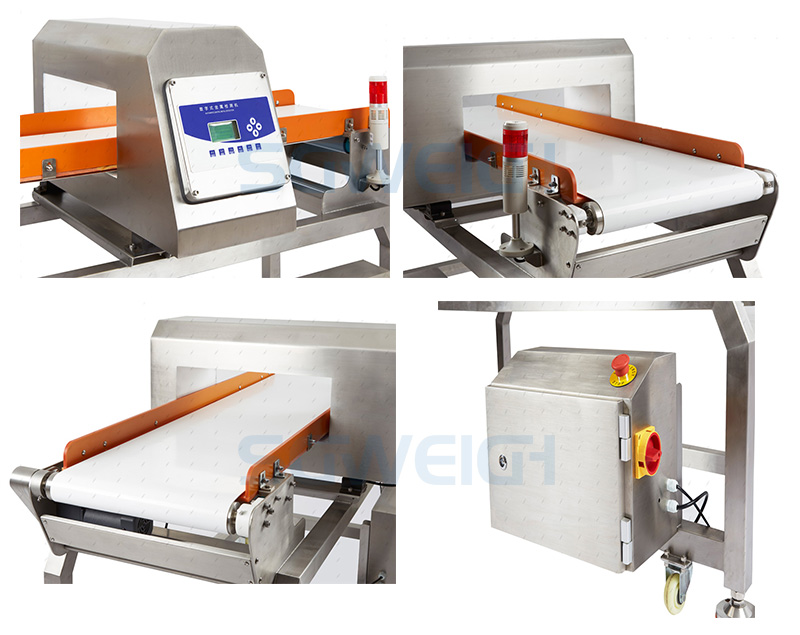

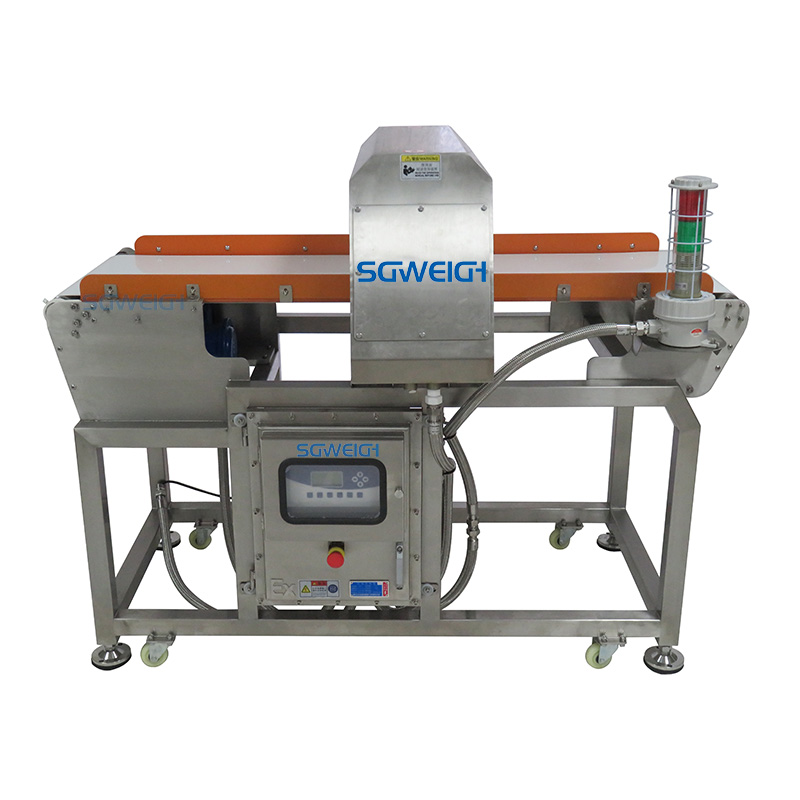

Industrial digital metal detector pictures
1. The system adopts a variety of the latest technologies in the industry, and is equipped with a hardware solution that combines high-speed DSP, high-performance FPGA and 32-bit microcontroller, making the performance of the whole machine more outstanding;
2. It adopts Youdun's unique metal foreign body detection method, and multiple detection algorithms run simultaneously, with high detection accuracy, good reliability and strong anti-interference ability;
3. It has a wide range of applications, and can detect dry, wet and high-salt products, and can achieve good detection results;
4. Simple structural design, the whole machine is made of stainless steel (SUS304), with thick materials, firm structure, rust-proof, corrosion-resistant and easy to clean;
5. Fully sealed design, protection level reaches IP66, dustproof and waterproof.
1. Rack size: length: 1700mm, width: 900mm, height: 1100 mm
2. Effective detection aperture: 500mm*300mm
3. Conveyor belt height: 750mm±50mm
4. Conveying speed: about 30 meters/minute
5. Detection index: iron (Fe) ≥φ2.0mm, non-iron (Non Fe) ≥φ3.0mm, stainless steel (Sus) ≥φ3.5mm
6. Body material: all 304 stainless steel body
7. Conveyor belt: white food grade conveyor belt
8. Protection level: IP65
9. Ambient temperature: (-10~50) degrees Celsius
10. Power supply, voltage: single-phase 220V/50HZ
11. Product load: 25KG
12 Alarm: sound and light alarm
Profession Digital Metal Detector Online Custom Metal Detector Inspection Machine

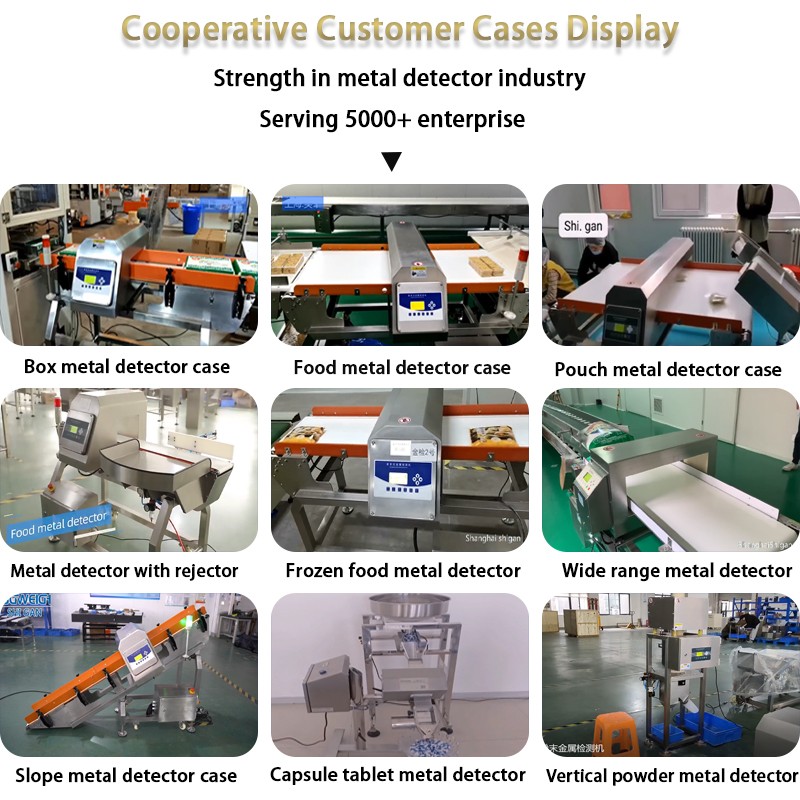

Industrial digital metal detectors are mainly used to detect metal fragments inside nuts, rice, meat, tea and wood processing industries, etc. In addition, it can also be used to detect metal impurities in chemicals, rubber, plastics, textiles, leather, chemical fibers, toys, as well as metal impurities in medicines, health products, biological products, cosmetics, gifts, packaging, paper, etc.

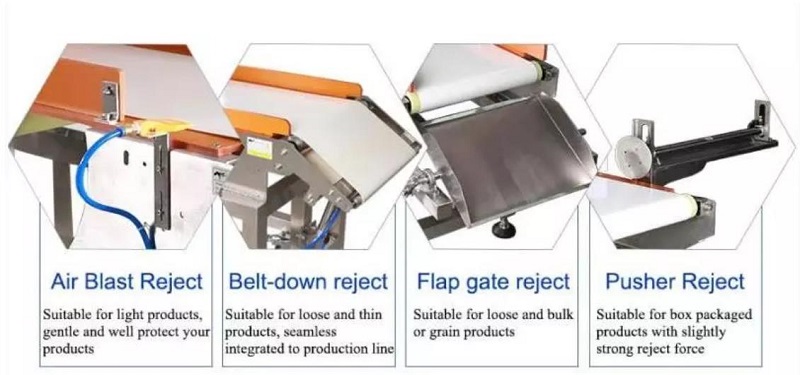

According to customer needs and specific scenarios, we provide a wide range of customization options, such as: conveyor configuration, rejection mechanism, metal detection capacity, software functions, user interface and integrated functions to meet customers' personalized needs in terms of function, performance, appearance, etc.
Profession Digital Metal Detector Online Custom Metal Detector Inspection Machine

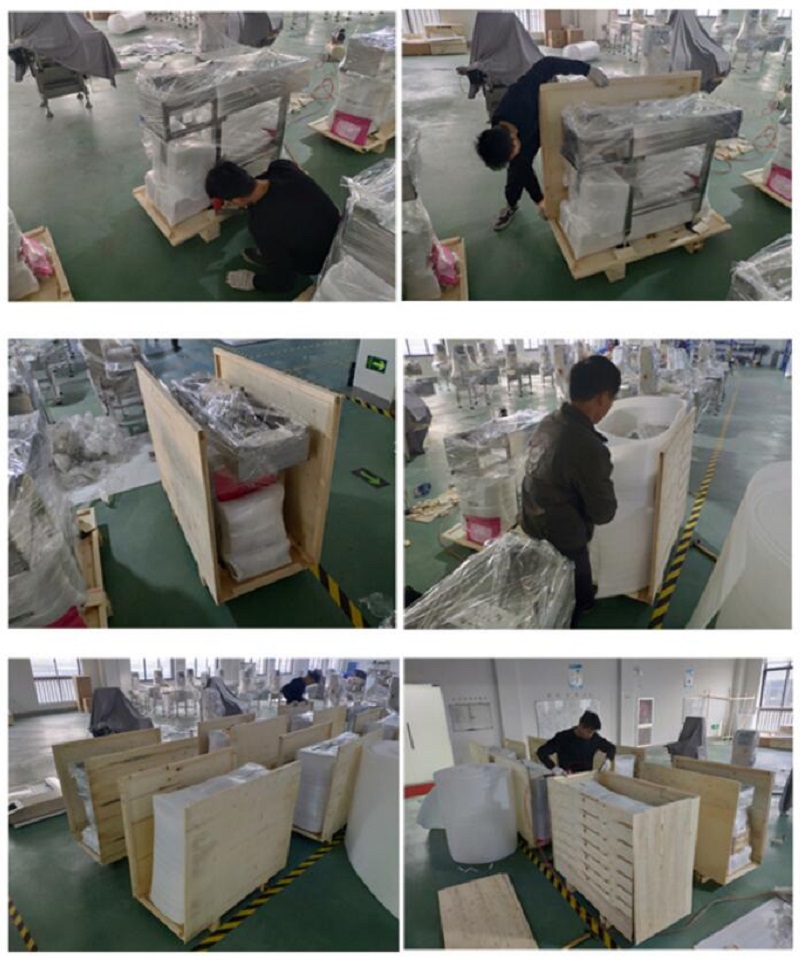

Plastic packaging is used for the inner part, and stronger wooden boxes will be used for the outer part.
Our standard packaging process:
1) Dust removal and cleaning
2) Lubricate drive parts
3) Divide the machine into modules
4) Wrap the modules with plastic film
5) Pack the modules into plywood boxes
6) Mark the shipping mark on the boxes
If there are any special requirements, we will pack as required.
1. Consultation and Assessment: Understand your requirements, production processes and quality control goals to determine the best checkweigher solution for your specific needs.
2. Product Demonstration: Get a visual overview of the equipment in action and directly assess its performance.
3. Installation and Commissioning: After purchase, the checkweigher is installed and commissioned by trained technicians to ensure it operates correctly and integrates seamlessly into your production line.
4. Technical Support: Ongoing technical support is provided to resolve any questions, issues or maintenance needs that arise during the operation of the checkweigher.
5. Warranty Coverage: 1-year warranty, lifetime repairs.
We aim to provide our customers with the right solutions, support and peace of mind throughout the lifecycle of the equipment, ensuring that the checkweigher meets your needs and provides long-term value.
