New Style Dynamic Pouch Checkweigher Machine with Low Center of Gravity
The dynamic pouch checkweigher machine is an online checkweigher independently developed by our company with advanced, superior, reliable and stable features. It can detect products of different weights in continuous operation. The new style automatic checkweigher can classify products according to pre-set standards, which can effectively reduce the labor cost of the sorting process and optimize the production process. You are welcome to contact us at any time for quotation.

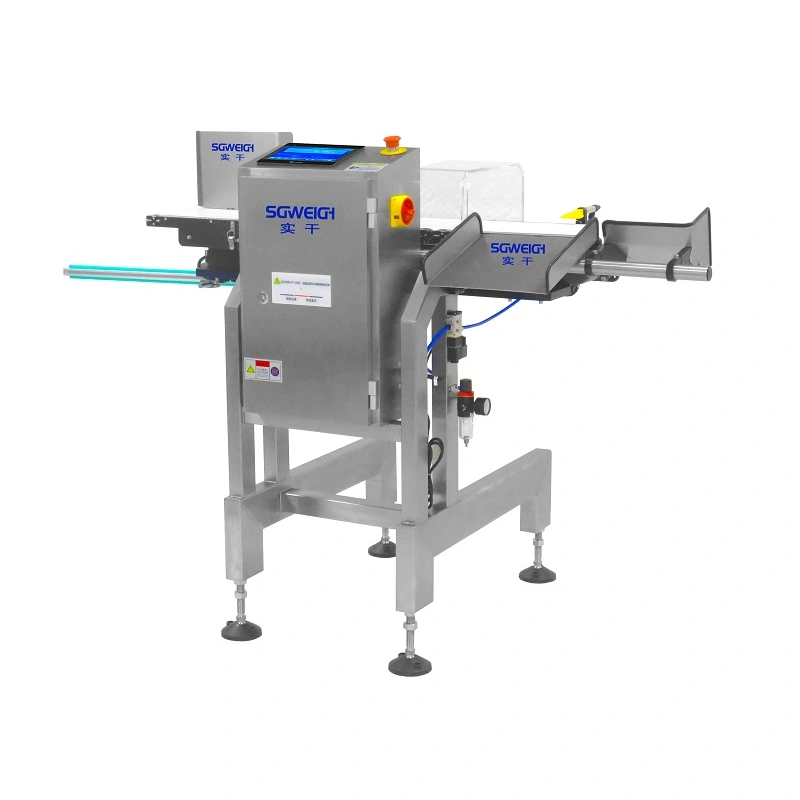

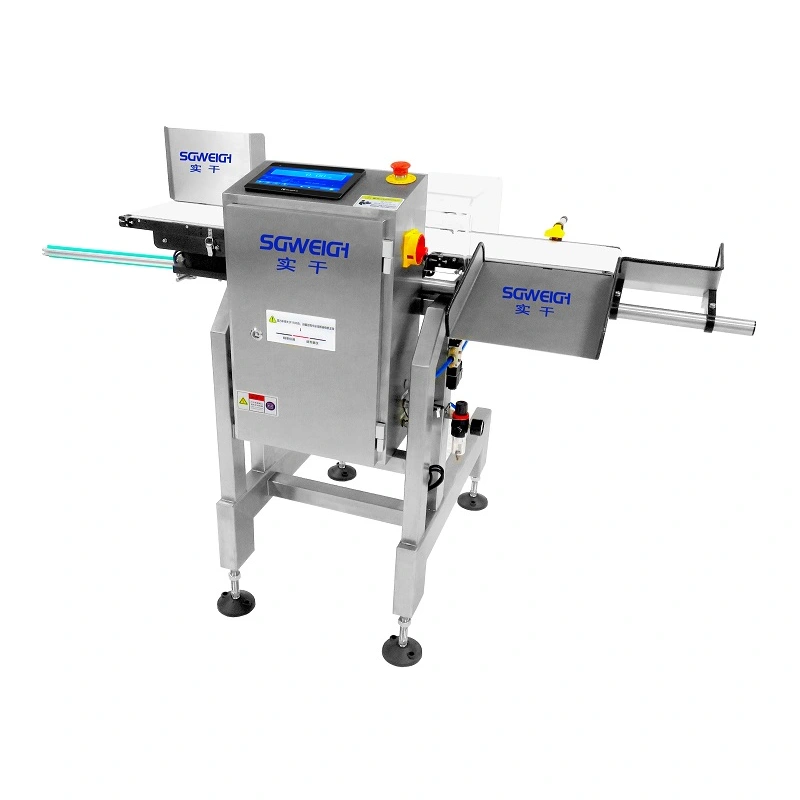

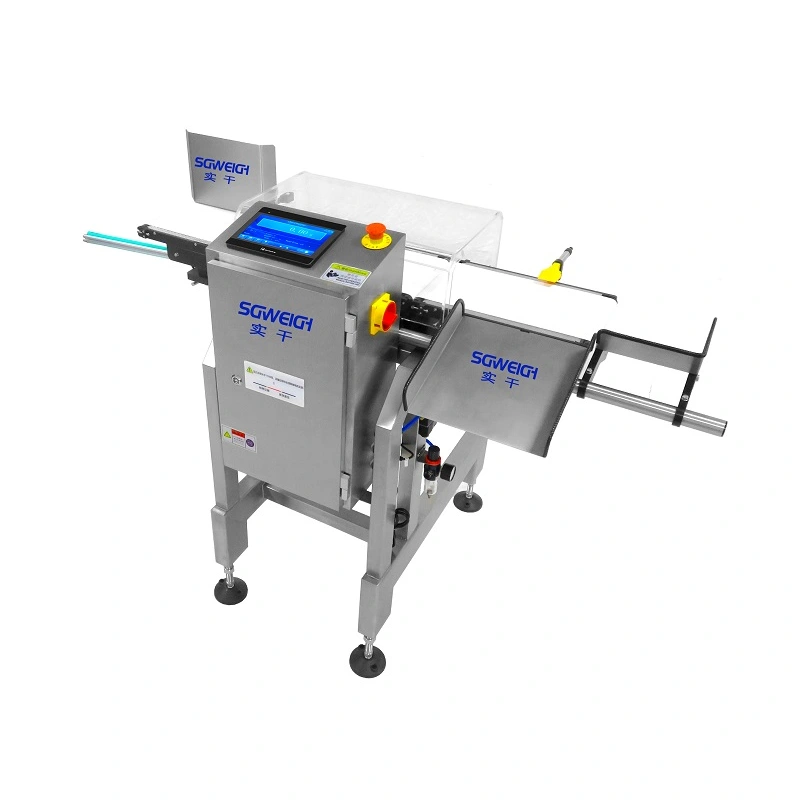

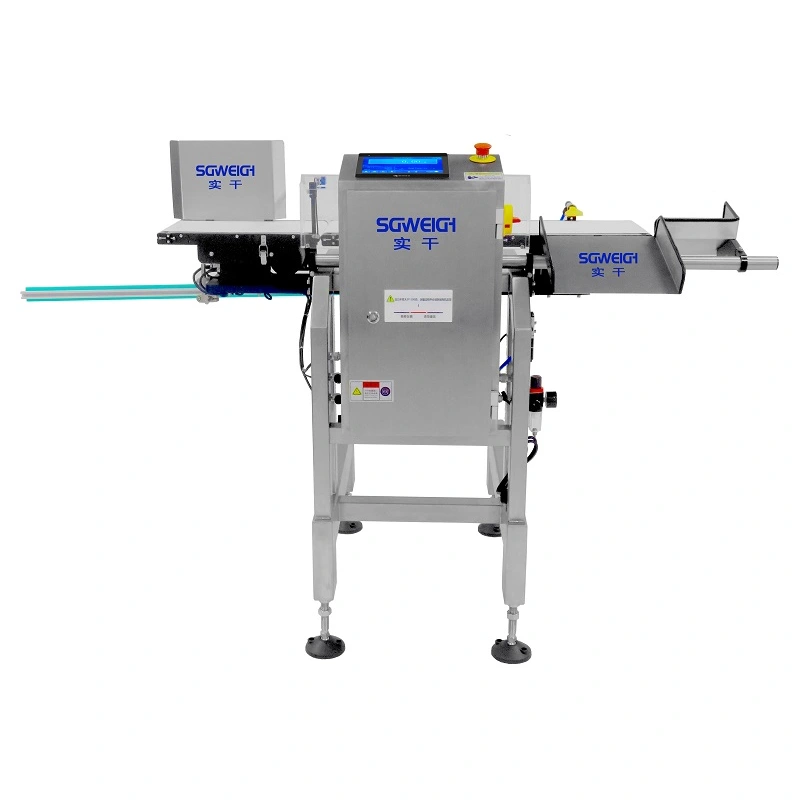

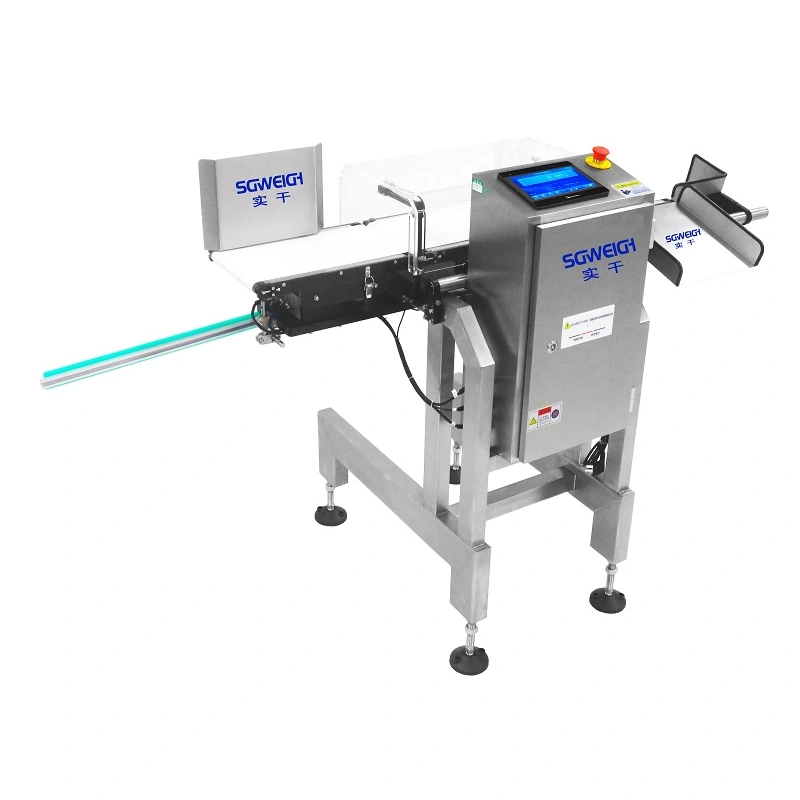

Dynamic pouch checkweigher machine photos
Type SG-100
Weighing Range 2-300g
Limited of product L: 100 W: 100 H: 2-150mm
Accuracy ±0.05g Depends on product
Division Scale 0.01g
Belt Speed 0- 90 m/min
Max Speed 260 pcs/min
Belt Width 100mm
Machine Weight 70kg
Power Supply AC 220V ±10% 50HZ
Power 100W
Main Material SU304 stainless steel
This configuration can also be customized according to customer requirements.
Customized items are as follows:
1. Customized countertops.
2. Customized height.
3. Customized materials.
4. The meter and roller can be wirelessly connected.
5. The meter can have its own USB storage function.
6. The meter can send weight data via Bluetooth.
7. The meter can select the automatic quantitative control output function.
8. External printer function.
9. Built-in upper and lower limit alarm light function.
10. External scanner function.
1. This dynamic pouch checkweigher machine uses high-speed, low-noise bass motors and bearings as transmission components to reduce the hazards of noise and interference.
2. To prevent electromagnetic and radiation hazards, this machine uses excellent shielding materials to shield various electromagnetic hazards and interference.
3. Provide a high-definition touch screen as a simple user interface.
4. The conveying system consists of a brushless motor and a conveyor belt. The brushless motor drive module provides the motor with high torque, high precision, and a wide speed range drive, which realizes the uniform movement of the items and enables the weighing unit to detect the weight of the items more accurately.
5. The weighing system consists of a main weighing unit and a vibrating weighing unit. The high-speed checkweigher adds a vibrating weighing unit to prevent external vibration. The weighing vibration unit uses a high-precision, high-speed, and high-sensitivity weighing sensor. The information that the item is forced to rotate is converted into an electrical signal by the weighing module through the sensor, and is displayed on the touch screen after communicating with the microcontroller.
New Style Dynamic Pouch Checkweigher Machine with Low Center of Gravity
Dynamic pouch checkweigher machines are widely used in the standard inspection of single products and samples in the production lines of cosmetics, food, toys, daily chemicals, electronics, medicine, hardware, plastics and other industries, online weight inspection and sorting of single products, missing product accessories and manuals, missing bottles in the whole box, weight inspection of empty bottles, etc.
New Style Dynamic Pouch Checkweigher Machine with Low Center of Gravity
-Fumigation certification for wooden packaging used for overseas shipment
-Internal plastic film wrapping protects goods from salt, wind, or damage
-Shipping terms: EXWORK, FOB, C&F, CIF sea or air freight terms
Pre-sale service
1. Test customer engineer, learn how to use the automatic checkweigher machine.
2. Test the checkweigher with product samples and our film materials.
3. Test machine video, will be sent to customers, then, pay the balance to us.
After-sale service
1. Manual.
2. Adjustment, setting video. Maintenance, available for us.
3. Telecommunication. Or face-to-face online communication is available.
4. This machine has a one-year warranty. During the warranty period, if there is no man-made damage, we will replace a new one for you. The warranty period will start from the machine shipped out and get the bill of lading.
