Large-Range Intelligent Digital All-metal Detector Machine For Industrial
Digital all-metal detector machine for industrial is used to detect whether there are metal impurities in the materials on the conveyor belt. This detector is usually installed on the conveying path of the material, which can effectively monitor and prevent the impact of metal particles on product quality. The large-range intelligent digital metal detector has high detection sensitivity and good stability. A variety of rejection devices are available, and the color touch screen facilitates human-computer interaction to avoid residual metal in the product during production.

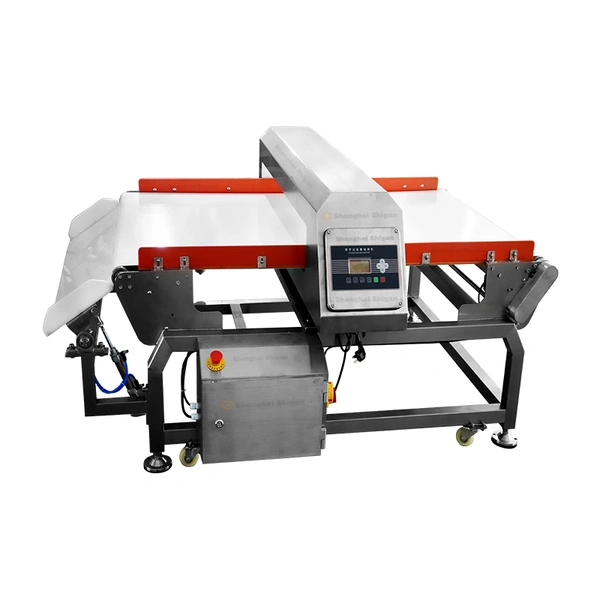

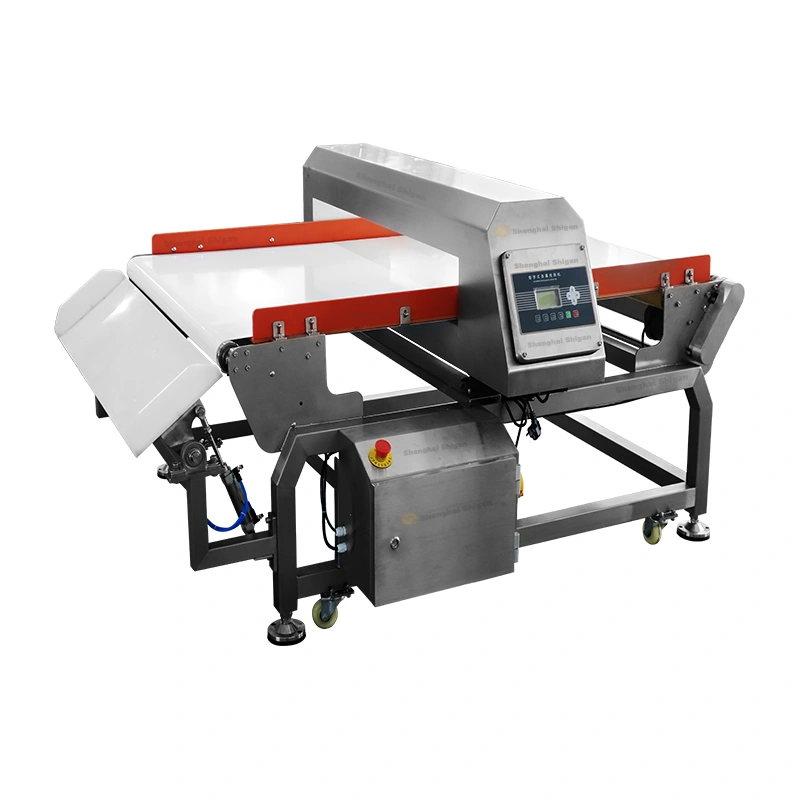

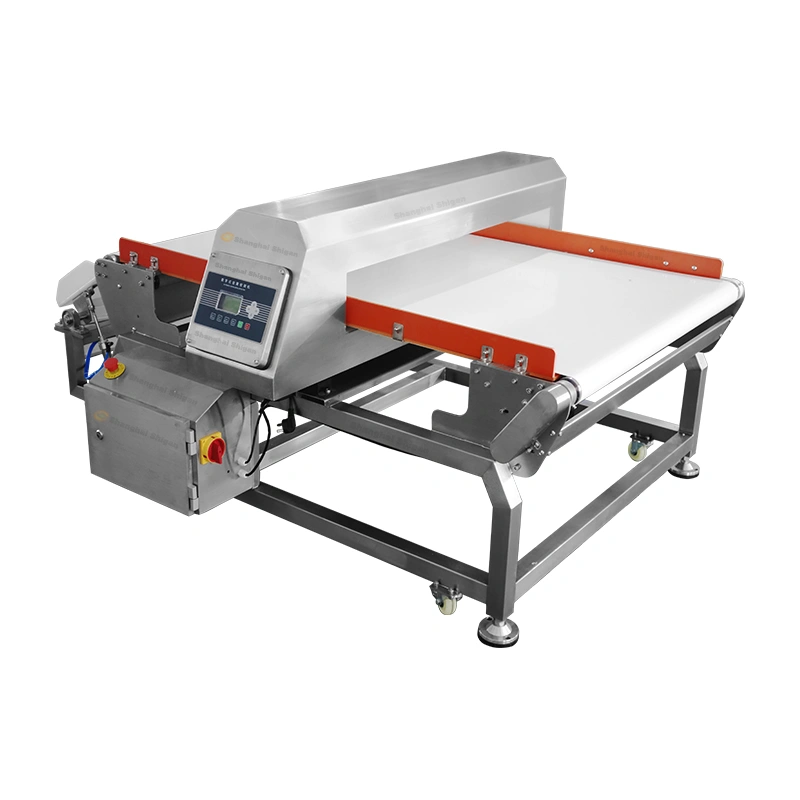

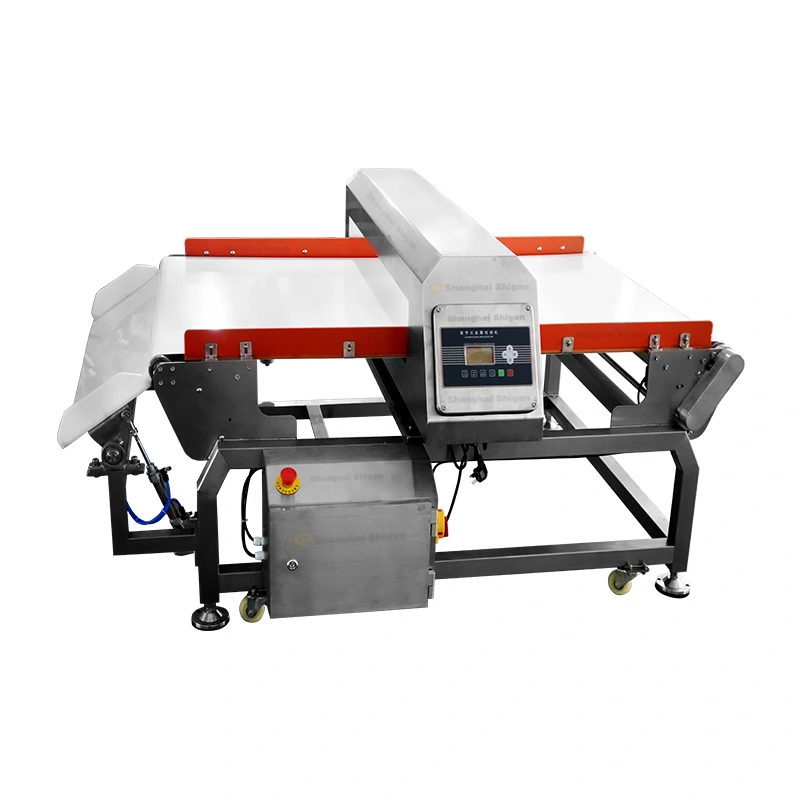

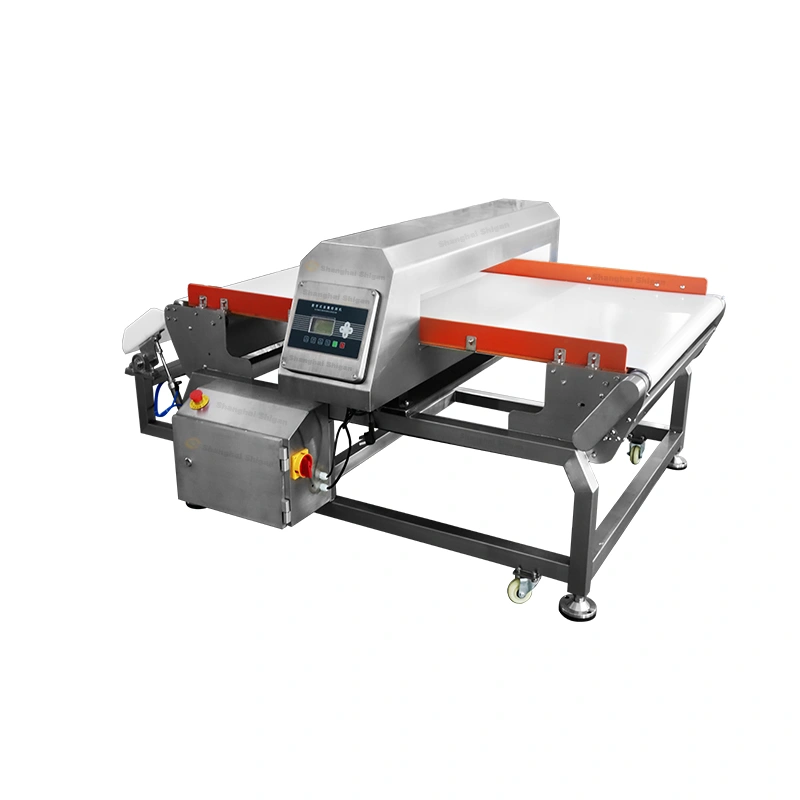

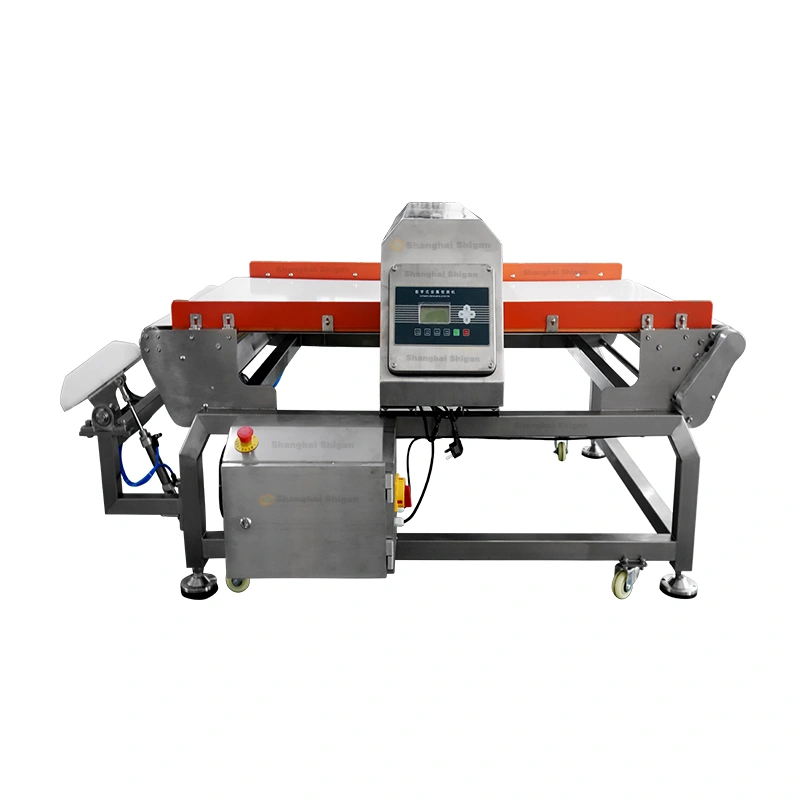

Digital all-metal detector machine for industrial pictures
1. High sensitivity: Digital all-metal detector machine for industrial can detect very tiny metal impurities and ensure product quality.
2. High stability: Digital all-metal detector machine for industrial can maintain stable detection performance under various working conditions to avoid false alarms and missed alarms.
3. Easy to operate: The equipment has an intuitive operation interface, which is convenient for operators to set parameters and view test results.
4. Strong adaptability: Large-range intelligent digital metal detector can be applied to aluminum foil production lines of different thicknesses and speeds to meet various production needs.
5. Intelligence: Large-range intelligent digital metal detector has functions such as automatic calibration and fault self-diagnosis to improve the reliability and maintenance convenience of the equipment.
Large-Range Intelligent Digital All-metal Detector Machine For Industrial
Touch Screen: 7/10 inch touch TFT full colorful LCD display
Language: Chinese / English (more languages can be customized)
Detecting Method: Electromagnetic Wave
Sensitivity: FeΦ1.5mm, CuΦ2.0 mm, SUSΦ2.5mm
Sensitivity Degree: 100 Degrees
Alarm Mode: Sound and alarm. Stop( can customized)
Conveyor speed: Fixed speed 20m/min or adjustable 15-30m/min (can be customized)
Tunnl Size: W400 x H200 (mm）
Product Memory: 12 products, 100 products ( optional)
Input Power/ Voltage: Single-phase 220VAC or 110VAC 200W
Construction Material: 304 SUS ( 316 SUS available)
Machine Weight: 120kg
Machine Size: 300 x 850 x 350 mm (can be customized)
Digital all-metal detector machine for industrial is mainly used to detect metal debris inside industries such as nuts, rice, tea, and wood processing. In addition, it can also be used to detect metal impurities in chemicals, rubber, plastics, textiles, leather, chemical fibers, and toys, as well as metal foreign bodies in medicines, health products, biological products, cosmetics, gifts, packaging, paper, etc.
If the displayed product specifications do not meet the requirements, Shanghai Shigan provides customers with suitable digital all-metal detector machine for industrial model selection according to the user's production status and needs to ensure that the equipment can meet the requirements of the actual application scenario.
Large-Range Intelligent Digital All-metal Detector Machine For Industrial
1. Waterproof PO film + wooden box
1) Dust removal and cleaning
2) Lubricate transmission parts
3) Divide the machine into modules
4) Wrap the modules with plastic film
5) Pack the modules into plywood boxes
6) Mark the box
2. According to the customer's packaging requirements.
12 Months Guarantee
★ 12 months free main parts change (Please return the damaged parts by airmail)
★ Overseas engineers available (You only have to pay part of the freight)
Customization
All our machines can be customized , according to your product's features and your workshop environment, or your production line.
After-sales Service Provided
one year warranty and lifetime maintenance. During the warranty period, accessories damaged by non-human factors will be replaced free of charge; outside the warranty period, accessories will be provided at cost price.
