High Precision Softgels Pharmaceutical Metal Detector Tablet Metal Detection System
The capsule tablet pharmaceutical metal detector is connected to the tablet press, with strong on-site adaptability, intuitive maintenance, easy operation, compact overall structure, closed conveying channel, non-toxic and harmless production process, ensuring the safety and hygiene of drugs. The high precision softgels capsule tablet metal detector detects magnetic and non-magnetic metal impurities and quickly removes them from the production line without interfering with the normal production process and reducing material loss. For further information about our services, or if you would like one of our professionals to contact you, please do not hesitate to contact us.

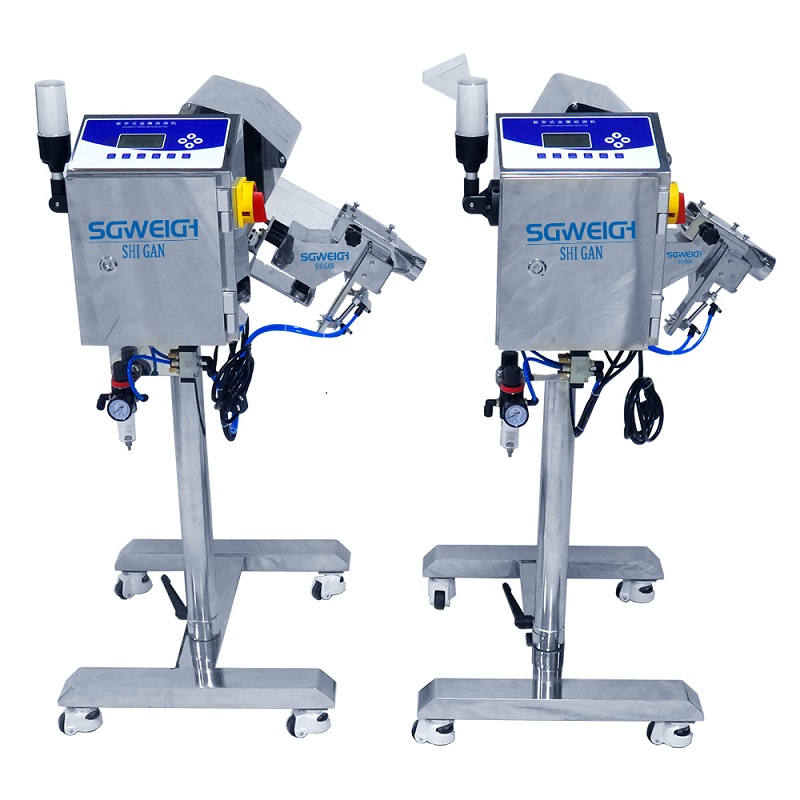

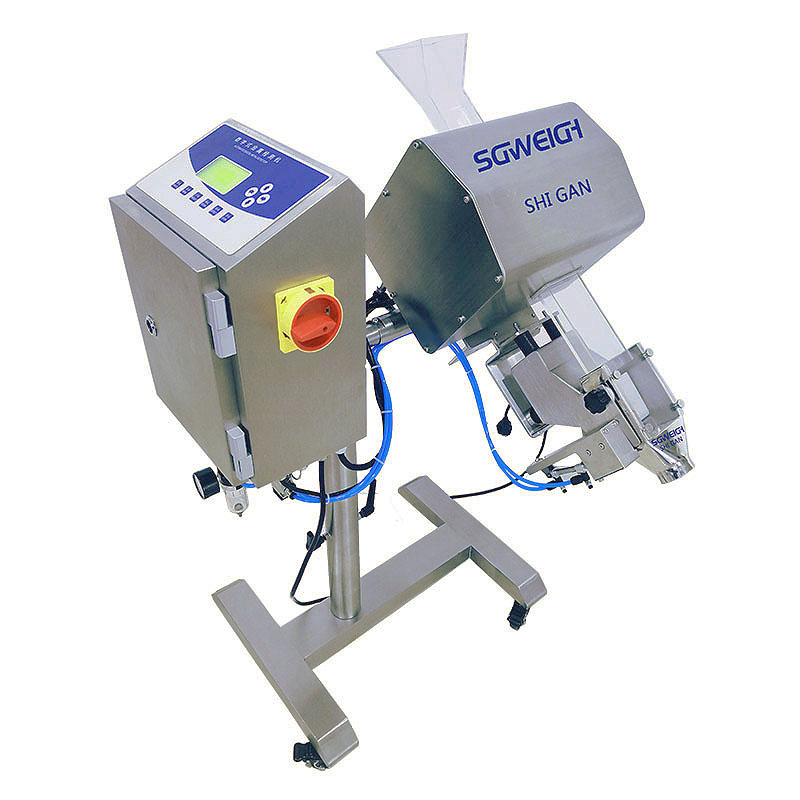

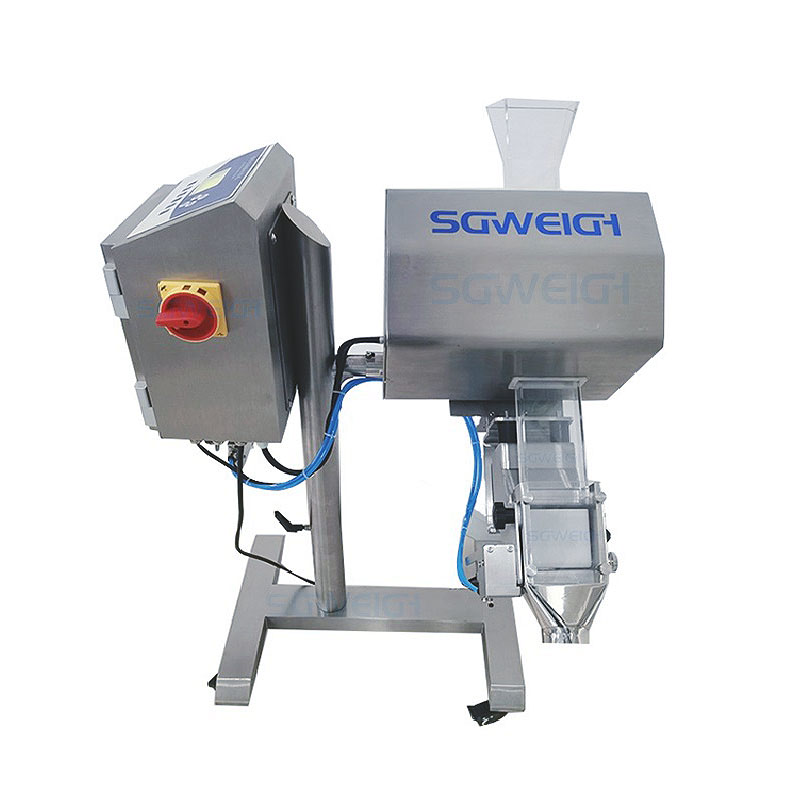

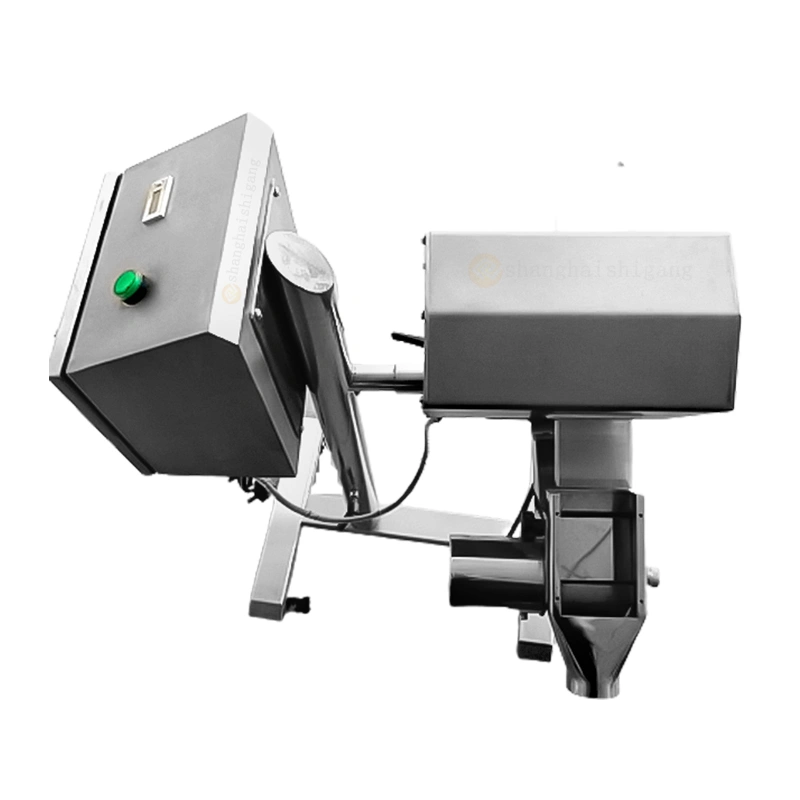

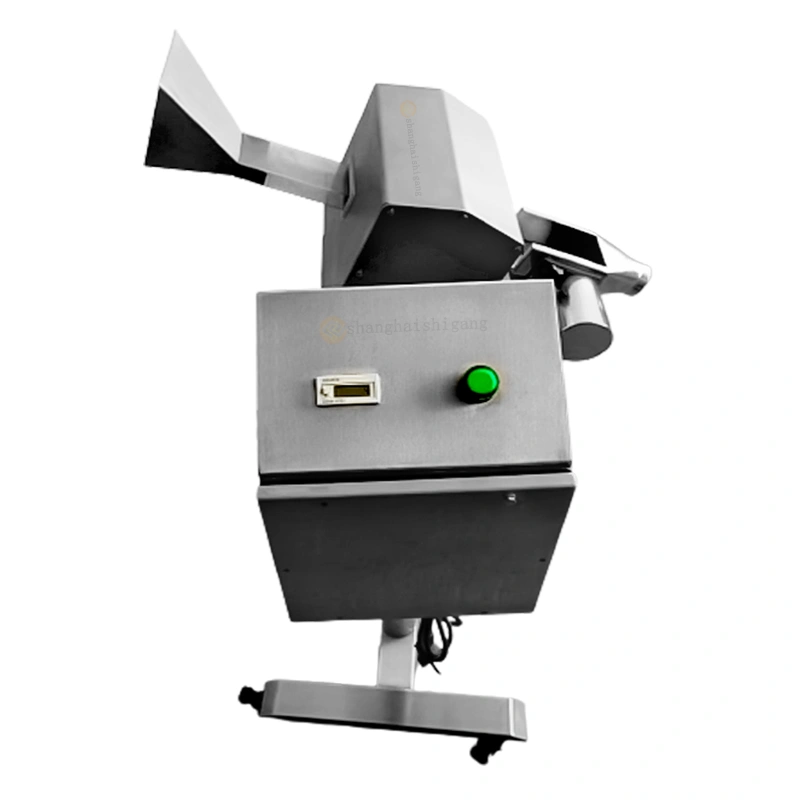

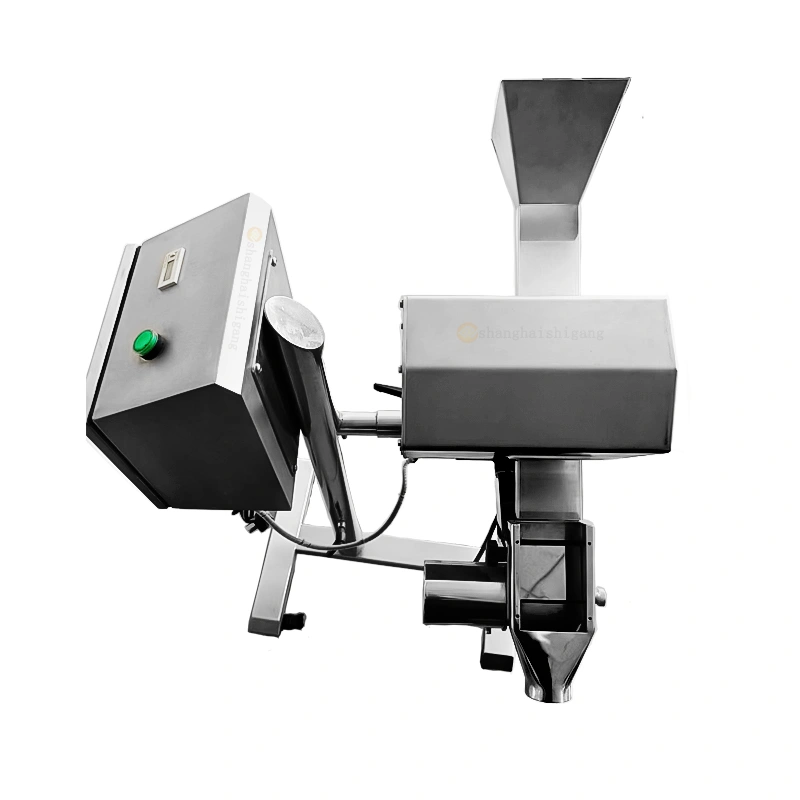

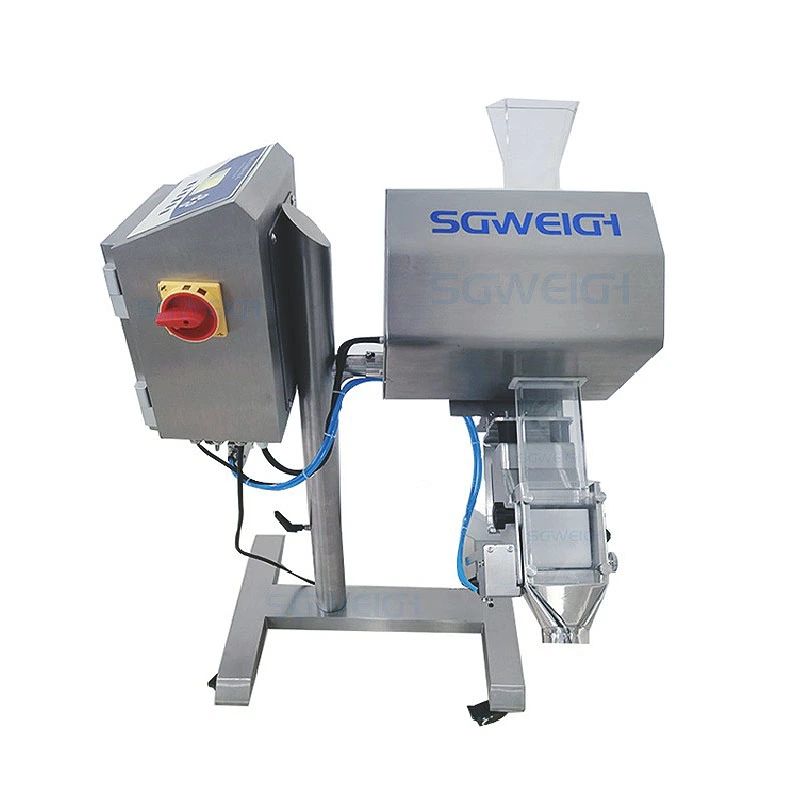

Capsule tablet pharmaceutical metal detector photos
Type: SG-M50
Feed port height and size: Height: 770-930mm Feed port size: 76mm
Height and size of outlet: Height: 770-860mm Size of outlet: 51mm
Effective passing size: W70*H20mm
Maximum production capacity: 500,000 pcs/hour
Detection sensitivity: Fe: 0.4mm, stainless steel: 0.6mm
Machine weight: 75kg

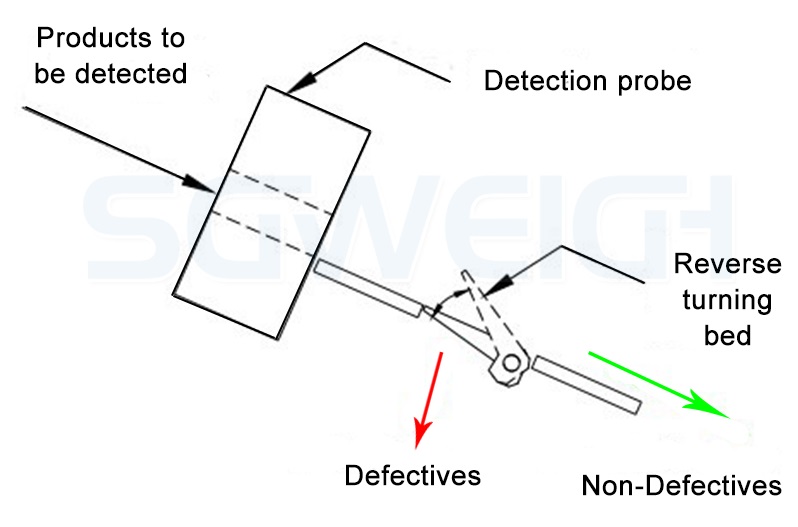

Removal method: flip culling
Working voltage: 220V/110V, 50/60HZ
Equipment dimensions: 1115*550 (1280-1400) mm
1. This capsule tablet pharmaceutical metal detector is used to detect metal impurities in tablets and capsules after tableting and dust removal processes
2. Can detect all metal impurities, including ferrous metals (Fe), non-ferrous metals (copper, aluminum, etc.) and stainless steel
3. LCD touch screen control, friendly user interface, support multiple languages
4. Multiple detection frequencies are available, and different frequencies can be used according to different product effects
5. With self-learning function, the metal detector will automatically collect product information and recommend suitable detection parameters for each product
6. Advanced DSP technology greatly improves detection performance. Leading genetic algorithm will effectively suppress product signals to achieve reliable sensitivity
7. Can store about 100 product data, suitable for detecting production lines of multiple products
8. Equipped with automatic slapping rejection system (controlled by pneumatic solenoid valve), unqualified products will be automatically rejected
High Precision Softgels Pharmaceutical Metal Detector Tablet Metal Detection System
Capsule tablet pharmaceutical metal detectors are used in the pharmaceutical industry to ensure the safety and quality of tablets and capsules.

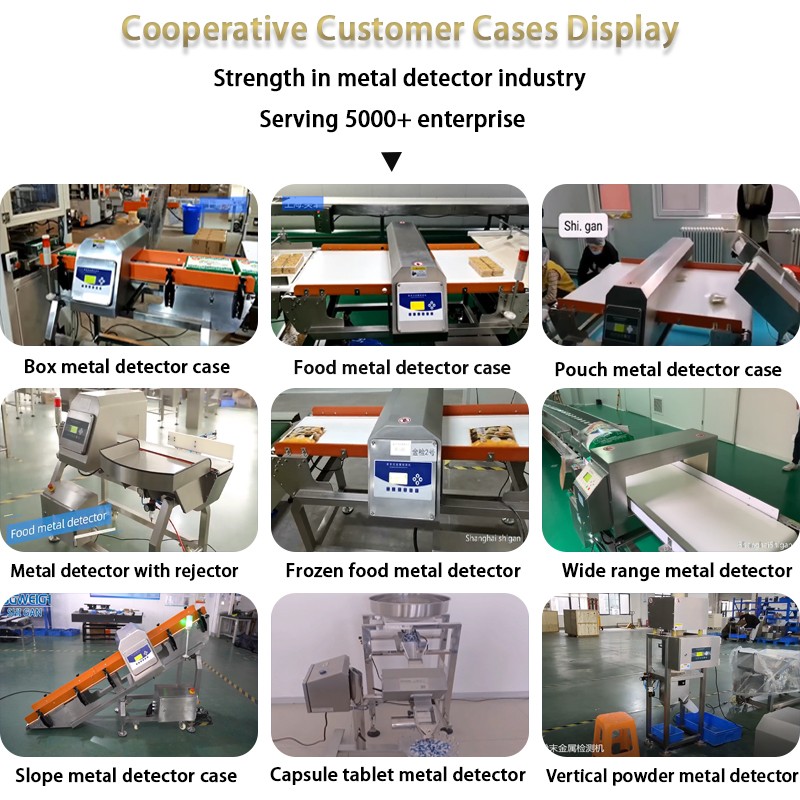

Capsule tablet pharmaceutical metal detectors are widely used in online metal detecting. Shanghai Shigan provides one-to-one customized capsule tablet metal detector solutions based on the user's actual production scenarios and production line online metal detection technical indicators.
High Precision Softgels Pharmaceutical Metal Detector Tablet Metal Detection System
The usual packing is a wooden box (size: length*width*height). If exported to European countries, the wooden box will be fumigated. If the container is too tight, we will use polyethylene film packing or pack according to customer's special requirements

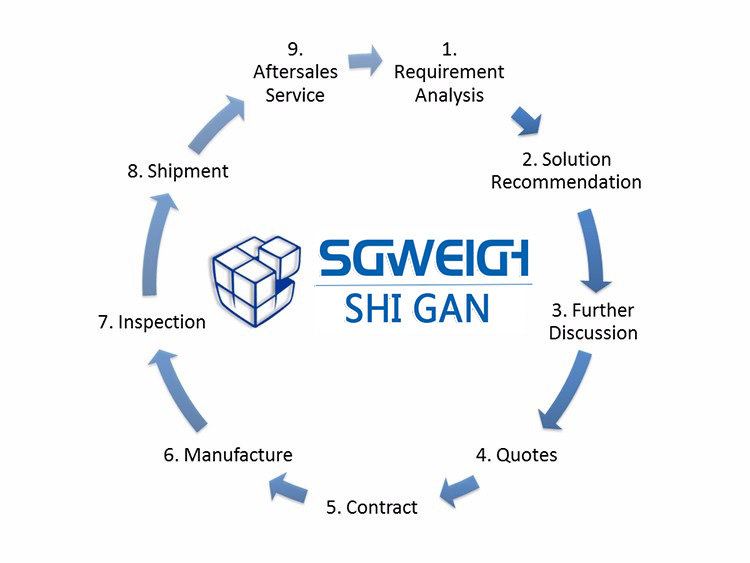

1. Customer consultation and technical support: Provide customers with consulting services on product use, repair and maintenance, and answer questions encountered by customers during operation and use.
2. Technical training: Provide training on product operation, maintenance and repair according to customer needs to ensure that customers can use and maintain the products correctly.
3. Accessories supply: Provide original accessories to ensure the quality and performance of accessories to meet user needs.
4. One-year warranty, lifetime maintenance
