Automatic Snack Candy Checkweigher Small Sachet Weight Inspection Checkweigher

Description

Automatic Snack Candy Checkweigher Small Sachet Weight Inspection Checkweigher

The introduction of small sachet weight inspection checkweigher into the production line can perform high-speed, high-precision weight detection on all packaged products on the line. At the same time, according to the production internal control standards and the upper and lower limits of the checkweigher's accuracy pre-set, Automatic snack candy checkweigher can quickly make a qualified judgment and remove unqualified products. It can be integrated with various packaging production lines and conveying systems. It is a low-cost and economical solution. For further information about our services, or if you would like one of our professionals to contact you, please do not hesitate to contact us.

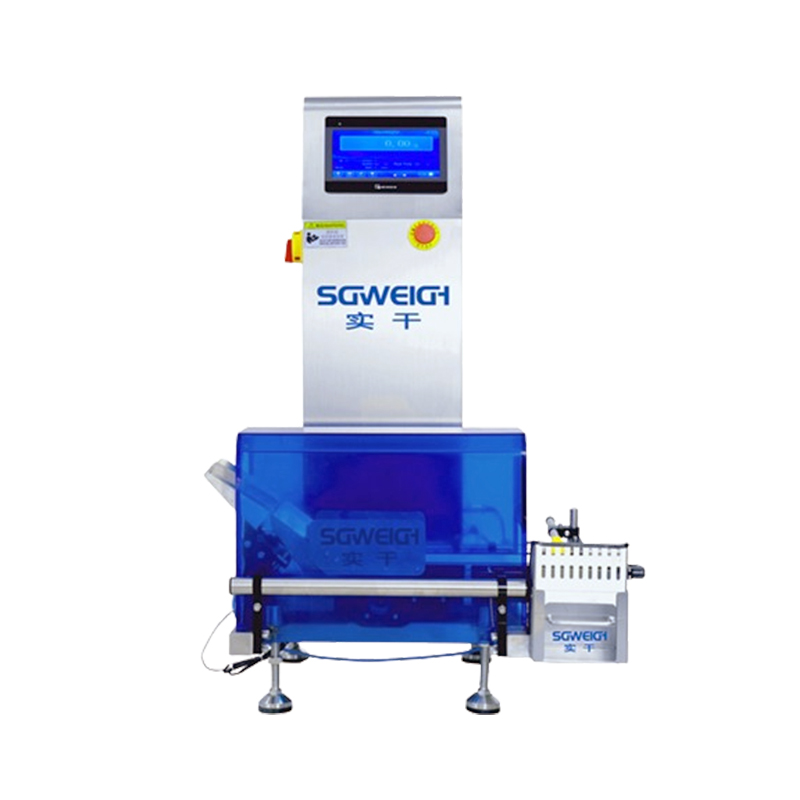

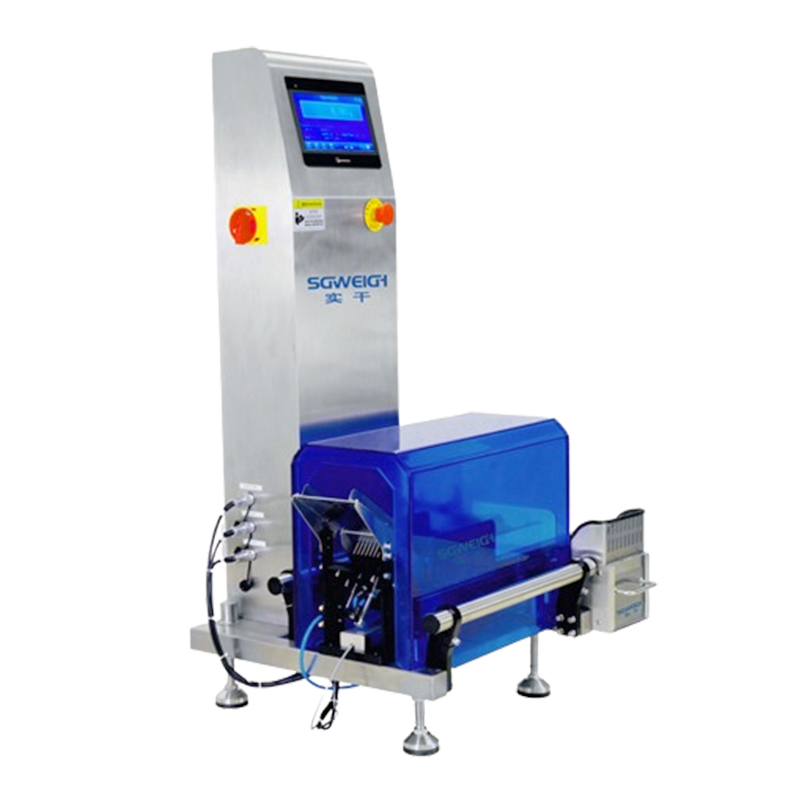

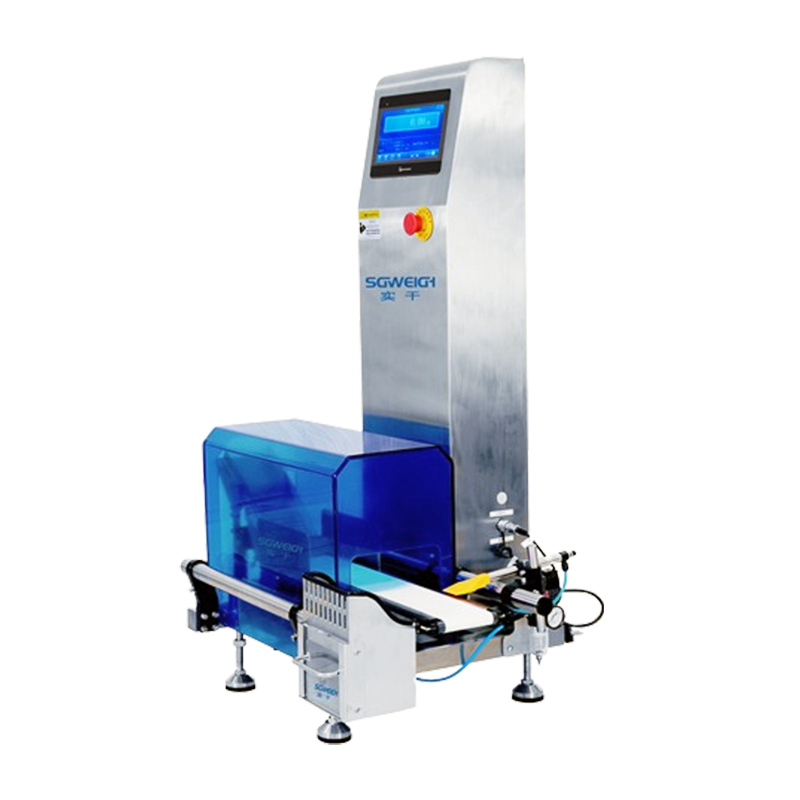

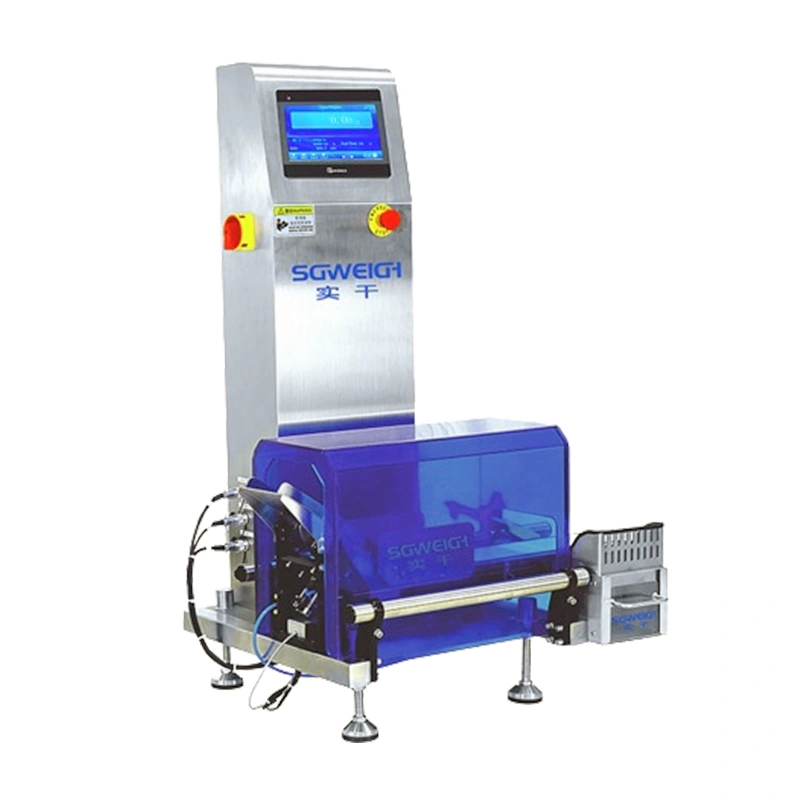

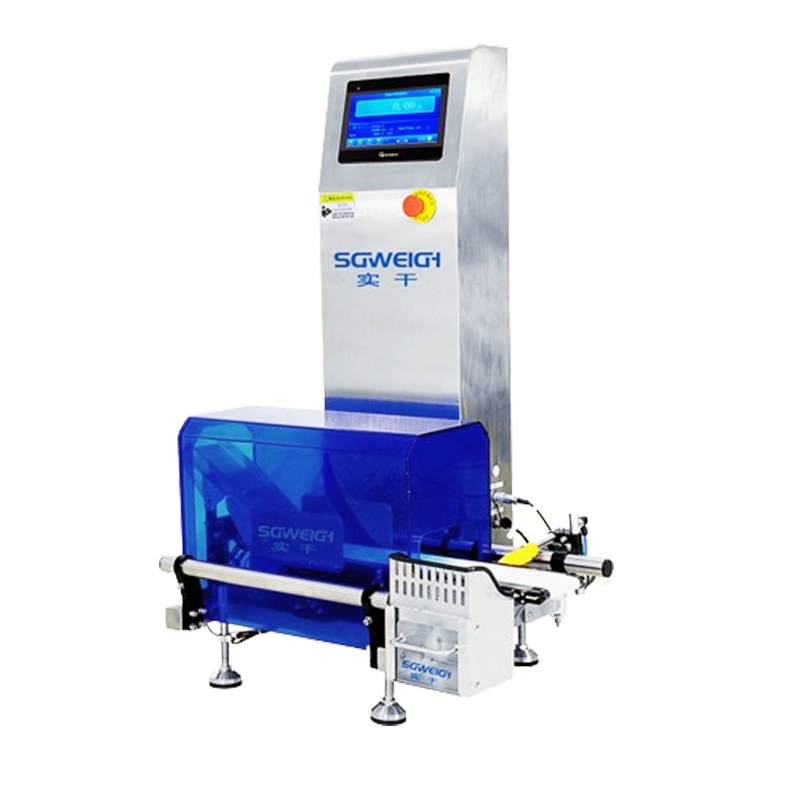

Automatic pouch tube checkweigher machine photos

Automatic Snack Candy Checkweigher

Small Sachet Weight Inspection Checkweigher

Automatic Snack Small Sachet Checkweigher

Automatic Snack Candy Checkweigher Small Sachet Weight Inspection Checkweigher

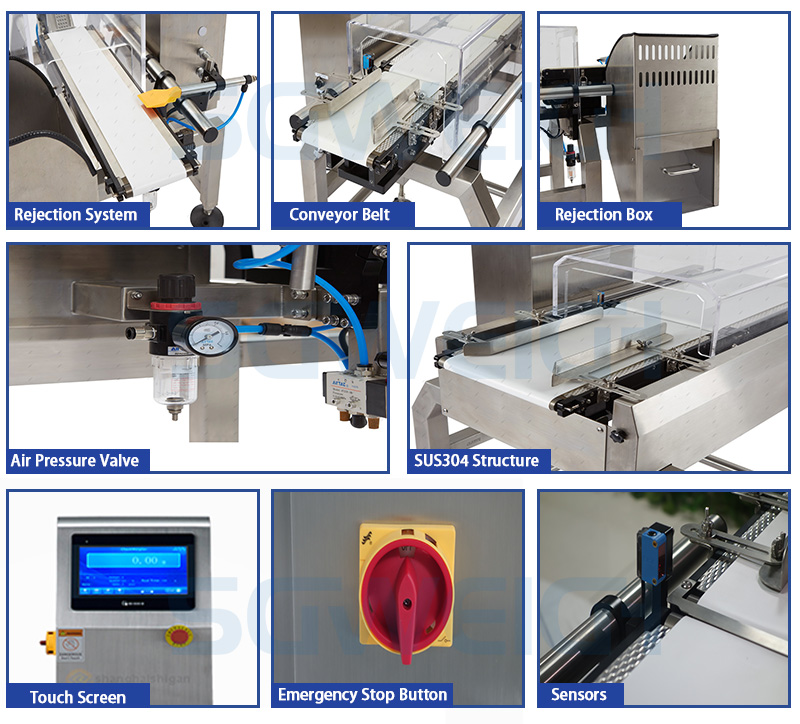

checkweigher details.jpg

Type SG-1X

Weighing Range 1-50g

Limited of product L: 180 W: 40 H: 2-20mm

Accuracy ±0.01g Depends on product

Division Scale 0.01g

Max Speed 70 pcs/min

Belt Width 100mm

Machine Weight 50kg

Power Supply AC 110/220V ±10% 50HZ

Power 100W

Main Material SU304 stainless steel


1. Strong adaptability to the equipment environment.

2. Very friendly operation interface.

3. Parameters can be modified at any time without pausing the weight sorter.

4. Up to 200 product presets can store hundreds of thousands of data records to meet the complex needs of customers.

5. Rich peripheral resources, convenient for interconnection with other devices.

6. Fast dynamic weighing algorithm software technology enables the entire system to maintain high detection accuracy even at high speed.

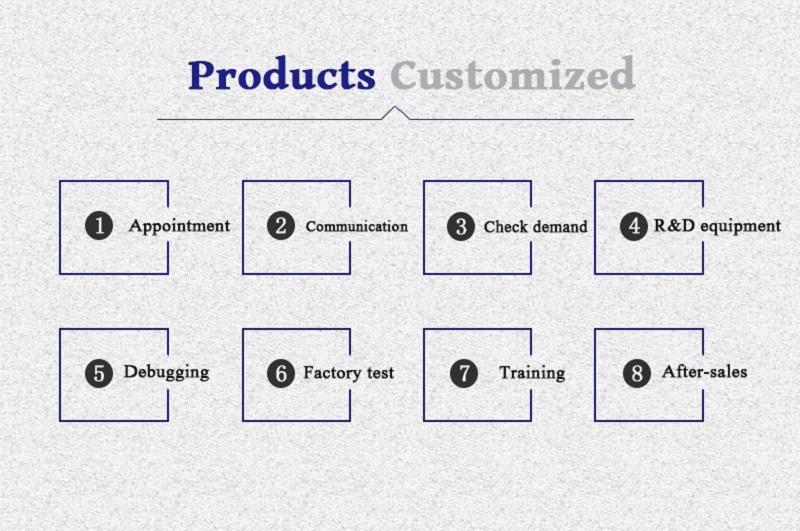

Customized solutions to meet complex needs: Provide the following information to our sales staff, and our team will support you in choosing the right type of high-precision box sachet checkweigher:

*1 Main parameters of the product to be measured, product size range: length, width and height

*2. Accuracy requirements: ±g.

*3. Speed requirements: pcs/min;

*4. Product weight range:; Maximum and minimum deviations of the same product.

1. Underweight and overweight detection of packaged products; detection of missing accessories in the package, such as instructions, accessories, gifts, desiccant and other accessories.

2. Whole box inspection: missing parts detection, missing package detection, missing box detection, missing bottle detection, missing can detection, missing bag detection, etc.

Automatic Snack Candy Checkweigher Small Sachet Weight Inspection Checkweigher

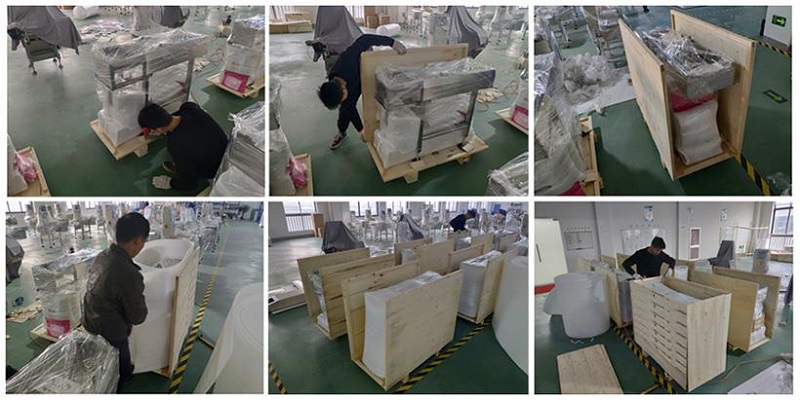

1. Waterproof PO film + wooden box

1) Dust removal and cleaning

2) Lubricate transmission parts

3) Divide the machine into modules

4) Wrap the modules with plastic film

5) Load the modules into plywood boxes

6) Mark the box

2. According to the customer's packaging requirements.

In order to find the best solution, save costs, provide the best service, and earn more profits for our partners, we look forward to long-term cooperation!

Pre sale.

1. Project design, performance introduction, technical agreement, contract signing, packaging

2. Inquiry and consultation support.

3. Sample testing support.

In terms of sales.

We will provide you with the latest developments in product assembly, packaging, and transportation.

After sales service.

1. We will provide free accessories for non human component damage.

2. Training on how to install the machine, video training on how to use the machine, etc

3. One year warranty and lifelong maintenance
