Essential Oil Bottle High-speed Check Weigher for Online Weight Recheck
Checkweigher as known as check weigher, check weight machine, check weighing machine, weight checker, weight sorting machine, and etc,.
Bottle high-speed check weigher is a device applied to various automated production lines. And perform automatic weight detection on the logistics conveying system, checking the upper and lower limits or based on weight. Due to the particularity of bottled products, our company has developed a clamping conveyor that is compatible with the online automatic checkweigher for bottles, which can efficiently avoid product damage and ensure the accuracy and speed of detection.

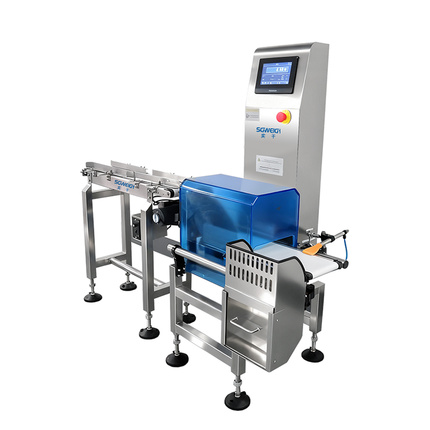

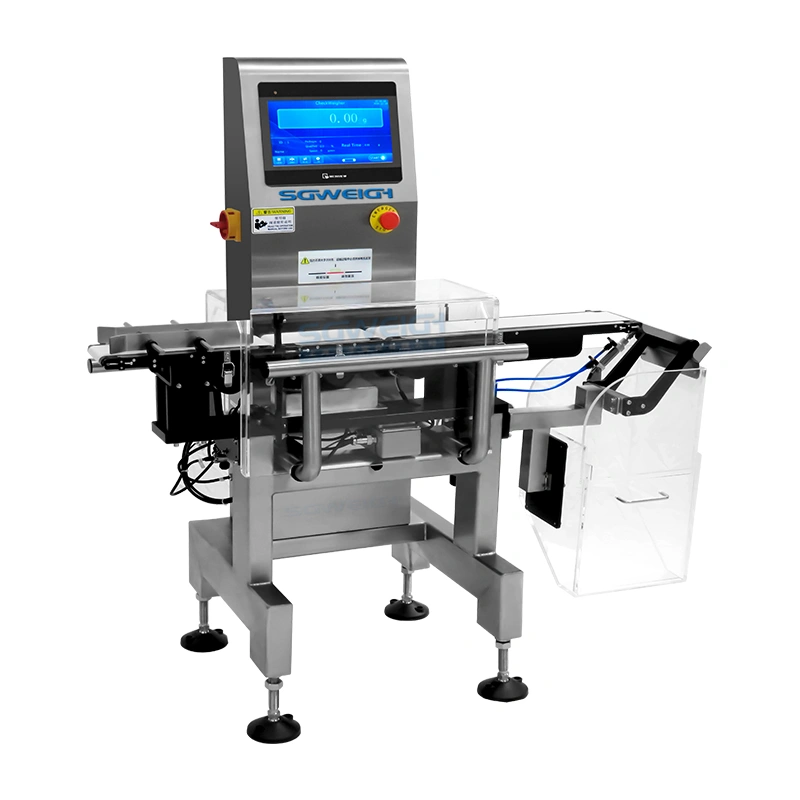

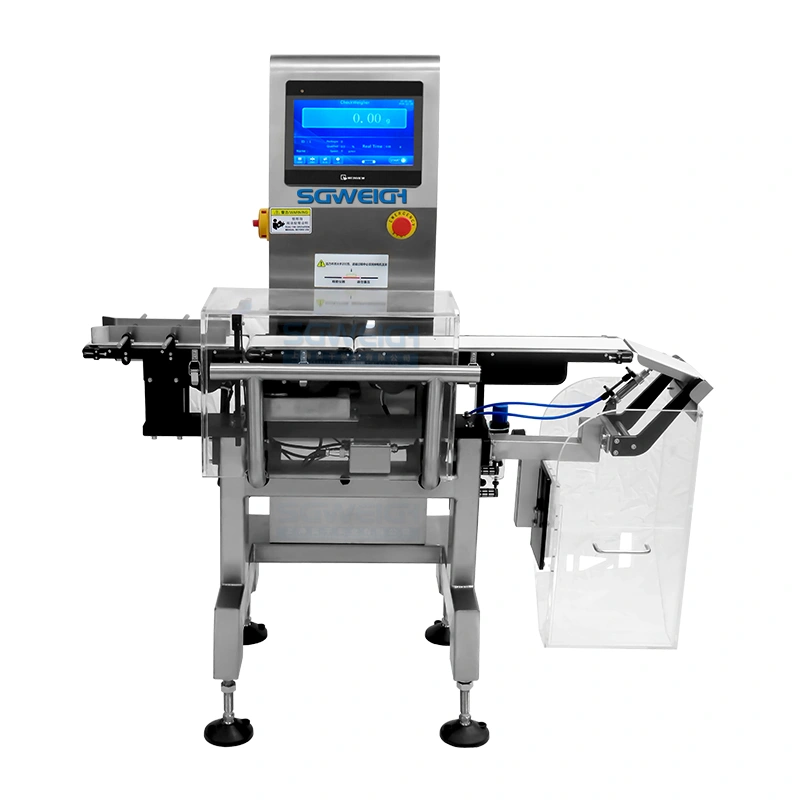

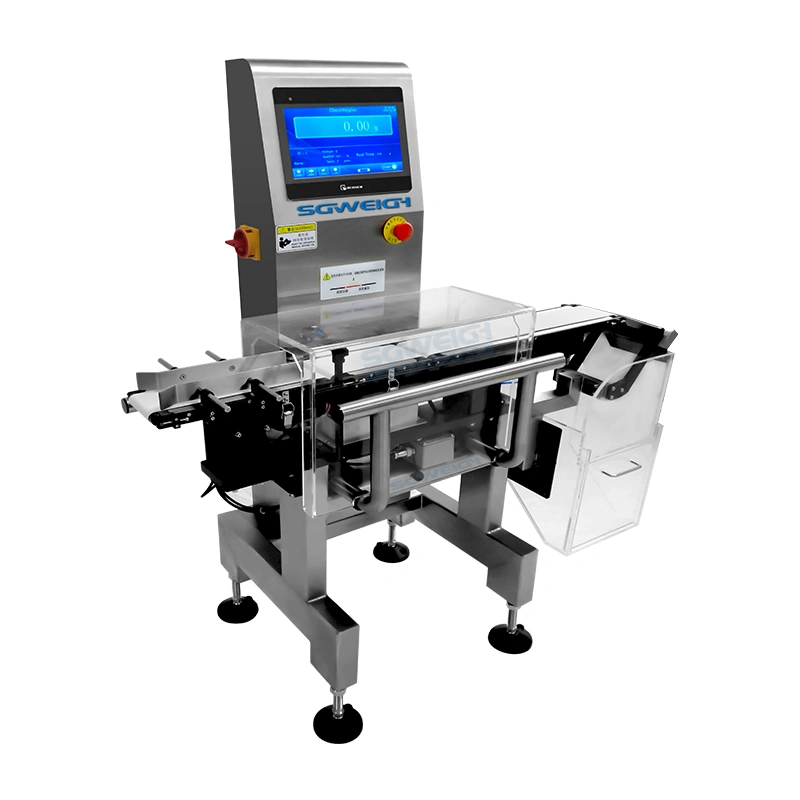

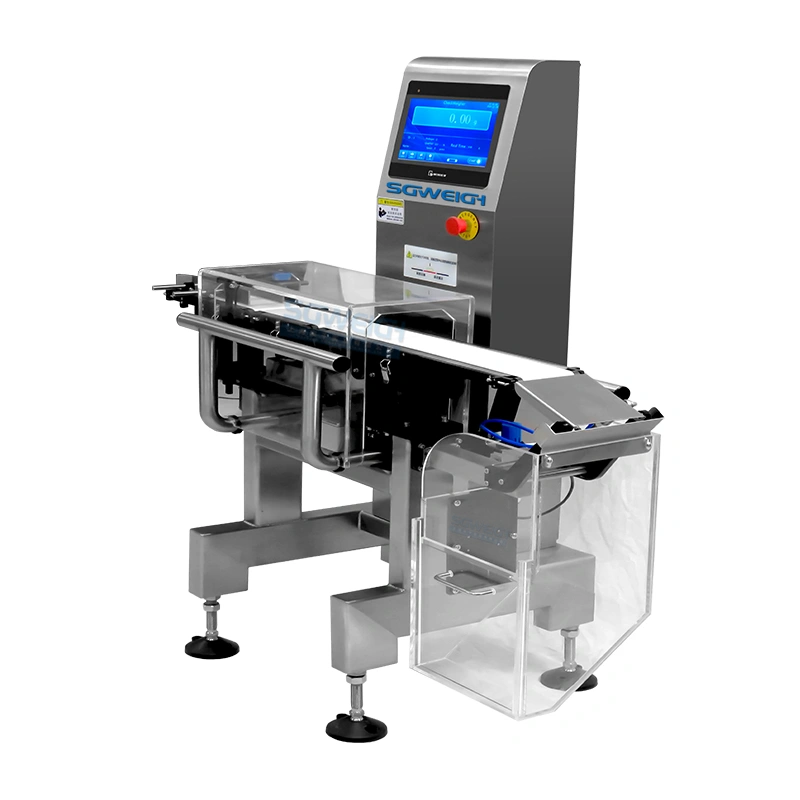

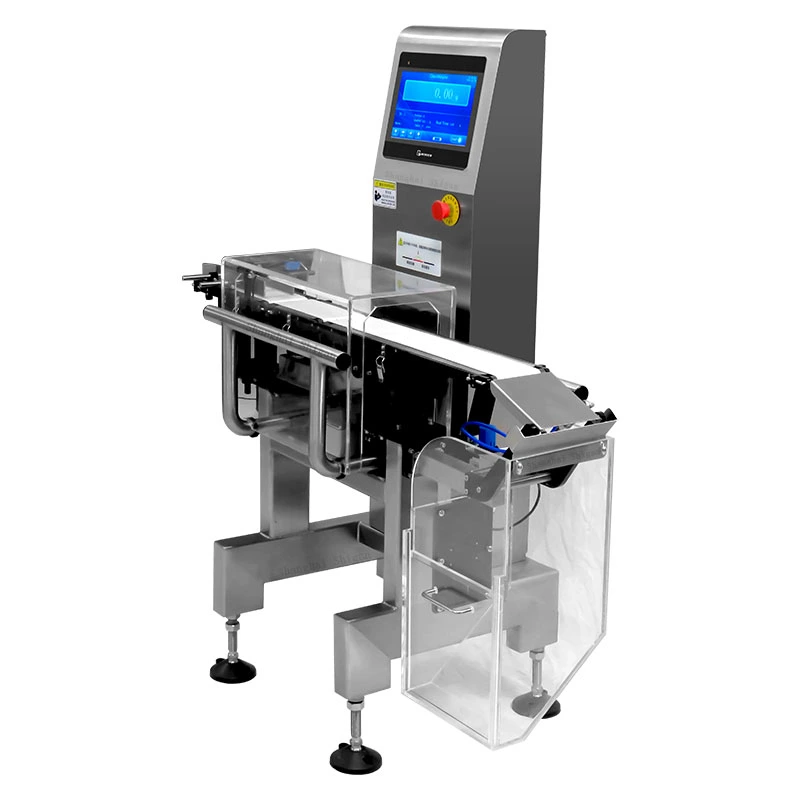

Bottle high-speed check weigher photos
Type SG-100HH
Weighing Range 2-300g
Limited of product L: 100 W: 100 H: 2-150mm
Accuracy ±0.05g Depends on product
Division Scale 0.01g
Belt Speed 0- 120 m/min
Max Speed 450 pcs/min
Belt Width 100mm
Machine Weight 150kg
Power Supply AC 220V ±10% 50HZ
Power 100W
Main Material SU304 stainless steel
The bottle high-speed check weigher is widely used in the production and packaging processes of industries such as food and beverage, pharmaceutical, daily chemical, warehousing and logistics, electronic light industry, packaging and printing, automotive parts and hardware, plastic toys, chemical, and agricultural and sideline products.
1st step: Customer has showed his special requirements.
2nd step: We try to understand the conception and pattern from customer with simple draft or refer picture.
3rd step: Making the conceptive CAD drawing based on communication and understanding.
4th step: Making the detail and 3D drawing agter fixed the design and other details.
5th step: Offer the quotation after confirm the design,material and surface treament.
6th step: Making the sample for approval.
7th step: Testing installation after demo mock up.
8th step: Big production delivery and service after sales.
•Easy Integration: adjustable height, modular design
•Sturdy and robust construction: Stainless Steel 304
•Easy to use: touch screen operating system is easy to use with user password protection
•Easy to clean: detachable belt easy to to take apart for cleaning and set up.
•Variable Speed: Speed configurable based on application
•High Speed and Accuracy: equipped with high grade sensor and load cell with ultra fast processor for excellent accuracy and speed
•Zero Trace: Manual and Automatic Calibration, increase accuracy
•Report and Data Exportation: Built-in real time report, exportable to Excel file, storing up 1 year production data in USB disk
•Connectivity: standard ports for data exportation and connect to PC
•Self-learning: no need to calibration, system will find the best set up for the product. Configurable up to 2000 product settings
•Different Detection Modes: Default Mode, Static Mode, Power saving mode
•Faulty report: The system can detect and report faulty part of the system makes it easy to diagnose problems
•Output Ports: RS-485 and RS-232, able to Connect with printers and label machines
•The clamping conveyor matched with the bottle high-speed check weigher
Machine packaging:
Non fumigated wooden boxes that meet export standards and comply with customs clearance requirements
Delivery cycle:
10-15 days after receiving payment
Price terms:
FOB terms, CIF/CFR terms (sea/air freight), DDU/DDP terms (sea/air freight)
Transferable payment methods: T/T LC、D/P、D/A。， etc.
1. We will deliver the machines and provide a load list on time to ensure that you can quickly obtain the machines
2. We often ask for feedback and provide assistance to customers who have used our machines in their factories for a period of time.
3. We offer a one-year warranty
4. Trained and experienced employees will answer all your inquiries in English and Chinese
5.12 months warranty and lifetime technical support.
6. Your business relationship with us will be kept confidential from any third party.
7. Provide excellent after-sales service. If you have any questions, please contact us.
