Effervescent Tablet Automatic Checkweigher Bottle Tube Check Weigher Price
Checkweigher as known as check weigher, check weight machine, check weighing machine, weight checker, weight sorting machine, and etc,.
The bottle tube check weigher is a device that can automatically detect whether the weight is qualified when the belt is running at high speed. It is a high-efficiency and high-precision online weight check equipment that can be integrated into various packaging line terminals and conveying systems. The effervescent tablet automatic checkweigher comprehensively solves quality problems such as underweight/missing/missing parts, and dynamic weighing-automatic detection-automatic rejection is done in one step. To know more, please you do not hesitate to contact us.

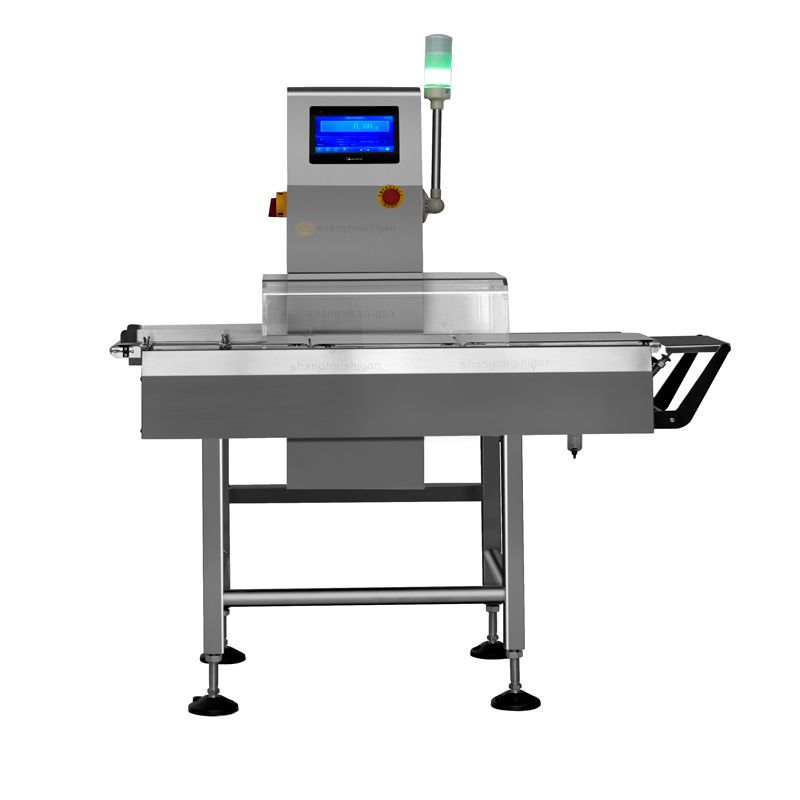

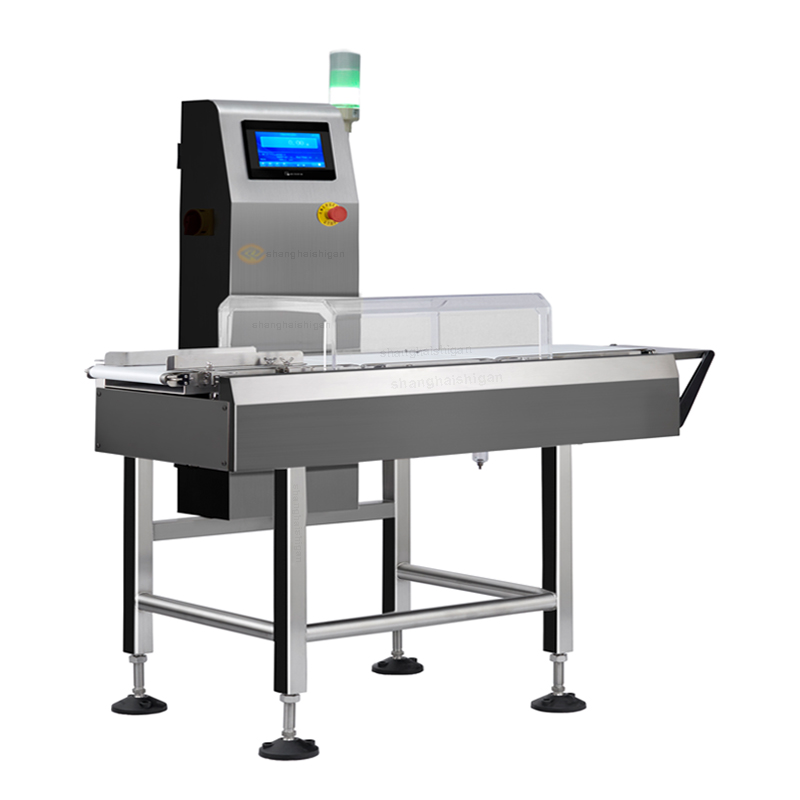

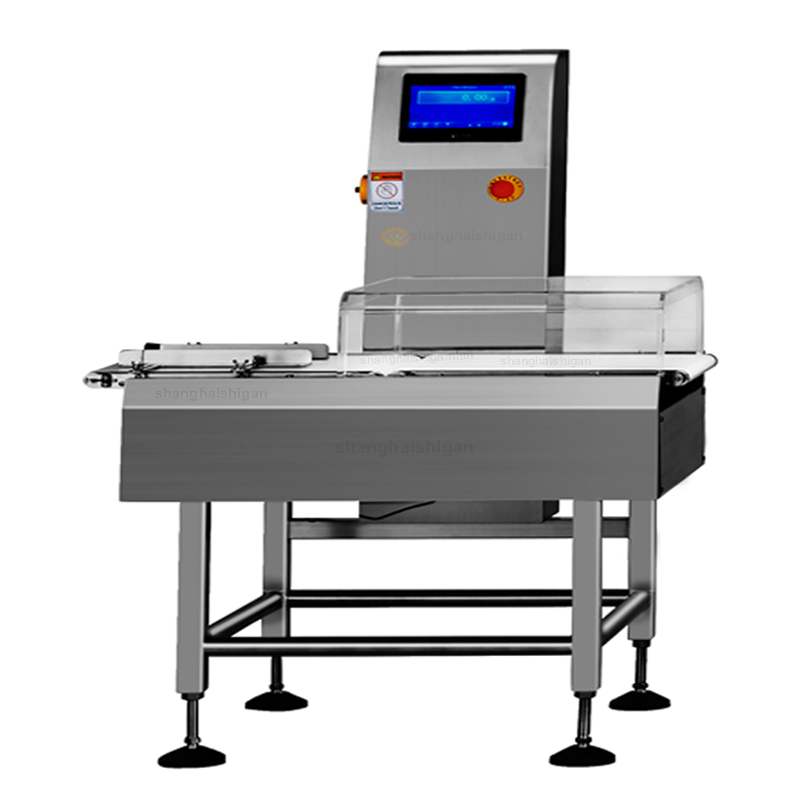

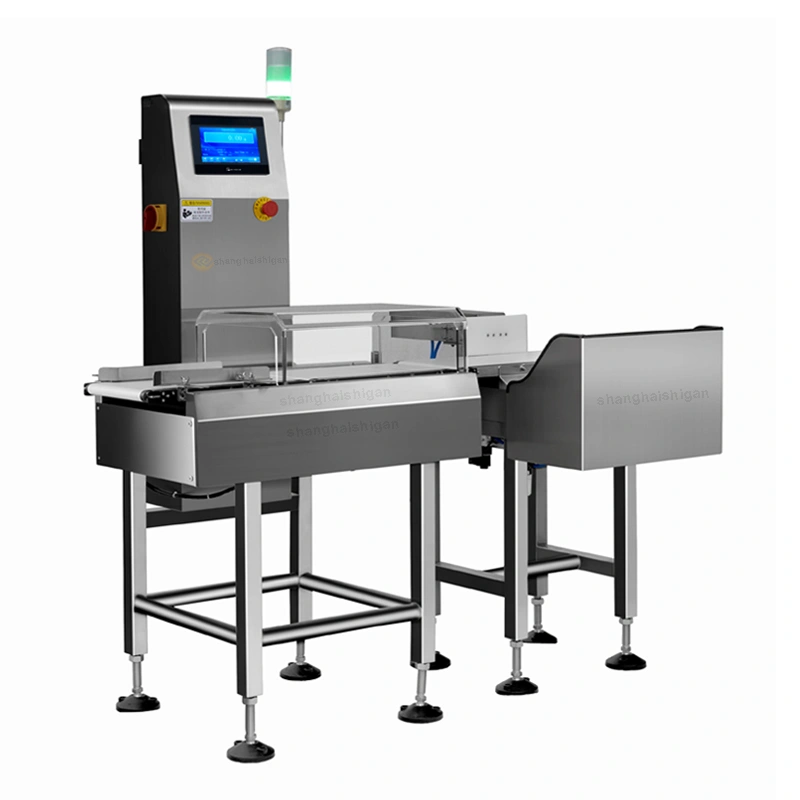

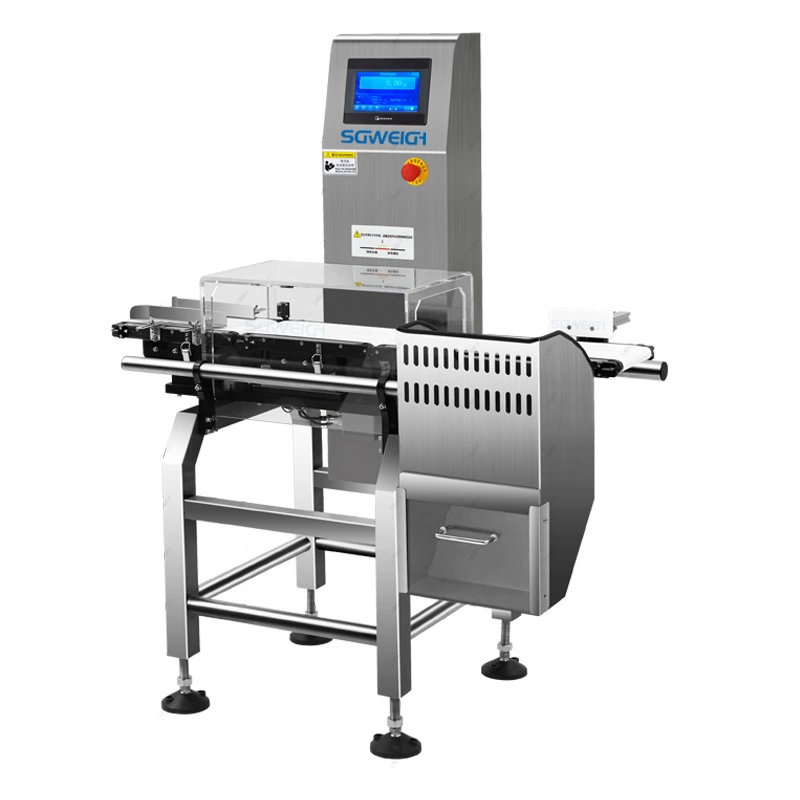

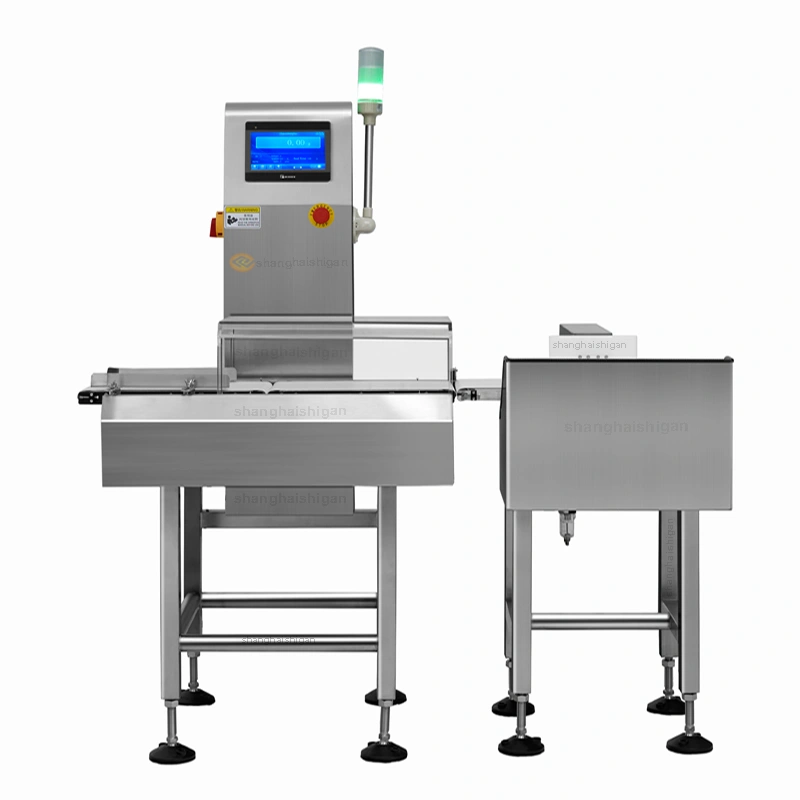

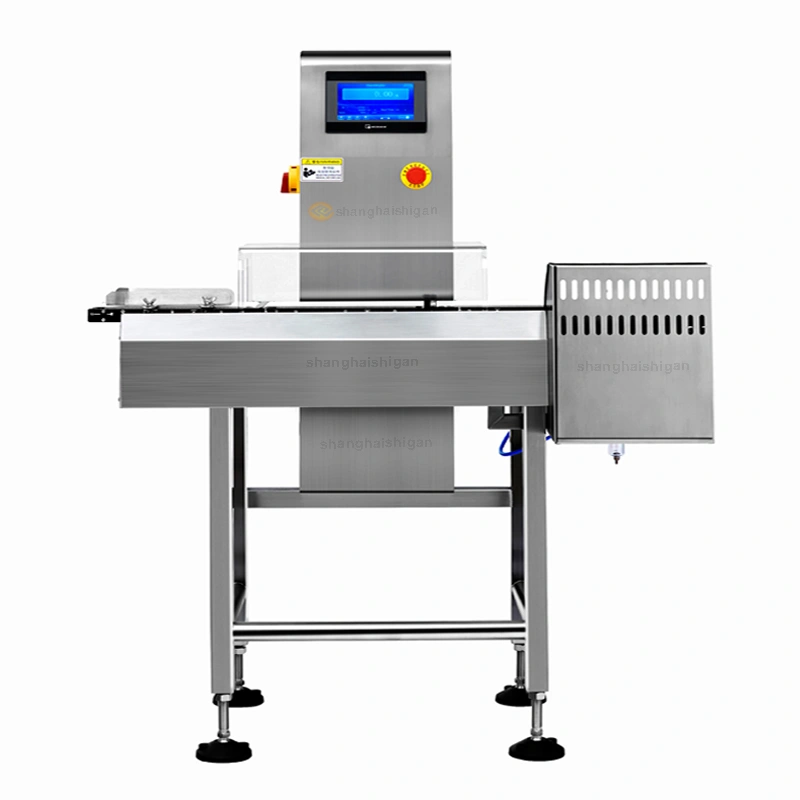

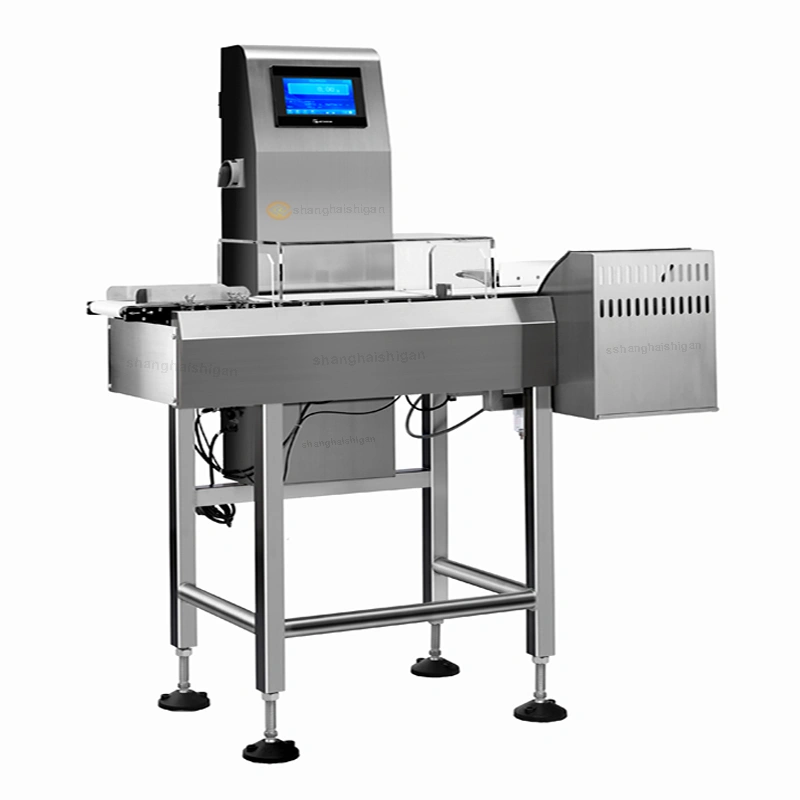

Small bottle check weigher photos
Effervescent Tablet Automatic Checkweigher Bottle Tube Check Weigher Price
Type SG-220
Weighing Range 5-1500g
Limited of product L: 300 W:220 H: 3-200mm
Accuracy ±0.2g Depends on product
Division Scale 0.1g
Belt Speed 0- 60 m/min
Max Speed 100 pcs/min
Belt Width 220mm
Machine Weight 85kg
Power Supply AC-220V 50HZ
Power 200W
Main Material SU304 stainless steel

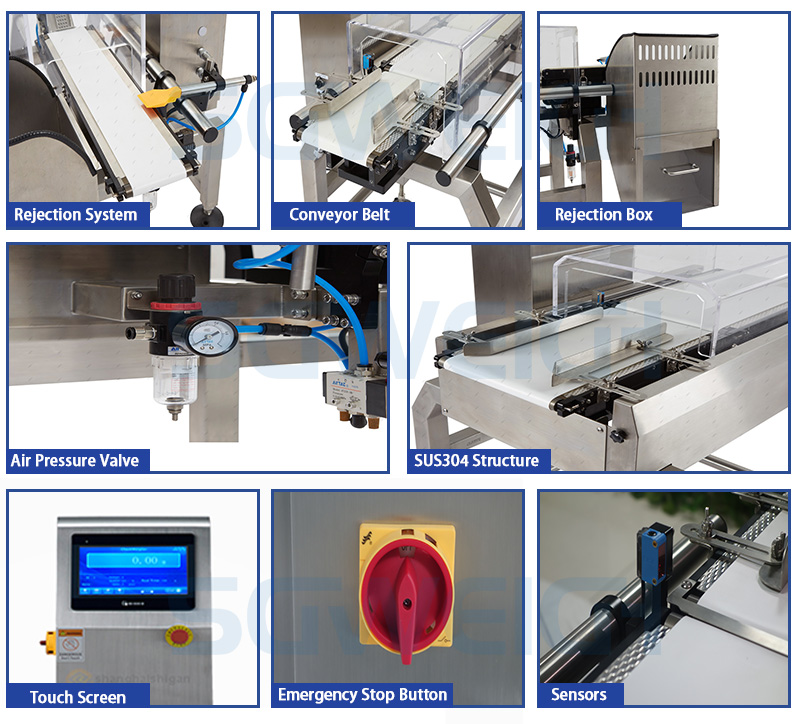

1. This bottle tube check weigher adopts a high-speed, low-noise low-frequency motor and bearings as transmission components to reduce the harm of noise and interference.
2. To prevent electromagnetic and radiation hazards, this machine adopts excellent shielding materials to shield various electromagnetic hazards and interference.
3. Provide a high-definition touch screen as a user-friendly interface.
The conveying system consists of a brushless motor and a conveyor belt. The brushless motor drive module provides high torque, high precision, and wide speed range drive for the motor, achieving uniform motion of the object and enabling the weighing unit to more accurately detect the weight of the object.
5. The weighing system consists of a main weighing unit and a vibrating weighing unit. The high-speed weighing scale is equipped with a vibration weighing unit to prevent external vibrations. The weighing vibration unit adopts high-precision, high-speed, and high-sensitivity weighing sensors. The information about the forced rotation of the object is converted into an electrical signal by the weighing module through the sensor, and displayed on the touch screen after communication with the microcontroller.
A - Food and beverage industry: Accurately reject empty, underweight, and overweight packaging
B-Drug: Accurately reject packaging without instructions or with inadequate weight.
C-Electronics accurately rejects situations where there is a lack of instructions and missing parts packages.
D-Agricultural and sideline products: used to classify the specifications of fruits, vegetables, meat, fish, seafood and other products, and reject unqualified products.
E · Light industry and daily chemical: Reject lost, empty, and damaged packaging.
F. Logistics and express delivery: Sort packages in coordination with data input instruments based on weight and additional requirements.

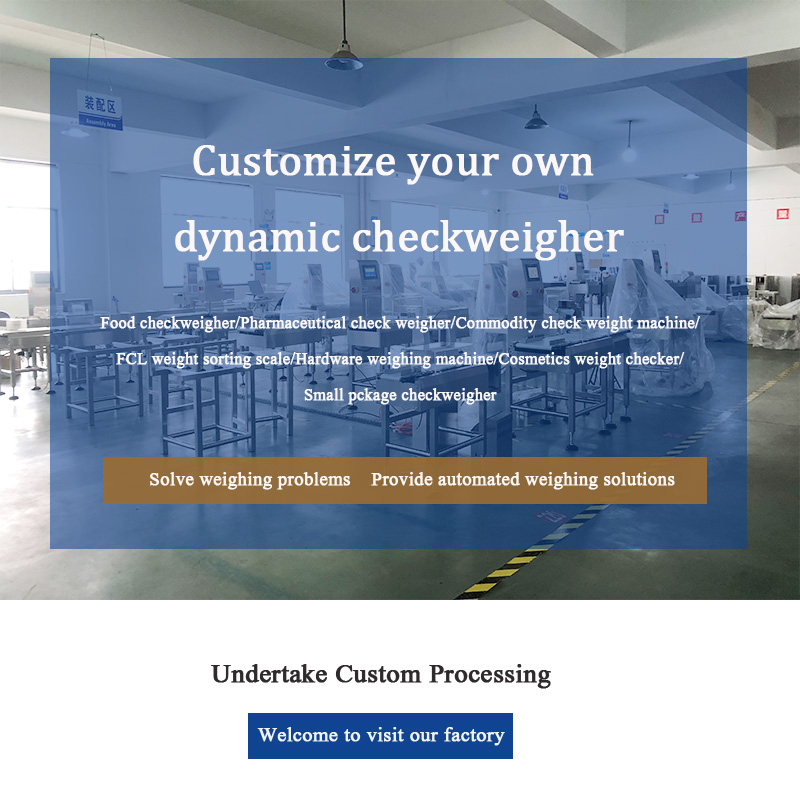

Most of our bottle tube check weighers are customized according to specific project requirements.
If possible, please provide us with more detailed information about your project, such as materials, weight range, speed, bag size, etc.
You'd better contact us in advance before placing an order.
Effervescent Tablet Automatic Checkweigher Bottle Tube Check Weigher Price
1> Attach safety labels, tighten screws, clean, lubricate, and rust proof;
2> Disassemble into packaging;
3> Wrap tightly with plastic film;
4> Fixed in a plywood box
5> Forklift enters container
Suitable for long-distance land and sea transportation, for safe loading and unloading to the destination, we recommend choosing full container transportation.
1. Warranty: Our packaging machine has a 12-month warranty.
2. After-sales service: One-year warranty, lifetime maintenance
3. Technical support: We will provide technical consultation to customers before they place an order, provide drawing specifications, design customized solutions, and analyze and solve technical problems.
4. Operation training: We welcome customers' technicians to come to our factory to learn the operation process, take photos and videos.
