Capsule/Tablet Metal Detector Automatic Metal Detection Machine Conveyor System
Capsule/tablet pharmaceutical metal detectors have high accuracy, sensitivity and stability, and are used to detect and remove tiny ferrous, non-ferrous and stainless steel contaminants in capsules and tablets. The automatic metal detector system chute can be quickly and easily disassembled for daily cleaning and product changeover. The system meets the hygiene requirements of the pharmaceutical industry and can be used in combination with all high-performance tablet presses with dust removal devices. You are welcome to contact us at any time for quotation.

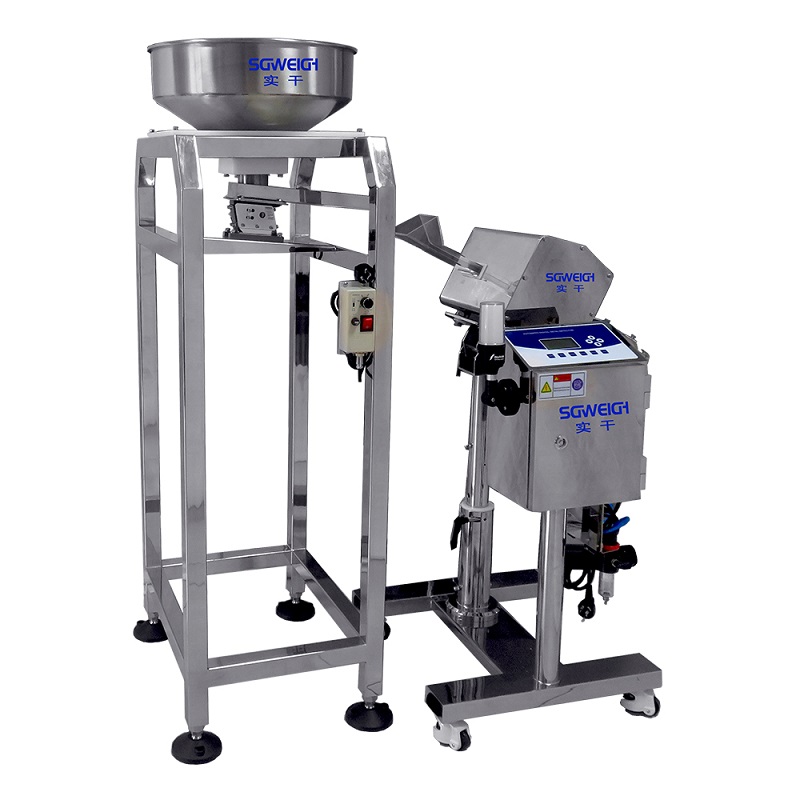

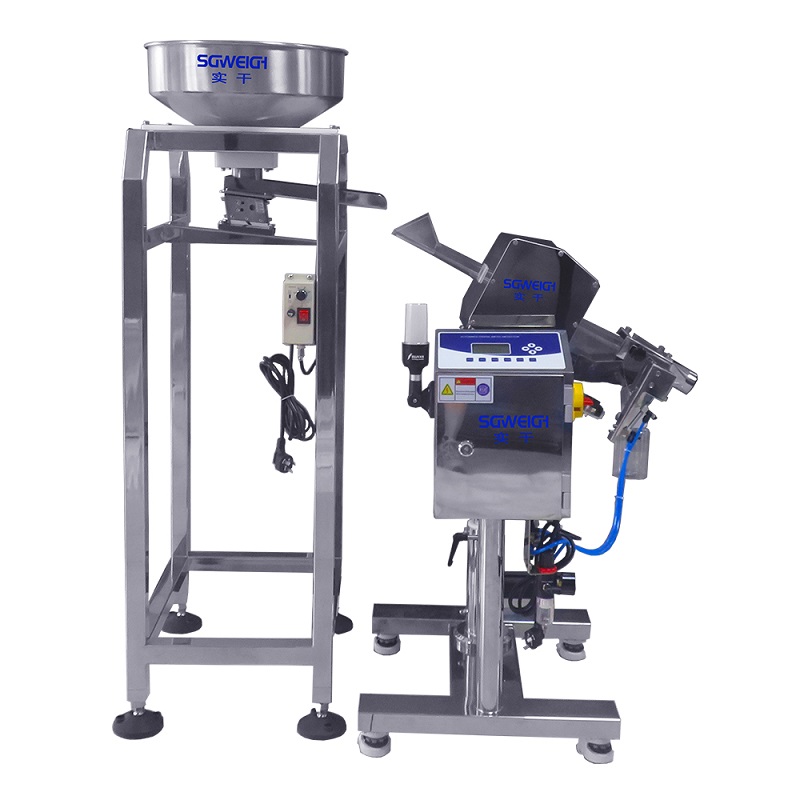

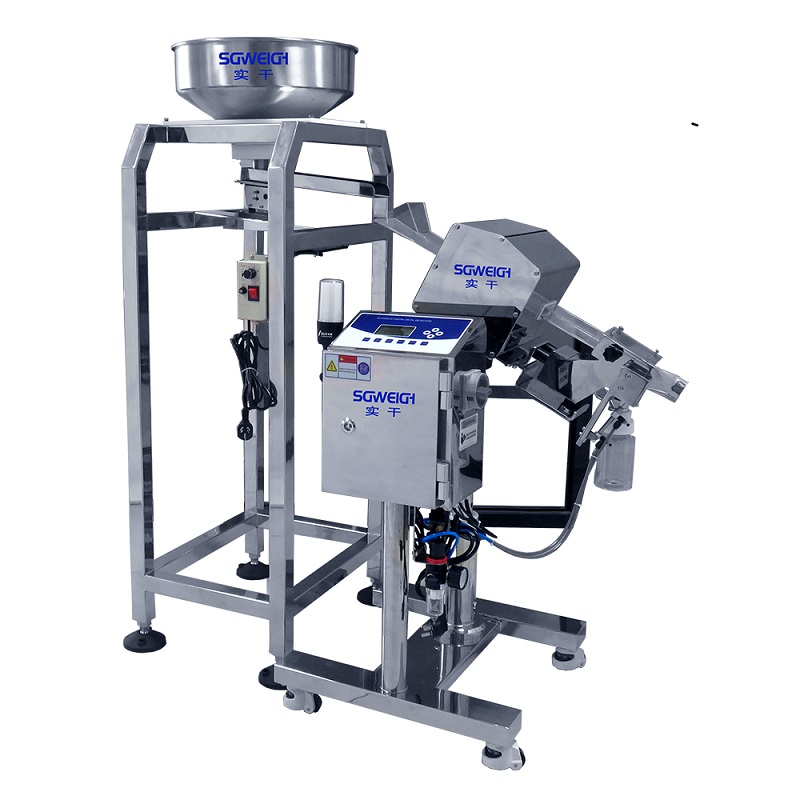

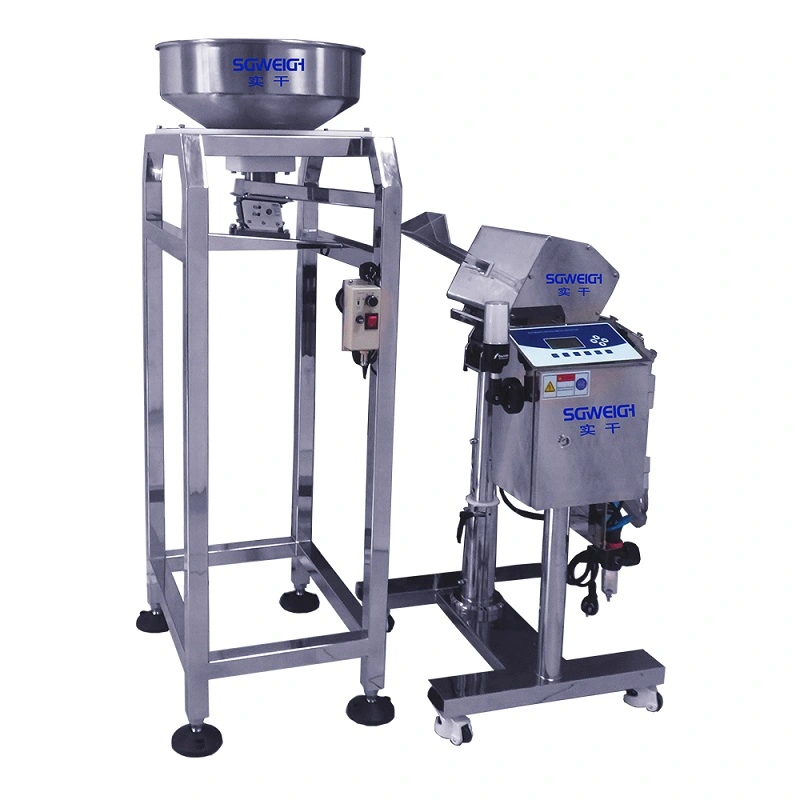

Tablet capsule metal detection machine photos
Type: SG-YJ60
Inter Height: H 770-930mm; Port size: φ76mm
Outer Height: H 770-860mm; Port size: φ51mm
Effective passing size: W70*H20mm
Output Capacity: 50w pcs/h
Detection sensitivity: φ Fe 0.4mm;φ SUS 0.6mm
Deadweight of machine: 75kg

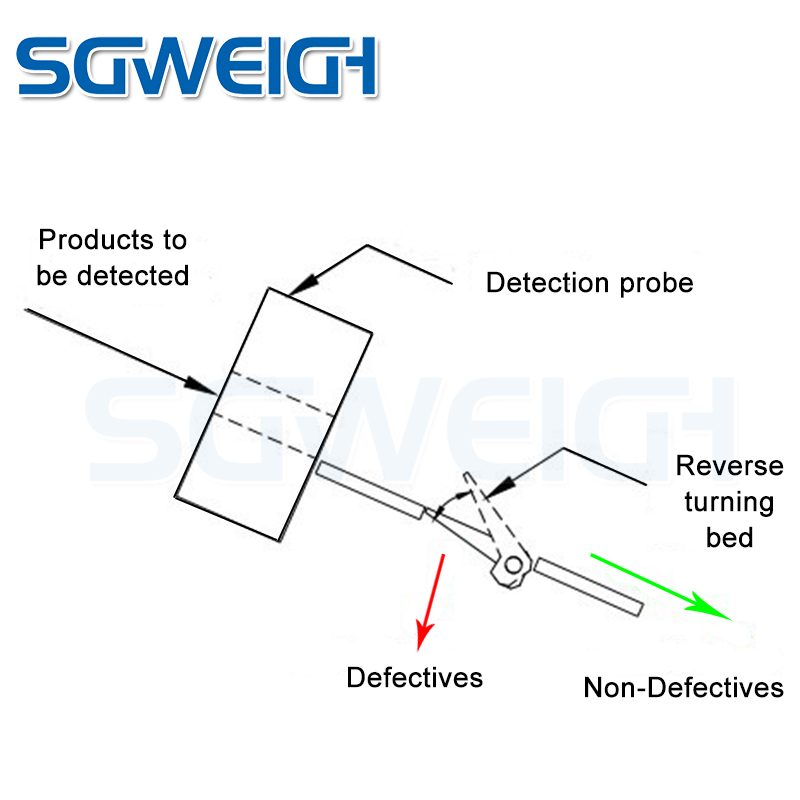

Rejection Way: Flip Culling
Working powder supply: 220v/110v, 50/60Hz
Dimension: 1115*550*(1280-1440)mm
1. This machine is used to detect metal impurities in tablets and capsules after tableting and dust removal processes
2. Can detect all metal impurities, including ferrous metals (Fe), non-ferrous metals (copper, aluminum, etc.) and stainless steel
3. LCD touch screen control, friendly user interface, support multiple languages
4. Multiple detection frequencies are available, and different frequencies can be used according to different product effects
5. With self-learning function, the metal detector will automatically collect product information and recommend suitable detection parameters for each product
6. Advanced DSP technology greatly improves detection performance. Leading genetic algorithm will effectively suppress product signals to achieve reliable sensitivity
7. Can store about 100 product data, suitable for detecting production lines of multiple products
8. Equipped with automatic slapping rejection system (controlled by pneumatic solenoid valve), unqualified products will be automatically rejected
Capsule/Tablet Metal Detector Automatic Metal Detection Machine Conveyor System
Pharmaceutical industry: Inspection of tablets, capsules and other medicines.
1st step: Customer has showed his special requirements.
2nd step: We try to understand the conception and pattern from customer with simple draft or refer picture.
3rd step: Making the conceptive CAD drawing based on communication and understanding.
4th step: Making the detail and 3D drawing agter fixed the design and other details.
5th step: Offer the quotation after confirm the design,material and surface treament.
6th step: Making the sample for approval.
7th step: Testing installation after demo mock up.
8th step: Big production delivery and service after sales.
Capsule/Tablet Metal Detector Automatic Metal Detection Machine Conveyor System

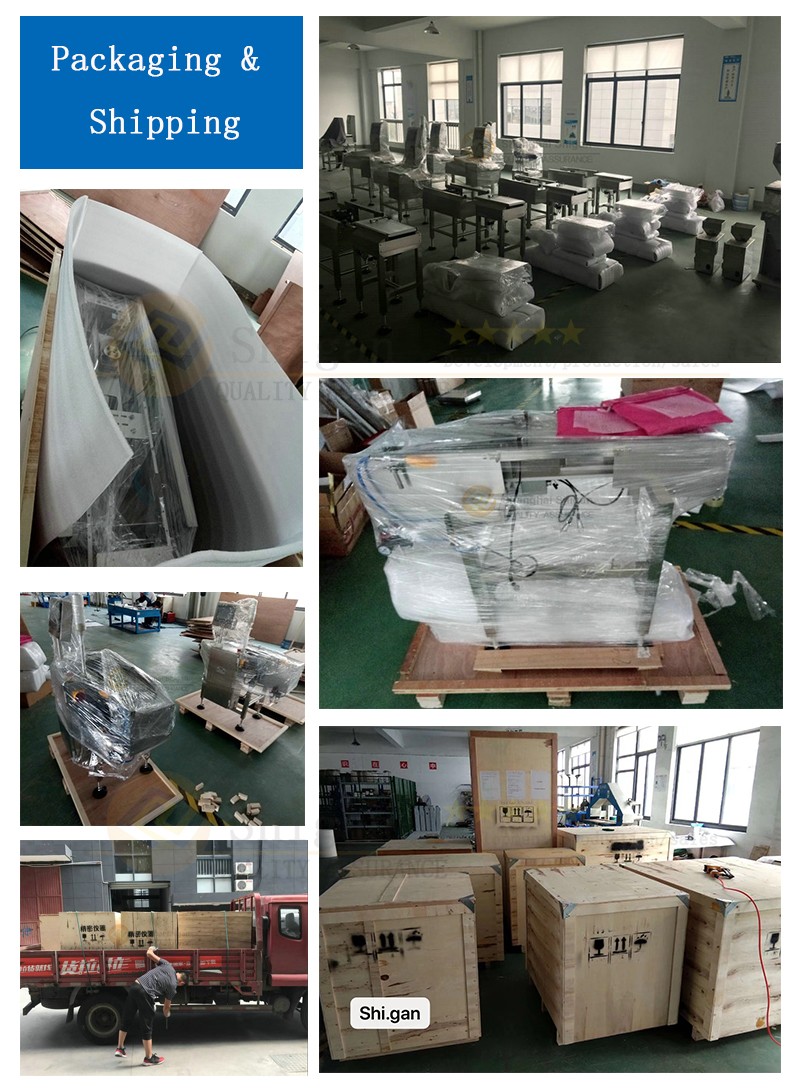

The equipment will be securely fixed and then packed into wooden cases for protection during transportation.
Fast delivery guaranteed! The earliest delivery time is 5 days after payment.
1. We will deliver the machine and provide the load list on time to ensure that you can get the machine quickly
2. We often ask for feedback and provide assistance to customers whose machines have been used in their factories for a period of time.
3.. We provide a one-year warranty
4. Well-trained and experienced staff will answer all your inquiries in English and Chinese
5. 12-month warranty and lifetime technical support.
6. Your business relationship with us will be kept confidential to any third party.
7. Provide good after-sales service, if you have any questions, please contact us.
