Online Stick Sachet Multi-Lane Checkweigher Dynamic 6-Channel Checkweigher

Description

Online Stick Sachet Multi-Lane Checkweigher Dynamic 6-Channel Checkweigher

Checkweigher as known as check weigher, check weight machine, check weighing machine, weight sorting machine, weight cheker, weight sorter, and etc,.

The online stick sachet multi-lane checkweigher can detect the weight of multiple columns at the same time, which can meet almost any production line application that requires high-speed and accurate weighing of small packaged products. Multi-lane checkweigher can be customized with up to 12 independent channels, providing huge production efficiency in the form of space saving. The automatic multi-lane checkweigher overcomes the mechanical interference between multi-column weighing platforms and the data processing and communication conflicts of multi-lane checkweighing channels, and has the characteristics of high precision and high efficiency. Our products have a wide range of specifications, sizes, and styles, providing various customized solutions. Welcome to contact us.

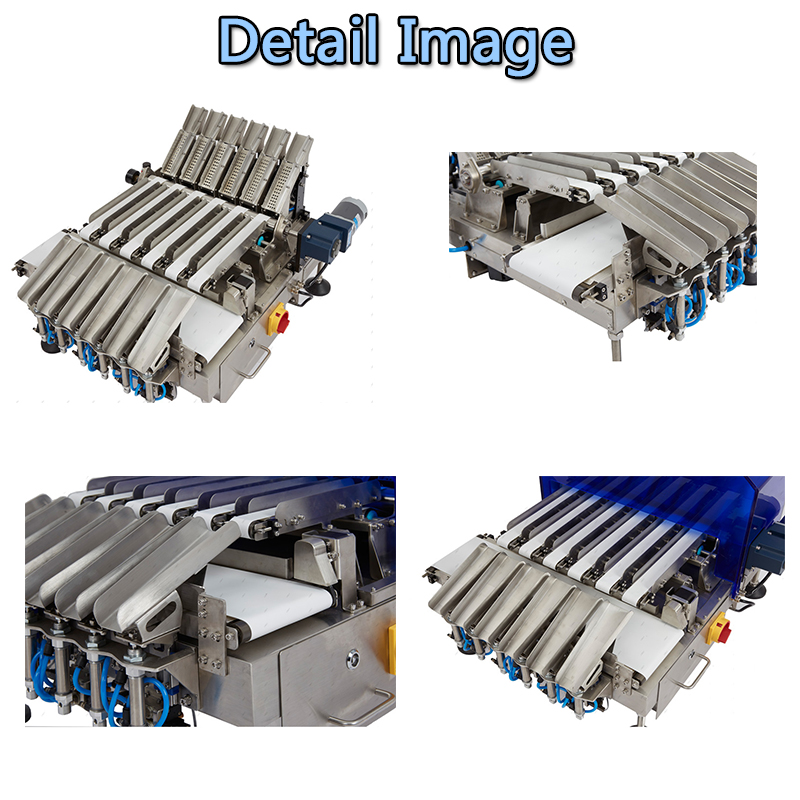

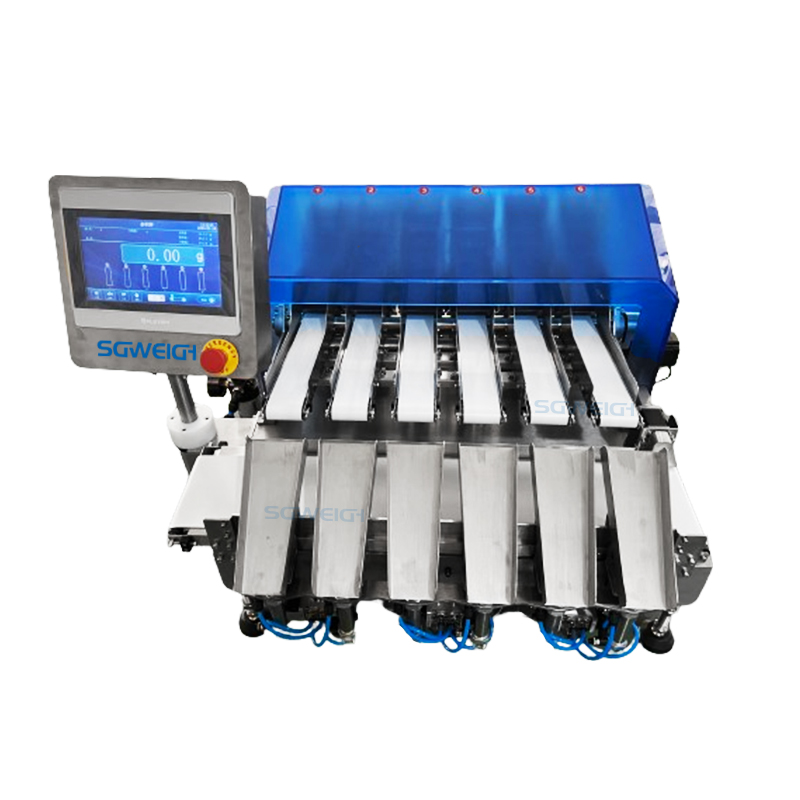

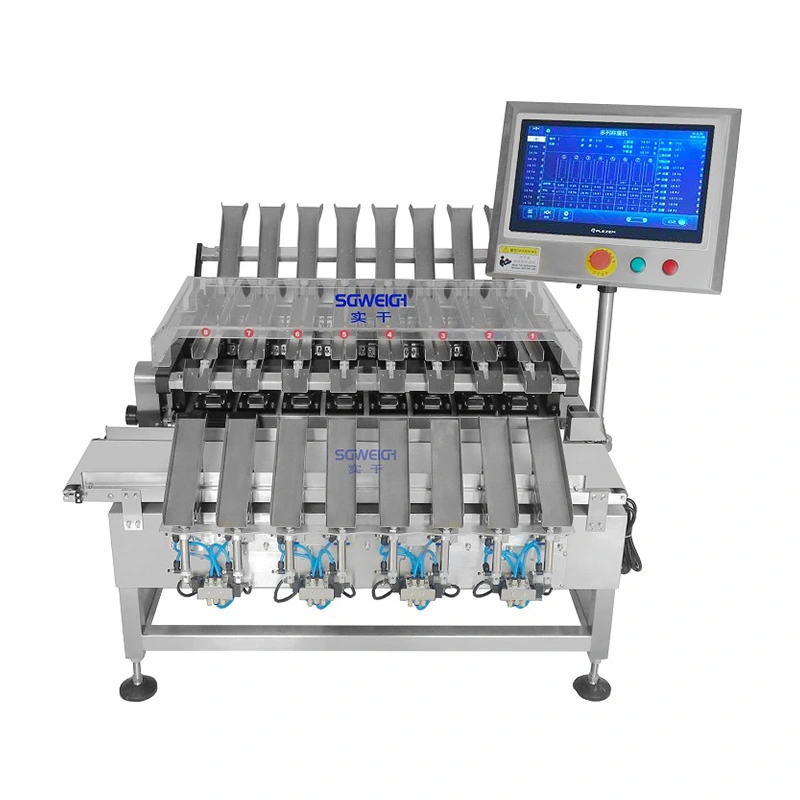

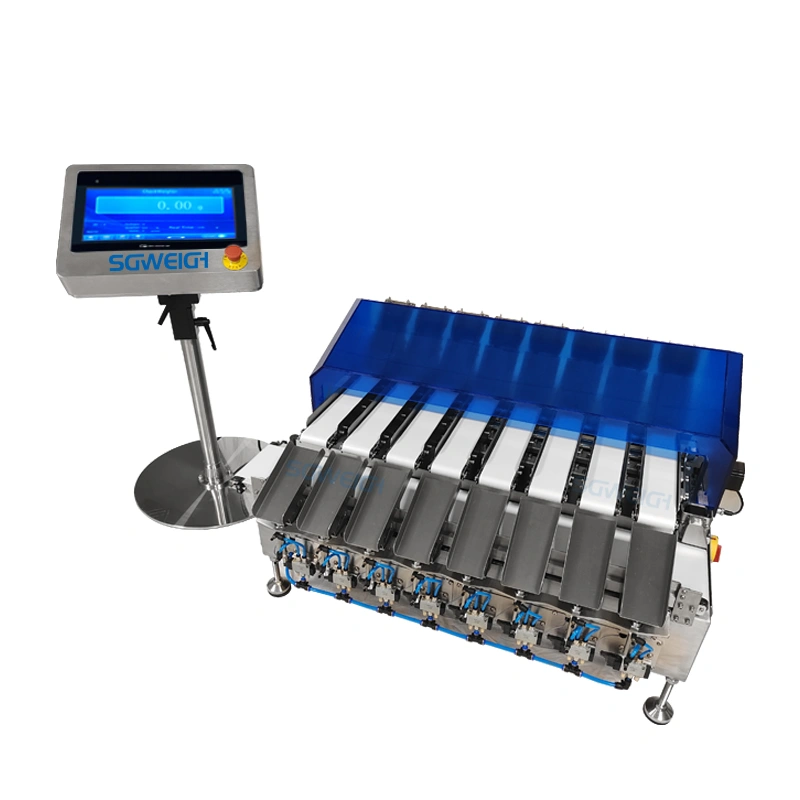

Online stick sachet multi-lane checkweigher pictures

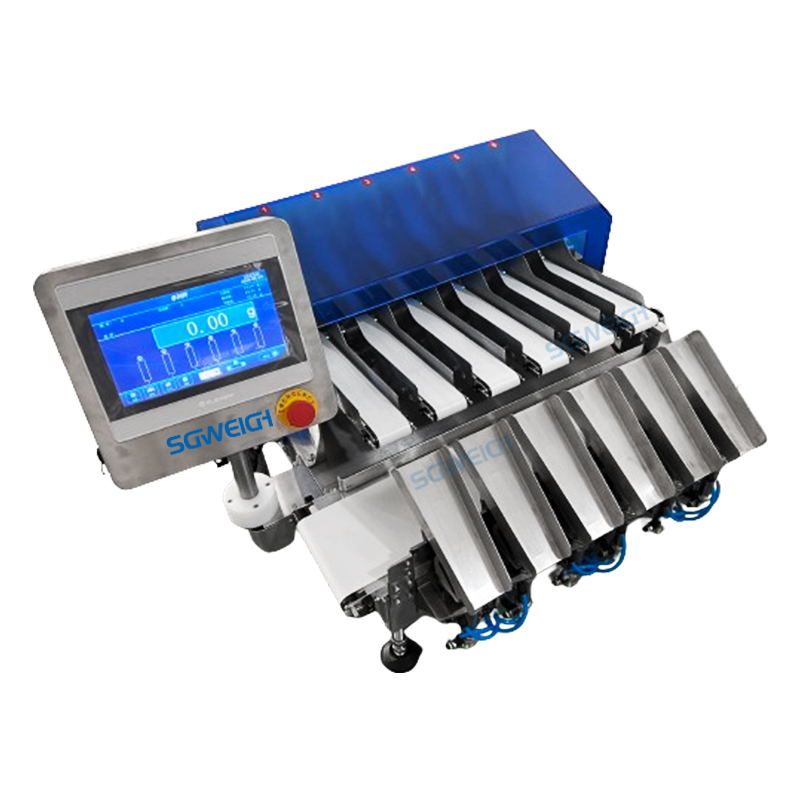

Online Stick Sachet 6-Channel Checkweigher

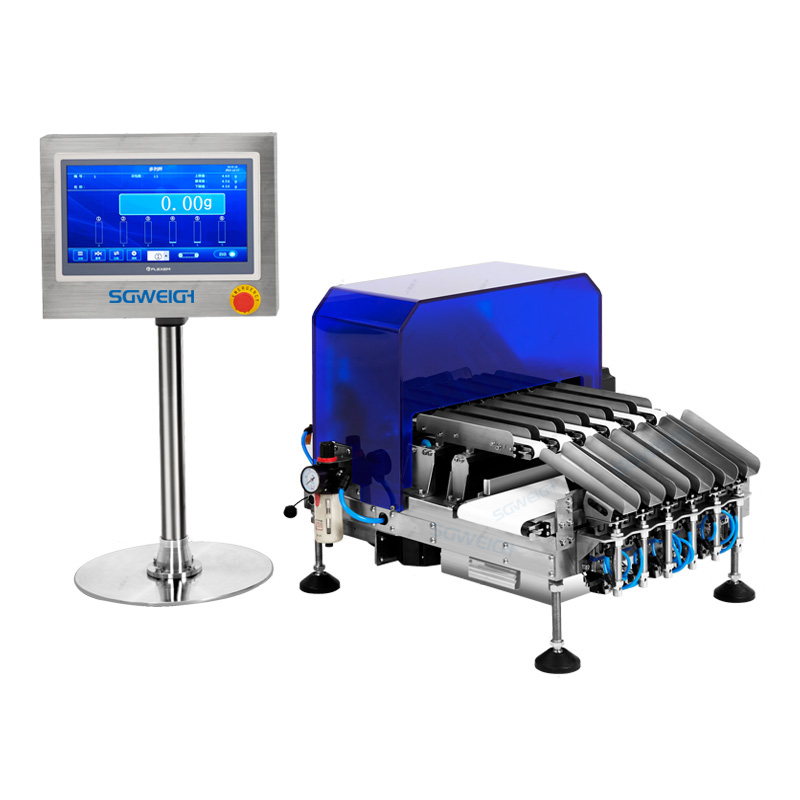

Online Stick Sachet Multi-Lane Checkweigher

Stick Sachet Multi-Lane Checkweigher

Type SG-6X

Weighing Range 1-50g

Limited of product L: 180 W: 40 H: 2-20mm

Accuracy ±0.01g Depends on product

Division Scale 0.01g

Each Channel Speed 70 pcs/min

Belt Width 30mm

Machine Weight 120kg

Power Supply AC 110/220V ±10% 50HZ

Power 400W

Main Material SU304 stainless steel


Online stick sachet multi-lane checkweigher

Applicable to: multi-lane weight inspection in food, pharmaceutical, daily chemical, electronic, mechanical, printing and other industries, and unqualified products are eliminated by sorting institutions.

1. High-Speed Operation: Ability to process hundreds or even thousands of products per minute across multiple lanes, optimizing high-volume production efficiency.

2. Independent Lane Control: Each lane is independently controlled, and if required, each lane can be set with different weight thresholds and settings. This flexibility is very useful when processing a variety of product types or package sizes simultaneously.

3. Modular Design: The modular design allows for easy customization, maintenance, and cleaning. Parts can be replaced or repaired without completely shutting down the system.

4. User-Friendly Interface: Equipped with an intuitive touchscreen interface or HMI (Human Machine Interface), operators can easily configure settings, monitor performance, and adjust parameters in real time.

5. Data Collection and Analysis: Advanced data management features record, store, and analyze weight data for quality control, reporting, and process optimization.

6. Customizable Reject Systems: A range of reject mechanisms are available, such as jets, pushers, or diverters, which can be tailored to specific product types and packaging materials.

Online Stick Sachet Multi-Lane Checkweigher Dynamic 6-Channel Checkweigher


Please provide the following information when sending an inquiry so that we can quickly provide you with accurate feedback and a suitable online stick sachet multi-lane checkweigher solution.

1. Product details (product name, minimum/maximum size and weight).

2. Packaging details (packaging material, size, shape).

3. Capacity and detection accuracy requirements.

4. Other special requirements.

Online Stick Sachet Multi-Lane Checkweigher Dynamic 6-Channel Checkweigher

1. Packaging materials: Usually international standard export packaging boxes are used, which have good wear resistance, shock resistance and waterproof performance. The box material can be hard wooden boxes, plastic boxes or export-specific cartons.

2. Protective measures: To ensure that the machine is not damaged during transportation, it is necessary to add sufficient filling materials such as foam, shockproof cotton, etc. in the packaging box.
