Bottles With Capsules And Sachets Check Weigher Automatic Alarm Checkweigher High Speed Can Checkweigher
The bottles sachets check weigher is one of the necessary facilities for the advanced online dynamic weighing system. High speed alarm checkweigher has a high efficiency of automatic weighing and automatic sorting. Usually, it can sort 100-120 commodities per minute. Through the signal identification and processing of the automatic check weigher system, the products to be sorted are accurately sent to the weight sorter equipment, and then the products to be sorted are transported to the corresponding sorting crossing, which is to separate the goods from the conveying device and enter the corresponding product sorting frame. For further information about our services, or if you would like one of our professionals to contact you, please do not hesitate to contact us.

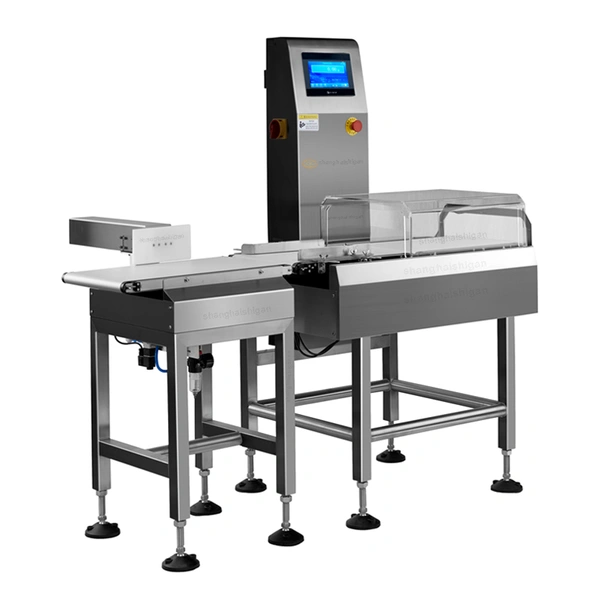

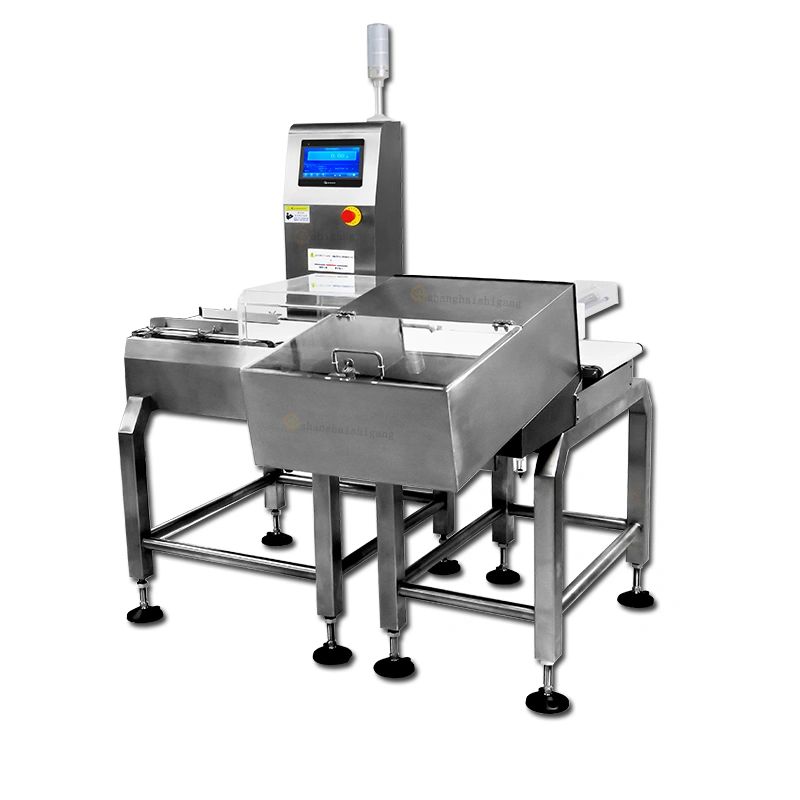

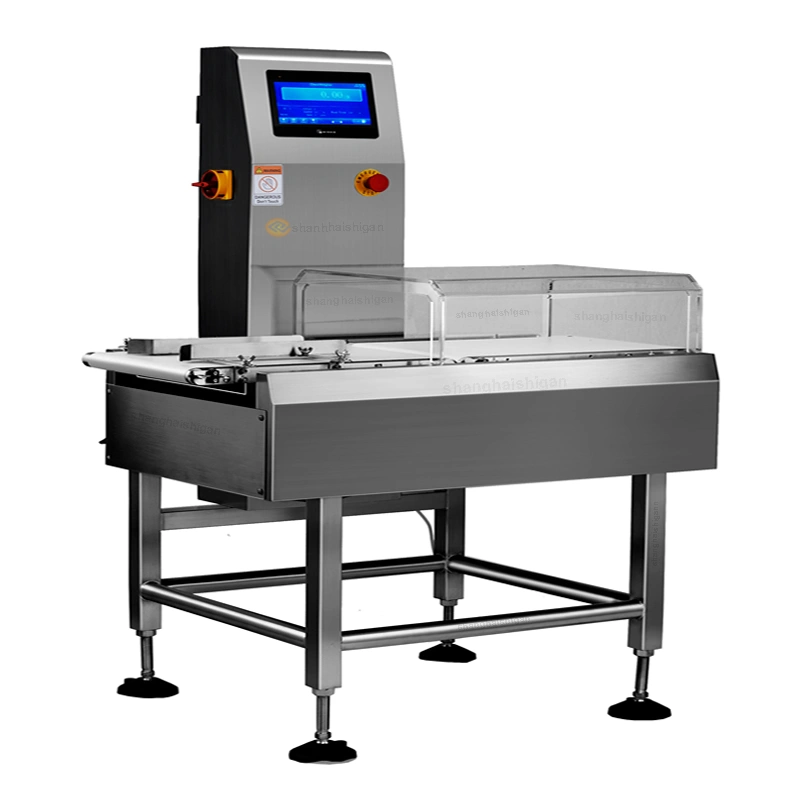

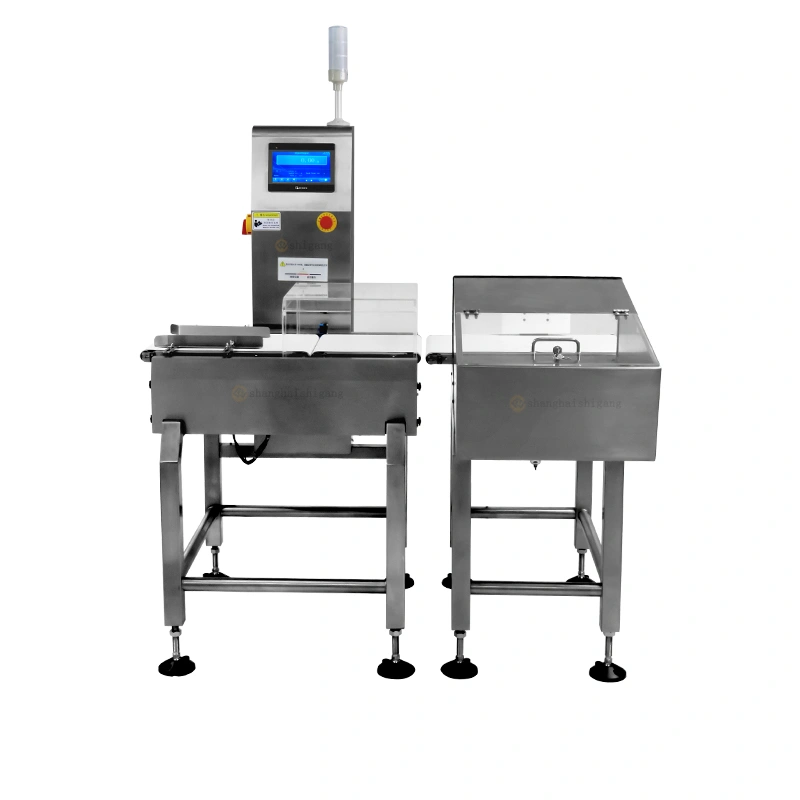

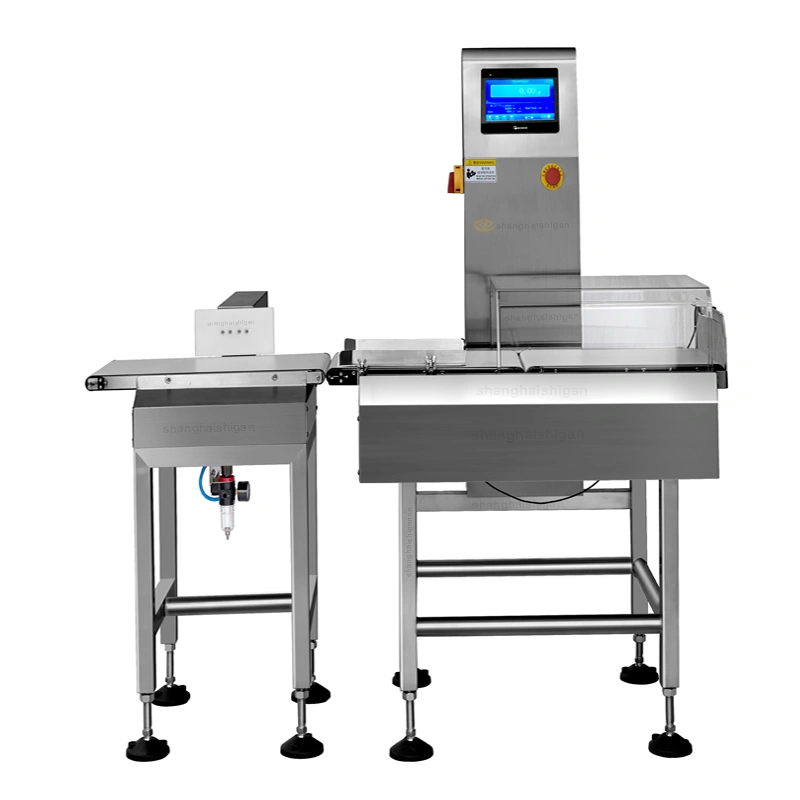

Automatic check weigher system photos
Type SG-300
Weighing Range 5-3000g/5000g
Limited of product L: 350 W:300 H: 3mm
Accuracy ±0.5-1g Depends on product
Division Scale 0.1g
Belt Speed 0- 60 m/min
Max Speed 80 pcs/min
Belt Width 300mm
Machine Weight 80kg+44kg
Power Supply AC 110/220V ±10% 50HZ
Power 100W
Main Material SU304 stainless steel
*The above technical indicators are the test data of belt surface test block when the machine is empty
*The detection sensitivity may vary slightly depending on the commodity and the use environment
*In case of special needs, it can be customized according to customer requirements.
1.Strong practicability: 10-inch high-color, high-resolution human-computer interface, easy and friendly to operate;
2.High stability: 24-hour high-speed and high-precision operation. Advanced and rigorous design concept can greatly reduce mechanical system failures and improve production efficiency;
3.High-speed and high-precision: German HBM sensor with high-speed and high-precision is adopted
4.Material accessories: the whole body structure is made of 304 stainless steel, which is anti-theft, anti-corrosion and long service life.
5.The weight check data is equipped with USB interface as standard and can be exported to EXCEL table
6.Easy maintenance: unique conveyor belt structure design, modular design, convenient disassembly and cleaning, protection grade IP65.
7.Easy connection: DC brushless motor is adopted, which is more stable and has smaller and refined structure. It is suitable for larger speed requirements.
8.Easy switching: 99 product formulations can be stored, and product parameters can be changed with one key.
This bottles sachets check weigher is suitable for testing whether the weight of a single product is qualified. It is widely used in many industries such as electronics, pharmaceuticals, food, beverages, health care products, daily chemicals, light industry, agricultural and sideline products. Such as cosmetics of daily chemical products (including beauty cosmetics, cleaning cosmetics, skin care products, hair cosmetics, etc.); Washing articles (including soap, detergent, detergent, etc.); Oral products (including toothpaste, mouthwash, etc.); Other chemical products (including shoe polish, floor wax, deodorant, insect repellent, etc.).
1) Warranty period: 1 year. During this period, if there is any non-human damage to them, we will provide spare parts for replacement free.
2) Quality: The product quality will be strictly checked, and each machine will be tested before packaging to ensure that it can work normally.
3) Technical service: After the machine is sold out, we will keep in touch with customers. If you need any help on the machine, please do not hesitate to contact us.
4) Document service: We provide instructions and videos to teach you how to use and test the machine.
5) Accessories: We provide spare parts with competitive prices after the warranty period.
