Cereal Electronic High Speed Multi-head Weigher Automatic Granular Powder Multi-head Combined Scale Supplier Price
The electronic high speed multi-head weigher adopts sensors with high precision and high standard, and the resolution is increased to 2 decimal places; Store 100 sets of parameter settings, realize multiple material requirements, help menu, and facilitate learning and use: the granular powder multi-head combined scale adopts the positive and negative adjustable rotating main vibrator, which can evenly enter the line vibration plate; Our product specifications and sizes are rich, various styles, welcome to contact us for quotation information.

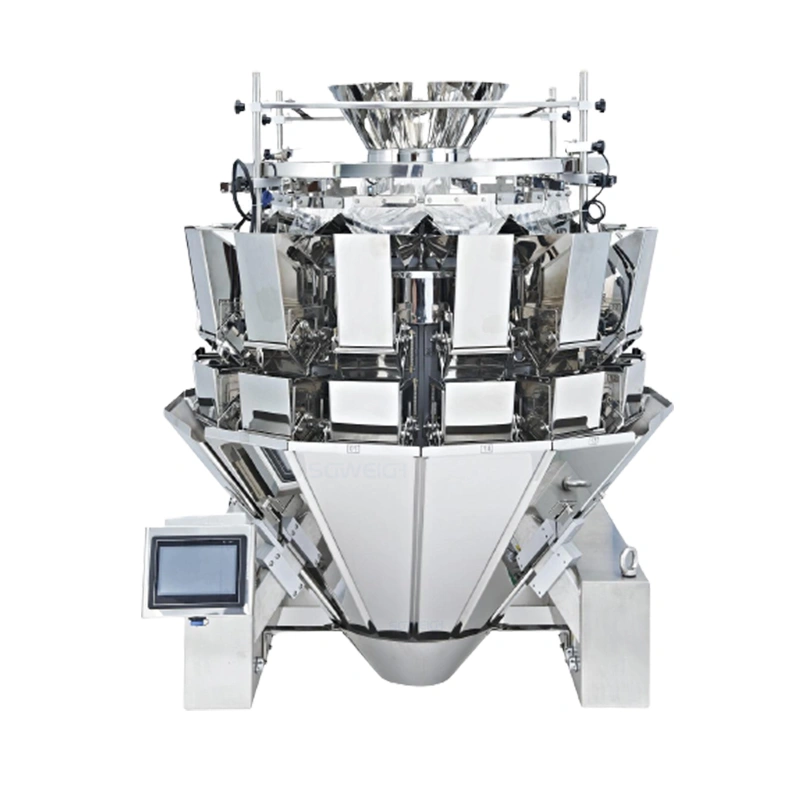

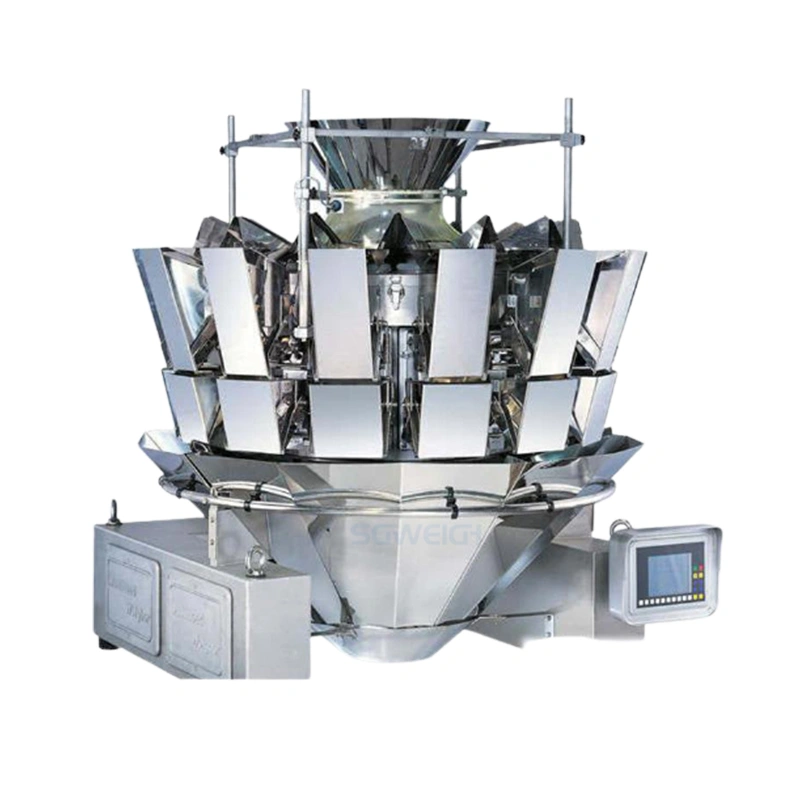

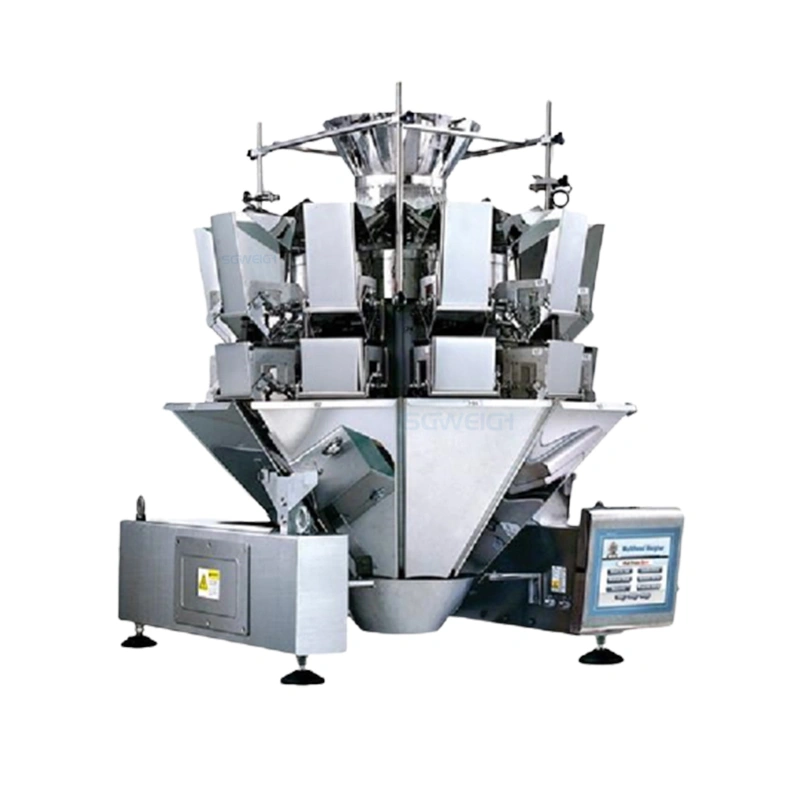

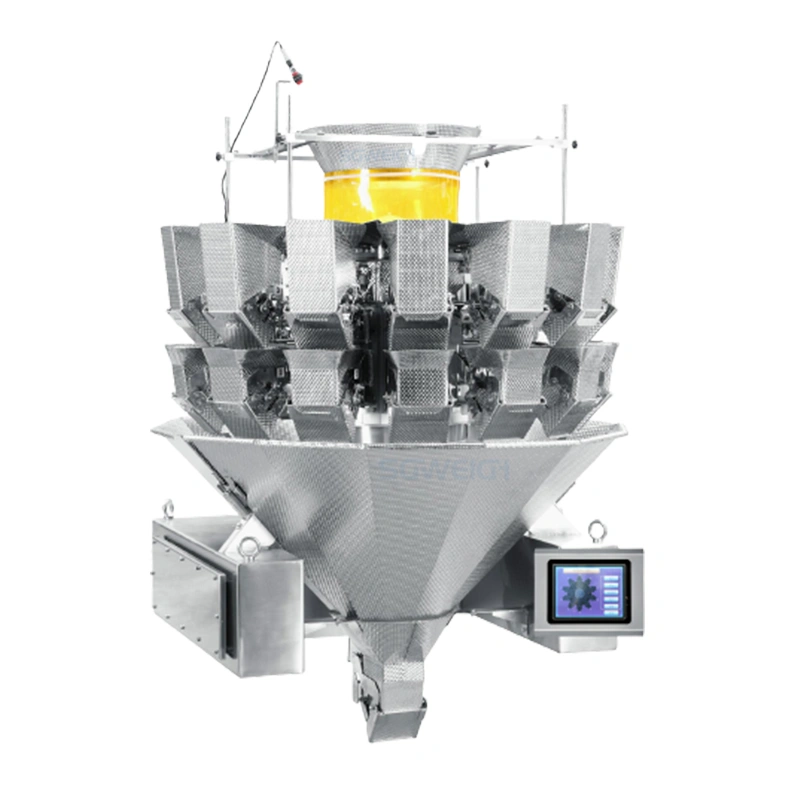

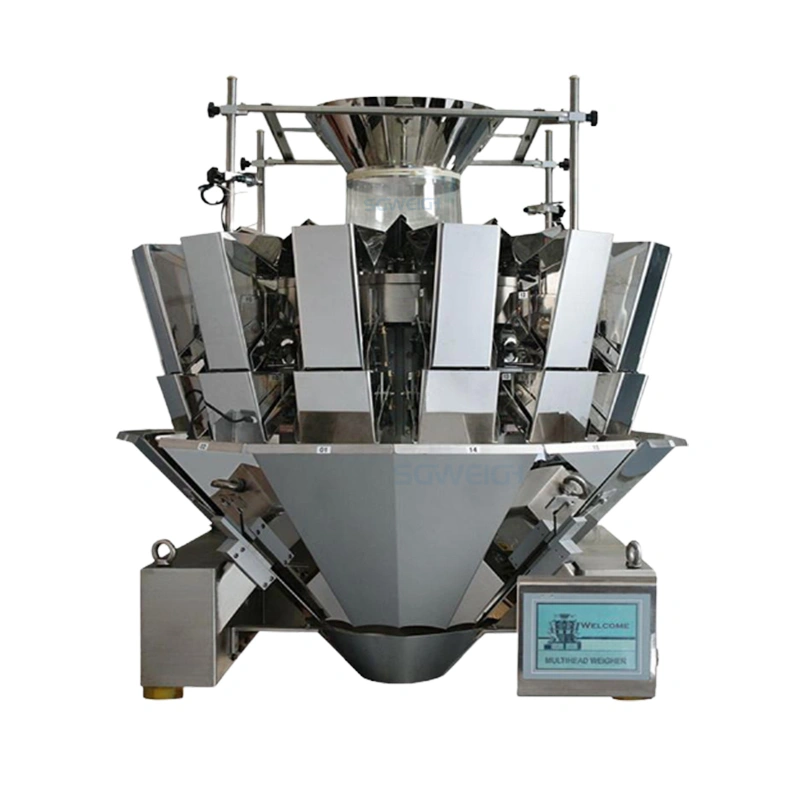

Granular powder multi-head combined scale pictures
Identification code: AS10-1-1
Weighing range: 2-200g
Weighing accuracy range: X (0.5)
Maximum weighing speed: 60P/M
Hopper capacity: 0.5L
Operation interface: 7-inch touch screen
Optional device: pattern scale hopper/collecting hopper/data printing device/overweight sorting device
Drive mode: stepping motor
Power requirement 220V/900W/50/60Hz/8A
Package size (mm): 1190 (L) x970 (W) x950 (H)
Package weight: 240kg
◇ The whole granular powder multi-head combined scale is waterproof, with better waterproof performance.
◇ The drive board and AD module can be replaced at will. Different models are universal. The AD module does not need to be manually numbered, so it is more convenient to replace.
◇ Human-machine interface is friendly, similar to mobile phone operation icon, easy to understand.
◇ The machine has powerful self-inspection function, realizes closed-loop detection, and can detect the abnormal situation of each node in real time, and display it on the human-computer interface in real time.
◇ The optimized algorithm is faster than the traditional algorithm when weighing with large weight.
◇ The software is universal and compatible, and different models use the same control system.
1st step: Customer has showed his special requirements.
2nd step: We try to understand the conception and pattern from customer with simple draft or refer picture.
3rd step: Making the conceptive CAD drawing based on communication and understanding.
4th step: Making the detail and 3D drawing agter fixed the design and other details.
5th step: Offer the quotation after confirm the design,material and surface treament.
6th step: Making the sample for approval.
7th step: Testing installation after demo mock up.
8th step: Big production delivery and service after sales.
1. Block materials: dried tofu, fish, eggs, candy, red dates, cereal, chocolate, biscuits, peanuts, etc
2. Granules: crystalline monosodium glutamate, granular drugs, capsules, seeds, chemical raw materials, granulated sugar, chicken essence, melon seeds, nuts, pesticides, fertilizers, feeds, etc
3. Powder: milk powder, monosodium glutamate, flavoring agent, laundry powder, glucose, chemical raw materials, fine white sugar, pesticide, fertilizer, etc
Our manufacturer has ISO9001, CE international certification,
1. More than 11 years of production experience
2. More than 10 years of foreign trade experience
3. More than 10 national technology patents
4. Cumulative overseas sales exceed 1,000 sets
5. Comply with EN60204 international standard
Q1: What is machine warranty?
Machine warranty for one year. During the warranty period, any non -vulnerable part of the machine is damaged. We will replace it for you for free. After the warranty date is issued by the machine, we receive the bill of lading.
Q2: I have never used this packaging machine. How can I control it?
1. Each machine has related operation descriptions.
2. Our engineers can operate through video demonstrations.
3. We can send engineers to on -site teaching. Or welcome you FAT before installation.
Q3: Will you show us the following details when inquiry?
We can.
1. Product details (description/photo/samples are available)
2. Product size
3. Packaging membrane material
4. Others
