sku:

The bottle capsule check weigher confirms the company's rich expertise in weighing technology accumulated over the years and is currently widely used in the pharmaceutical field abroad. By adding high-precision weight detection to the production line, product quality can be improved without reducing efficiency. The fully automatic pharmaceutical checkweigher can check all packaged items in batch production, so that unqualified products cannot enter the circulation field.

tag:

Description

Bottle Capsule Check Weigher with Rejection System Pharma Checkweigher Machine

Checkweigher as known as check weigher, check weight machine, check weighing machine, weight checker, weight sorting machine, and etc,.


The bottle capsule check weigher confirms the company's rich expertise in weighing technology accumulated over the years and is currently widely used in the pharmaceutical field abroad. By adding high-precision weight detection to the production line, product quality can be improved without reducing efficiency. The fully automatic pharmaceutical checkweigher can check all packaged items in batch production, so that unqualified products cannot enter the circulation field. You are welcome to contact us at any time for quotation.

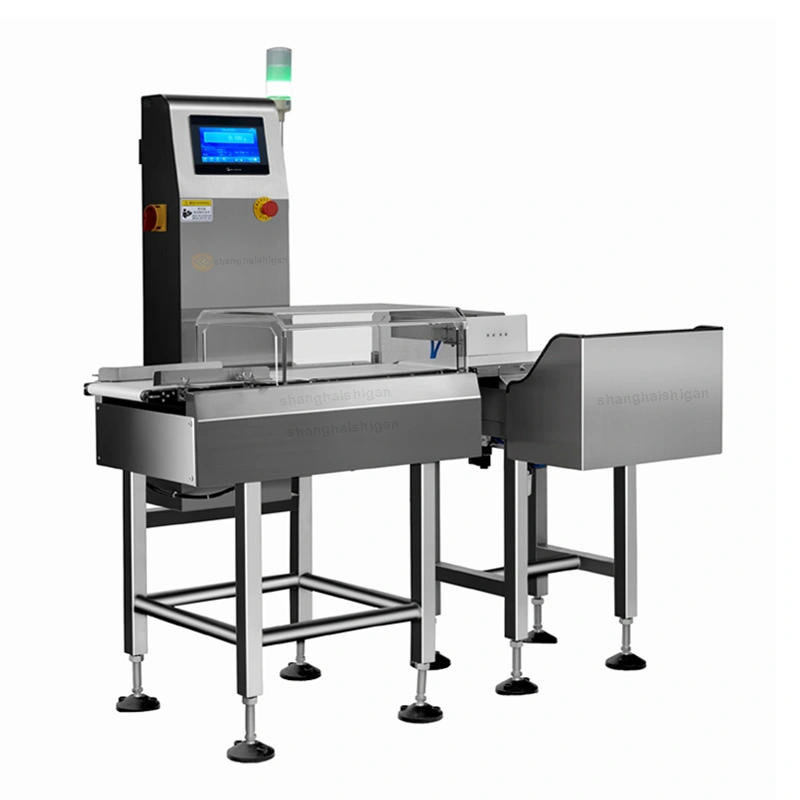

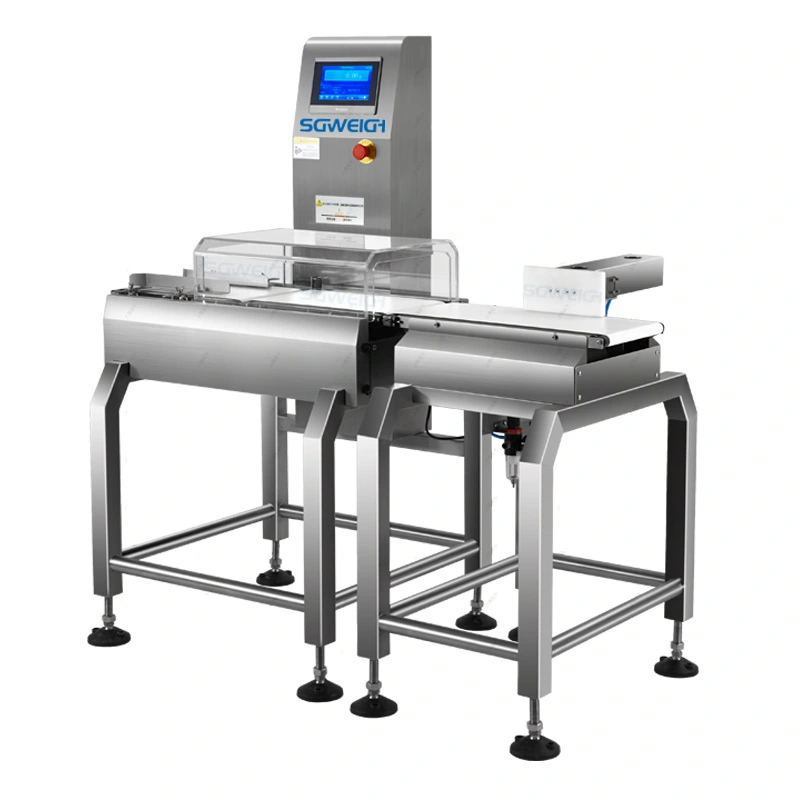

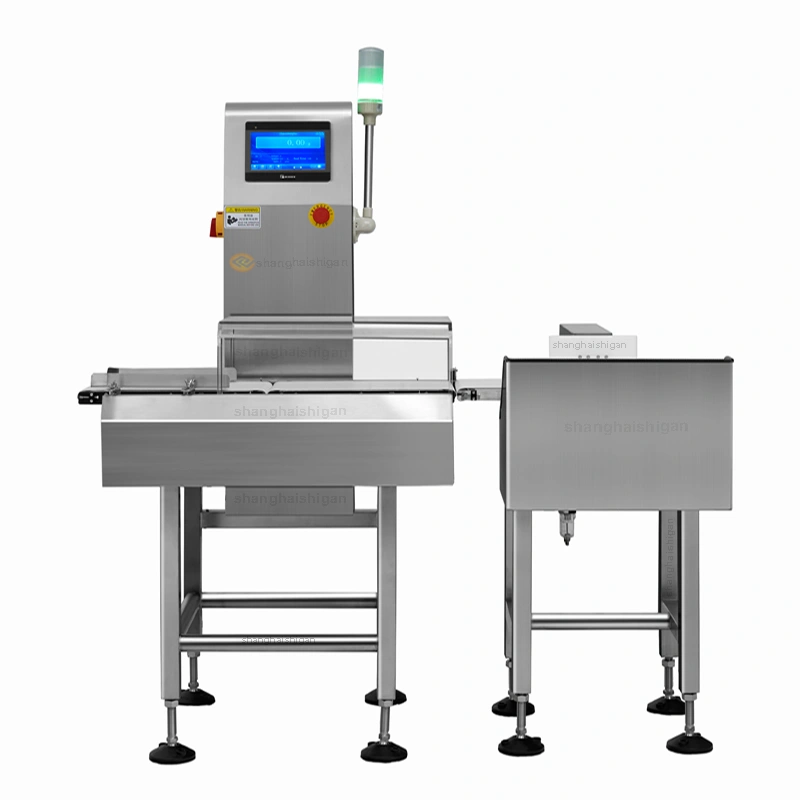

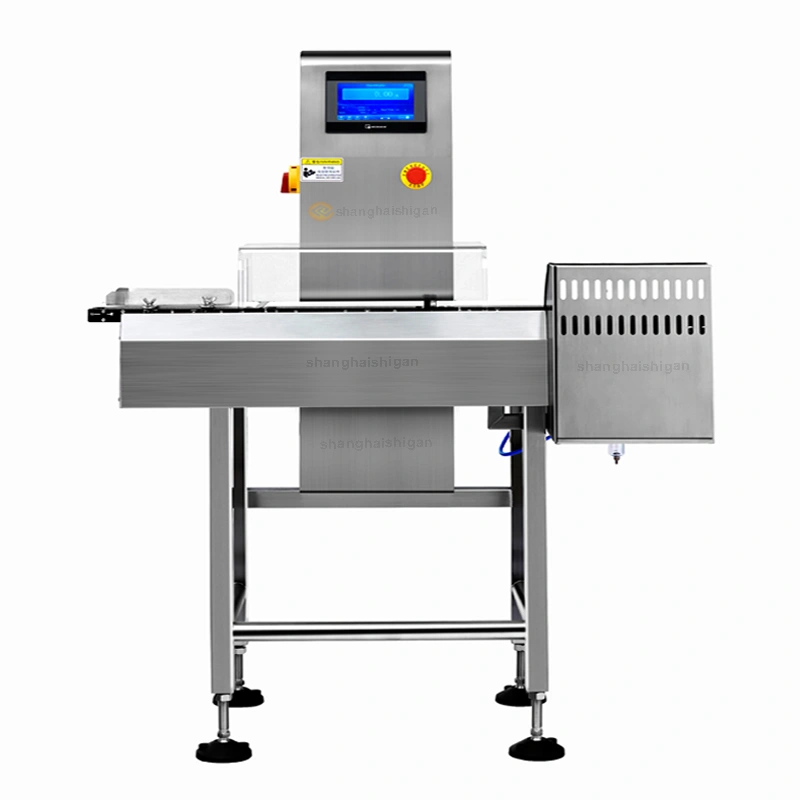

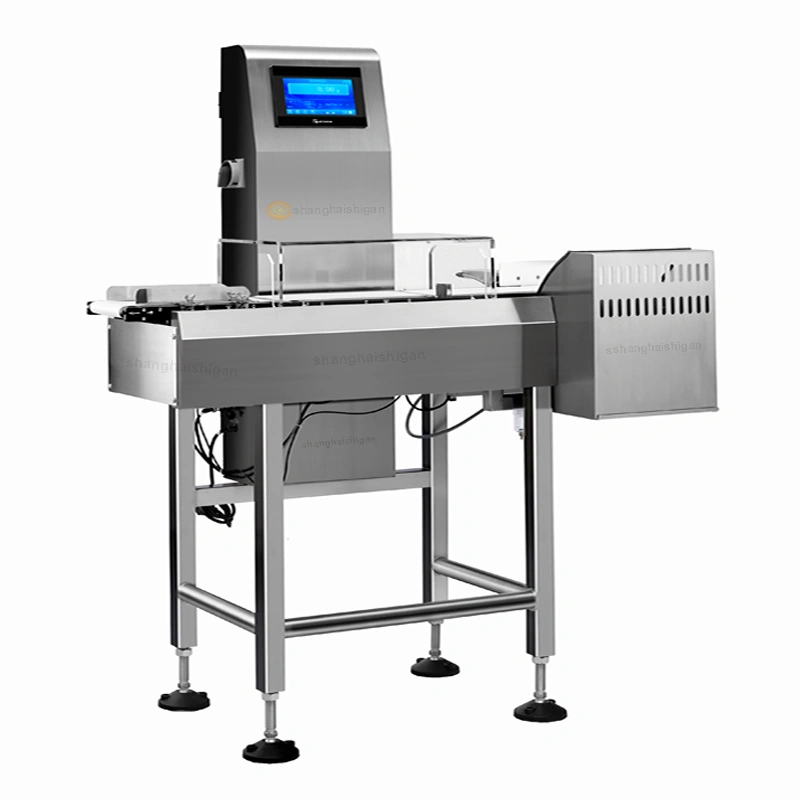

bottle capsule check weigher photos

Bottle Capsule Check Weigher with Rejection System

Bottle Pharma Checkweigher Machine

Pharma Bottle Check Weigher with Rejection System

1. Adopt advanced dynamic digital processing technology, high-performance industrial computer and real-time operating system: ensure real-time and high-speed processing of large amounts of data.

2. High-speed AD processing module, original high-speed and high-precision filter. Dynamic and static zero point automatic tracking.

3. 8-inch color high-brightness touch integrated industrial computer, clear display. Humanized interface, simple operation.

4. Touch screen operation, direct setting of various parameters, 100 product parameters can be preset, and operators can call them directly.

5. Three-level password protection to prevent product information leakage.

6. Power-off protection function. Accidental power-off parameters remain unchanged.

7. Data statistics function. The total number and total weight of products passed within a period of time; the total number of underweight products and the total number of overweight products.

8. Data interface, RS232/485/USB interface, supports data output and upload.


Bottle Capsule Check Weigher with Rejection System Pharma Checkweigher Machine


Type SG-220U

Weighing Range 5-1500g

Limited of product L: 300 W:220 H: 3-200mm

Accuracy ±0.2g Depends on product

Division Scale 0.1g

Belt Speed 0- 60 m/min

Max Speed 100 pcs/min

Belt Width 220mm

Machine Weight 65kg

Power Supply AC-220V 50HZ

Power 200W

Main Material SU304 stainless steel


The bottle inspection heavy scale can ensure that the product will not fall under extremely high running state. This series of inspection scale is designed for round bottle or square bottle with a small diameter and high height than the diameter of the bottle body.



Bottle capsule check weigher as the key detection equipment on the production line, involves different fields. If the product specifications do not meet the requirements, please contact us by inquiry or chat with me to meet the customized needs, we can also introduce the factory and machines to you in the form of live broadcast. Our team will tailor it for you.



Bottle capsule check weighers are widely used and can be used for all quantitatively packaged products. They are widely used in food, medicine, machinery, electronics, health products, agriculture, wine, chemical industry, light industry, building materials, energy, textiles, packaging, cosmetics, logistics and other fields.



Bottle Capsule Check Weigher with Rejection System Pharma Checkweigher Machine





Packaging

Film pack inside, Wooden case outside

Shipping

1. Upon receipt of payment, delivery date will be in 20-30 working days

2. By Air, by Sea or by Express (DHL, UPS, TNT, EMS, etc.)


1. Training services:

We will train your engineer to install our weigher.You can send your engineer to our factory or we dispatch our engineer to your company.We will introduce your engineer how to install the weigher and how to fix problem.

2. Trouble shooting service:

Some times if you can not fix the problem in you contry,we will seed our engineer there if you need us to support.Of course,you need to afford the round trip flight ticket and accommodation fee.

3. Spare parts relpacement:

For spare parts support: For machine in guarantee period,if spare part broken,we will send you the parts free and we will pay the express fee,And please send us the spare part back,when machine is out of guarantee period,we will provide you the spare parts in cost price.
