Automatic Rotating Sauce Liquid Premade Pouch Packing Machine High Quality Zipper Filling Sealing Packing Machine Factory
The sauce liquid premade pouch packing machine is a fully automatic packaging machine with functions such as automatic packaging, transportation, and sealing, widely used in mass production packaging lines with high efficiency. The automatic rotating sauce liquid packing machine adopts brand PLC+touch screen, which is easy to operate and can automatically complete the entire process. The heat sealing temperature is automatically controlled, and the production is beautiful and firm. The machine adopts a stainless steel shell, ensuring hygiene. Our product specifications and sizes are rich, various styles, welcome to contact us for quotation information.

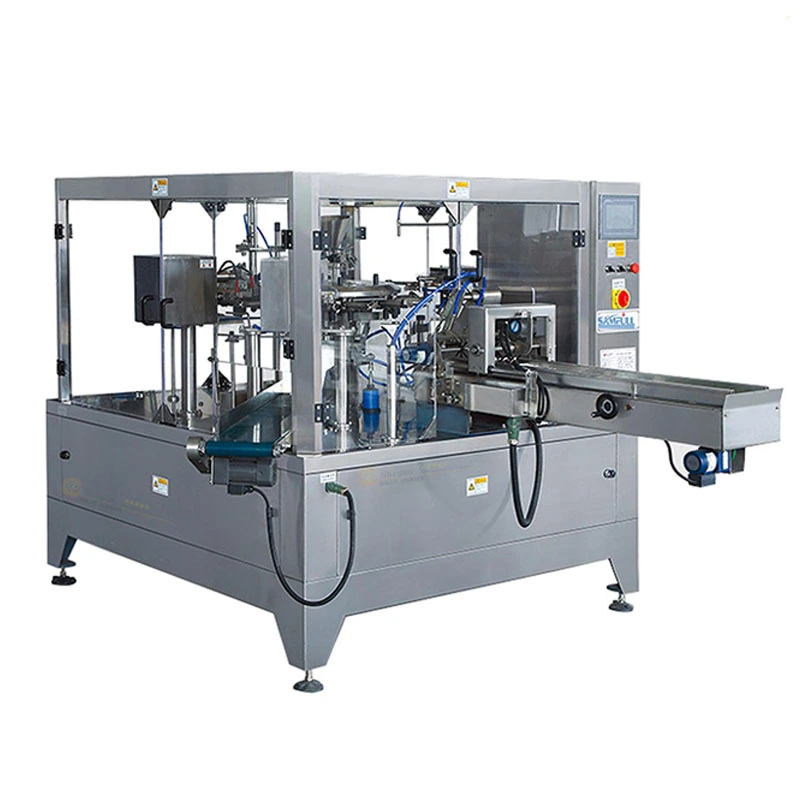

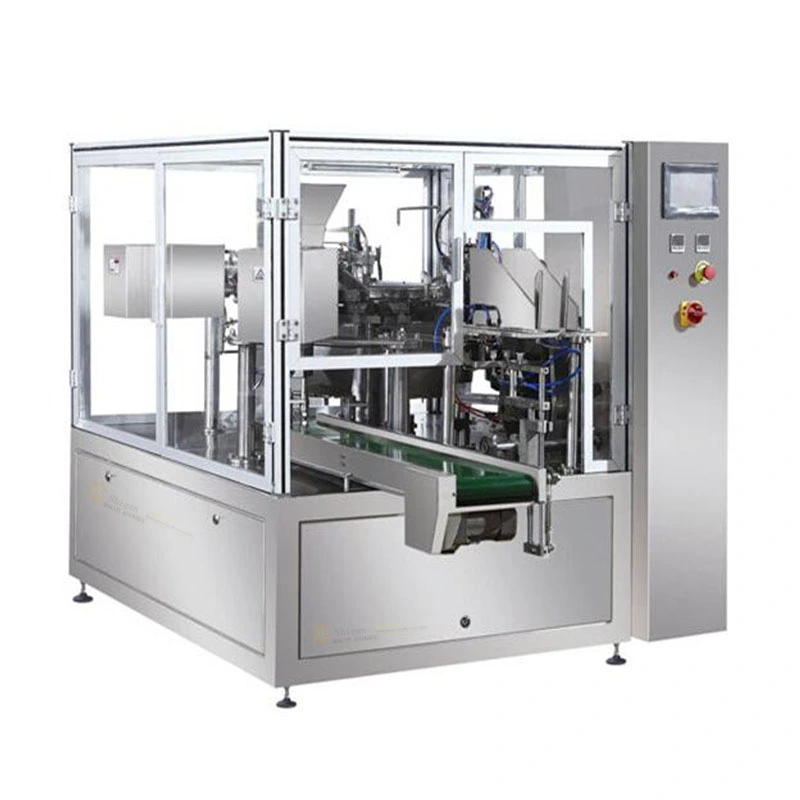

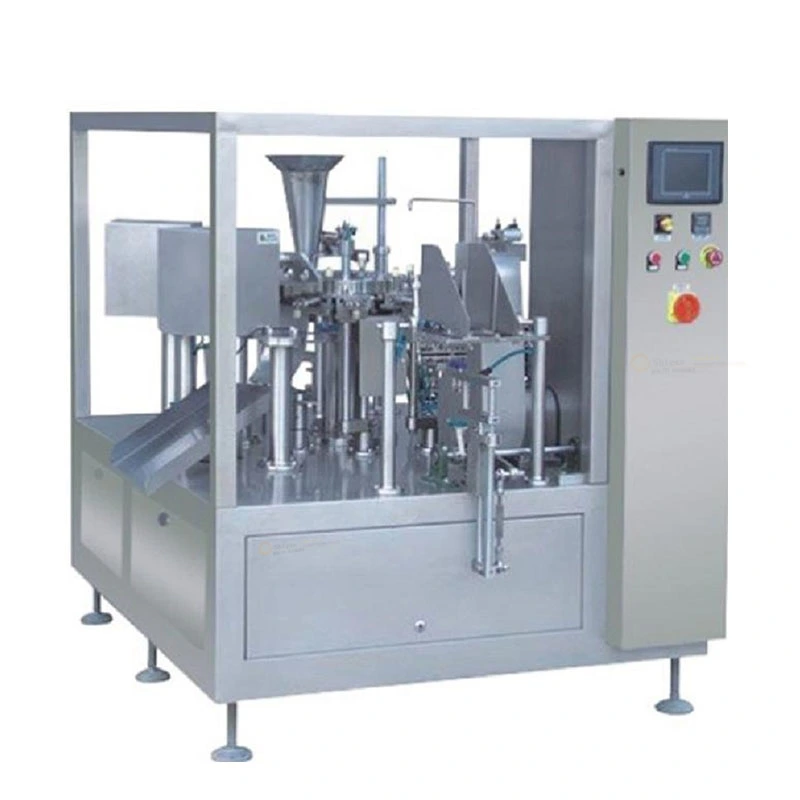

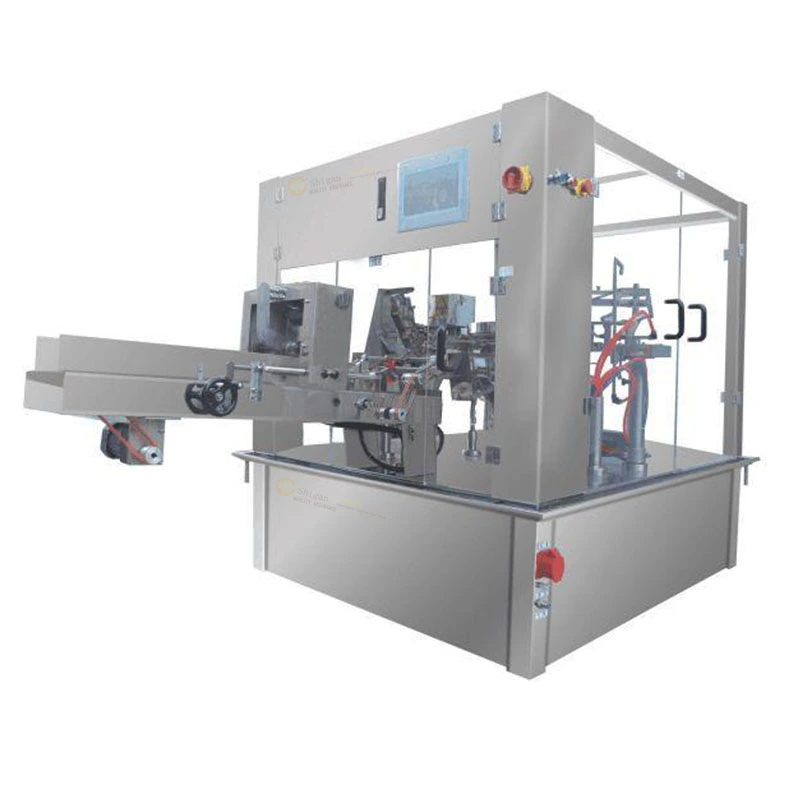

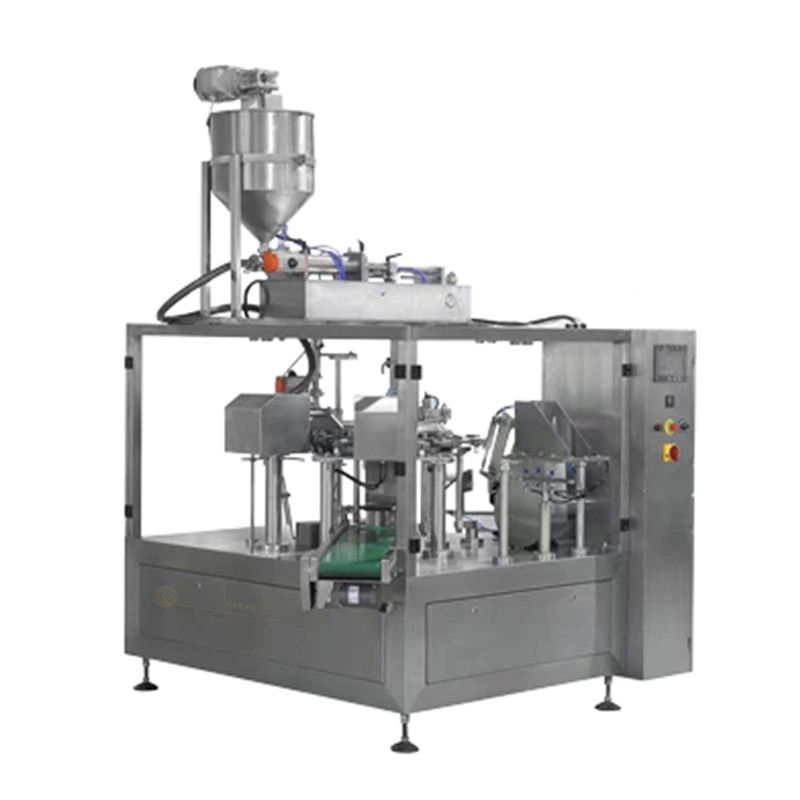

Automatic sauce liquid premade pouch packing machine photos
Measuring supporting equipment for liquid, sauce, paste filling machines, etc
Packaging bag types include self standing bags (with or without zippers), flat bags (with three side seals, four side seals, zipper bags), paper bags, and other composite bags
Bag size Bag width: 80-200mm Bag length: 100-380mm (can be customized according to customer requirements)
Measurement range 5-1000g (customizable according to customer requirements)
Packaging speed 25-40 bags/minute (determined by the product itself and filling weight)
Packaging accuracy ± 1%
Voltage/power three-phase 380V 50HZ/60HZ 5KW
Compressed air consumption 0.6m3/min (provided by the user)
Note: Different models of packaging machines need to be selected based on parameters such as bag type and bag size.
The above parameters are for reference only and can be customized according to requirements. Provide the following information to our sales personnel, and our team will support you in selecting the correct type of weighing scale:
*1. Main parameters of the tested product, product size range: length, width, height
*2. Accuracy requirement: ± g.
*3. Speed requirement: pcs/min;
*4. Product weight range:; The maximum and minimum deviations of the same product.
1. The sauce liquid premade pouch packing machine adopts an 8-station structure, which adopts PLC (with motion function) and large screen touch centralized control, making the operation simple and convenient.
2. Equipped with an automatic fault tracking and alarm system to display the operating status in real-time.
3. The empty bag tracking and detection device achieves no bag opening, no cutting, and no sealing.
4. The action execution adopts a fully servo control system, which is reliable, fast, and accurate.
5. The overall design meets GMP standards and has passed CE certification.
Sauce liquid premade pouch packing machine is widely used in industries such as food, chemical, hardware, candy, daily necessities, vegetables and fruits, agricultural products, industry, etc., it has achieved automatic measurement, feeding, filling, bag making, date printing, and conveying equipment in various fields.
Shanghai Shigan Industrial Co., Ltd. is a manufacturer specializing in packaging machinery. The main products are automatic packing machine, packing machine multi-head weigher system, linear weigher, check weigher, metal detector, and several other models. The product is widely used in industries such as food, medicine, daily necessities, chemicals, toys, hardware, etc. Our company's automatic packaging machines are popular in dozens of countries and regions around the world, including Europe, Asia, Africa, South America, and the Middle East, and have received strong support from customers from all over the world. We have experienced technical talents, high-quality work teams, and timely provide customers with comprehensive after-sales service. Innovation, pragmatism, efficiency, and winning trust with responsibility! Shanghai Shigan provides a complete one-stop service for more corporate customers worldwide!
