Tablet/Capsule High Speed Metal Detector Auto Rejection Metal Detector
Tablet/capsule high speed netal detector is designed to detect and remove small pieces of ferrous, non-ferrous and stainless steel contaminants. Contaminated tablets are automatically ejected from the production line. It is suitable for all types of tablets and capsules and can be easily calibrated. The whole auto rejection digital metal detector adopts stainless steel structure, which is hygienic and easy to inspect. Our products have a wide range of specifications, sizes, and styles, providing various customized solutions. Welcome to contact us.

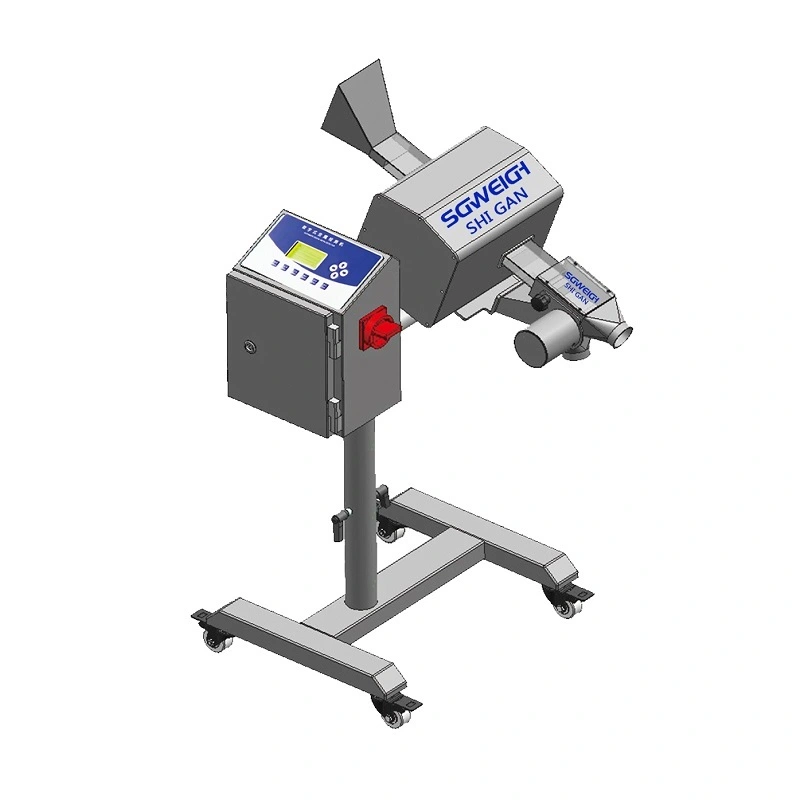

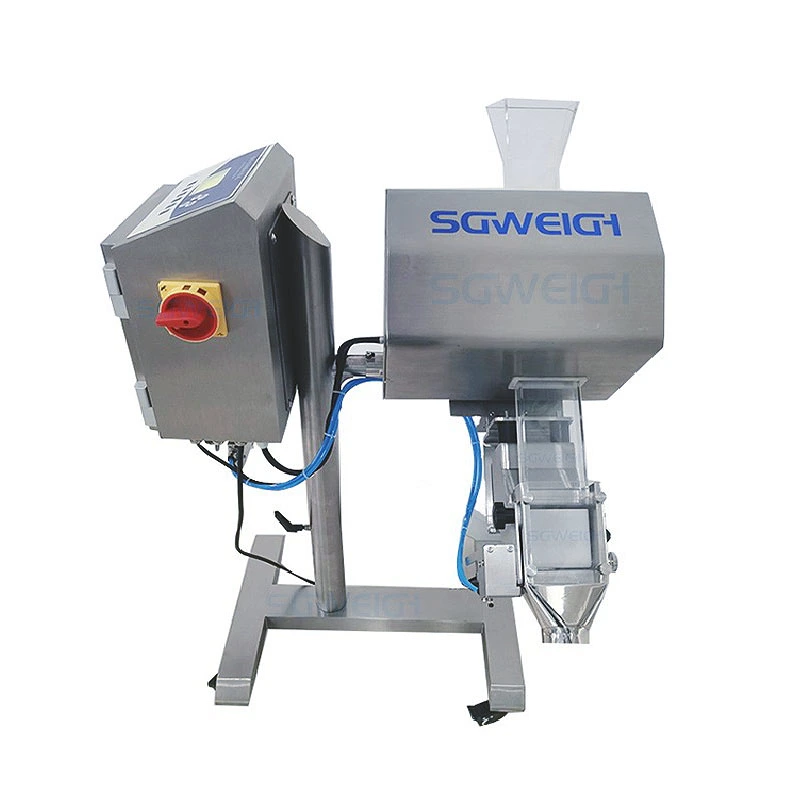

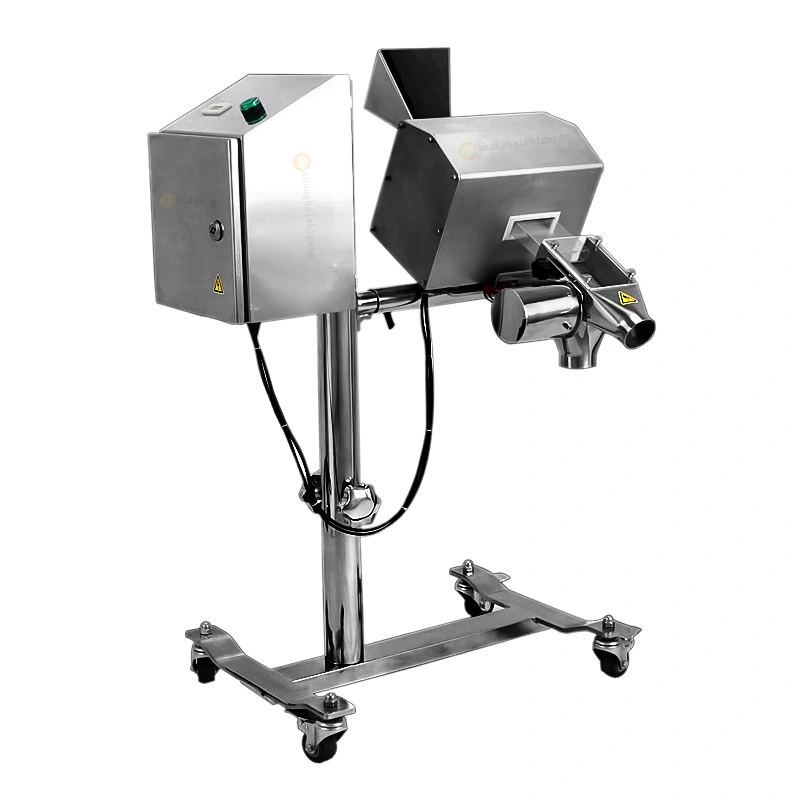

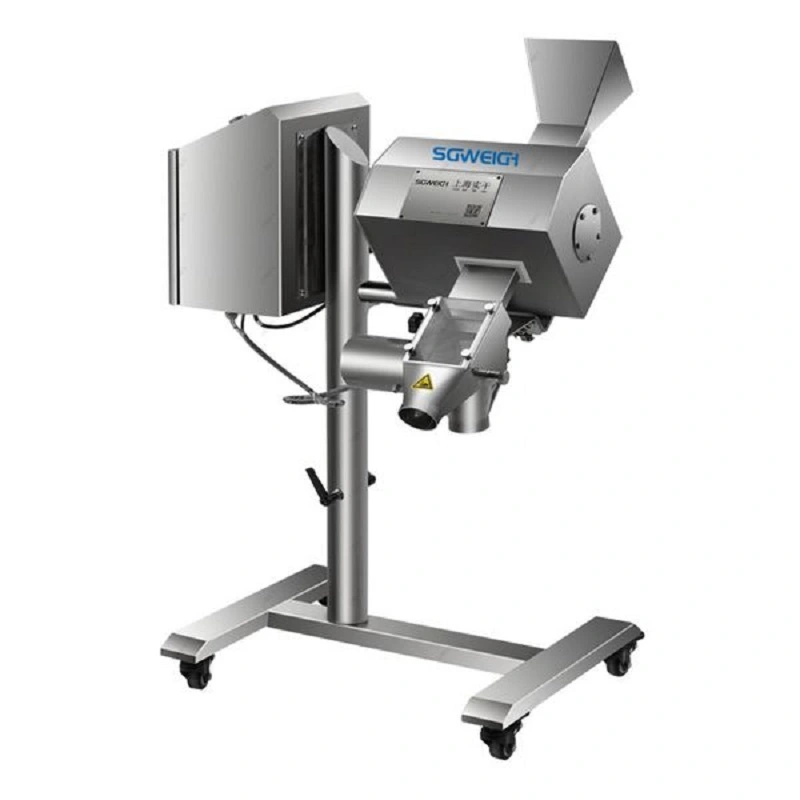

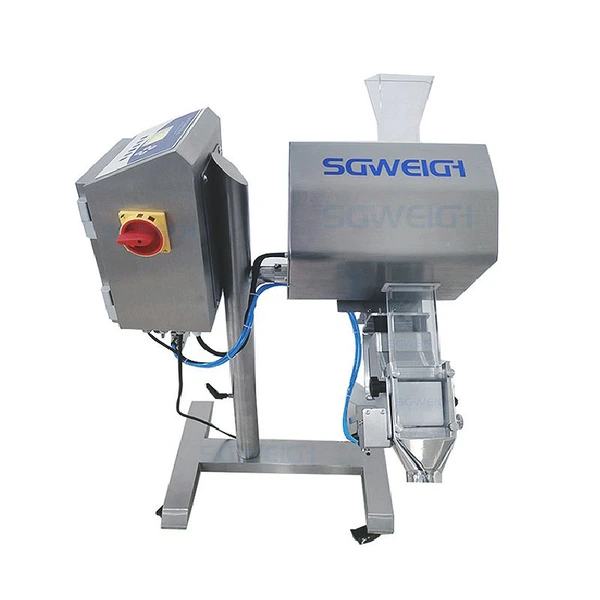

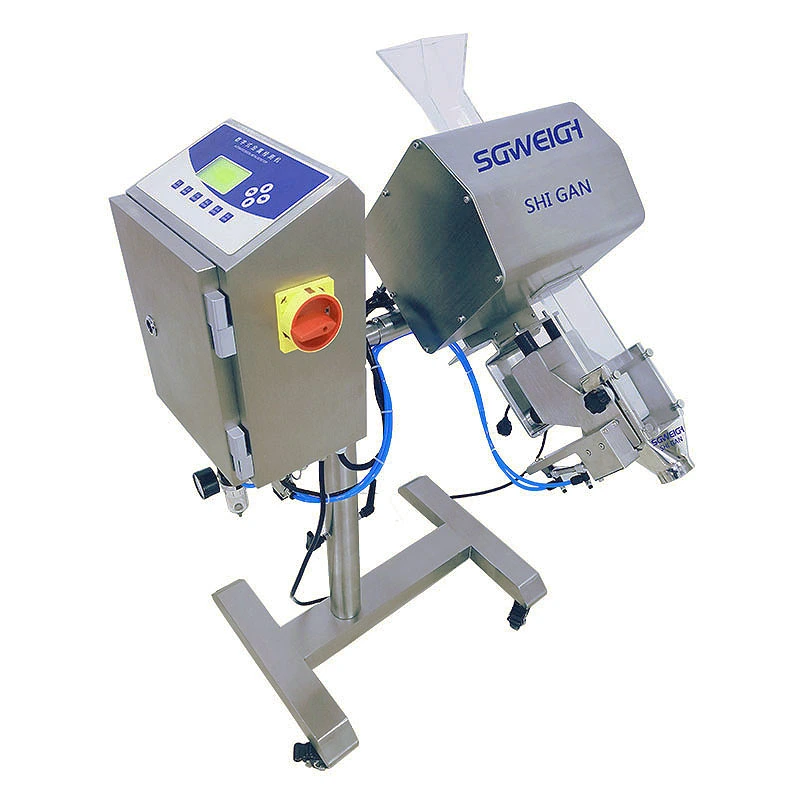

Tablet/capsule high speed netal detector photos
Type: SG-YJ60
Inter Height: H 770-930mm; Port size: φ76mm
Outer Height: H 770-860mm; Port size: φ51mm
Effective passing size: W70*H20mm
Output Capacity: 50w pcs/h
Detection sensitivity: φ Fe 0.4mm;φ SUS 0.6mm
Deadweight of machine: 75kg
Rejection Way: Flip Culling
Working powder supply: 220v/110v, 50/60Hz
Dimension: 1115*550*(1280-1440)mm
1. Magnetic Field Detection: Tablet metal detectors work by generating a magnetic field. As the tablet passes through the detector, any metal contaminants interfere with the magnetic field, sending a signal that triggers an alarm or activates a reject mechanism.
2. High Sensitivity: Designed to detect ferrous, non-ferrous (aluminum, brass, etc.) and stainless steel contaminants, even in very small quantities, ensuring the highest level of quality control.
3. In-line Detection: It can be seamlessly integrated into a tablet press or packaging machine, allowing for continuous, real-time detection without interrupting production.
4. High Sensitivity and Accuracy: Capable of detecting the smallest metal particles (typically as small as 0.3mm (ferrous metals) and 0.5mm (stainless steel) to ensure tablets and capsules meet stringent purity standards.
5. Rejection System: When contaminated tablets are detected, the machine automatically rejects the defective product using a reject mechanism such as an air jet or pusher, ensuring only uncontaminated product moves forward.
6. Hygienic Design: Made of stainless steel with a smooth surface, it meets the strict hygiene standards of the pharmaceutical industry. The design minimizes the risk of contamination and ensures easy cleaning.
7. Compact Size: Tablet metal detectors are typically compact and easy to integrate into small production spaces without major modifications.
8. User-Friendly Interface: Features an intuitive touchscreen interface for easy setup, operation and adjustment of parameters. The interface allows the operator to monitor performance, adjust sensitivity levels and access data logs.
Pharmaceutical Industry: Checking tablets, capsules and other pharmaceuticals.
Food Processing: Detecting metal contaminants in foods such as snacks and candies.
Other Industries: Ensuring the safety of products such as toys, electronics and automotive parts.
Tablet/Capsule High Speed Metal Detector Auto Rejection Metal Detector
1st step: Customer has showed his special requirements.
2nd step: We try to understand the conception and pattern from customer with simple draft or refer picture.
3rd step: Making the conceptive CAD drawing based on communication and understanding.
4th step: Making the detail and 3D drawing agter fixed the design and other details.
5th step: Offer the quotation after confirm the design,material and surface treament.
6th step: Making the sample for approval.
7th step: Testing installation after demo mock up.
8th step: Big production delivery and service after sales.
Tablet/Capsule High Speed Metal Detector Auto Rejection Metal Detector
- Fumigation certification for wooden packaging for overseas shipments
- Inner plastic film wrapping to protect goods from salt, wind or damage
- Shipping terms: EXWORK, FOB, C&F, CIF by sea or air
Training services:
We will train your engineer to install our weigher.You can send your engineer to our factory or we dispatch our engineer to your company.We will introduce your engineer how to install the weigher and how to fix problem.
Trouble shooting service:
Some times if you can not fix the problem in you contry,we will seed our engineer there if you need us to support.Of course,you need to afford the round trip flight ticket and accommodation fee.
Spare parts relpacement:
For spare parts support: For machine in guarantee period,if spare part broken,we will send you the parts free and we will pay the express fee,And please send us the spare part back,when machine is out of guarantee period,we will provide you the spare parts in cost price.
