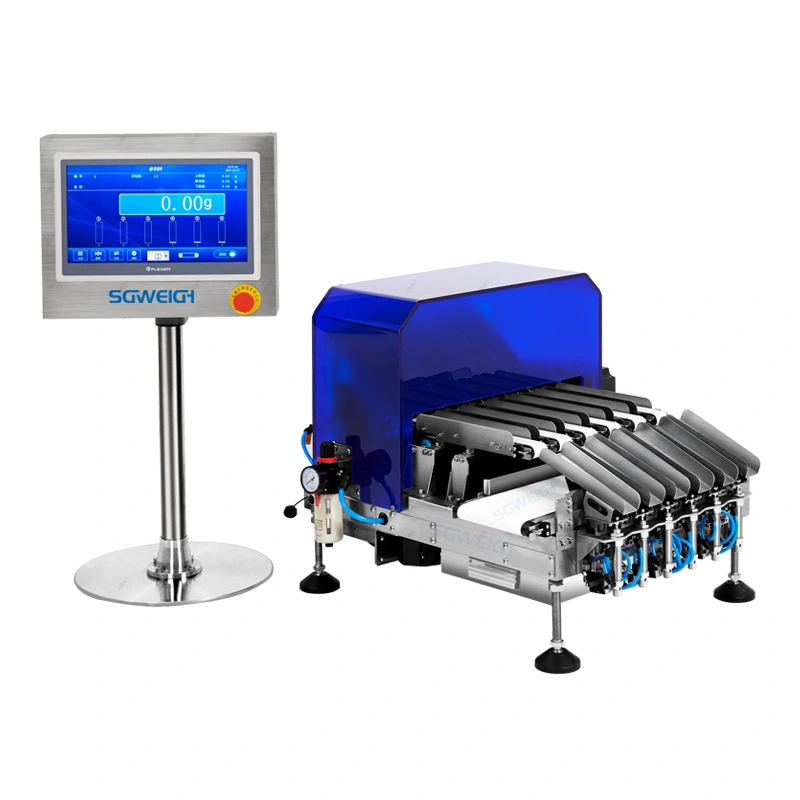

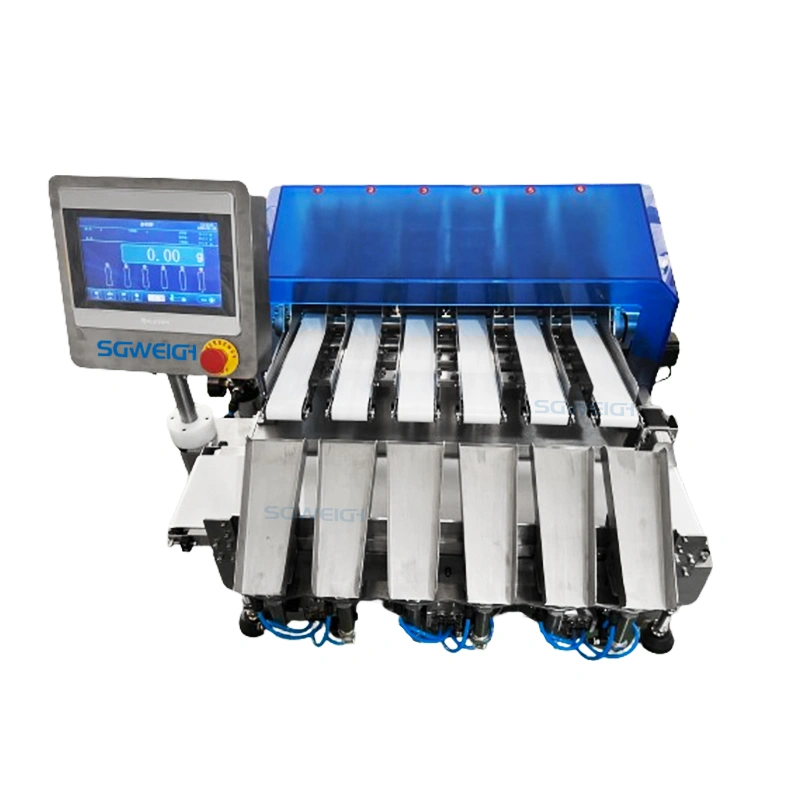

Stick Packs Checkweigher Multi-lane Checkweigher For High-Speed Packaging
Stick packs multi-lane checkweighers ensure weighing accuracy and consistency by individually checking the weight of each column with high-speed rejection and data tracking. Designed for easy integration, the multi-lane checkweigher for high-speed packaging supports automatic weight control in multi-lane packaging settings. With a smart interface, user-friendly controls and real-time monitoring, it simplifies operation even in the most complex configurations. Our products have a wide range of specifications, sizes, and styles, providing various customized solutions. Welcome to contact us.

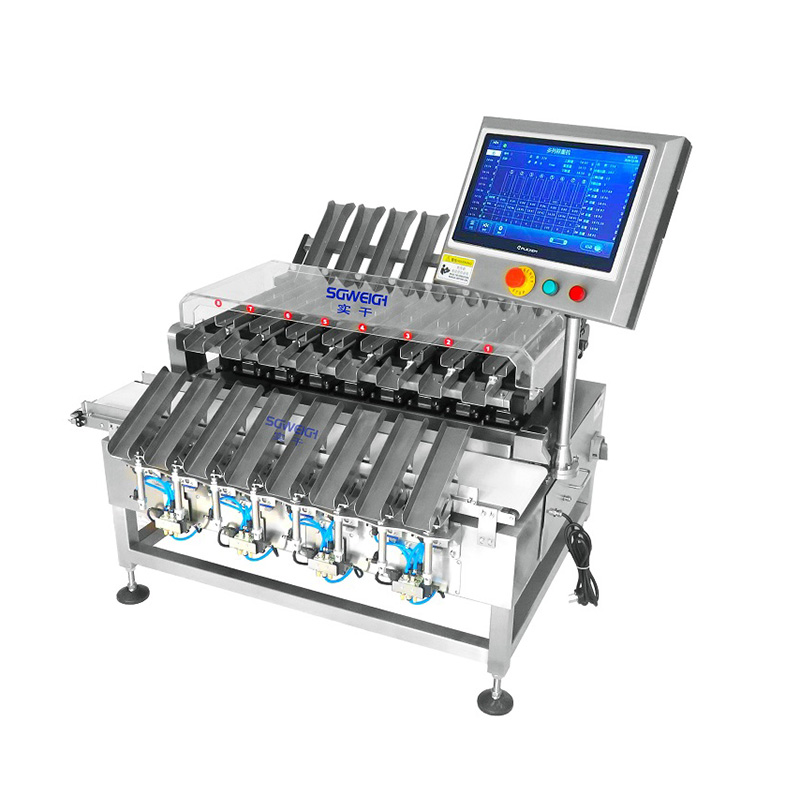

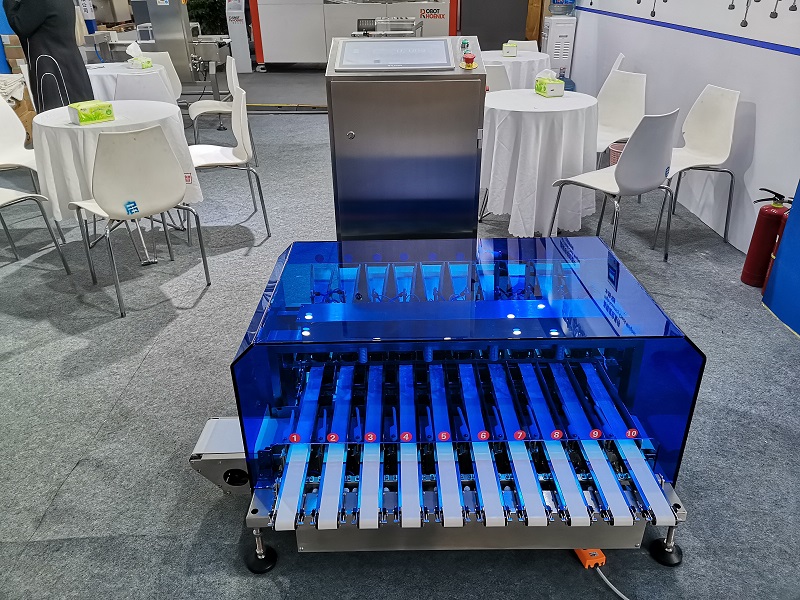

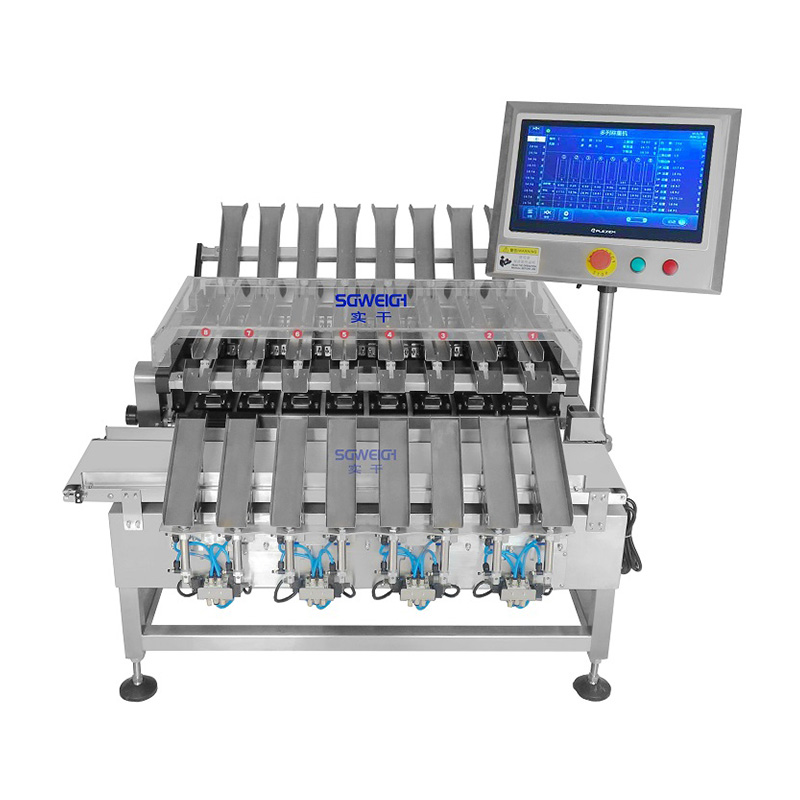

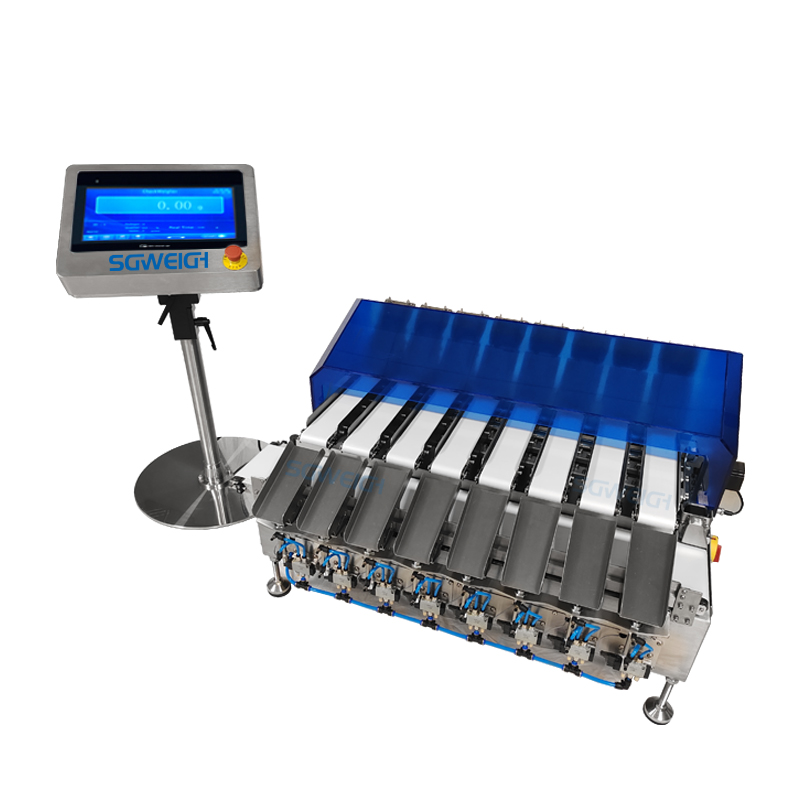

Stick packs multi-lane checkweigher pictures
Model:SG-8X
Weighing Range:1-50g
Minimum Scale:0.01g
Sorting Speed:70pcs/min (one lane)
Conveying Speed:20-100m/min
Operation Method:Touch operation
Conveying Direction:Can be placed according to the actual situation on site
Elimination Method:Lifting Rejection
Belt Height From The Ground:450±50mm (can be customized according to customer requirements)
Machine Structure:Stainless steel (SUS304)
Power Supply:220V 50-60HZ
Power:About400W
1. Can count multi-channel data independently or comprehensively
2. Check weight parameters can also be set independently or uniformly
3. One control module and display
4. Has the accuracy and speed of multiple single-row check weight machines
5. Can be remotely monitored in real time
6. Save space and low cost
7. The number of test lanes can be customized according to customer needs (such as 2 lanes, 4 lanes, 6 lanes, 8 lanes, 10 lanes, 12 lanes)
Stick Packs Checkweigher Multi-lane Checkweigher For High-Speed Packaging

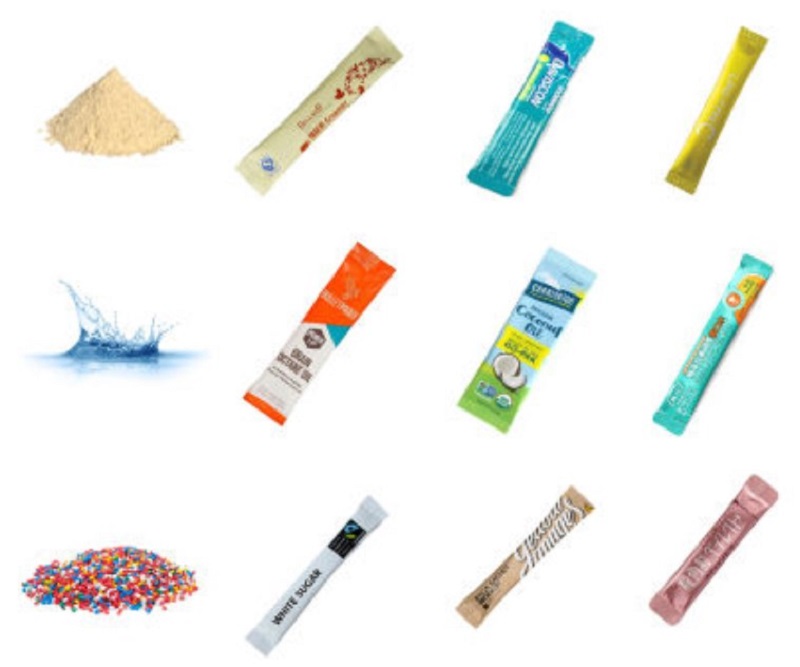

Stick packs multi-lane checkweighers are widely used in food, pharmaceuticals, beverages, health products, daily chemicals, agricultural and sideline products, hardware, toys, electronics, digital, printing and other industries. They can solve the quality control problem of automatic weighing and detection of packaging production lines.
According to customer needs and specific scenarios, we provide a wide range of customization options, such as: conveyor configuration, rejection mechanism, weighing capacity, software functions, user interface and integrated functions to meet customers' personalized needs in terms of function, performance, appearance, etc.
Stick Packs Checkweigher Multi-lane Checkweigher For High-Speed Packaging
Packaging and transportation
The whole machine is packed in two layers
Pre-packaging uses plastic bags to deliver the whole machine, and key components are protected by foam plastic
Engineering packaging uses sturdy polyethylene wooden boxes that meet the import standards of different countries
Installation and use
After unpacking, lift the rubber base and move it to your working position with wheels.
✔ Security:We are suppliers,Direct sales,More guarantee product quality, after-sales service and so on
✔ The professional services:Years of good faith service,Solve technical problems in various ways,After-sale no Worries
✔ The perfect process :Strict bill of lading, the specification of docking,Strict quality control process,Strict debugging before out of the factory
✔ Powerful:Strong design team, accept orders and deliver quickly
