Soft Gel Capsule Tablet Inspection Check Weigher And Rejection System
Check weigher as known as checkweigher, check weighing machine, weight check machine, check weight machine, weight checker, weight sorting machine, weighing machine, and etc,.
Shanghai Shigan soft gel capsule tablet inspection check weigher ensures the accuracy of capsule weight and can meticulously verify the contents of the capsule, whether empty, full or partially full, to maintain accurate dosage. The capsule tablet checkweigher with rejection system uses an industrial computer color touch screen to reasonably set the upper and lower limits of capsule rejection, and uses a high-speed weighing module and checkweighing algorithm software to quickly make qualified judgments and accurately reject unqualified capsules at high speed. If you are interested in our products and services,please keep free to contact us.

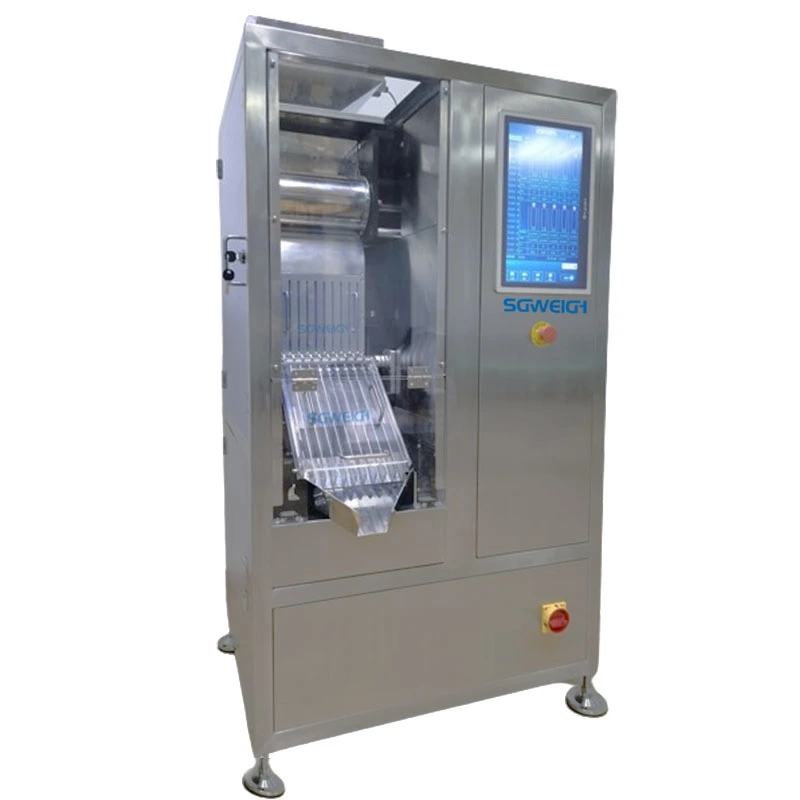

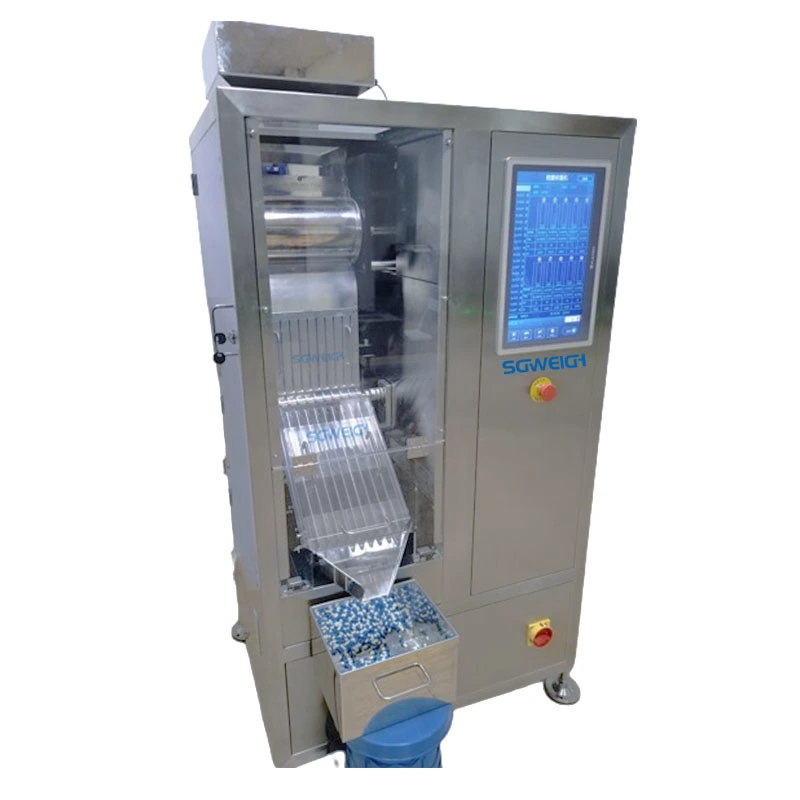

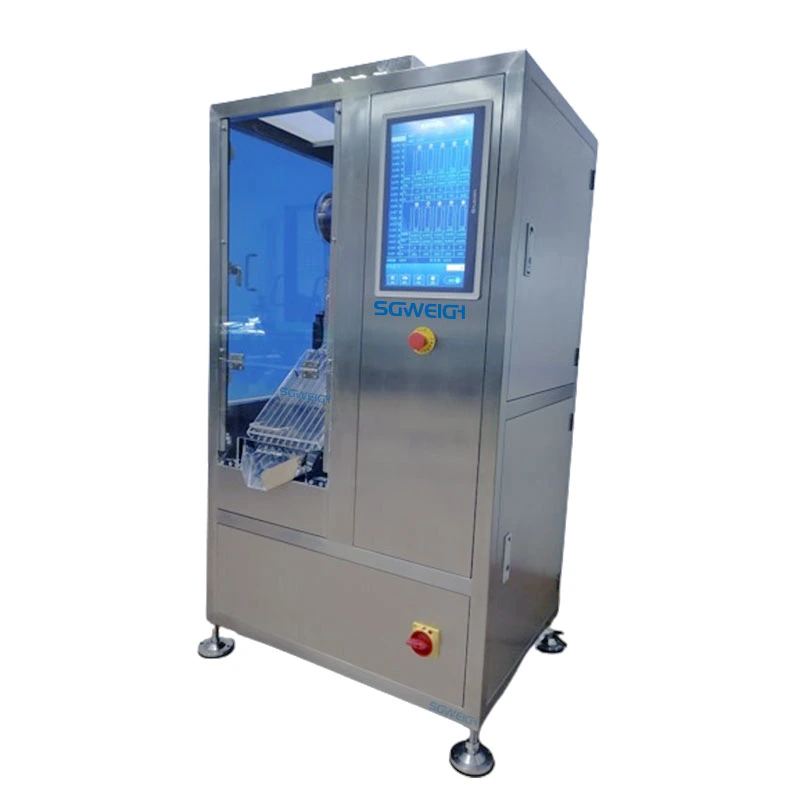

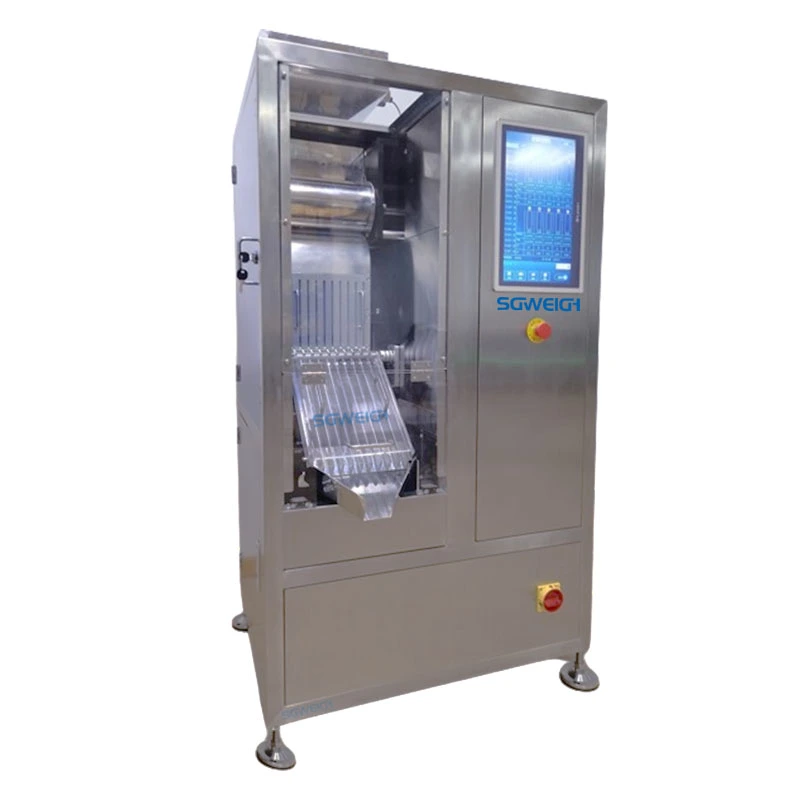

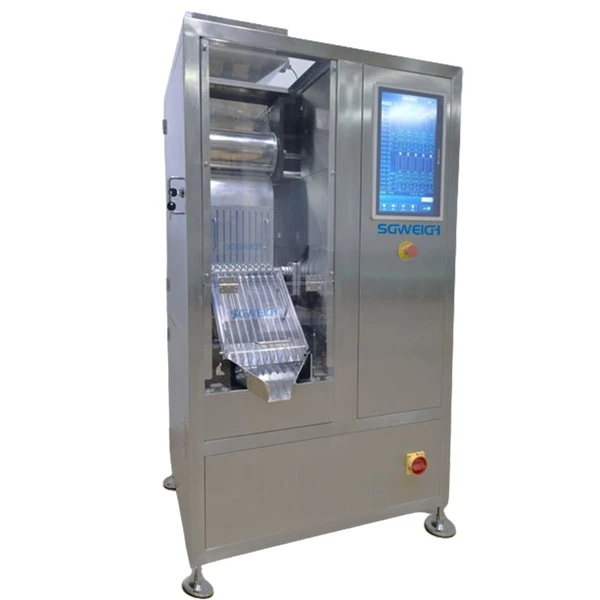

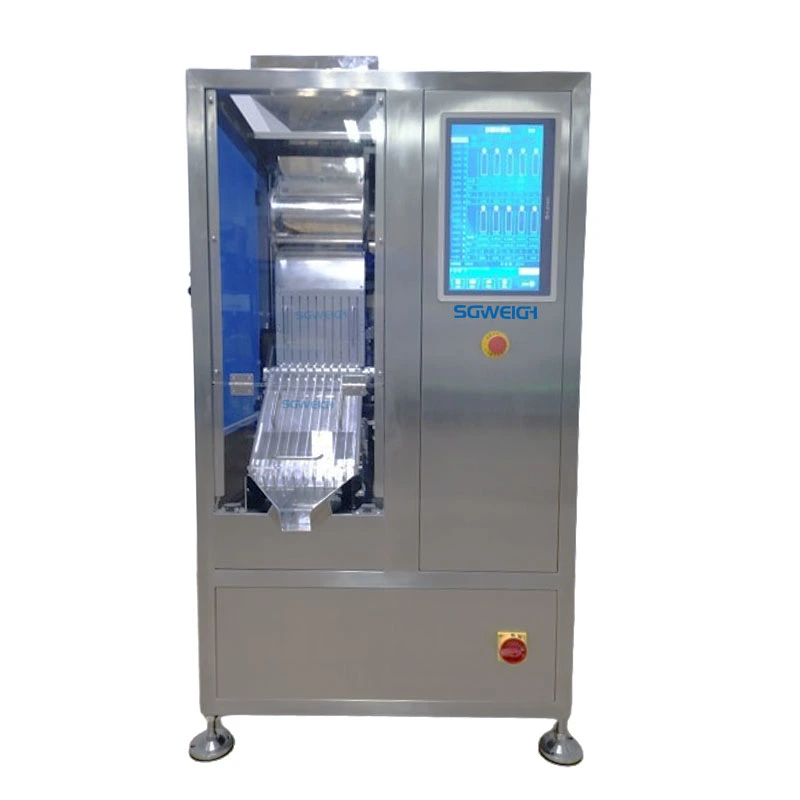

Single pills tablets capsules checkweigher photos
Type：SG-JN10
Weighing scope :5-2000mg
Display scale：0.1mg
Highest sorting accuracy:±0.5mg
Product specification:Capsule-00#-5#/Wafer-Φ5.5-Φ18mm/Thickness-3-12mm/Pill-Φ5.5-Φ12mm(Other sizes or shapes subject to testing)
Highest sorting ability :75000 PCS/HR/150000 PCS/HR/230000 PCS/HR
Number of columns:10 Columns/20 Columns/30 Columns
Power supply:AC-220V±10%, 50HZ
Compressed air:0.3-0.9Mpa
Use environment:15~30°C (The temperature change during use should not exceed the range of 1°C/h.Hunidity:30-70%(but no condensation)
Weight of Machine :350kg/500kg/700kg
Shell material:SUS304
You can select the best suitable model depending on the production volume.
1. Multi-channel calibration can be completed within 1 minute.
2. When the accuracy is 2.0mg, the fastest capsule weight check speed for each channel is 150 capsules per minute.
3. Collection and overflow prompt of unqualified capsules.
4. All channels are displayed in bar graphs and numerical values on the same interface at the same time, and a certain channel can be selected to display with large digital.
5. The curve and standard deviation of the first 20 capsules in any channel can be selected.
6. USB and Ethernet interface, supporting Modbus-TCP protocol.
7. 17″ industrial touch screen computer, rotatable 320°, friendly interface, fast speed, large storage capacity, high reliability.
8. Human-machine interface language: Chinese, English optional.
9. In addition to the USB flash drive to export data, it is also equipped with a micro-pin printer. The operator signs and confirms on the paper record, which is permanently saved and cannot be changed, and the quality can be traced.
10. Since the feeding, weighing and rejection of the equipment are small, it can also be suitable for weighing and sorting or weight grading of hollow capsules whose capsule caps and capsule bodies are not locked.
Soft Gel Capsule Tablet Inspection Check Weigher And Rejection System
Soft gel capsule tablet inspection check weigher as the key detection equipment on the production line, involves different fields. If the product specifications do not meet the requirements, please contact us by inquiry or chat with me to meet the customized needs, we can also introduce the factory and machines to you in the form of live broadcast. Our team will tailor it for you.
The Capsule and Tablet Checkweigher is a specialized checkweigher system designed specifically for the pharmaceutical industry to ensure accurate weighing of capsules, tablets and other solid dosage forms.
Soft Gel Capsule Tablet Inspection Check Weigher And Rejection System
Export fumigation-free plywood box, quick-connect design, easy to open and reuse;
Inner plastic film wrapping protects goods from salt, wind or damage;
In order to find the best solution, save costs, provide the best service, and earn more profits for our partners, we look forward to long-term cooperation!
Pre sale.
1. Project design, performance introduction, technical agreement, contract signing, packaging
2. Inquiry and consultation support.
3. Sample testing support.
In terms of sales.
We will provide you with the latest developments in product assembly, packaging, and transportation.
After sales service.
1. We will provide free accessories for non human component damage.
2. Training on how to install the machine, video training on how to use the machine, etc
3. One year warranty and lifelong maintenance
