Pharmaceutical Multi-lane Checkweighers for Particle Powder Pouch Weight Inspection Check Weighing Machine
Pharmaceutical multi-lane checkweigher adopts a patented weighing structure to achieve simultaneous high-precision weighing and removal of multiple column bar packages. The parameters of the multi-lane checkweighers for particle powder pouch can also be set independently or uniformly, and each channel can be configured separately for different products and weight ranges (optional) to achieve maximum system flexibility. Any OEM and customer design orders are welcome! If you are interested in our products, please feel free to contact us.

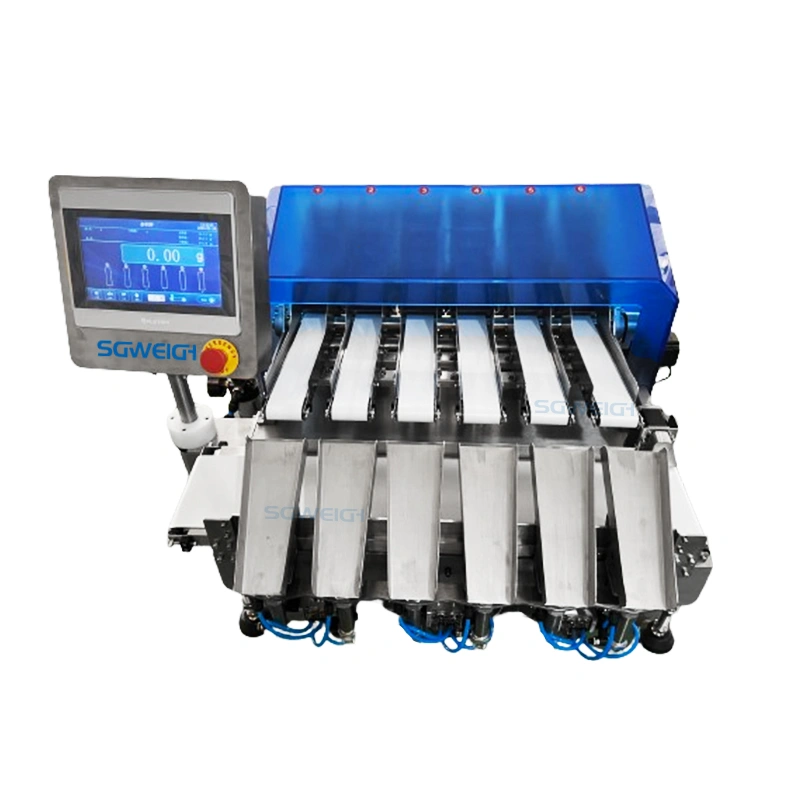

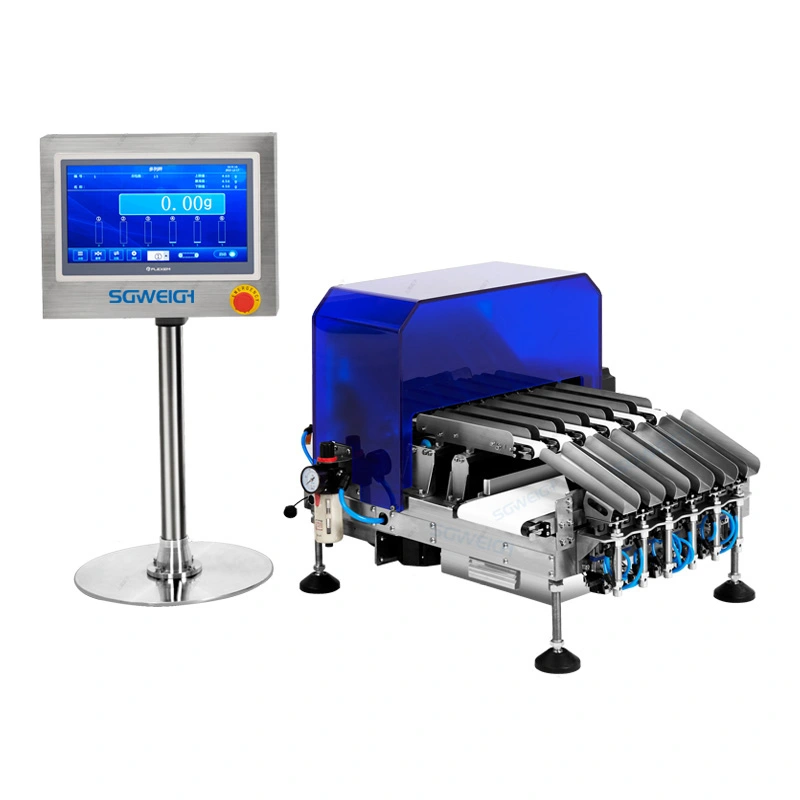

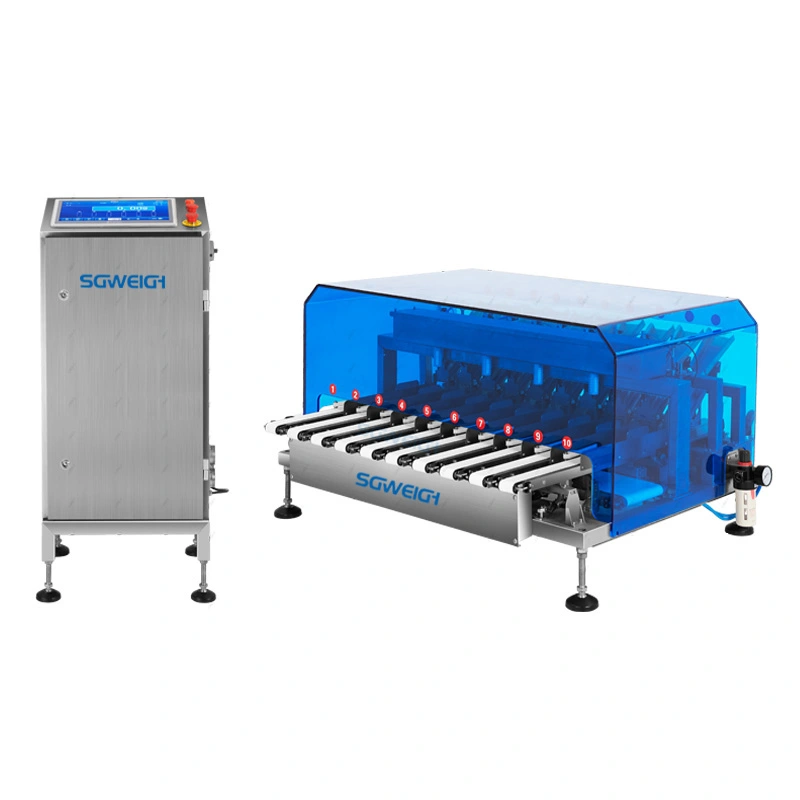

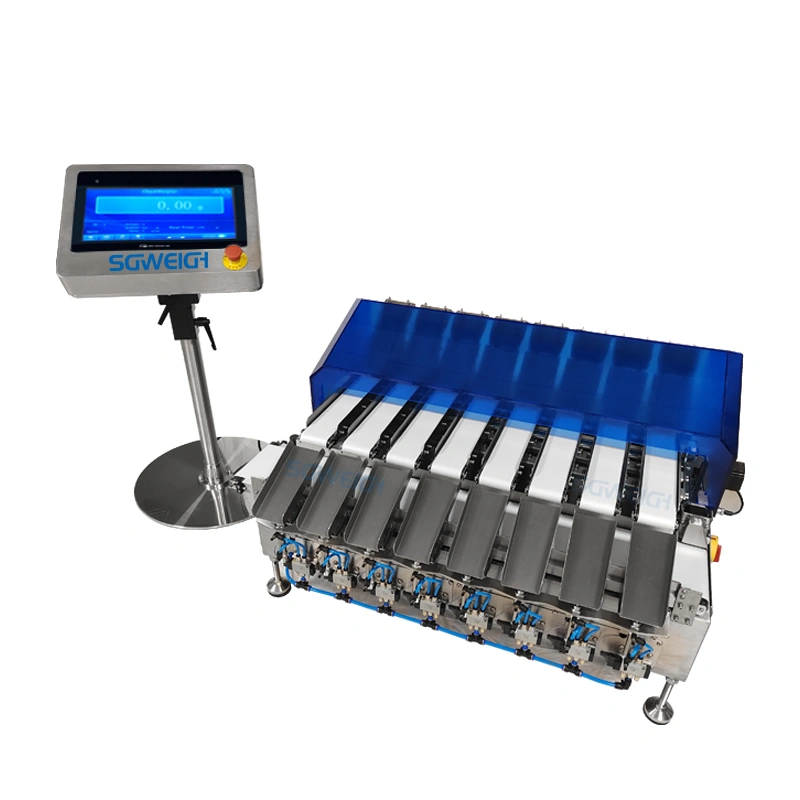

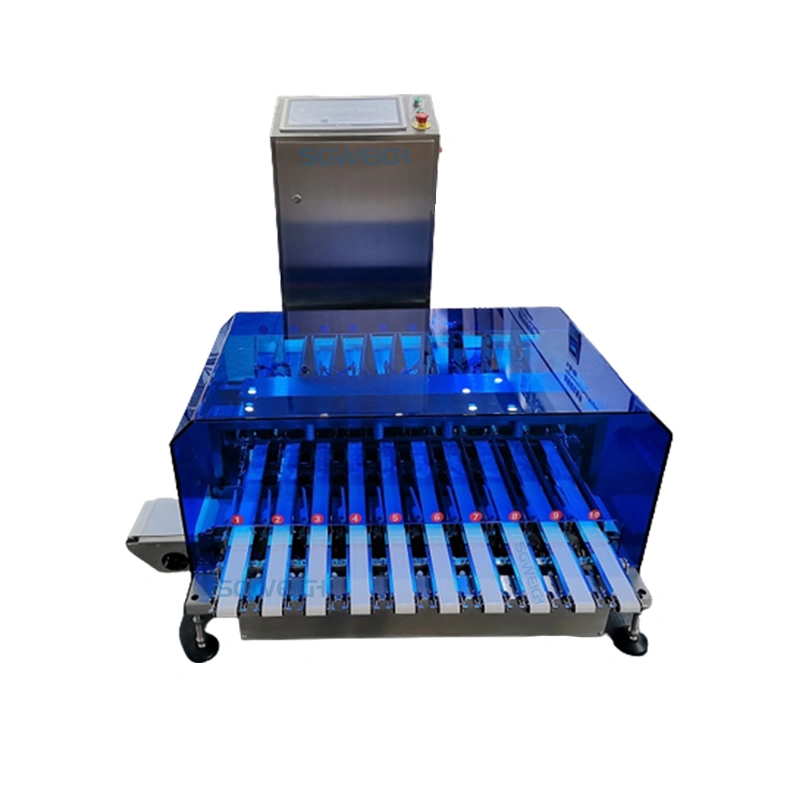

Multi-lane checkweighers for particle powder pouch pictures
Type SG-10XM
Weighing Range 2-300g
Limited of product L: 180 W: 40 H: 2-20mm
Accuracy ±0.01g Depends on product
Division Scale 0.01g
Each Channel Speed 70 pcs/min
Belt Width 30mm
Machine Weight 200kg
Power Supply AC 110/220V ±10% 50HZ
Power 300W
Main Material SU304 stainless steel
1. N-column skateboard patented weighing channel.
2. Maximum weighing speed: 100 cuts per minute.
3. Maximum weighing accuracy: 0.03g.
4. Each channel is independently removed.
5. The weighing data is fed back online to multiple packaging machines, achieving real-time automatic adjustment of the loading amount for each column.
6. The number of consecutive non-conforming alarm bags in each column can be manually set.
7. Output I/O alarm signals to the host when equipment malfunctions.
8. N ≤ 6,10 inch touch screen; N>6, 15 inch industrial screen.
9. Ethernet interface; Supports Modbus TCP protocol.
10. Export interface for statistical results: USB.
11. Data statistics for each channel: real-time result display, trend chart display, and bar chart display.
This configuration can also be customized for production according to customer requirements.
The customized project is as follows:
1. Tailored countertop.
2. Highly customized.
3. The material can be customized.
4. The instrument and drum can be wirelessly connected
5. The instrument panel can come with a built-in USB storage function.
6. The instrument can send weight data via Bluetooth.
7. The instrument can choose automatic quantitative control output function.
8. External printer function.
9. Equipped with upper and lower limit alarm lights.
10. External scanning gun function.
Pharmaceutical multi-lane checkweigher is specifically designed for continuous weighing, sorting, and batch product production lines in daily chemical, chemical, food and beverage, pharmaceutical, and other industries. Its weight range is checked according to the designated channel for sorting according to the set level
Shanghai Shigan Industrial Co., Ltd. is located in Shanghai, China and has been specializing in the production of automatic checkweighers and digital metal detector machines for over 15 years. We have our own factory, and since its establishment, our company has been committed to the new technology field of weighing scales and metal detection machines. Now, we have formed a special competitive market based on advanced technology. We have obtained the CE certificate.
Our products not only sell well in the domestic market, but also in international markets such as the United States, Africa, the Middle East, and Europe. Our company has always been waiting for the visit of every friend with good quality and excellent service. We sincerely cooperate with each other and work together to create brilliance.
Our main products
Capsule and Tablet Checkweigher
Checkweigher and Labeling Machine Combo
Checkweigher and Metal Detector Combo
Packaging
Film pack inside, Wooden case outside
Shipping
1. Upon receipt of payment, delivery date will be in 20-30 working days
2. By Air, by Sea or by Express (DHL, UPS, TNT, EMS, etc.)
12 Months Guarantee
★ 12 months free main parts change (Please return the damaged parts by airmail)
★ Overseas engineers available (You only have to pay part of the freight)
Customization
All our machines can be customized , according to your product's features and your workshop environment, or your production line.
After-sales Service Provided
one year warranty and lifetime maintenance. During the warranty period, accessories damaged by non-human factors will be replaced free of charge; outside the warranty period, accessories will be provided at cost price.
