Pet Food Cat Strips Multi-lane Packing Machine Automatic Continuous Paste Back Sealing Bag Multi-line Packing Machine
The automatic multi-lane packing machine for food can complete packaging sealing, filling, embossing, incision cutting, cutting dashed lines, and transverse cutting in one go from longitudinal sealing, longitudinal cutting, and transverse cutting, with high temperature control accuracy (± 1C °). The pet food paste multi-lane packing machine is automatically controlled by PLC, and each actuator is driven by servo motors. The automatic step positioning is accurate, reliable, easy to operate, and the adjustment is fast and convenient. Our product specifications and sizes are rich, various styles, welcome to contact us for quotation information.

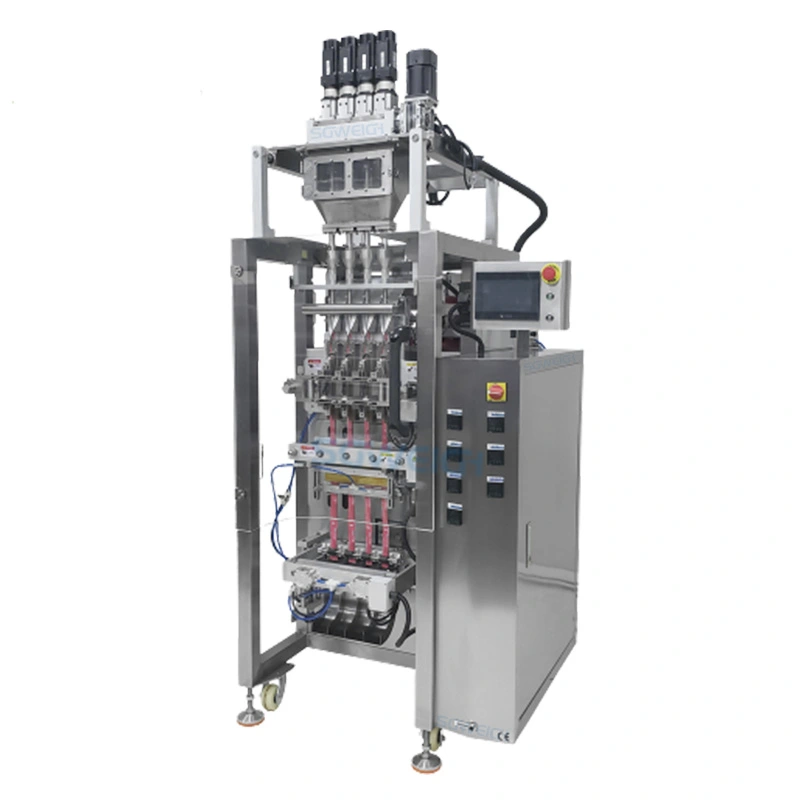

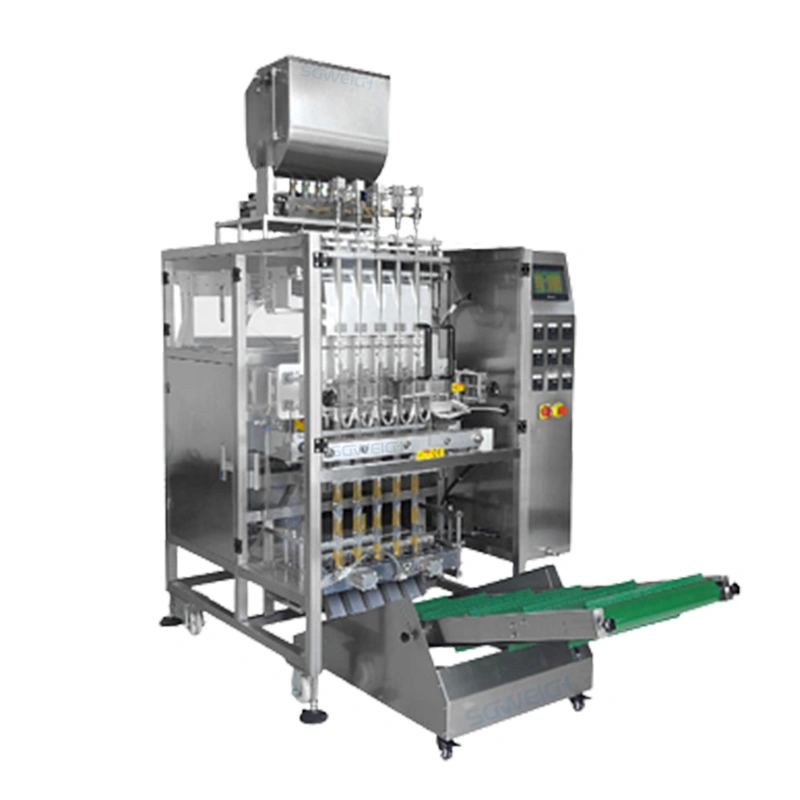

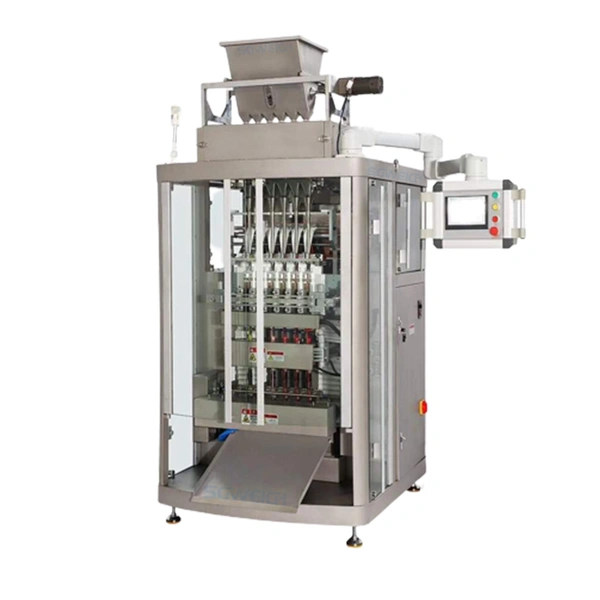

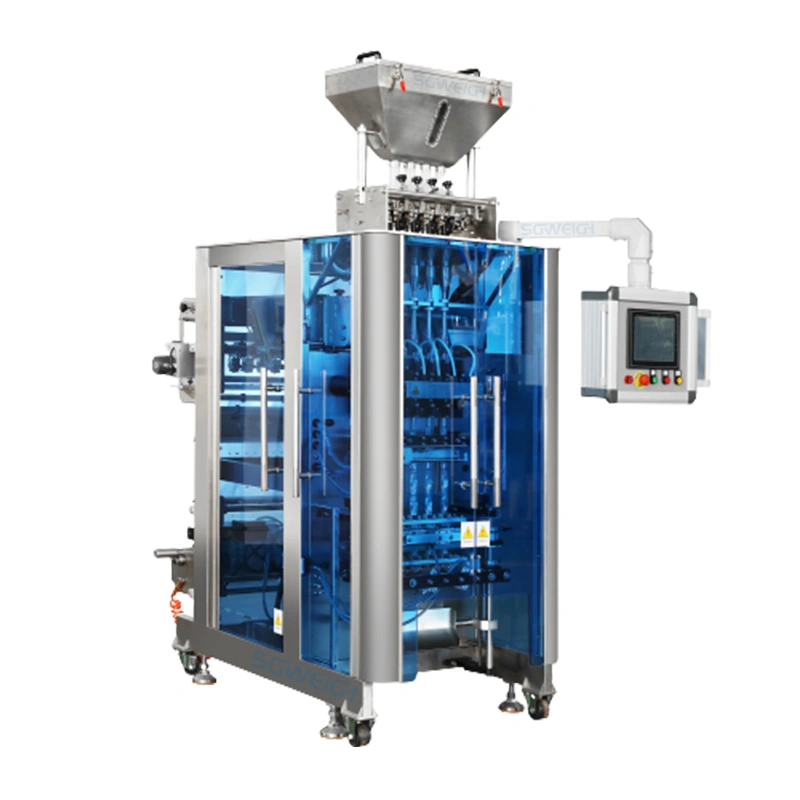

Fully automatic liquid packing machine pictures
Pouch length（adjustable）：50~160mm
Pouch width：50~105mm
Packing speed（depend on pouch size and material）：20~50 sachets/min
Measuring range：5~80ml
Applicable film：PET/AL/PE PET/PE NY/AL/PE NY/PE
Max width of film roll：500mm
Max film roll diameter：Φ420mm
Film roll core diameter：Φ75mm
Dose accuracy：13g±3%
Power voltage：240V/380v/3phase/60Hz 4W
Power：12 Kw
Weight：1200kg
Size：1680*1280*2050mm
Parameters are for reference only,the displayed machine may not meet your requirements,
Please provide the following information when sending your inquiry so that we can quickly provide you with accurate feedback and suitable solutions.
Product details (product name, min/max dimensions and weight).
Packaging details (packaging material, size, shape).
capacity and detection accuracy requirements.
Other special requirements.
1. Advanced performance, high power, low noise, compact structure, stable operation, easy maintenance, and long service life.
2. The stepper driver adopts a five axis servo motor, with human-machine interface touch adjustment, PLC control, and precise automatic stepper positioning.
3. The sealing mold adopts high-precision full roll heat sealing rollers, with a smooth bag shape, exquisite and beautiful appearance, and high packaging efficiency.
4. Accurate measurement. Based on different slurry viscosities, a reciprocating plunger pump with rotary valve control has been specially designed. With stroke adjustment of the cylinder feeding, the dosage of each production line can be easily and accurately adjusted.
5. Adopting an optoelectronic tracking system to ensure correct printing and with automatic counting function.
Automatic Multi-lanes Packing Machine suitable for packing catsup, thick paste material in the pharmacy(medicine), food, daily chemical and other industries.
Automatic packing into sachet with Measurement requirement, such as Peanut oil, salad oil, tomato paste, Curry sauce, Cough syrup; Shampoo, oil, Vaseline, creams of all kinds, and much more.
Automatic Multi-lanes Packing Machine is suitable for packaging and sealing of stripes, reticulation, serrations, right angles, fillets, abnormities, etc
Shanghai Shigan Industrial Co., Ltd. is located in the beautiful Shanghai, China. Since 2010, we have been engaged in the production and research of assembly line packaging and weighing equipment, obtaining CE certification and multiple professional certificates. The company always adheres to the business philosophy of "innovation, quality, and efficiency", providing you with perfect and high-quality products and services. Now our company's products have been sold around the world and have received the trust and praise of countless customers!
Our main products include: automatic packing machine, packing machine multi-head weigher system, multi-head weigher, linear weigher, check weigher, metal detector, vacuum packing machine, weighing filling machine, and a series of assembly line packaging testing equipment.
-Fumigation certification for wooden packaging used for overseas shipment
-Internal plastic film wrapping protects goods from salt, wind, or damage
-Shipping terms: EXWORK, FOB, C&F, CIF sea or air freight terms
Pre sales service
1. Train customer engineers on how to use automatic multi-lane packing machines.
2. Test the automatic multi-lane packing machine with product samples and our thin film materials.
3. A machine testing video will be sent to the customer.
After-sale service
1. Provide a manual.
2. Provide videos of installation, adjustment, setup, and maintenance.
3. Provide remote education and face-to-face online communication.
4. The warranty period of the machine is one year. If there is no human damage during the warranty period, we will replace it with a new one for you. The warranty period will be calculated from the date of B/L.PET bottle making
