Packed & Unpacked Food Checkweigher High-Precision Checkweigher Solution

Description

Packed & Unpacked Food Checkweigher High-Precision Checkweigher Solution

Automatic check weigher also called checkweigher, check weight machine, check weighing machine, weight checker, weight sorting machine, weighing scale, and etc,.

Packed & unpacked food checkweigher is a safety protection method for product weight in food and packaging industry. High-precision checkweigher solution is widely used to check the weight of filled packaging in motion, rejecting any product that is above or below the set weight. The series offers a range of functions for handling different products, and new functions are added to meet modern needs. If there is any need, please contact me at any time.

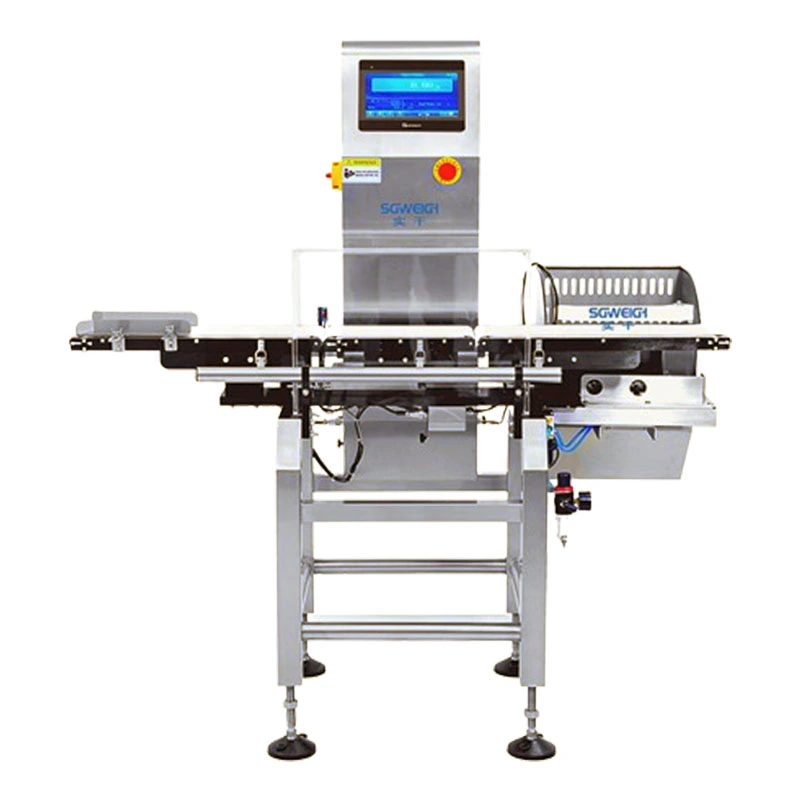

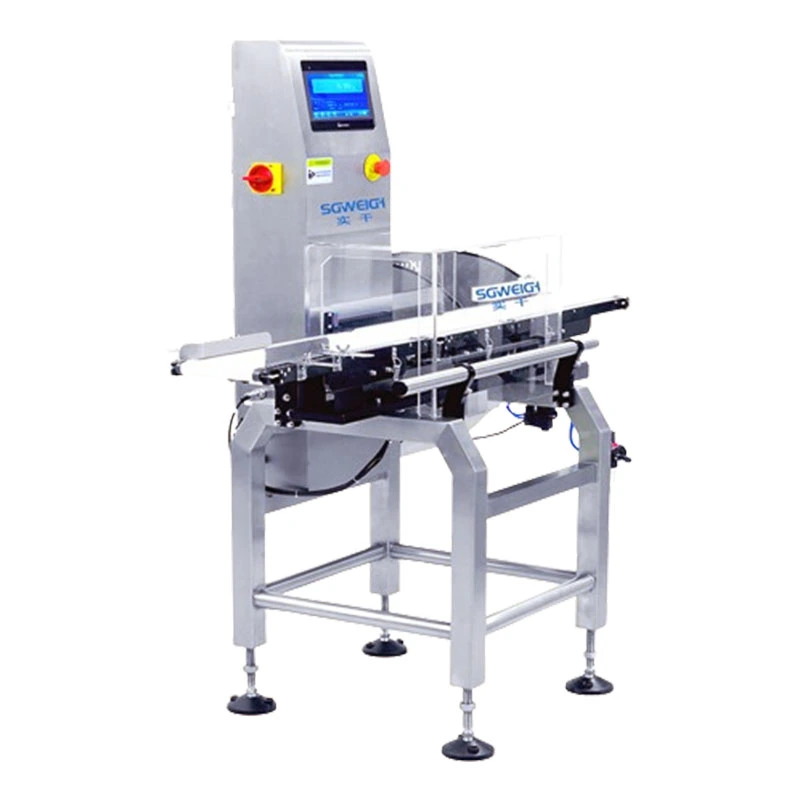

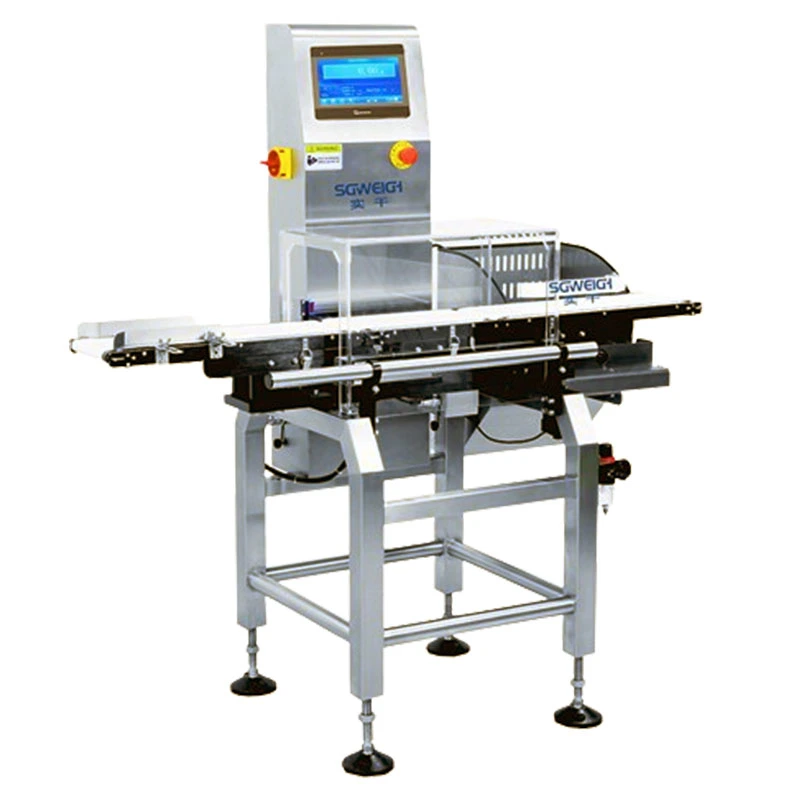

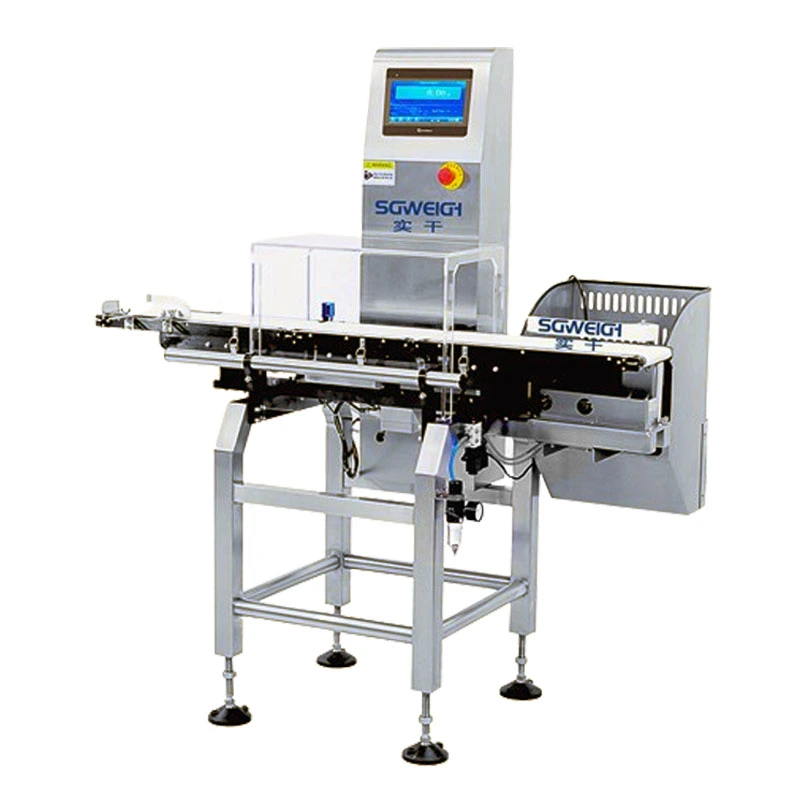

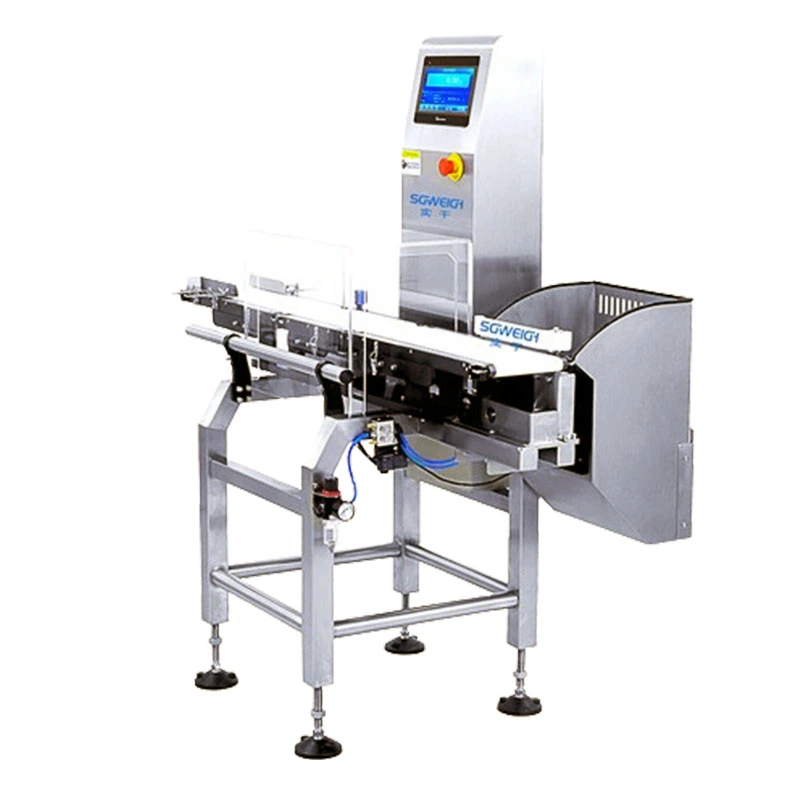

Packed & unpacked food checkweigher pictures

Packed & Unpacked Food Checkweigher

High-Precision Food Checkweigher Solution

Food Package Checkweigher

Type SG-150H

Weighing Range 3-500g

Limited of product L: 200 W:150 H: 3-200mm

Accuracy ±0.1g Depends on product

Division Scale 0.1g

Belt Speed 0- 90 m/min

Max Speed 250 pcs/min

Belt Width 150mm

Machine Weight 70kg

Power Supply AC 220V ±10% 50HZ

Power 100W

Main Material SU304 stainless steel

Packed & Unpacked Food Checkweigher High-Precision Checkweigher Solution


1. Using advanced dynamic digital processing technology, high-performance industrial computers and real-time operating systems: ensure real-time and high-speed processing of large amounts of data.

2. High-speed AD processing module, original high-speed and high-precision filter. Dynamic and static zero point automatic tracking.

3. 8-inch color high-brightness touch-integrated industrial computer, clear display. Humanized interface, simple operation.

4. Touch screen operation, direct setting of various parameters, 100 product parameters can be preset, and operators can directly call them.

5. Three-level password protection to prevent product information leakage.

6. Power-off protection function. Accidental power-off parameters remain unchanged.

7. Data statistics function. The total number and total weight of products passed within a period of time; the total number of underweight products and the total number of overweight products.

8. Data interface, RS232/485/USB interface, supports data output and upload.

How to select the product?

1. Determine the series according to the size, weight range and purpose of the product you need to weigh.

2. Determine the appropriate rejection system based on your product

3. Determine the height and width (if any) of your existing assembly line, and the space required by our company

4. Determine the optional functions you need, such as USB data storage, real-time transmission of weight data, alarm, etc.

In order to provide more accurate parameters, solutions and quotations, it is recommended that you contact the person in charge of our company to help you complete the selection.
