Online Checkweigher and Metal Detector Combo For Agricultural Products
Product Introduction
The online checkweigher and metal detector combo is a device that integrates metal detection and weighing functions, mainly used for automatic detection and weighing of products on production lines to ensure product quality and improve production efficiency. This checkweigher and metal detector combo for agricultural products has the characteristics of high metal detection sensitivity, stable weighing accuracy, small footprint, and easy installation and maintenance. Our products have a wide range of specifications, sizes, and styles, providing various customized solutions. Welcome to contact us.

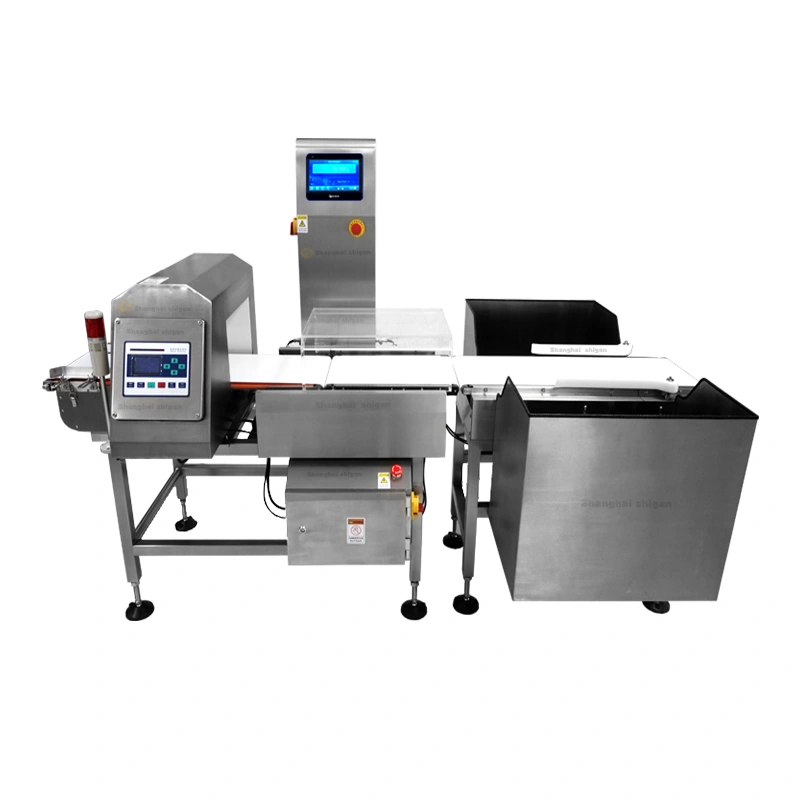

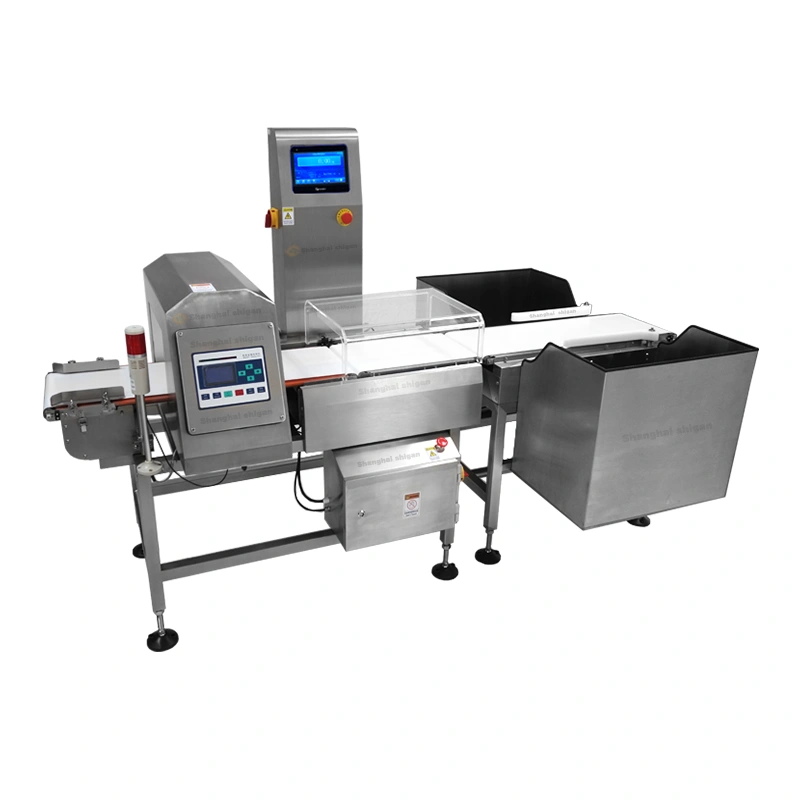

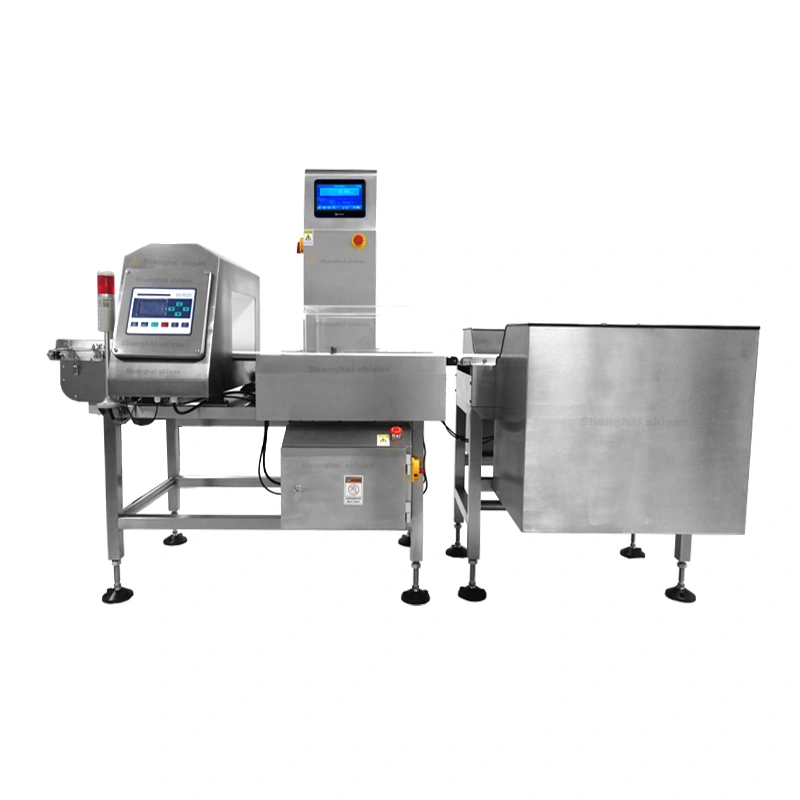

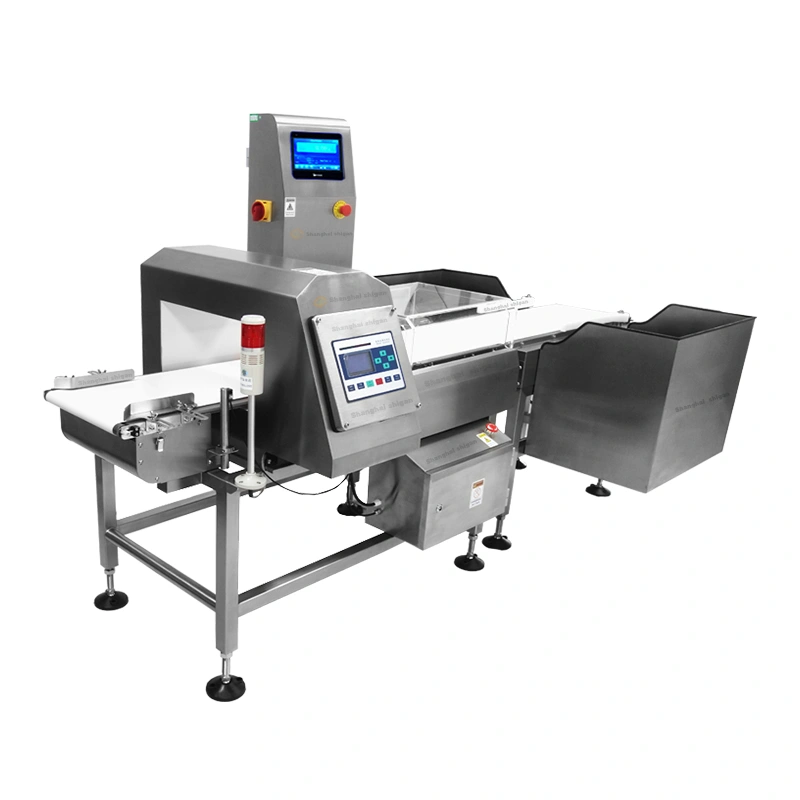

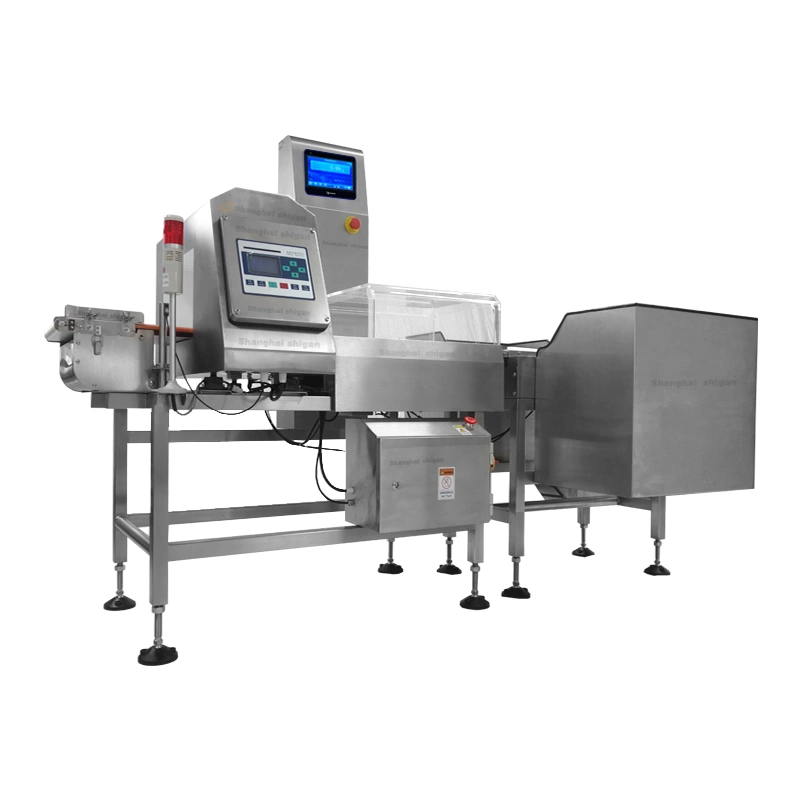

Online checkweigher and metal detector combo pictures
Technical Parameter
Type Digital Checkweigher With Metal Detector Combo
Model SG-JS150
Specifications 4010
Detection of hole width detection 150mm
Inspection hole height 100-200mm
Detection sensitivity
In empty state:(H)100mm ;Fe≥Φ0.8mm,SUS≥Φ1.2mm
(H)120mm ;Fe≥Φ1.0mm,SUS≥Φ1.8mm
(H)150mm ;Fe≥Φ1.2mm,SUS≥Φ2.0mm
(H)200mm ;Fe≥Φ1.5mm,SUS≥Φ2.5mm
Effective hole width detection 150mm
Effective hole detection level 100-200m
Weighing accuracy ±0.1g(Depend on product)
Conveyor height 750mm(±50mm)
Transmission capacity 10kg/times
Transfer direction From left to right
Conveyor belt max speed 25m/min
Material for conveyor belt Food grade PU belt
Protection grade IP65
Customized Process
1. The above technical indicators are the surface test block detection data of the belt when the machine is empty
2. Sometimes the detection sensitivity may vary depending on the product and usage environment
3. If there are special needs, customization can be made according to customer requirements
Main Features
1. Integrated design: Checkweigher and metal detector combo functions into one device, saving space and reducing the space occupation of the production line.
2. Compact structure: The checkweigher and metal detector combo has a compact structure and a small footprint, making it suitable for installation on production lines with limited space.
3. High detection efficiency: able to quickly detect items passing through the production line, with fast detection speed, improving production efficiency.
4. 1. High detection accuracy: Using high-performance sensors and weighing systems to ensure high weighing accuracy and reduce errors.
5. Sensitivity adjustable: Adjust the sensitivity of metal detection according to product characteristics and requirements to achieve the best detection effect.
6. Easy to operate: Equipped with LCD screen display and Chinese and English menus, the operation is simple and easy to get started.
7. Memory function: Online checkweigher and metal detector can store the detection parameters of multiple products, making it convenient to switch between different product detections.
8. Detachable structure: The rack design is easy to disassemble, making it convenient for users to clean and maintain.
9. Statistics and alarm function: able to count the number of non-conforming products and alert operators through alarms.
10. High cost-effectiveness: integrating multiple functions, saving costs, and improving production efficiency.
Product Details
Application Scope
Online checkweigher and metal detector combo has strong adaptability, suitable for various industries and production lines, such as food, pharmaceutical, chemical, etc.
Company Profile
Shanghai Shigan Industrial Co., Ltd. was established in 2010 and is a high-tech enterprise specializing in the research and development, production, and sales of weighing, metal detection equipment. The company has been focusing on the development and sales of assembly line equipment such as automatic checkweighers and digital metal detector for more than 14 years, and has become a well-known professional equipment manufacturer and service provider in the industry. The company attaches great importance to cultivating independent research and development capabilities and building a technical team. It has formed a technical team with independent research and development capabilities, ensuring that the company can continuously launch new products that meet customer needs.
Our main products include
Capsule and Tablet Checkweigher
Checkweigher and Labeling Machine Combo
Checkweigher and Metal Detector Combo
Our Customers
Our Exhibition
Packing & Shipping
The Delivery Date: After receiving the payment, the delivery date will be within 15-30 working days
Packaging: Protective film + wooden case
Logistics: Air, sea or express (DHL, etc.)
The Freight: The cost of transport depends on the destination, mode of transport and the weight of the goods
Pay: T/T, Western Union, paypal
After-sale Service
✔ Integrity: We adhere to honest management, always guided by customer needs, and provide high-quality products and services
✔ Quick response: We have a professional after-sales service team that responds to customer needs in real time, ensuring that problems are resolved in a timely manner
✔ Customized services: Based on customer needs, provide personalized customization solutions to meet the diverse needs of different customers
✔ Quality assurance: From raw materials to finished products, we strictly control every production process to ensure product quality
✔ Technical Support: We provide comprehensive technical support, including product installation, usage training, and maintenance, to ensure that customers have no worries at all
✔ Improve after-sales service: We promise high-quality after-sales service, including free maintenance during the warranty period, regular after-sales follow-up, etc., to safeguard our customers
✔ Innovative R&D: We have an experienced R&D team dedicated to product innovation and technological research and development, providing customers with more competitive products
✔ Strict production: We follow strict production processes and quality management systems to ensure stable and reliable product quality
✔ Win win cooperation: We seek to establish long-term and stable cooperative relationships with customers, develop together, and achieve win-win outcomes
