High-Speed Blister Check Weigher for Pharma Checkweigher with Auto Reject
This high-speed blister check weigher for pharma is equipped with advanced sensors and fast throughput capabilities to provide real-time quality assurance, instantly detecting underweight or overweight blister packs to prevent unqualified batches from entering the market. The pharma checkweigher with auto reject has built-in product memory, is compatible with multiple specifications, supports a multi-language touch screen interface, and has a compact, hygienic design suitable for cleanroom environments. You are welcome to contact us at any time for quotation.

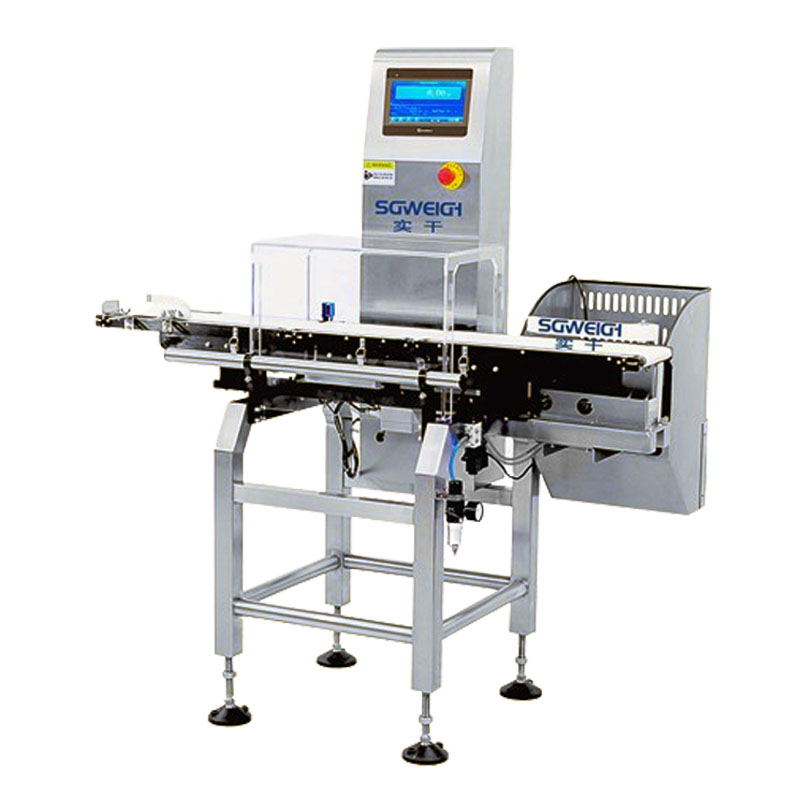

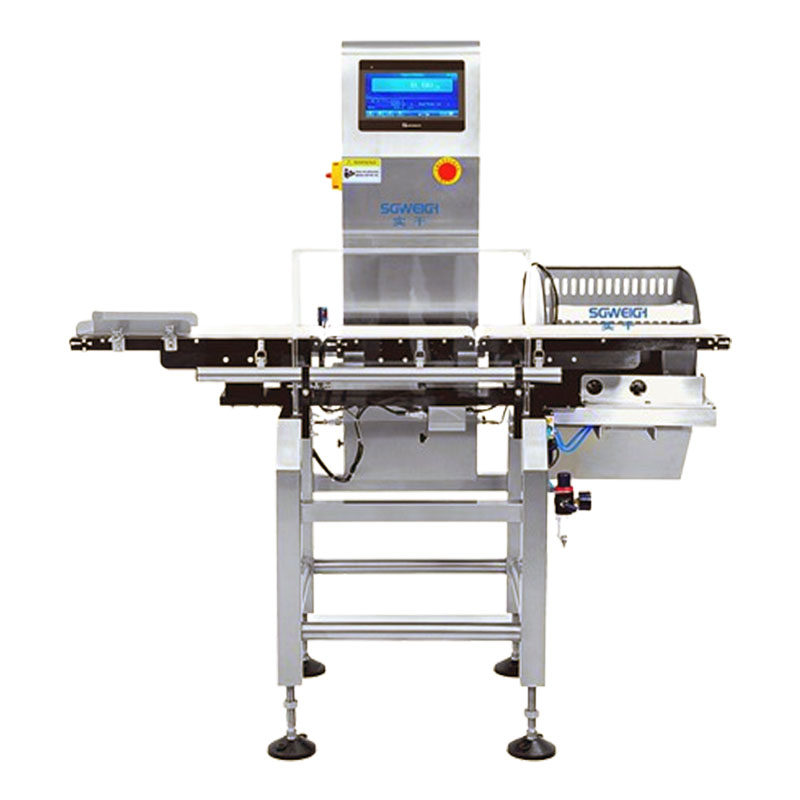

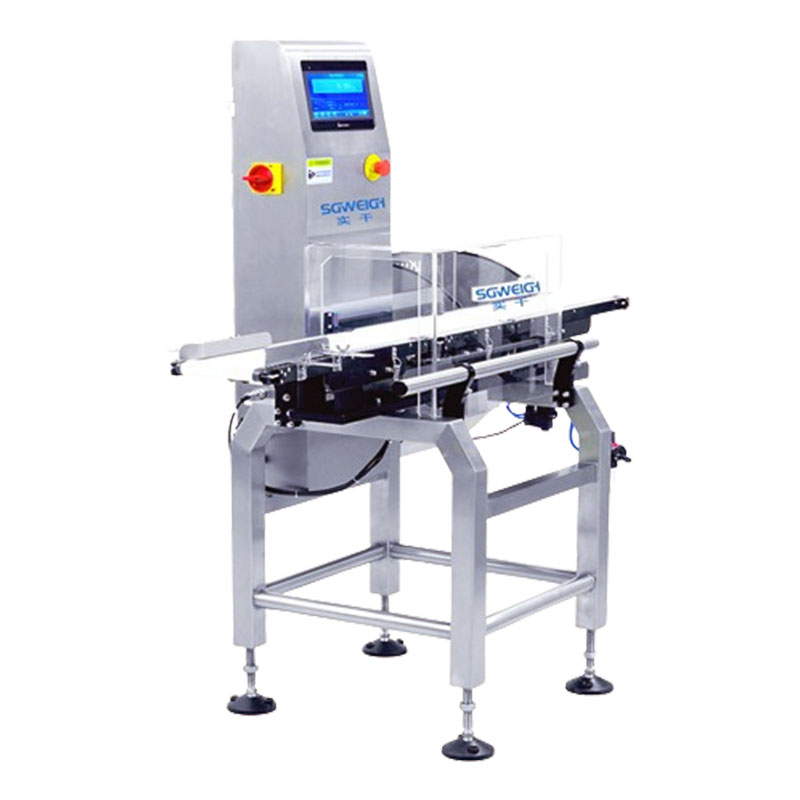

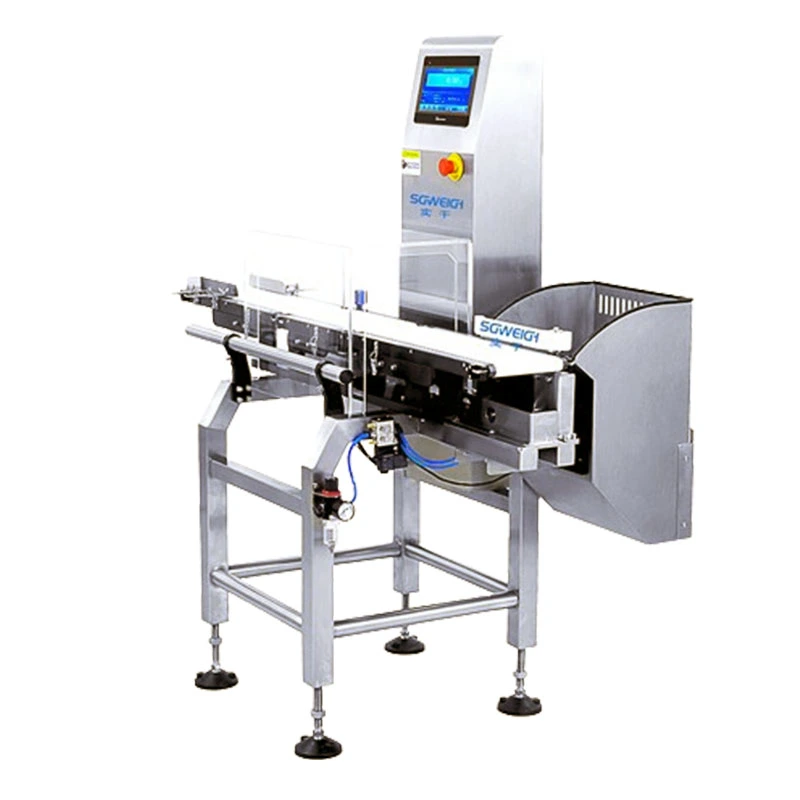

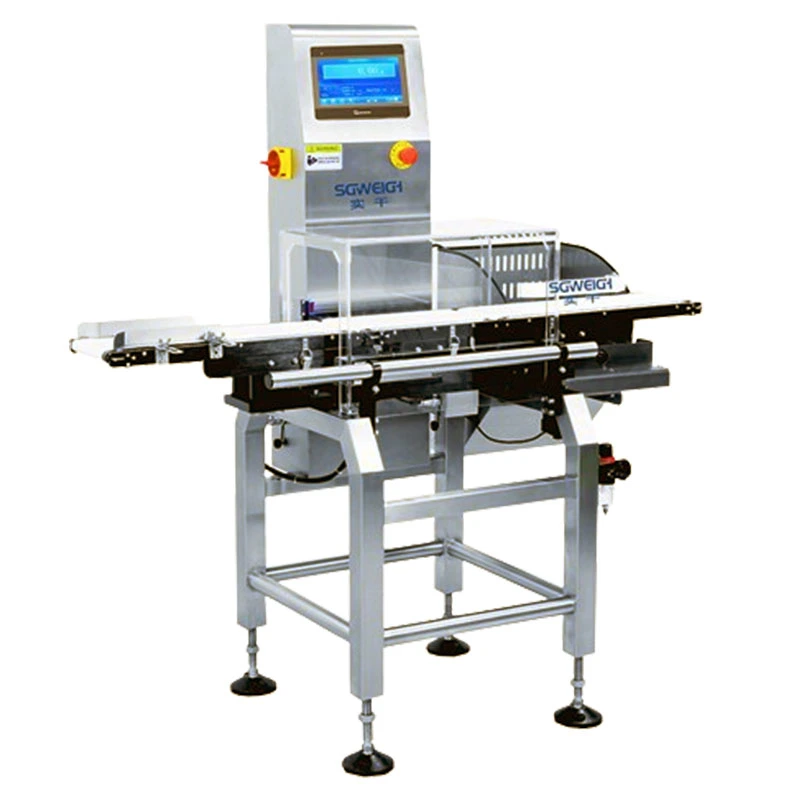

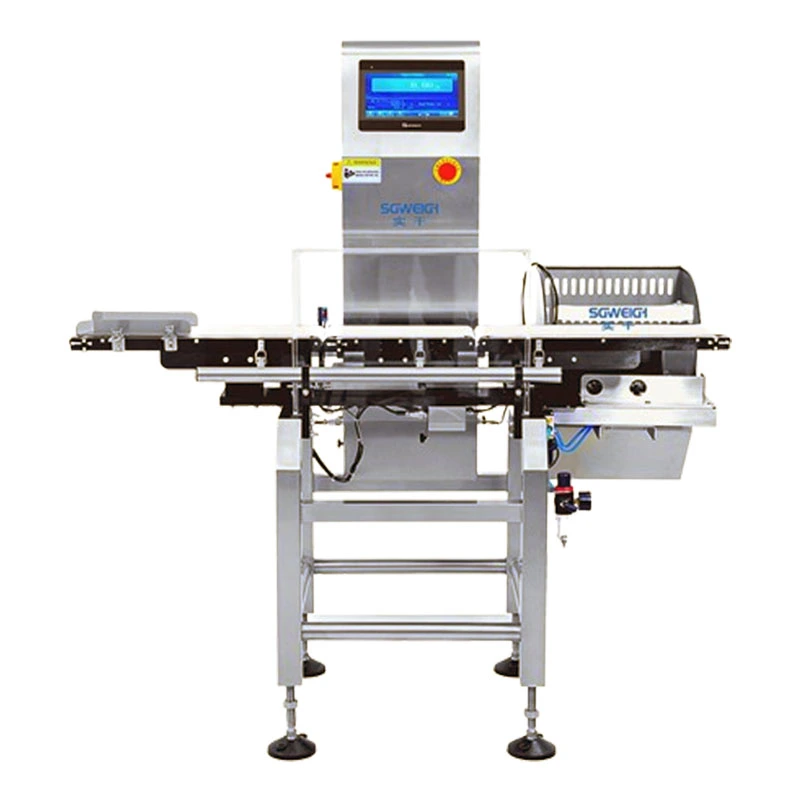

High-speed blister check weigher for pharma photos
Type SG-150H
Weighing Range 3-500g

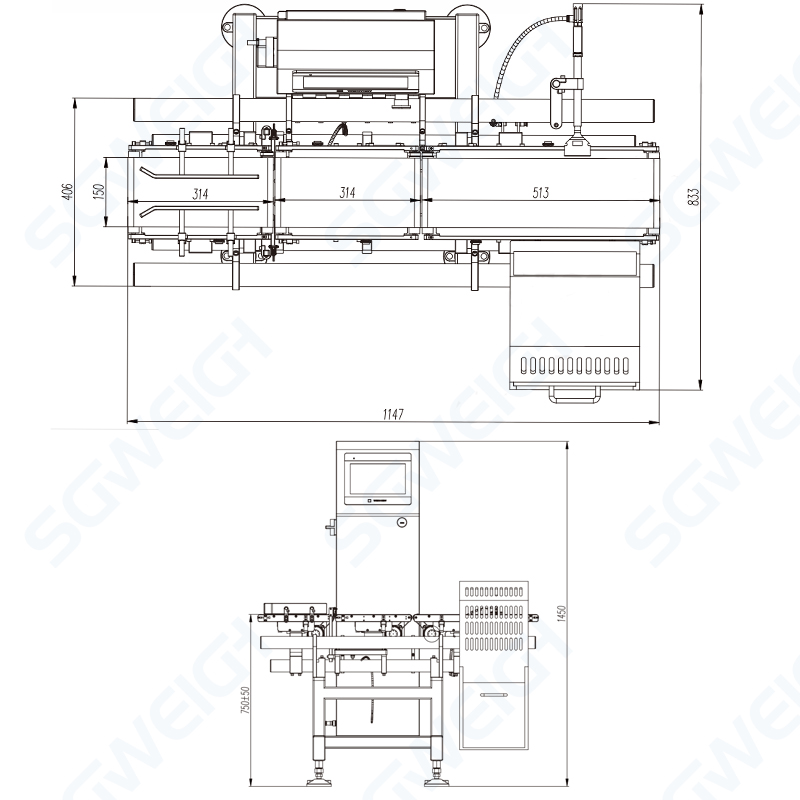

Limited of product L: 200 W:150 H: 3-200mm
Accuracy ±0.1g Depends on product
Division Scale 0.1g
Belt Speed 0- 90 m/min
Max Speed 250 pcs/min
Belt Width 150mm
Machine Weight 70kg
Power Supply AC 220V ±10% 50HZ
Power 100W
Main Material SU304 stainless steel
1. Easy to integrate: adjustable height, modular design
2. Rugged and durable construction: stainless steel 304
3. Easy to use: touch screen operating system is easy to use with user password protection
4. Easy to clean: removable belt is easy to remove for cleaning and setup.
5. Variable speed: speed can be configured according to the application
6. High speed and accuracy: equipped with advanced sensors and load cells, equipped with ultra-fast processors, with excellent accuracy and speed
7. Zero tracking: manual and automatic calibration for improved accuracy
8. Reporting and data export: built-in - real-time reporting, exportable to Excel file, can store 1 year of production data in USB stick
9. Connectivity: standard port for data export and connection to PC
10. Self-learning: no calibration required, the system will find the best settings for the product. Up to 2000 product settings can be configured
11. Different detection modes: default mode, static mode, power saving mode
12. Fault reporting: The system can detect and report the faulty part of the system, which is convenient for diagnosing problems
13. Output ports: RS-485 and RS -232, can connect printers and label machines
High-Precision Assembly Line Checkweigher Automatic Pharmaceutical Check Weigher
High-speed blister check weigher for pharma is widely used in online high-speed packaging checkweighing applications in the pharmaceutical, food, health care products, battery, light industry and other industries.
Most of our high-speed blister check weighers for pharma are customized according to specific project requirements.
If possible, please let us know more details about your project, such as materials, weight range, speed, bag size, etc.
It is best to contact us in advance before ordering.
High-Speed Blister Check Weigher for Pharma Checkweigher with Auto Reject
Plastic packaging is used inside, and stronger wooden boxes will be used for external packaging.
Our standard packaging process:
1) Dust removal and cleaning
2) Lubricate drive parts
3) Divide the machine into modules
4) Wrap modules with plastic film
5) Load modules into plywood boxes
6) Mark shipping marks on boxes
If there are any special requirements, we will pack as required.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* One year warranty, lifetime repair
