High Precision Granular Medicine Multi-head Weigher Automatic Intelligent Capsule Tablet Multi-head Combination Scale Factory
The high precision granular multi-head weigher adopts high-precision data type weighing sensors, and the best combination is immediately selected from various weight combinations through a computer. The automatic intelligent multi-head combination weigher adopts all stainless steel components, which are clean and hygienic. The fully sealed design prevents material accumulation and facilitates cleaning. IP65 waterproof and dustproof design. Our product specifications and sizes are rich, various styles, welcome to contact us for quotation information.

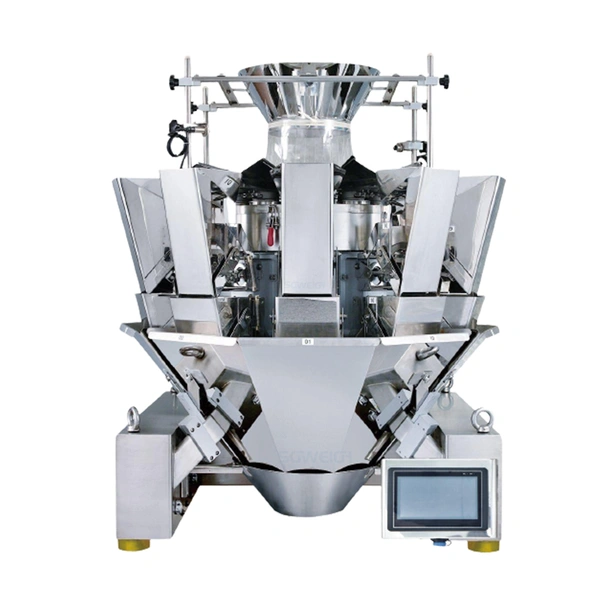

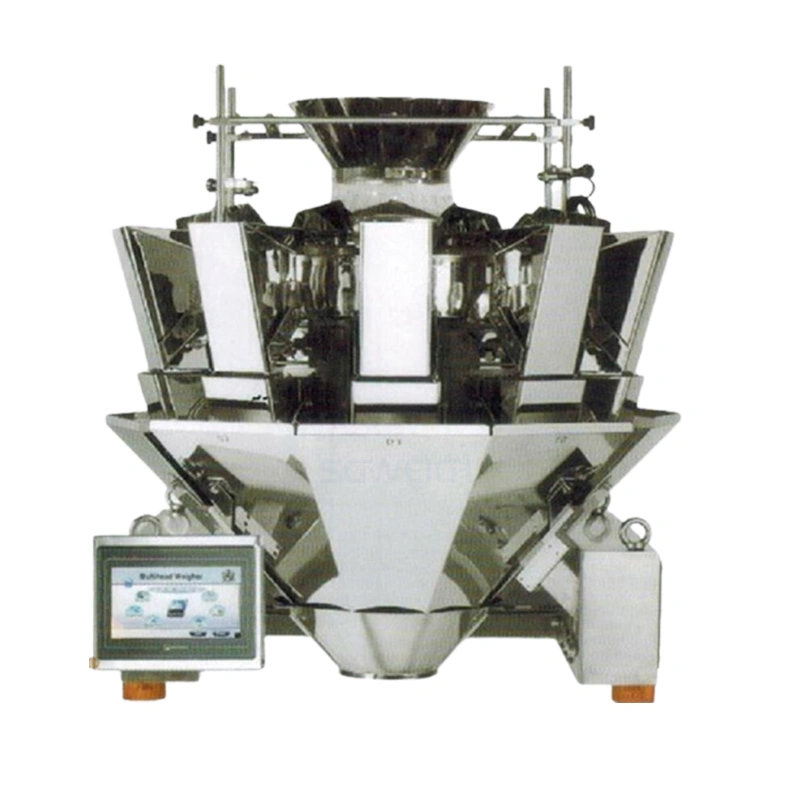

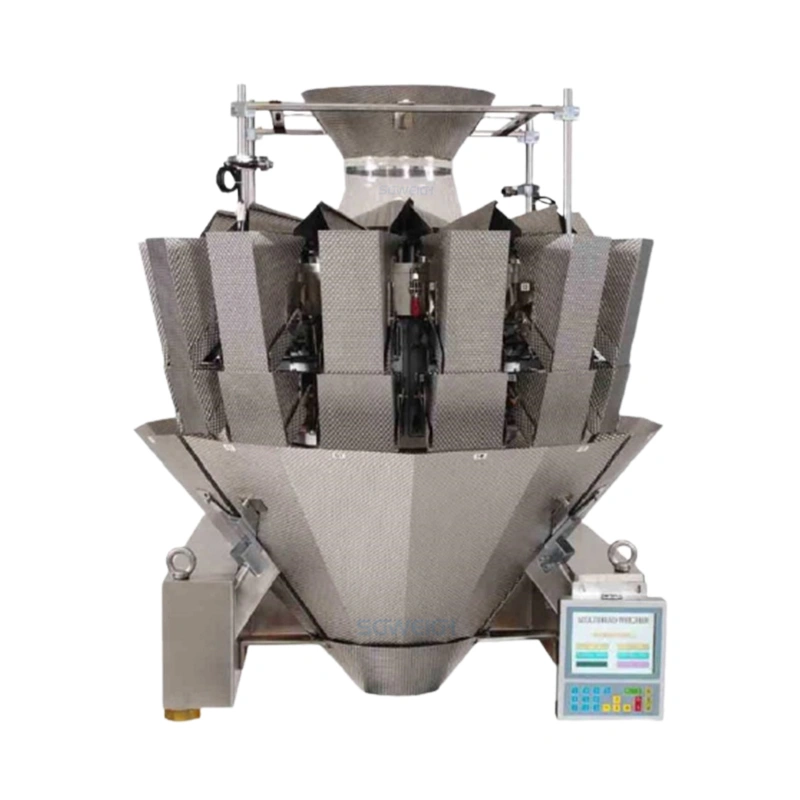

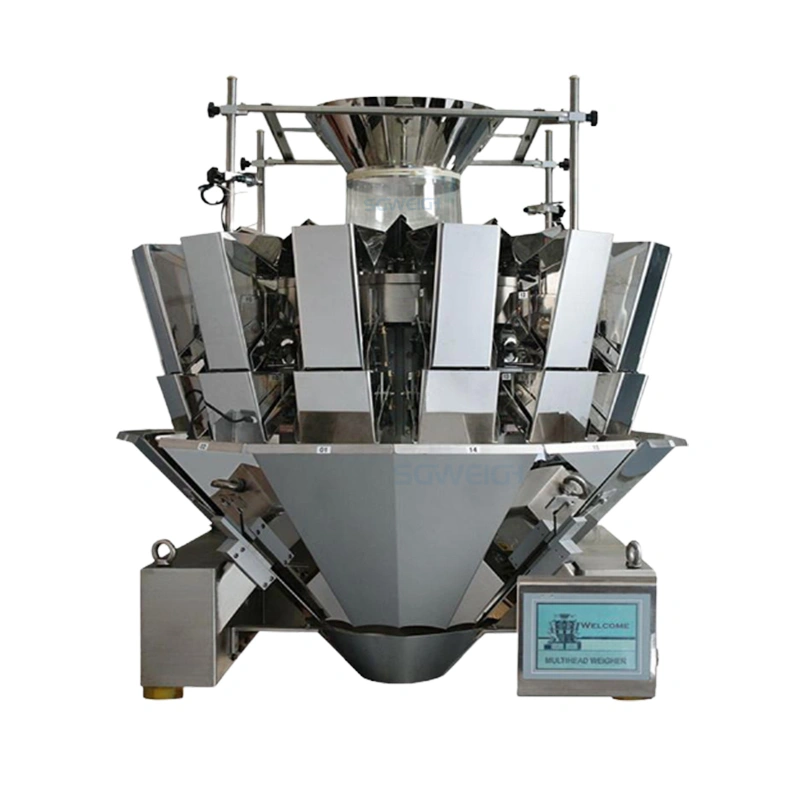

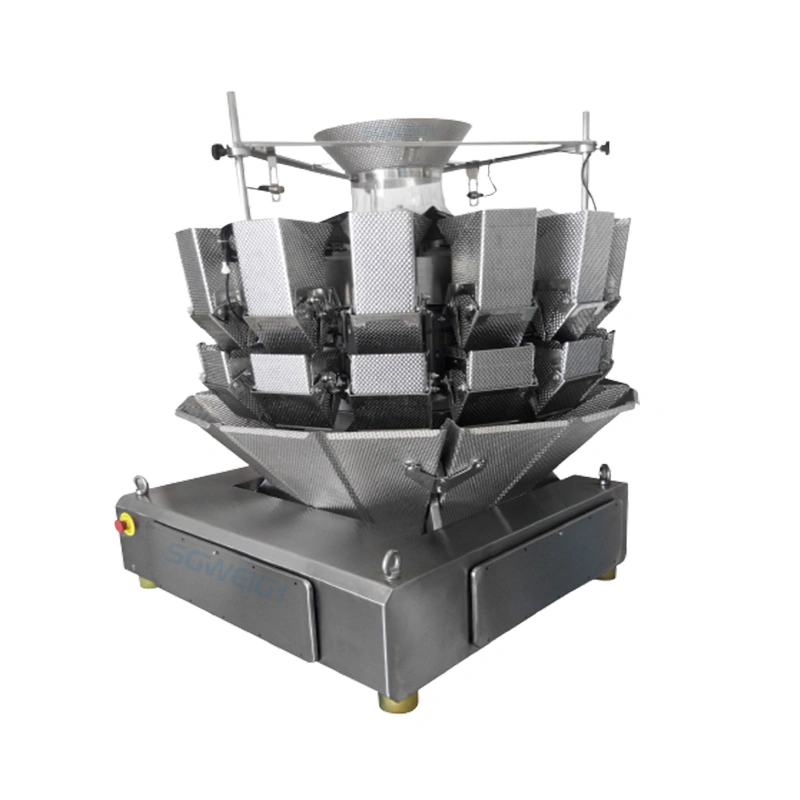

High precision granular multi-head weigher pictures
Identification code: AS10-1-1-1
Weighing range: 2-200g
Weighing accuracy range: X (0.5)
Maximum weighing speed: 60P/M
Hopper capacity: 0.5L
Operation interface: 7-inch touch screen
Purchasing device: pattern scale hopper/aggregate hopper/data printing device/overweight sorting device
Drive method: stepper motor
Power requirements 220V/900W/50/60Hz/8A
Packaging size (mm): 1190 (L) x970 (W) x950 (H)
Packaging weight: 240kg
1. There are slight differences in detection speed and accuracy depending on the external dimensions of the tested product and the working environment in which the equipment operates
2. All specifications and parameters can be customized according to needs
1. High precision digital weighing sensor.
2. Control through industrial control panels and powerful processors.
3. Multi language selection (certain specific languages require translation).
4. Different permission management.
5. Weigh and mix different products during one discharge.
6. Under operating conditions, the parameters can be freely adjusted.
7. The new generation design allows each actuator board to be exchanged with each other.
8. Intelligent fault alarm can help users quickly troubleshoot faults.
9. The opening/closing of the weighing hopper is controlled by a stepper motor.
The application scope includes candy, sugar, salt, potato chips, popcorn, noodles, baked food, pickles and small fish, frozen fish, frozen shrimp, Rice-meat dumplings, dumplings, medlar, fruit and vegetable pulp, raisins, seeds, nuts, beans, chicken powder, tablets, capsules, traditional Chinese medicine, tea, scented tea, nails, screws, plastic parts, etc.
Shanghai Shigan Co., Ltd. has been engaged in the research and development of assembly line packaging equipment for a long time and has accumulated rich experience. Meet your needs in the shortest possible time. The "SG" series vertical packaging machines are exported to over 20 countries and regions such as Europe, the United States, the Middle East, and South Asia, earning a consistently high reputation for their high-quality and fast professional services. Our main products: automatic packing machine, packing machine multi-head weigher system, linear weigher, check weigher, metal detector, weighing filling machine, vacuum packing machine, and weighing and labeling machines, and etc,.
1> Stick safety labels, tighten screws, clean, lubricate, and prevent rust;
2> Disassemble into packaging;
3> Wrap tightly with plastic film;
4> Fixed in plywood box
5> Forklift entering container
Suitable for long-distance land and sea transportation, in order to safely load and unload to the destination, we suggest that you choose full container transportation.
Pre sales service
Before providing suggestions to customers, we will clearly confirm their requirements to ensure that the suggestions we provide meet your requirements. Then we will give you a good quote.
On sale services
After placing an order with our production department, we will follow your order well and inform you of the production status. We will provide you with photos
After-sale service
The warranty period for this machine is one year, calculated from the date the customer receives the machine. During the warranty period, we will replace damaged parts (excluding human damage).
