The high efficiency liquid packing machine adopts the PLC control independently developed by Shigan, and is equipped with the German Siemens touch screen man-machine interface control system. Auto packing machine is easy to operate, can adjust parameters without stopping, and can adjust the speed at will within the specified range. The automatic quantitative automatic packaging of liquid filling packing machine has many years of production experience, and after continuous improvement and adjustment, the stability and reliability of the equipment are better than those of the same industry.Any OEM and customer design orders are welcome! If you are interested in our products, please feel free to contact us.

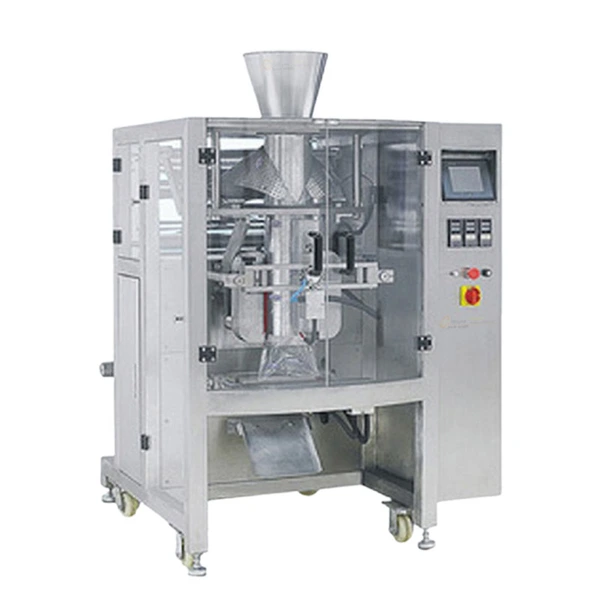

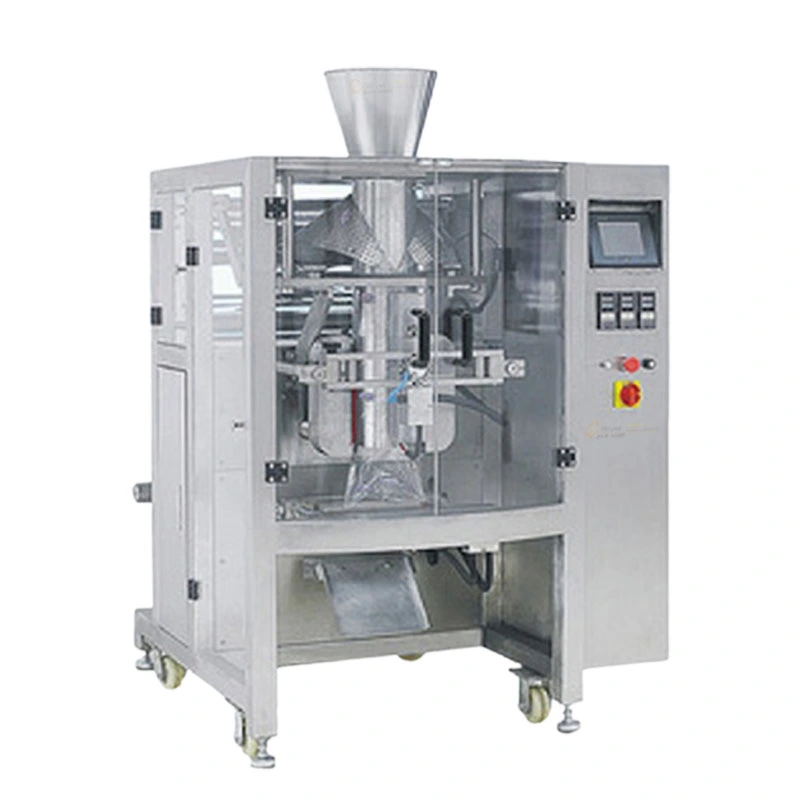

High efficiency liquid packing machine pictures
Equipment name: paste automatic packaging machine
Measurement range: 1-50ml (prefers to small measurement, the smaller the device, the higher the stability and performance, and the faster the speed)
Bag size: width 40-120mm length 40-140mm (over the range can be customized)
Bag shape: three-side seal or four-side seal (four-side seal should be customized)
Packing speed: 30-60 bags/min
Power supply voltage: 380V three-phase + N-phase, 50HZ (if there is no power supply, single-phase 220V can be customized)
Machine power: 0.9KW
Metering method: plunger pump
Machine weight: 170KG
Dimensions: 730X630X1680mm
This auto filling sealing packing machine can also be used for different types of products by changing the measuring head.
For granular products, we change the screw filler to a measuring cup or a combination
For liquid products, we switch to a pump to complete the packaging.
We support customization, our technicians will design the most efficient machine according to your specific requirements
1. The liquid filling packing machine is made of stainless steel, the hydraulic pressure rises and falls, and is especially suitable for GMP certification.
2. The mechanical transmission mode is adopted to make the structure simple, stable and strong in overload capacity.
3. The filling adopts servo motor driven screw, accurate positioning, high precision, fast speed, large torque, long life, adjustable speed and good stability.
4. The mixing adopts Taiwan-made maintenance-free geared motor, which has low noise, long service life and lifetime warranty-free.
5. The design feedback specific gravity tracking type overcomes the accuracy error caused by the change of material specific gravity.
6. The fully-sealed plexiglass stainless steel split-type material box, dust does not leak out, ensures high precision nitrogen filling, and the filling outlet is equipped with a dust suction device.
7. Equipped with a corresponding leak-proof valve at the discharge port for easy-flowing materials to prevent material drop.
This automatic liquid packing machine is suitable for automatic packaging production of fluid materials in food, medicine, health food and other industries. Such as: water, milk, oral liquid, essence, ginseng paste, gel, mouthwash, syrup, etc.
Shanghai Shigan Industrial Co., Ltd. is a packaging machinery automation equipment manufacturer integrating R&D, design, production and sales. Located in the developed area of machinery industry - Shanghai, China, adhering to the "excellent service, good quality". The company has complete equipment and independently produces various types of mechanical transmission and hardware accessories. The courage to research innovative technologies and continuous improvement has won unanimous praise from the majority of enterprises. Shanghai Shigan has always been committed to the research and development and manufacture of a series of packaging testing equipment such as automatic packing machine, packing machine multi-head weigher system, linear weigher, check weigher, etc., bringing products with balanced performance and price. to every corner of the world.
In the spirit of pursuing high-quality products and customer satisfaction, Shanghai Shigan Industrial Co,.Ltd solemnly promises you the principle of preferential price, thoughtful service and reliable product quality.
1.Product quality commitment:
(1). There are quality records and testing data for the manufacture and testing of products.
(2). For the inspection of product performance, we sincerely invite users to inspect the whole process and performance of the product in person. After the product is confirmed to be qualified, it will be packaged and shipped.
2. the product price commitment:
(1). Under the same competitive conditions, our company will sincerely provide you with a preferential price on the basis of not reducing the technical performance of the product or changing the product components.
3. Delivery time commitment:
(1). Product delivery time: as far as possible according to user requirements, if there are special requirements, it needs to be completed in advance, and strive to meet user needs.
