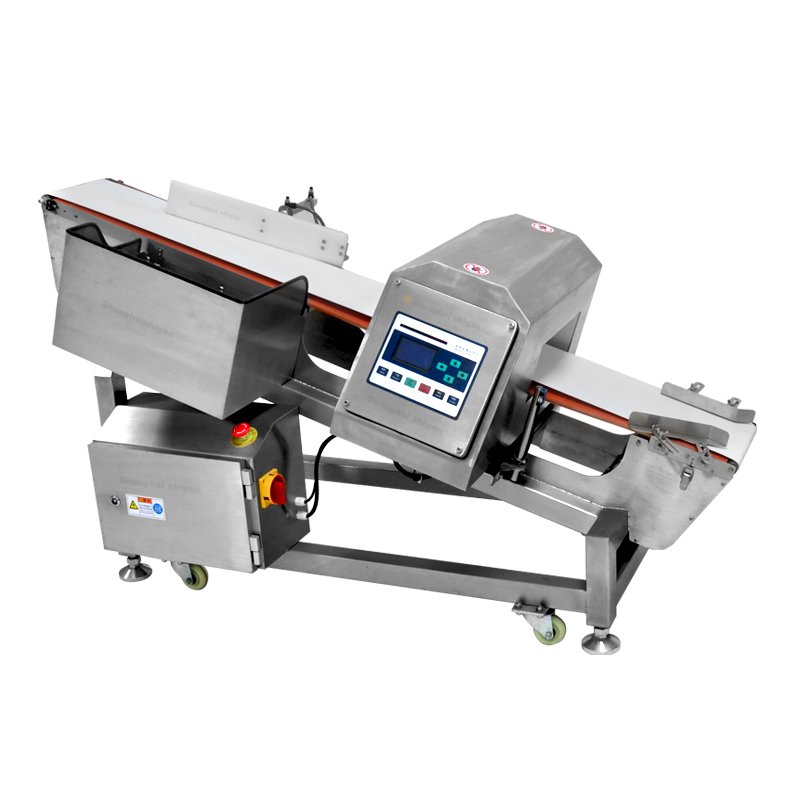

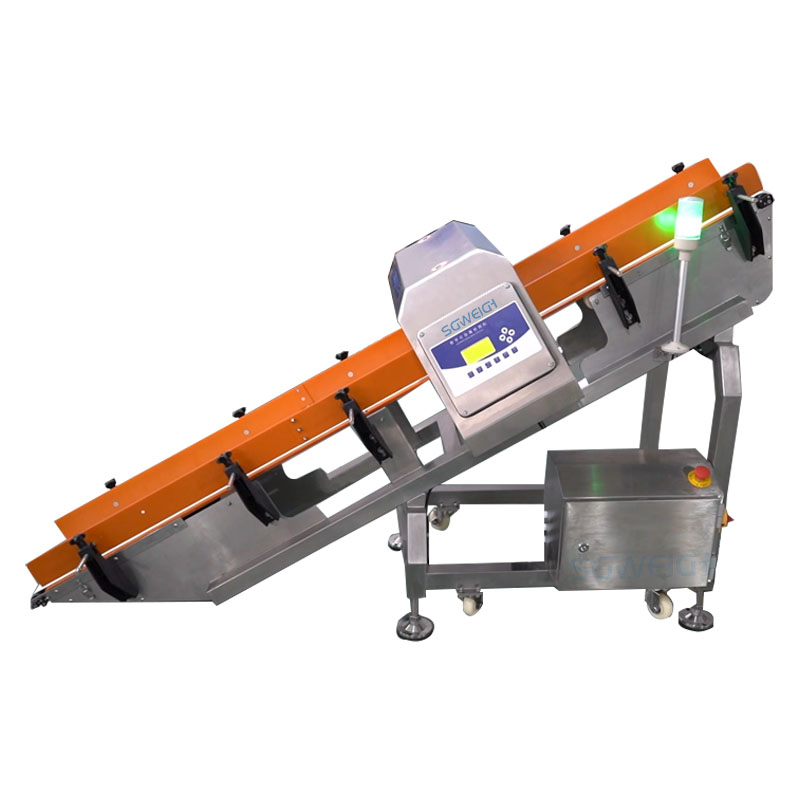

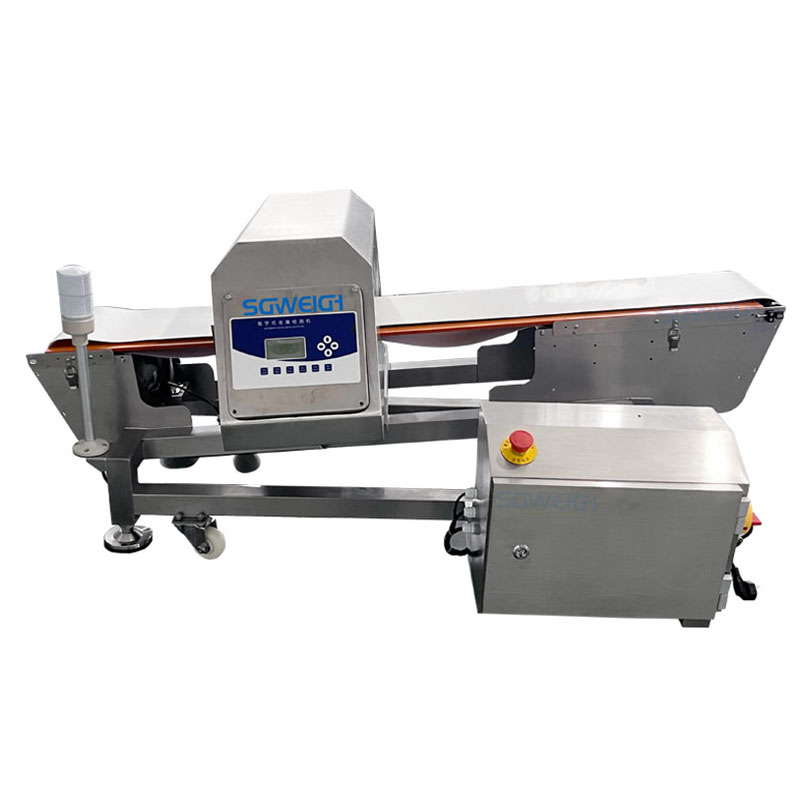

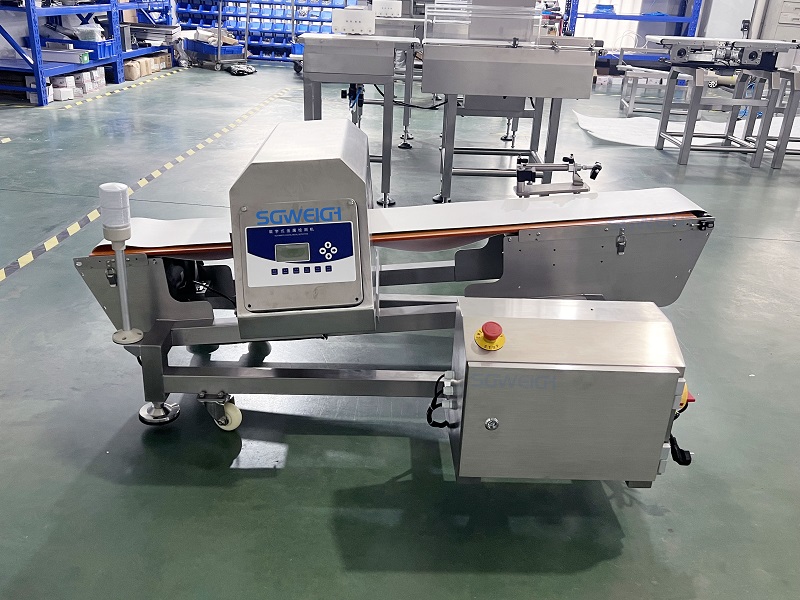

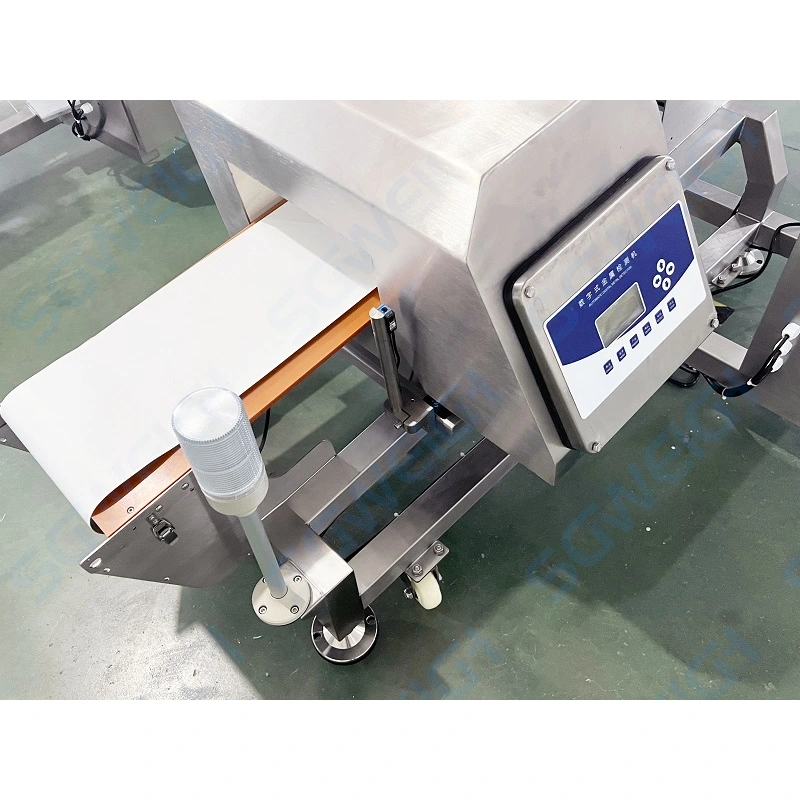

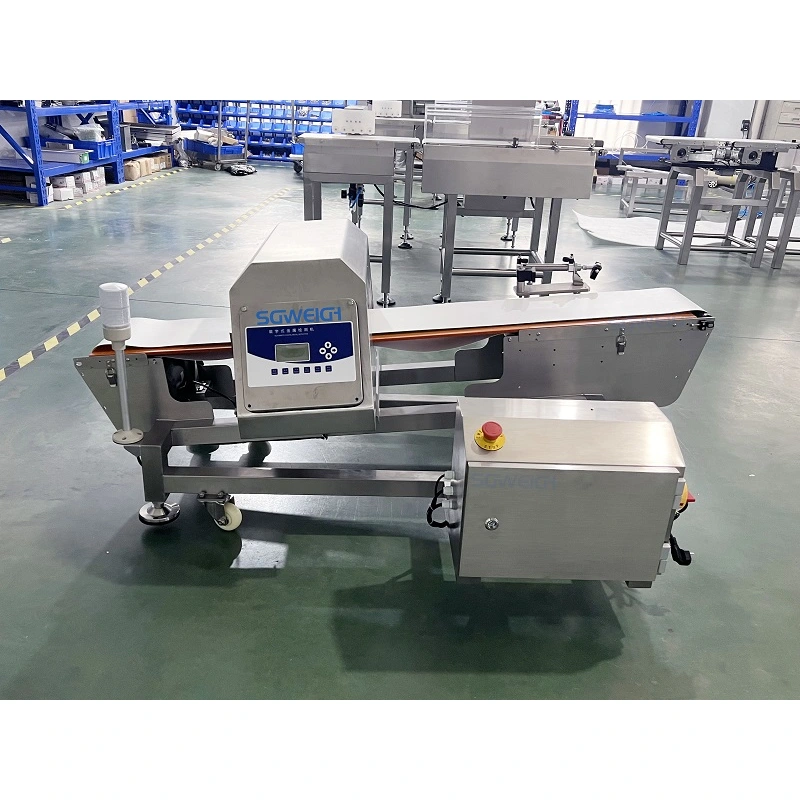

Food Incline Conveyor Belt Metal Detector Machine Customizable Metal Detector
Food incline conveyor belt metal detectors are used in food processing lines for in-line inspection of food and products. They can be customized in size, metal particle detection function, and transportation and rejection system to suit each product or customer needs, and can be individually adjusted according to the requirements of the respective production environment. Digital conveyor belt metal detectors can safely detect and remove metal contamination on the production line, helping manufacturers achieve compliance, minimize the risk of product recalls and reduce production downtime. Welcome to contact us for quotation information!

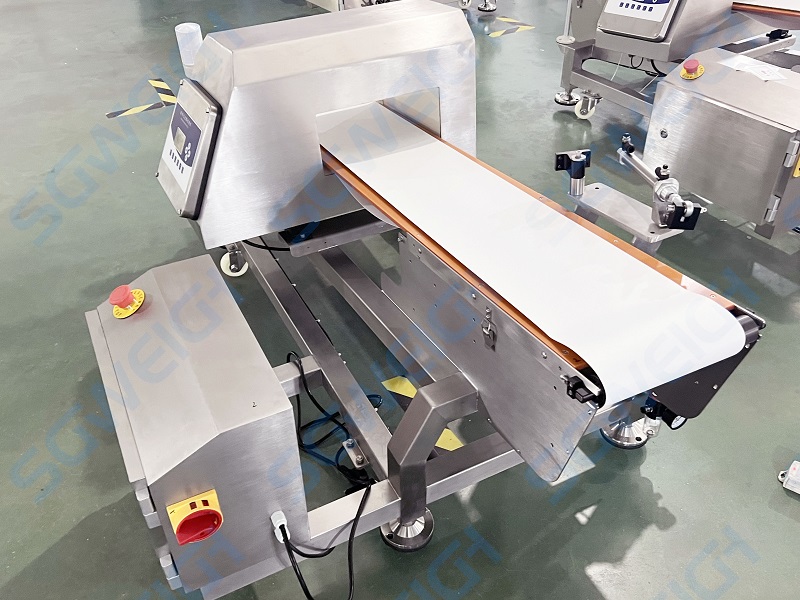

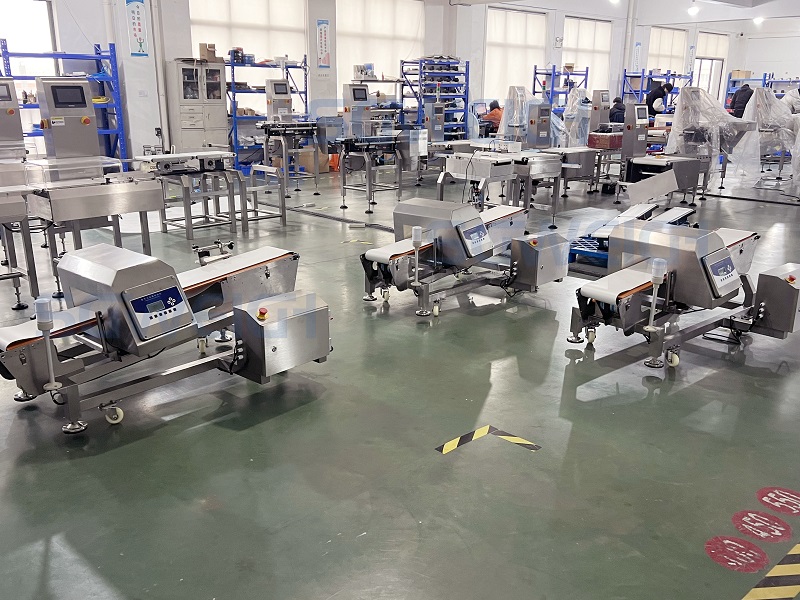

High precision metal detector for food processing photos
Machine Grade：Food Grade

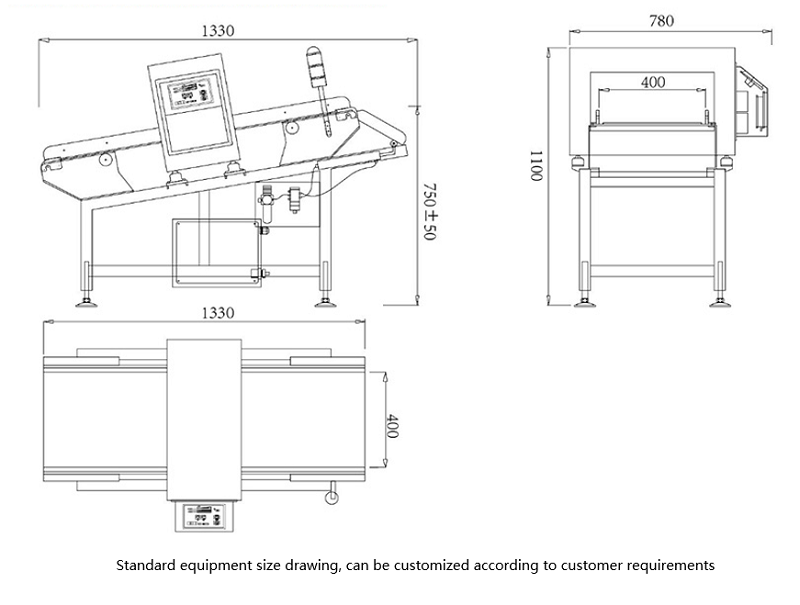

Detecting width：400, 500 mm (can be customized)
Detecting height：80, 100, 120, 150, 200, 250, 300, 350 mm (can be customized)
Detecting sensitivity：Fe 0.8mm-3.0mm, Non-Fe 1.2mm- 4.0mm；Stainless Steel 1.5mm- 5.0mm
Display Screen： 7inch (optional)
Sensitivity adjustment：100 level adjustment
Detecting adjustment： Intelligent adjustable
Belt Speed：20m /min (or specified)
Alarm mode：The buzzer alarm, the motor automatically stop
Power：AC22V,50Hz (Or Customized)
Food incline conveyor belt metal detectors are used in a wide variety of industries: food industry, toys, pharmaceuticals, beverages, textiles, clothing, plastics, chemicals, wood, mining, packaging industry and others.
1. Double-loop electromagnetic wave detection, new analog and digital circuits combined, improve the sensitivity and reliability of detection.
2. New touch screen input and large-scale integrated circuit composition, improve the intelligence of detection.
3. Humanized interface design, multi-language operation, the whole process is simple and intuitive, and the human-machine interface is clear at a glance.
4. Dynamic zero-point voltage tracking and automatic learning of detection functions reduce personnel operations.
5. Wide adjustable sensitivity range, with reverse detection function (no alarm for products with metal, no metal alarm for pipelines).
6. Sound, light and simultaneous alarm when metal is detected, machine stops or unqualified products are kicked out (optional function)
Food Incline Conveyor Belt Metal Detector Machine Customizable Metal Detector
We offer custom incline conveyor belt metal detectors based on your specific needs, and our strict quality standards ensure that we meet your specifications every time!
Food Incline Conveyor Belt Metal Detector Machine Customizable Metal Detector
Plastic packaging is used for the inner part, and stronger wooden boxes will be used for the outer part.
Our standard packaging process:
1) Dust removal and cleaning
2) Lubricate drive parts
3) Divide the machine into modules
4) Wrap the modules with plastic film
5) Pack the modules into plywood boxes
6) Mark the shipping mark on the boxes
If there are any special requirements, we will pack as required.
1. Pre sales consultation
We will assist you in customizing suitable Food incline conveyor belt metal detectors based on your requirements and specific circumstances.
2. Installation Services
We will dispatch professional technical personnel for on-site installation and debugging as required.
3. Maintenance services
Shigan provides a one-year warranty, long-term repair service, and provides any repair parts free of charge during the warranty period, with fees only charged after the warranty expires.
4. Employee training
Shigan provides free technical training to our customers to fully master the correct product maintenance techniques.
5. customer service
Shigan designs customized production lines for customers based on specific multi lanes checkweigher solutions factors such as product yield, packaging method, and factory area.
