Bag Box Medicines Metal detector Digital Pharmaceutical Metal Detector
The operating system of the bag box medicines metal detector adopts a highly humanized and intelligent design, and has a self-learning function. When the product to be detected passes through the metal detector according to the set program, the machine can automatically and accurately set and store the product parameters without manual adjustment. So it is very simple to operate. The digital pharmaceutical metal detector adopts intelligent recognition technology, has self-learning and memory functions, can automatically recognize and memorize product characteristics, and effectively eliminate the interference caused by various "product effects". You are welcome to contact us at any time for further information.

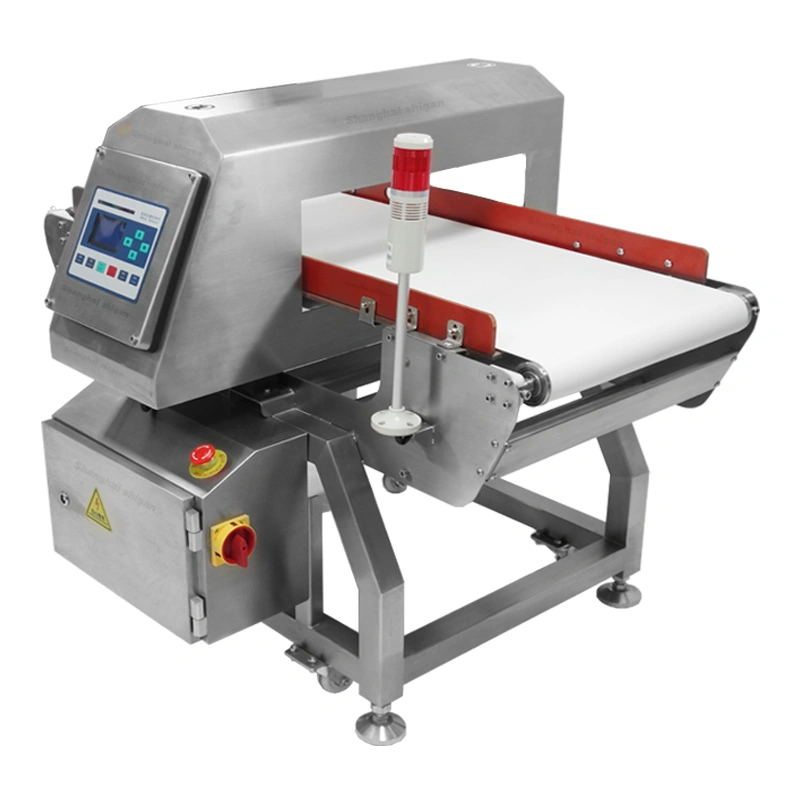

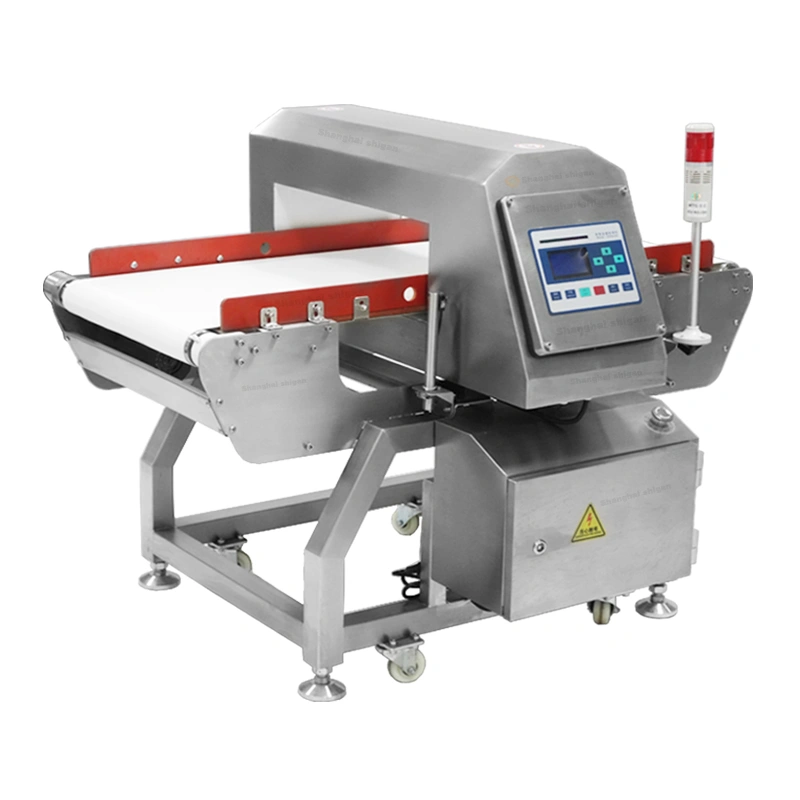

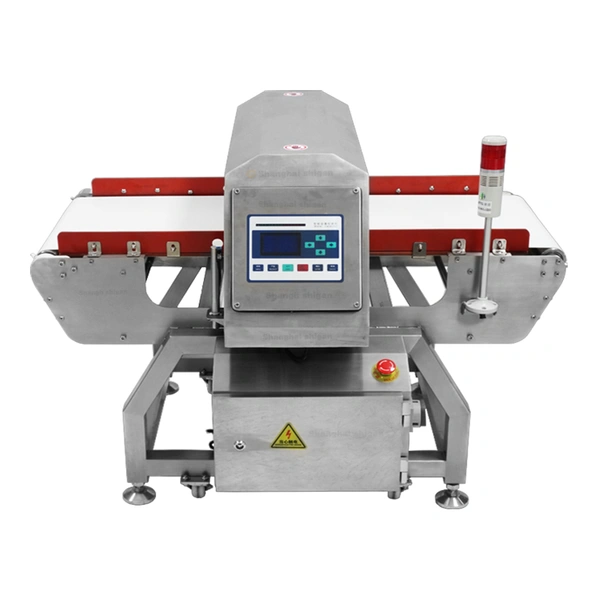

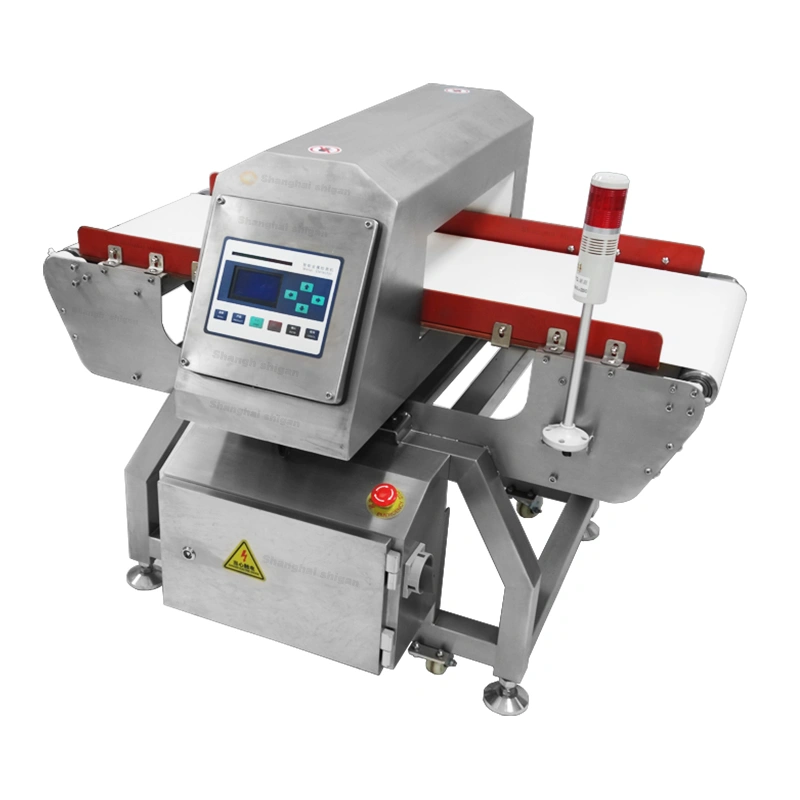

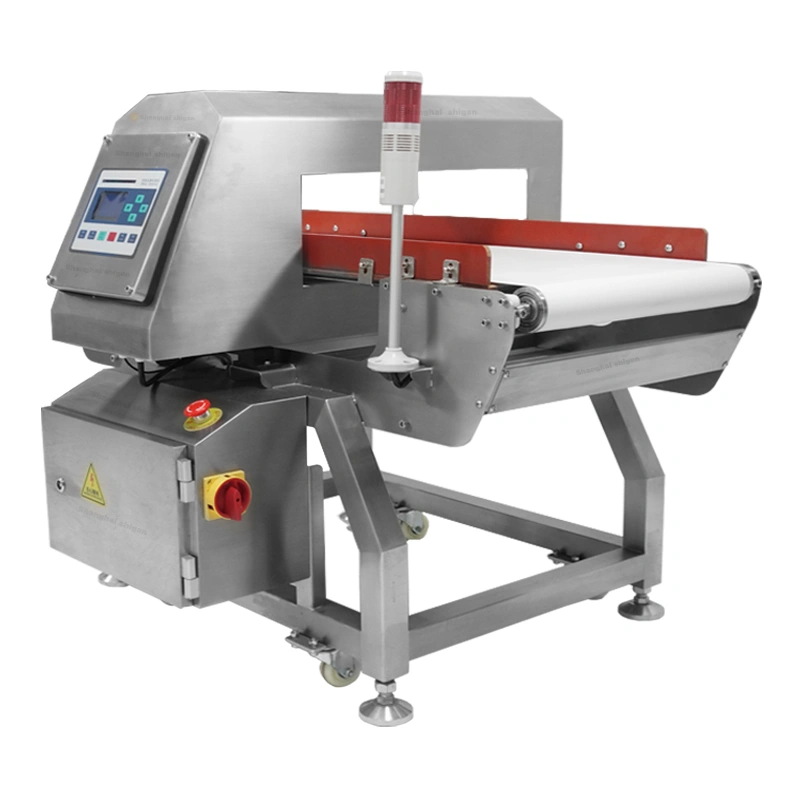

Bag box medicines metal detector photos
Type: SG-M400 Digital All-metal Detector Machine (Accept custom)
Detection Sensitivity(Empty statue):H 100mm: Fe≥ φ0.8mm, Non-Fe ≥φ1.5mm , SUS≥φ1.5mm; H 120mm: Fe≥ φ0.8mm, Non-Fe ≥φ1.5mm , SUS≥φ2.0mm;H 150mm: Fe≥ φ1.0mm, Non-Fe ≥φ1.5mm , SUS≥φ2.0mm;H 200mm: Fe≥ φ1.28mm, Non-Fe ≥φ2.0mm , SUS≥φ2.5mm
Effective hole width detection: 150-1000mm (Accept custom)
Effective hole detection level: 80-500mm(Accept custom)
Conveyor belt,max speed: 25m/min
Material for conveyor belt: Food grade PU belt
Protection grade: IP65
Display and operation mode: LED flat key input
Deadweight of machine: About 120kg
Powder supply: AC220V 50Hz
Powder: 200w
Alarm way: Alarm and belt stop, or automatically reject
Overall dimensions: About L1500xW850xH950 mm(Design drawing prevail)
Most of our goods are customized according to specific project requirements.
If possible, please let us know more details about your project, such as material, weight range, speed, bag size, etc.
It is best to contact us in advance before ordering.
Bag Box Medicines Metal detector Digital Pharmaceutical Metal Detector
1. Fully digital design with patented technology
2. Adopting the fastest memory chip, various operation modes can be stored at high speed, and the computer response function of the test results can be realized
3. The special induction design of the probe part greatly improves the sensitivity and anti-interference ability of the instrument
4. Innovative design; sensitivity mark setting, 100-level sensitivity digital control, with both extremely wide detection sensitivity range and fine adjustment
5. 100-level induction display, showing the environment and the iron content of the object being tested.
6. Innovative design of multiple detection modes, high sensitivity mode, uniform mode, colored pigments, and functions such as detection of thin materials (laying materials) and thick materials (finished products)
7. Accurate counting with micro thermal silent printer, working data is easy to archive
8. Set up three-level safety lock, no lock, low-level safety and high-level safety, built-in high-precision clock, reliable management
9. With light-controlled automatic alarm, broken needle is detected, sound, light, dual simultaneous alarm, conveyor belt stops and automatically returns
10. Famous brand high-reliability switching power supply with CE certification, which can effectively resist interference on the power line, has environmentally friendly automatic switching mode, intelligent operation switch design
Bag box medicines metal detectors are widely used in most industries such as food processing, chemical, pharmaceutical, cosmetics, toys, etc. They are mainly used for online inspection of finished and semi-finished products, providing final inspection before shipment.
Bag Box Medicines Metal detector Digital Pharmaceutical Metal Detector
Packaging
Film pack inside, Wooden case outside
Shipping
1. Upon receipt of payment, delivery date will be in 20-30 working days
2. By Air, by Sea or by Express (DHL, UPS, TNT, EMS, etc.)
1. Pre-sales consultation
We will help you customize the appropriate weighing and packaging solutions according to your requirements and specific circumstances.
2. Installation service
We will dispatch professional technicians to perform on-site installation and commissioning as needed.
3. Maintenance service
Shigan provides long-term maintenance services, providing any repair parts free of charge during the warranty period, and only charges after the warranty period expires.
4. Employee training
Shigan provides free technical training for our customers to fully master the correct product maintenance technology.
