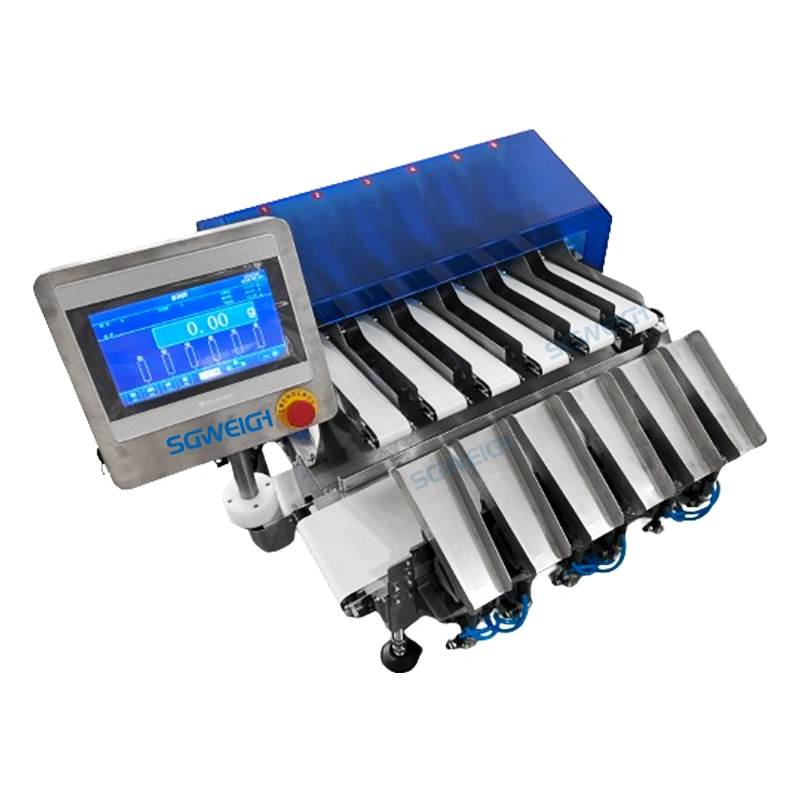

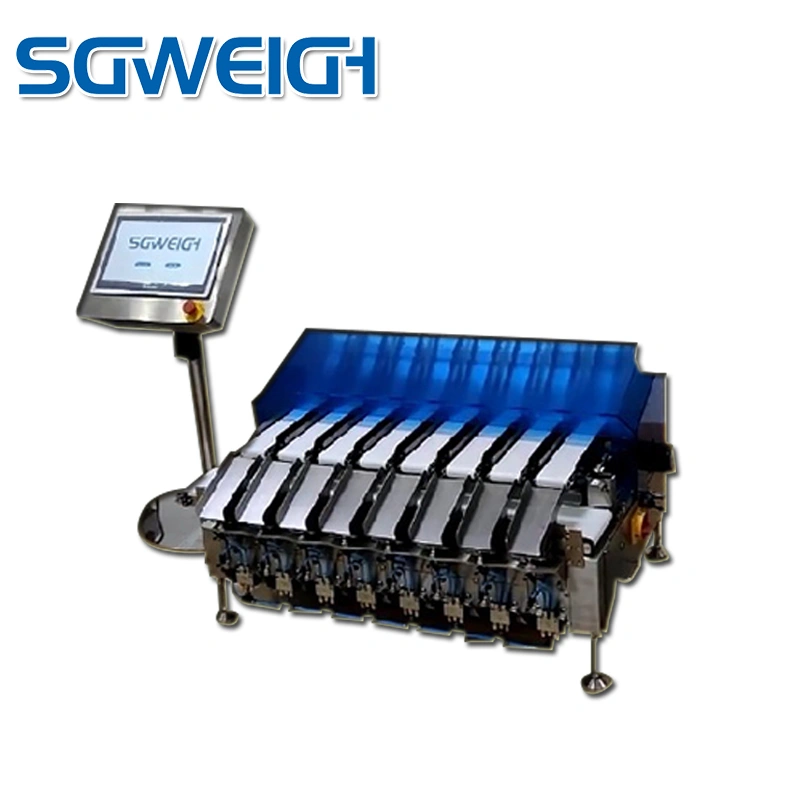

Automatic Tube Multi-Lane Checkweigher High-Efficiency Conveyor Checkweigher

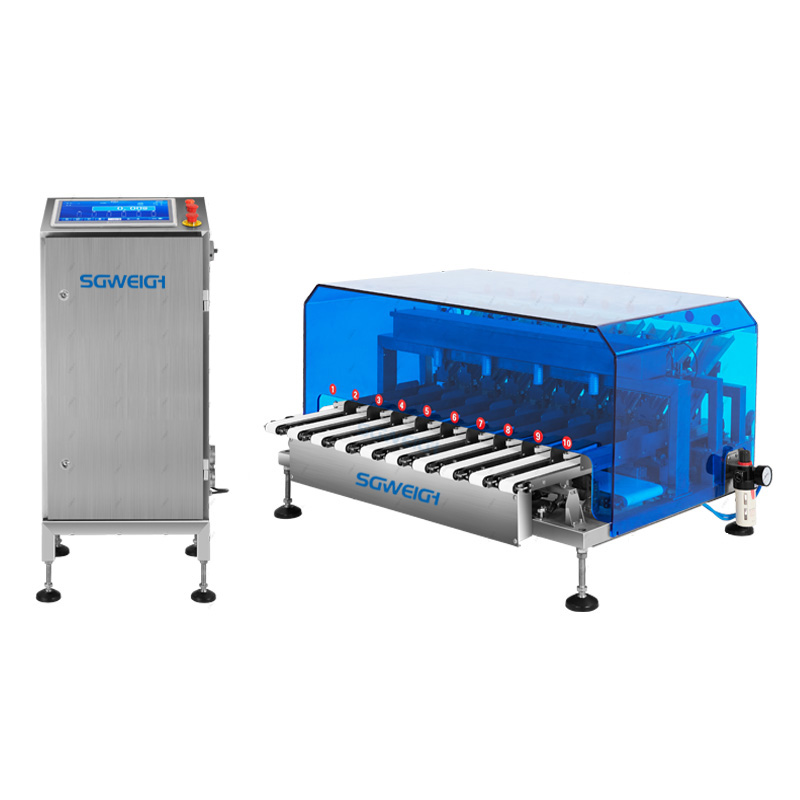

Automatic tube multi-lane checkweighers can check the correct weight and filling level of up to hundreds of packaged products per minute on 10 channels, enabling manufacturers to increase production speed. The high-efficiency multi-lane conveyor checkweigher contains a control center and multiple groups of parallel belt weighing units, connecting the sorting and gathering conveyor belts of multiple packaging machines, and can weigh, inspect and sort multiple lanes of packaged products at the same time. Multiple channels can work asynchronously and independently. For further information about our services, or if you would like one of our professionals to contact you, please do not hesitate to contact us.

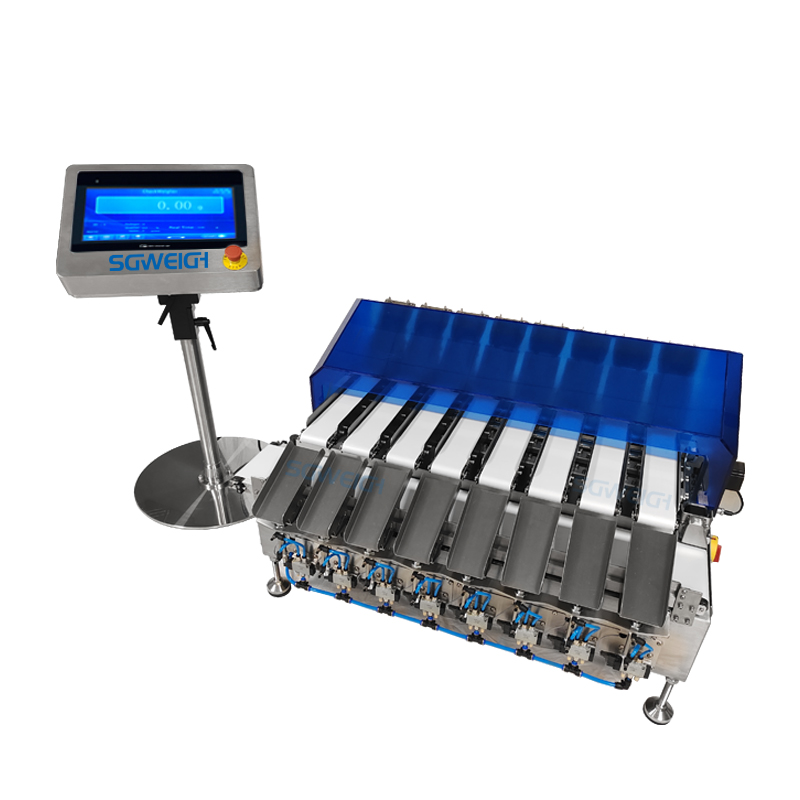

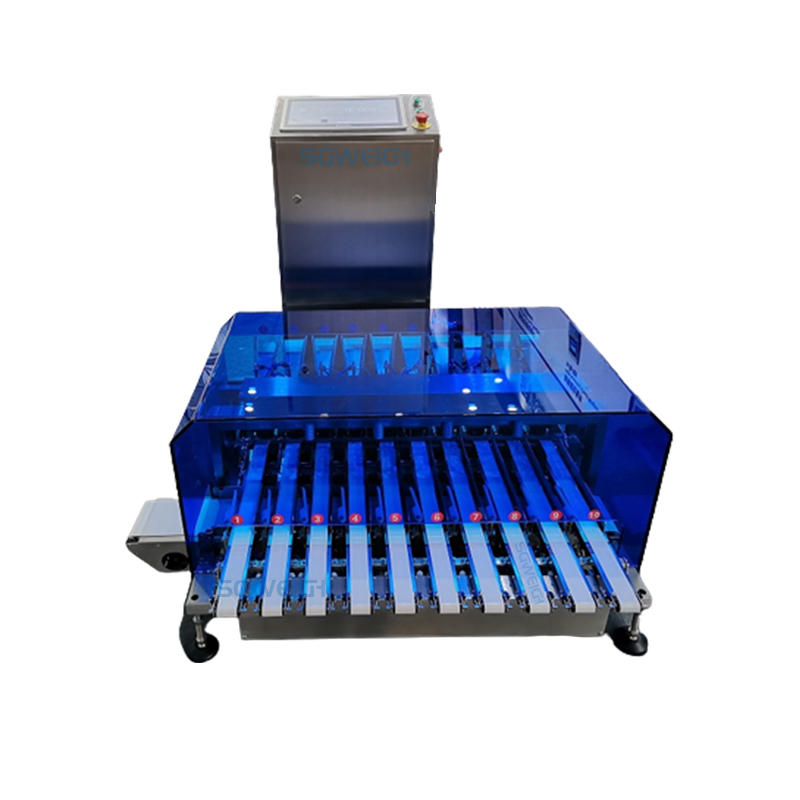

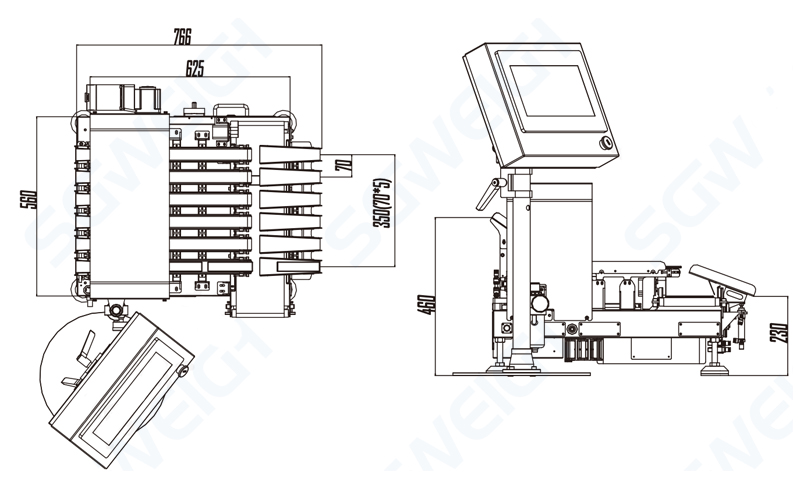

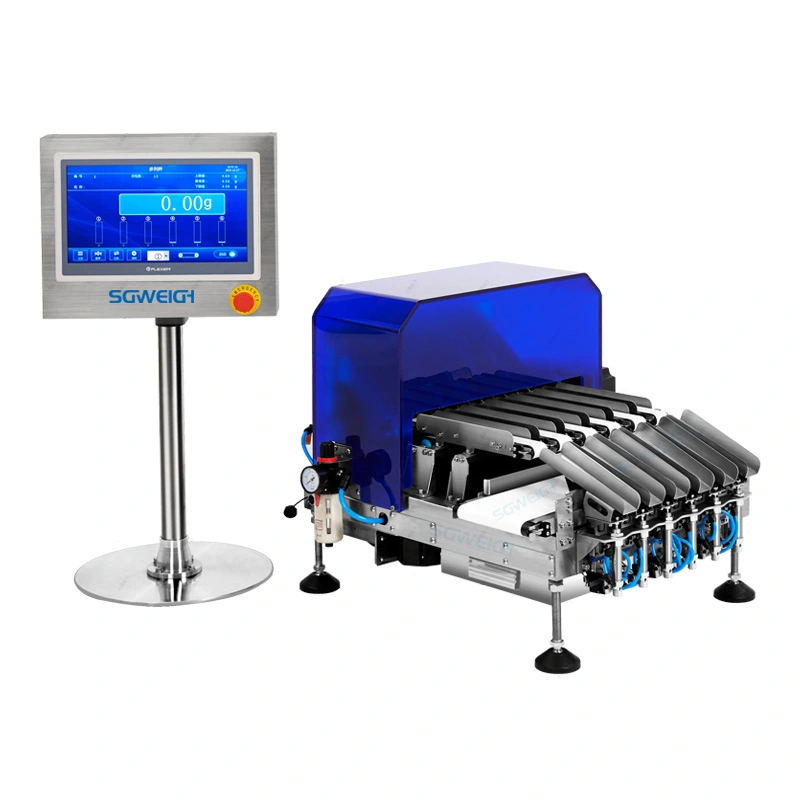

Automatic tube multi-lane checkweigher pictures
Type SG-8X
Weighing Range 30-200g
Limited of product L: 180 W: 40 H: 2-20mm
Accuracy ±0.01g Depends on product
Division Scale 0.01g
Each Channel Speed 70 pcs/min
Belt Width 30mm
Machine Weight 120kg
Power Supply AC 110/220V ±10% 50HZ
Power 400W
Main Material SU304 stainless steel
1. Large-size color LCD touch screen interface, simple operation and intuitive display.
2. Supports customized multi-language, default is Chinese and English.
3. With photoelectric automatic detection of empty packages, the conveyor belt speed is adjustable.
4. Parameter setting three-level password protection, only management personnel can operate.
5. Product weighing data can be exported via USB.
6. Power-off protection function, the parameters remain unchanged in case of accidental power off.
7. The parameters of different products can be set to store 100 types of test data, which is convenient for users to switch and call.
8. Data statistics function. The total number of products passing/total number of underweight products/total number of overweight products in a period of time.
9. Simple mechanical structure, buckle conveyor belt, easy to disassemble, clean and maintain. Comply with GMP and HACCP specifications.
10. Automatic dynamic compensation value, dynamic zero point tracking, including zero point tracking when the equipment is running continuously, to ensure reliable test data.
11. The curve/bar graph shows the statistical distribution of the sorting (re-testing) results, and the window shows the values of the last 10 re-testing results.
12. The patented technology, the single-chip system independently developed, and the unique filtering algorithm have ultra-high precision and reliability. Ensure the stability of the system.
Automatic Tube Multi-Lane Checkweigher High-Efficiency Conveyor Checkweigher

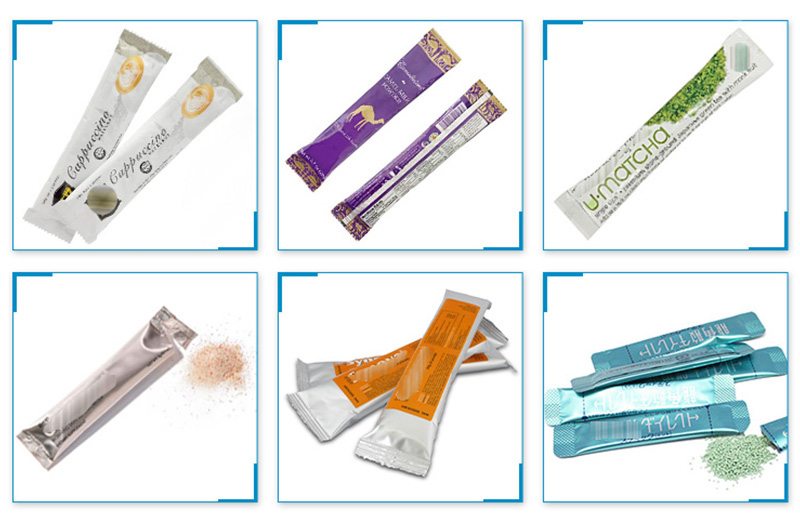

1. Automatic tube multi-lane checkweigher is used for automatic weight detection, upper and lower limit judgment or weight classification and sorting on various automated assembly lines and logistics conveying systems, and can also be used for the detection of excess and missing parts after product packaging.
2. Automatic tube multi-lane checkweigher is widely used in online detection in the pharmaceutical, food, cosmetics, chemical, hardware and other industries.
3. In addition, it can directly replace manual weighing, thereby protecting the customer's brand image and improving the customer's production efficiency and production quality.
High-efficiency multi-lane conveyor checkweighers, as key inspection equipment on production lines, involve different fields. If the product specifications do not meet the requirements, please contact us by inquiry or chat with me to meet the customized needs,
Provide the following information to our sales staff, our team will support you to choose the right type of checkweigher:
*1 Main parameters of the product to be tested, product size range: length, width and height
*2, accuracy requirements: ±g.
*3, speed requirements: pcs/min;
*4, product weight range:; maximum deviation and minimum deviation of the same product.
1> Attach safety labels, tighten screws, clean, lubricate, and prevent rust;
2> Disassemble into packages;
3> Wrap tightly with plastic film;
4> Secure in plywood box
5> Forklift into container
Suitable for long-distance land and sea transportation. In order to safely load and unload at the destination, we recommend that you choose full container transportation.
Automatic Tube Multi-Lane Checkweigher High-Efficiency Conveyor Checkweigher
1. Training services:
We will train your engineer to install our weigher.You can send your engineer to our factory or we dispatch our engineer to your company.We will introduce your engineer how to install the weigher and how to fix problem.
2. Trouble shooting service:
Some times if you can not fix the problem in you contry,we will seed our engineer there if you need us to support.Of course,you need to afford the round trip flight ticket and accommodation fee.
3. Spare parts relpacement:
For spare parts support: For machine in guarantee period,if spare part broken,we will send you the parts free and we will pay the express fee,And please send us the spare part back,when machine is out of guarantee period,we will provide you the spare parts in cost price.
