Product Information
The automatic packing machine series produced by our company adopts advanced technology, which is derived from European classic technology, combined with existing packaging technology, reasonable design and stable operation, and can pack various sizes of stand-up pouches and flat bags. The liquid premade bag packing machine are equipped with flexible processing stations that automate filling, sealing and other packaging processes. The liquid packing machine series is the choice for realizing economical and reasonable packaging.Our product specifications and sizes are rich, various styles, welcome to contact us for quotation information.

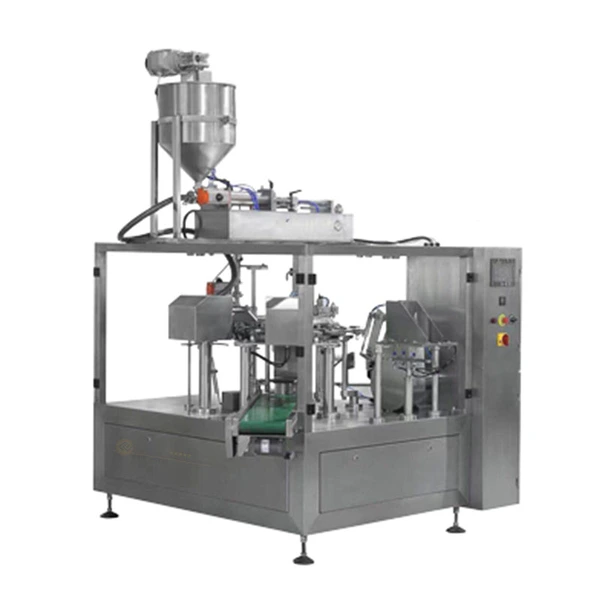

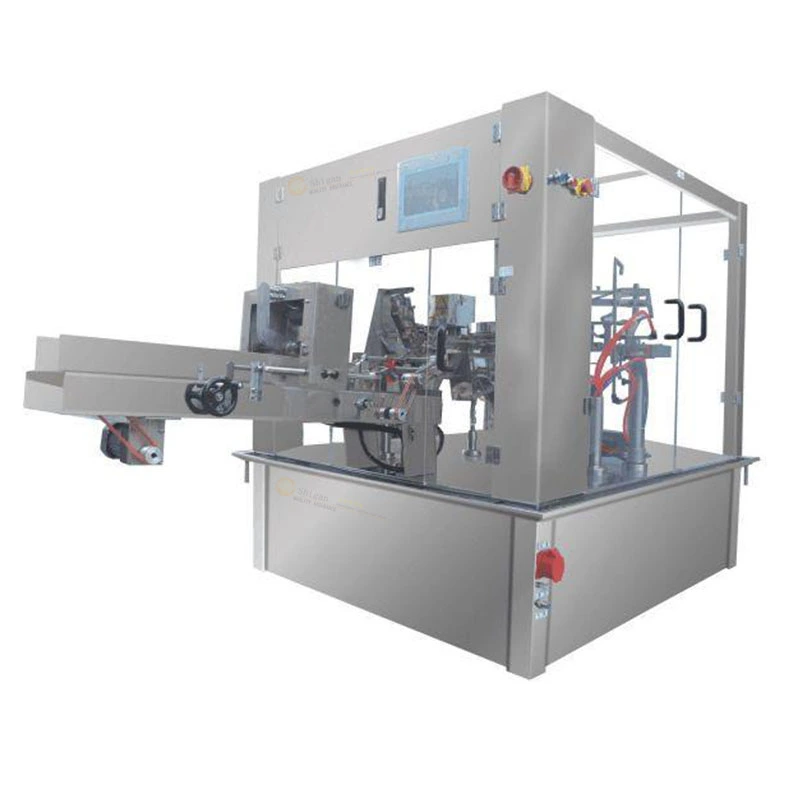

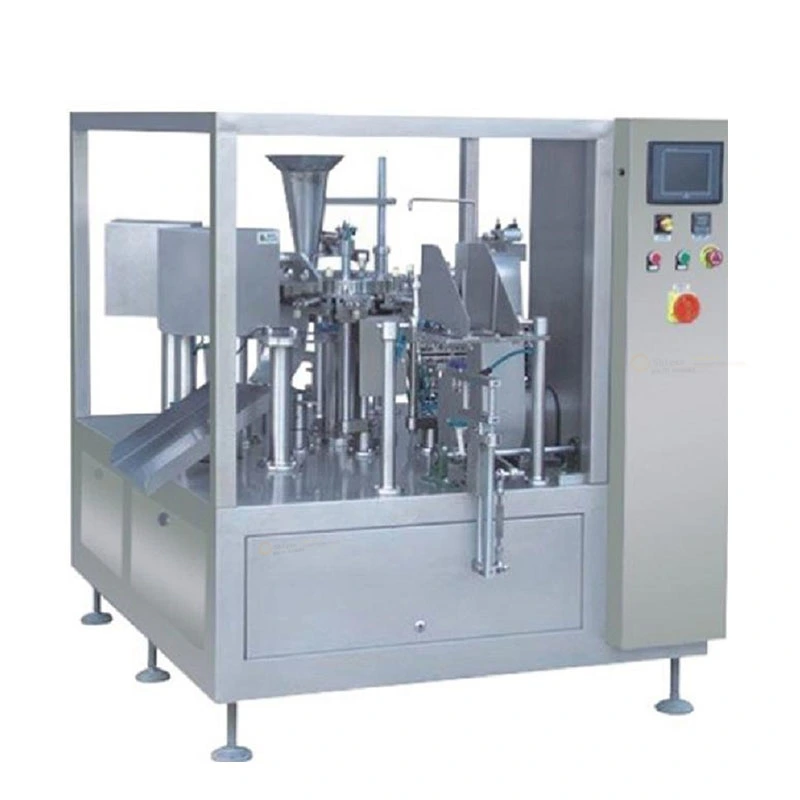

Automatic premade bag packing machine
Safety performance:
1. No bag - no filling - no sealing
2. The bag cannot be opened or is incompletely opened - not filled - not sealed
3. Heating device failure alarm
4. The machine automatically stops when the air pressure is lower than the set air pressure
5. The machine automatically stops the protective door when the protective cover is not closed or the electric box door is not closed
Specifications
Metering method: plunger pump metering or needle valve pump metering, only one set of equipment
Measurement range: 0-100ml (50-150ml 50-200ml customized)
Packing speed: 20-40 packs/min, 30-50 packs/min, 40-60 packs/min (frequency control)
Bag size: width (W): 30-150mm, length (L): 30-170mm (can be appropriately lengthened according to requirements)
Equipment power: 1600W
Power supply voltage: 380V or 220V or customized
Setting weight: 260kg
Dimensions: 100*700*1700mm
ps: The parameters are for reference only and can be customized upon request
Performance characteristics
1. Adopt German Siemens PLC control, equipped with touch screen man-machine interface control system, easy to operate
2. Automatic detection function: if the bag is not opened or the bag is incomplete, no material is added or heat sealed, the bag can be reused, saving production costs for users
3. Safety device: when the working air pressure is abnormal or the heating tube fails, the alarm will prompt
4. The adjustment of the bag width is controlled by motor. Press and hold the control button to adjust the width of each group of machine clips, which is easy to operate and saves time.
5. With liquid stirring device to prevent the precipitation of micro-particle materials
6. With liquid level control device
7. The parts in contact with the material are made of stainless steel
Application
1. Liquid or medium viscosity paste objects such as laundry detergent, detergents, fillings, seasonings, pharmaceuticals, pesticide emulsions, fuels, pigments, etc.
2. High-viscosity fluids and pastes such as sauces, detergents, beverages, edible oils, jams, and pigments.
3. Packaging of general fluid bonding objects such as jam, ketchup, hair milk, fruit juice drinks, and sauce packets.
Company Profile
Founded in 2010, Shanghai Shigan Industrial Co., Ltd. is a high-tech enterprise specializing in R&D, production and sales of testing equipment. It has become a well-known professional equipment manufacturer and service provider in the industry. The main products are automatic packing machine, packing machine multi-head weigher system, linear weigher, check weigher and other companies attach great importance to the cultivation of independent research and development capabilities and the construction of technical teams, and have formed a technical team with independent research and development capabilities. , to ensure that the company can continue to introduce new products that meet customer needs.
Sale Service
A. Pre-sale:
1. Provide real quotations for customers according to customer requirements, and record feedback in a timely manner if customers have special requirements;
2. Sign a standardized product order contract to clarify responsibilities and other related matters;
3. Provide one-year free warranty, lifetime maintenance service, and be responsible for debugging the product before delivery;
B. After sales:
1. If the customer's product fails, we will provide you with a solution as soon as possible;
2. During the warranty period, product maintenance is free. After the warranty period, maintenance can also be provided. If the accessories are replaced, the product accessories will be provided at the cost price.
