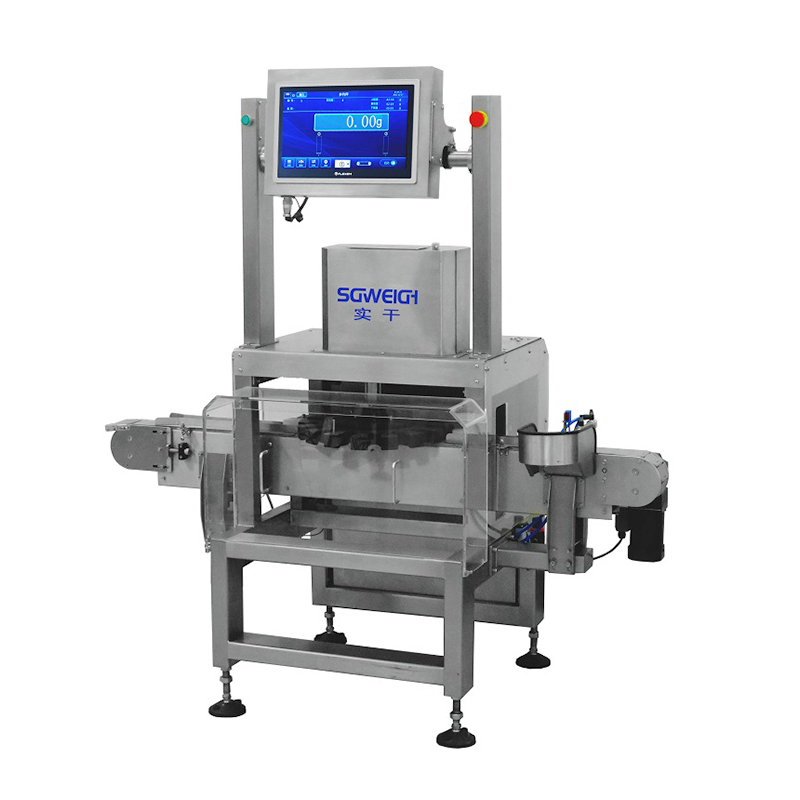

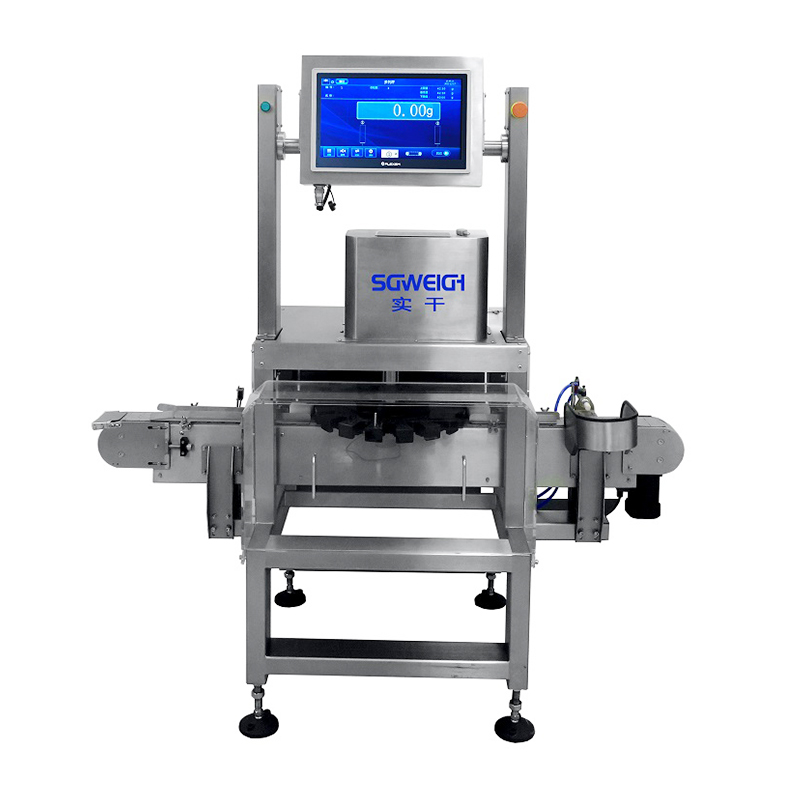

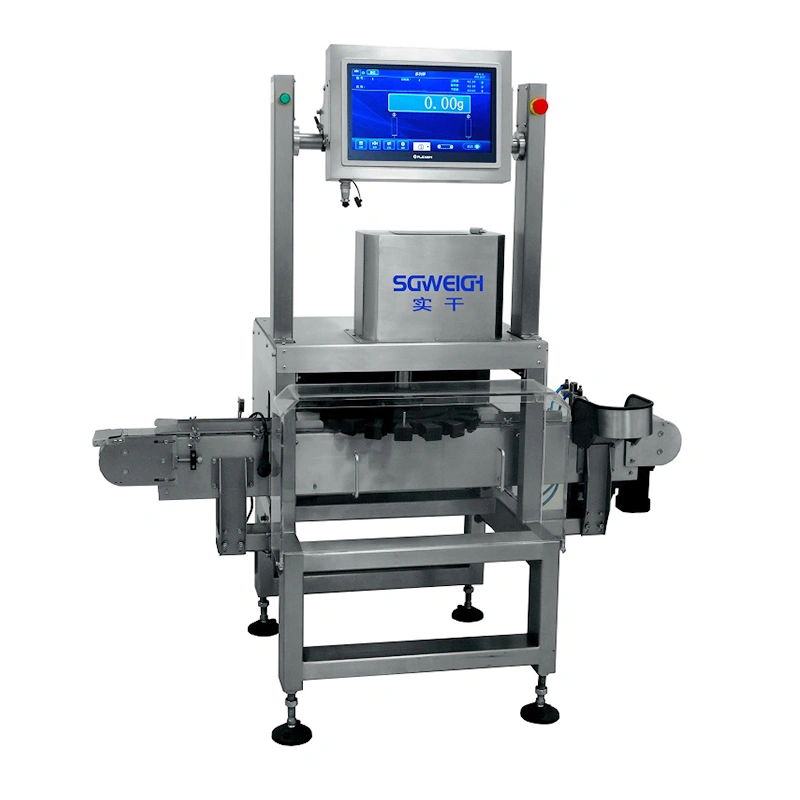

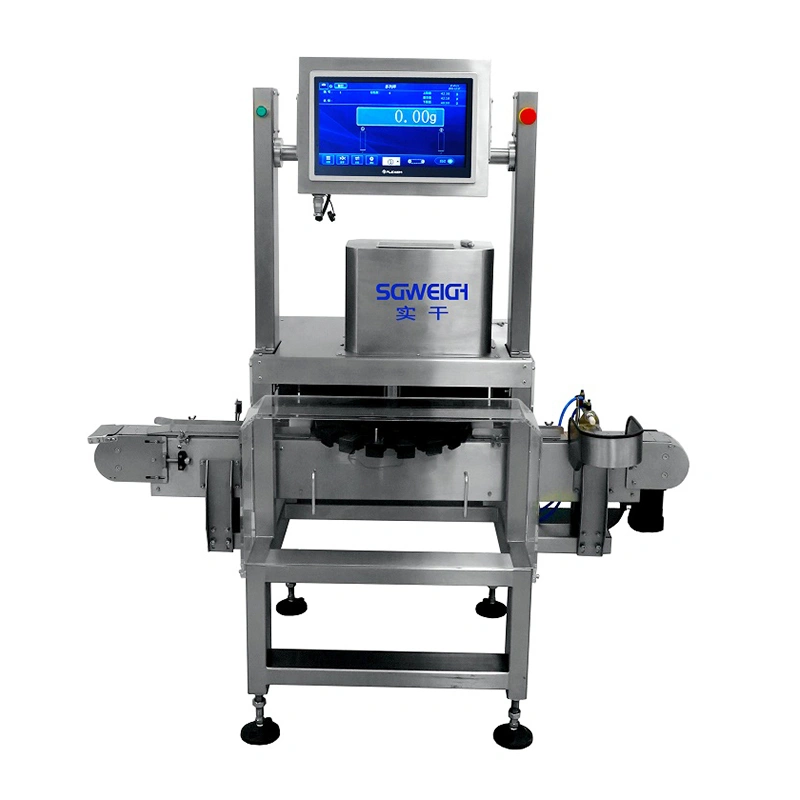

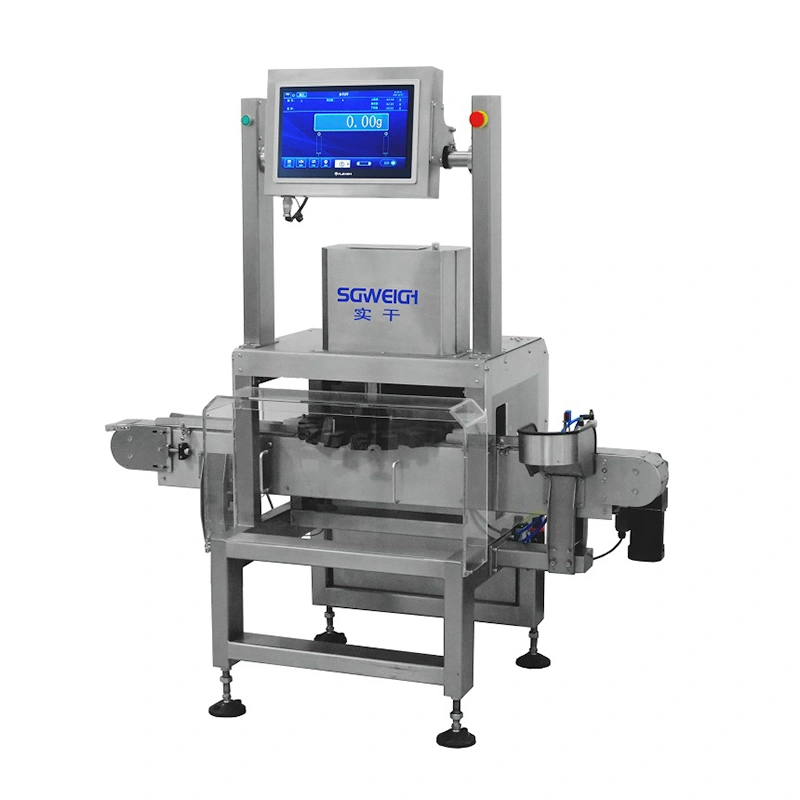

Automatic Rotary Checkweigher For Bottle Industrial Turntable Checkweigher
The automatic rotary checkweigher for bottle is equipped with a rotating weighing platform and a real-time rejection mechanism, which runs non-stop, ensuring that both glass and plastic bottles meet precise weight specifications before leaving the production line. The industrial bottle turntable checkweigher has great flexibility, modular design and adjustable guides. The equipment can be quickly reconfigured for product changeovers and is suitable for bottles of various shapes and sizes, from slender bottles to wide-mouth bottles. Any OEM and customer design orders are welcome! If you are interested in our products, please feel free to contact us.

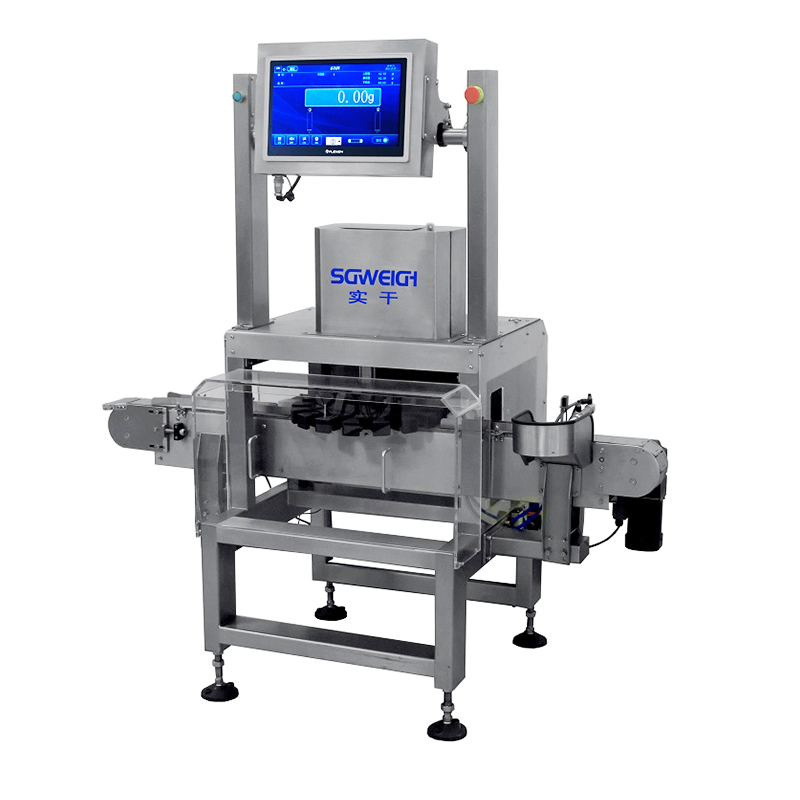

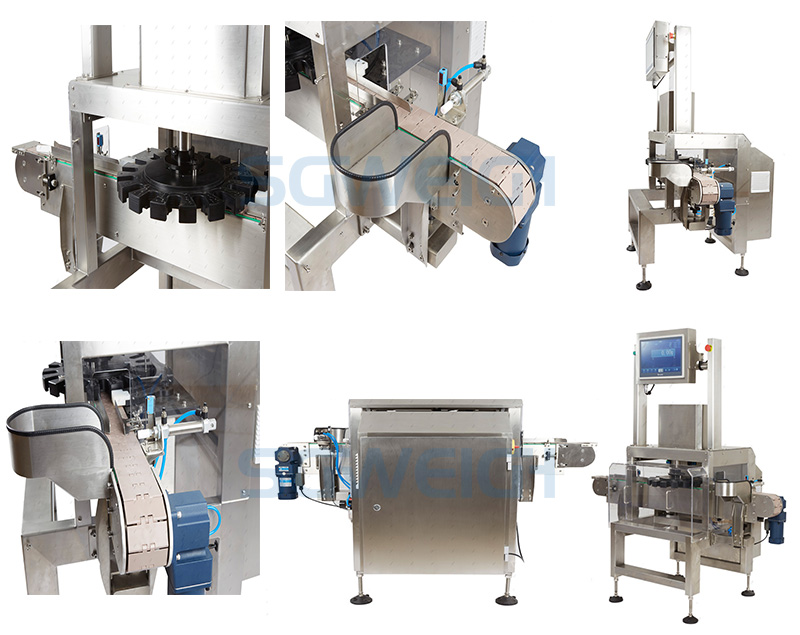

Industrial bottle turntable checkweigher photos
Model SG-Z1
Weighing range 5-300g
Minimum scale 0.01g
Sorting speed Maximum 50 pieces/minute (one channel)
Conveying speed 20-100m/min
Operation mode Touch operation
Conveying direction Facing the touch screen from left to right
Rejection method Air blow rejection/push plate rejection
Belt height from ground 750±50mm (can be customized according to customer requirements)
Machine structure Stainless steel (SUS304)
Power supply 220V 50-60HZ
Power About 300W
Windshield Thick acrylic (to avoid airflow interference)
Working environment Temperature: 0℃～40℃, humidity: 30%～95%
Remarks The properties of the tested products and the use environment are different, and the detection speed and accuracy are also different. The actual test is the standard.
Automatic Rotary Checkweigher For Bottle Industrial Turntable Checkweigher
No two production lines are exactly alike. Our professional engineers will rigorously evaluate production line characteristics, specifications, environment and other factors to design the most suitable industrial bottle turntable checkweigher solution for your production line to meet the different needs of various complex production lines.
1. Large-size color LCD touch screen interface, simple operation and intuitive display.
2. Supports customized multi-language, default is Chinese and English.
3. With photoelectric automatic detection of empty packages, the conveyor belt speed is adjustable.
4. Parameter setting three-level password protection, only management personnel can operate.
5. Product weighing data can be exported via USB.
6. Power-off protection function, the parameters remain unchanged in case of accidental power off.
7. The parameters of different products can be set to store 100 types of test data, which is convenient for users to switch and call.
8. Data statistics function. The total number of products passing/total number of underweight products/total number of overweight products in a period of time.
9. Simple mechanical structure, buckle conveyor belt, easy to disassemble, clean and maintain. Comply with GMP and HACCP specifications.
10. Automatic dynamic compensation value, dynamic zero point tracking, including zero point tracking when the equipment is running continuously, to ensure reliable test data.
11. The curve graph/bar graph shows the statistical distribution of the sorting (re-testing) results, and the window shows the values of the last 10 re-testing results.
12. The patented technology, the single-chip system independently developed, and the unique filtering algorithm have ultra-high accuracy and reliability. Ensure system stability.
Automatic rotary checkweigher for bottles are widely used in food, pharmaceuticals, beverages, health products, daily chemicals, agricultural and sideline products, hardware, toys, electronics, digital, printing and other industries. It is ideal for weighing glass bottles, plastic containers or vials of various shapes and sizes.
Automatic Rotary Checkweigher For Bottle Industrial Turntable Checkweigher
The Delivery Date: After receiving the payment, the delivery date will be within 15-30 working days
Packaging: Protective film + wooden case
Logistics: Air, sea or express (DHL, etc.)
The Freight: The cost of transport depends on the destination, mode of transport and the weight of the goods
Pay: T/T, Western Union, paypal
1.Replacement within seven days, warranty within one year, and lifetime maintenance. Before the products are sold, we will go through strict inspection, and the products you sign for have no quality problems;
2.The products provided to customers are all produced by the original factory, and have factory data accessories;
3.During the warranty period, our company will repair the damaged parts due to quality reasons, and the damage of the parts outside the warranty period. The provided accessories only charge the cost. If the equipment is damaged due to human factors, the parts repaired or provided by our company are calculated at the cost.
