7g Stick Packaging Multi-Lane Checkweigher Cosmetics 4 Lane Weight Checker

Description

7g Stick Packaging Multi-Lane Checkweigher Cosmetics 4 Lane Weight Checker

Stick packaging multi-lane checkweighers are a powerful solution for high-speed, high-volume production environments, taking up less space and being able to process hundreds or even thousands of products per minute across multiple lanes, optimizing high-volume production efficiency. Cosmetics multi-lane checkweighers use precise load cells to measure the weight of each item, and products that exceed a preset weight range (underweight or overweight) are automatically removed from the production line. To know more about us, please you do not hesitate to contact us or visit our factory.

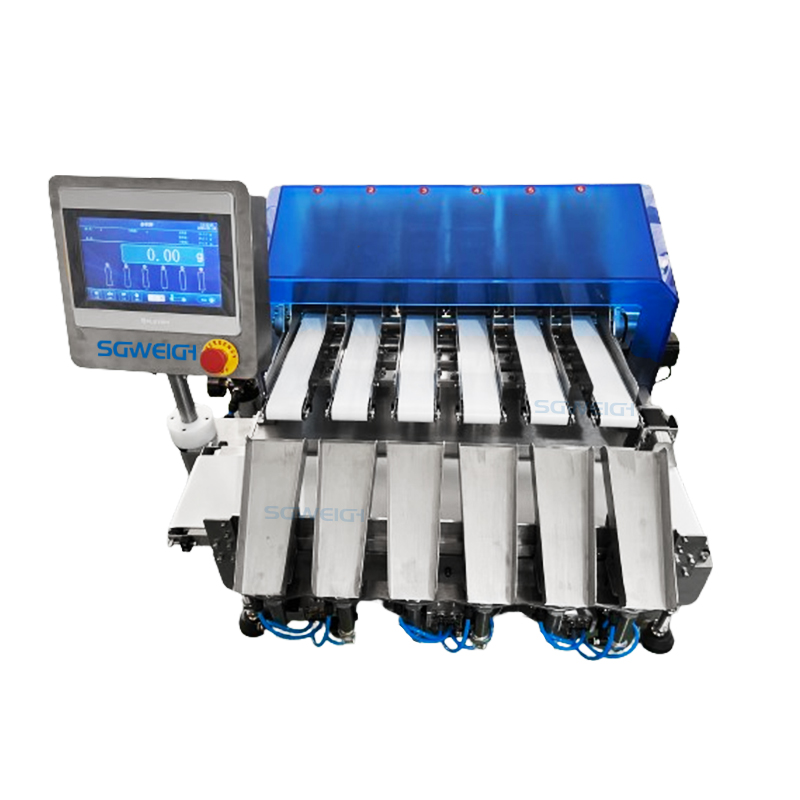

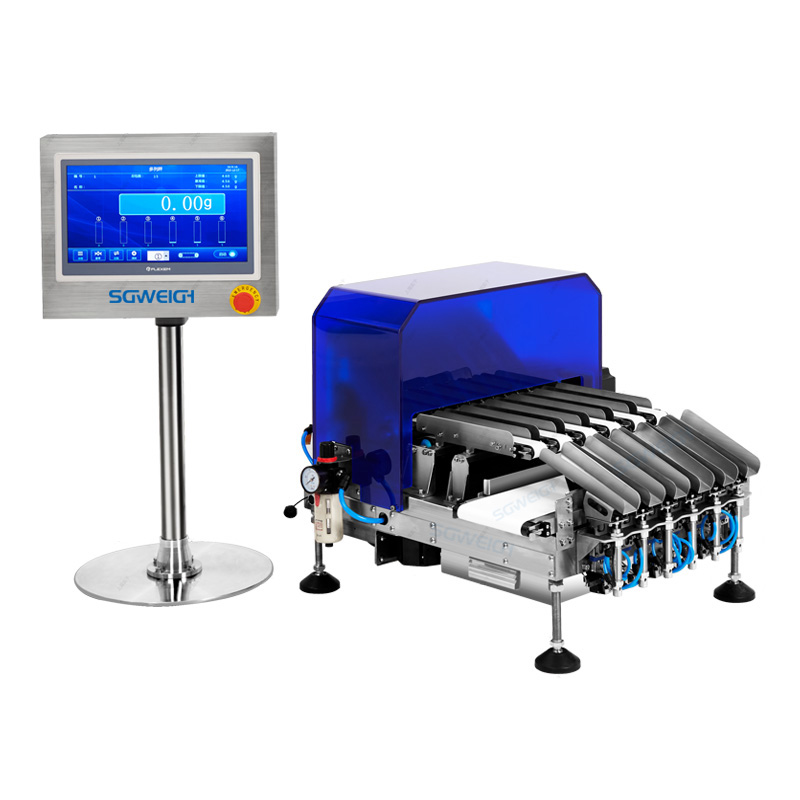

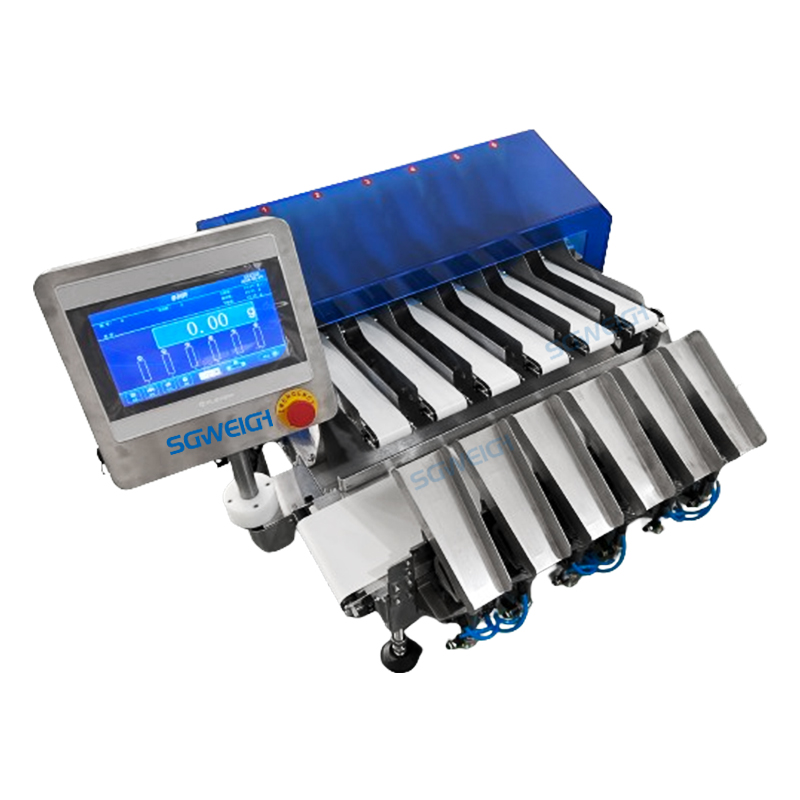

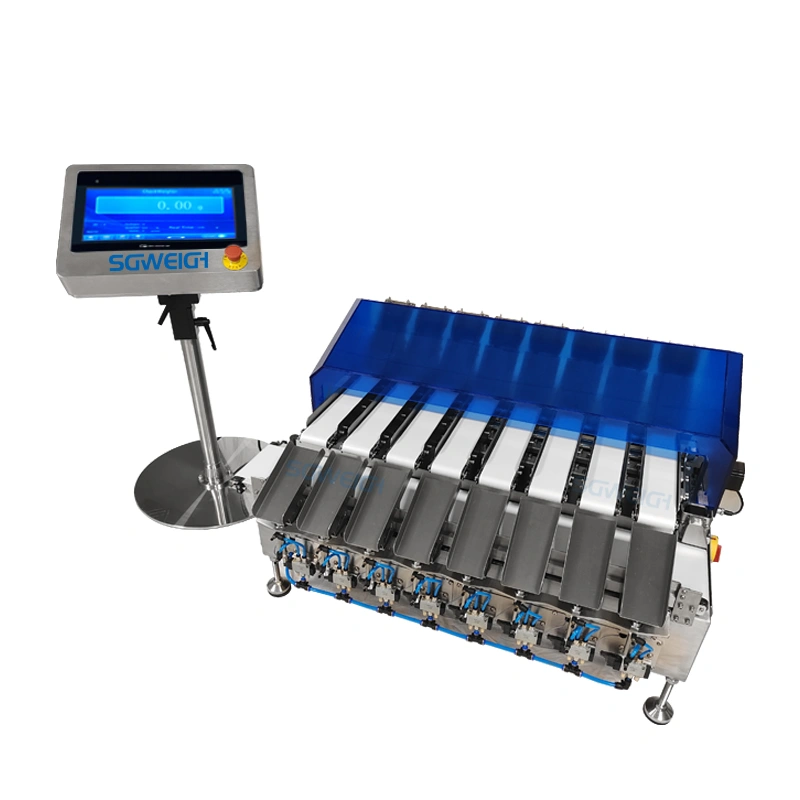

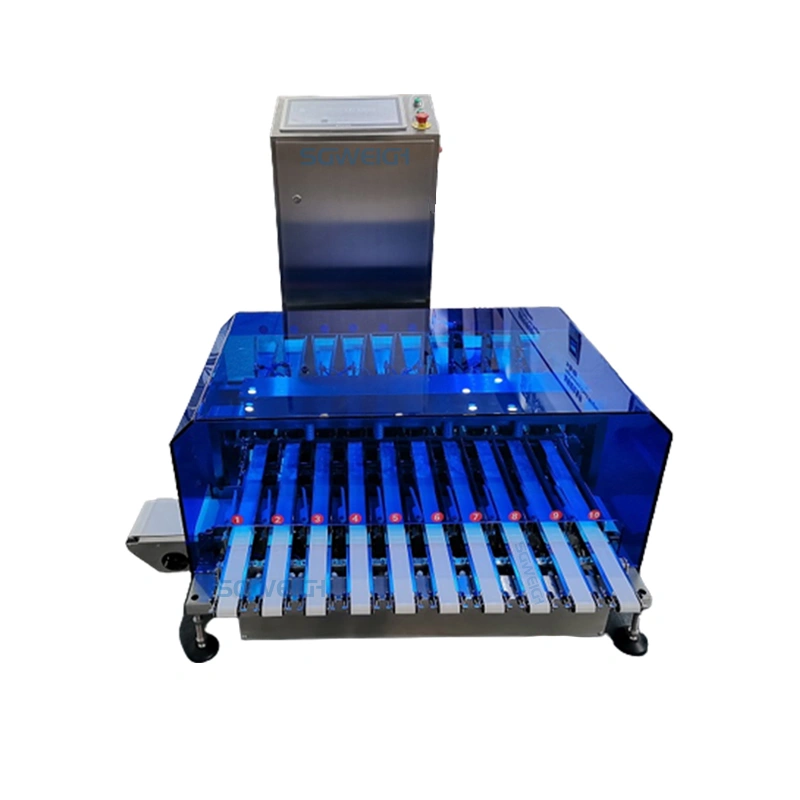

Stick packaging multi-lane checkweigher pictures

Stick Packaging Multi-Lane Checkweigher Stick Packaging Multi Lane Weight Checker

Stick Packaging Multi-Lane Checkweigher for Cosmetics

Model:SG-4X

Weighing range:1-50g

Minimum scale:0.01g

Weighing speed:The single-lane speed can reach up to 70 pcs/min (depending on the length of the product)

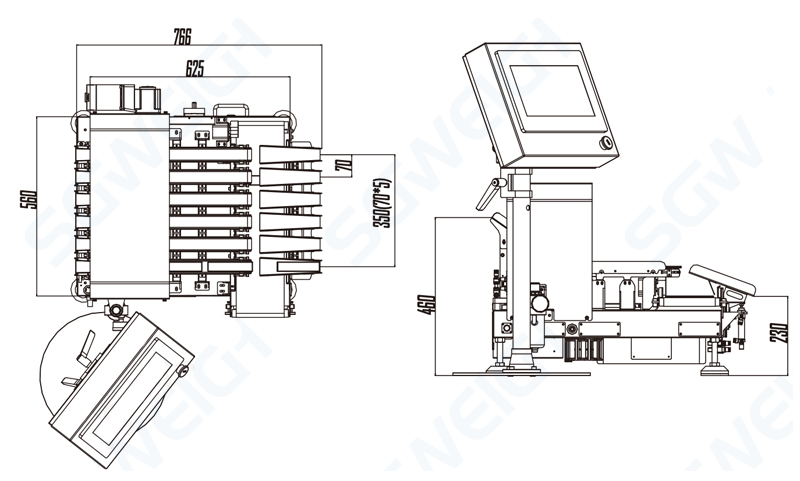

Restrictions of product:L:180 W:40 H:2-20(mm)

Operation way:Touch screen

Operation screen:12inch screen

Material:Stainless steel（SUS304）

Power supply:220V 50-60HZ

Power:About 200W

Weight:About160KG


1. Greatly improve the detection speed per unit time

2. Effectively prevent defective products such as empty bags, underweight, overweight, etc.

3. Count the products that pass through and automatically remove unqualified products through the sorting device

4. Can be used with multi-column packaging machines, automatic filling machines, metal detectors, etc.

5. Independent channel control: Each channel is independently controlled, and different weight thresholds and settings can be set for each channel if necessary. This flexibility is very useful when processing various product types or packaging sizes at the same time.

6. The number of detection columns can be customized according to customer needs (such as double columns, four columns, six columns, ten columns, etc.)

7. Each channel can eliminate unqualified products separately.

8. The number of consecutive unqualified products in each channel can be modified.

9. Statistical data of each channel: real-time result display, trend chart display, histogram display.

10. Data collection and analysis: Advanced data management functions can record, store and analyze weight data for quality control, reporting and process optimization.

7g Stick Packaging Multi-Lane Checkweigher Cosmetics 4 Lane Weight Checker

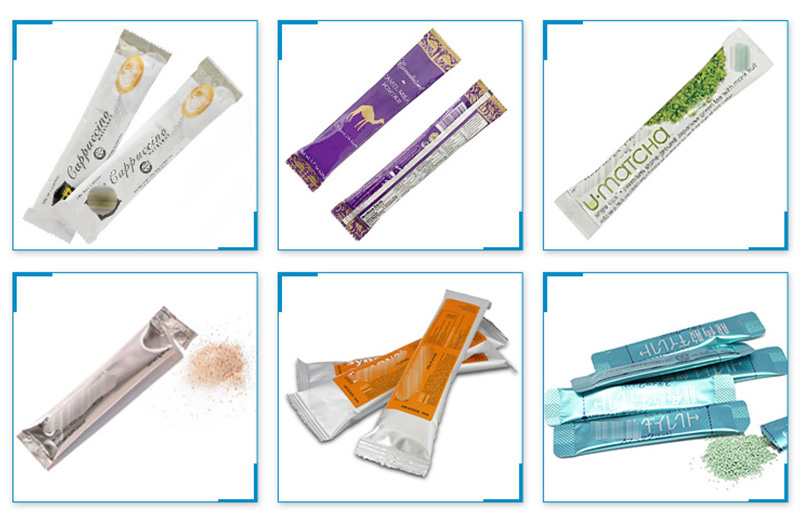

Stick packaging multi-lane checkweighers are suitable for automatic weight detection of multiple rows of small packaged products such as food, medicine, daily necessities, etc.

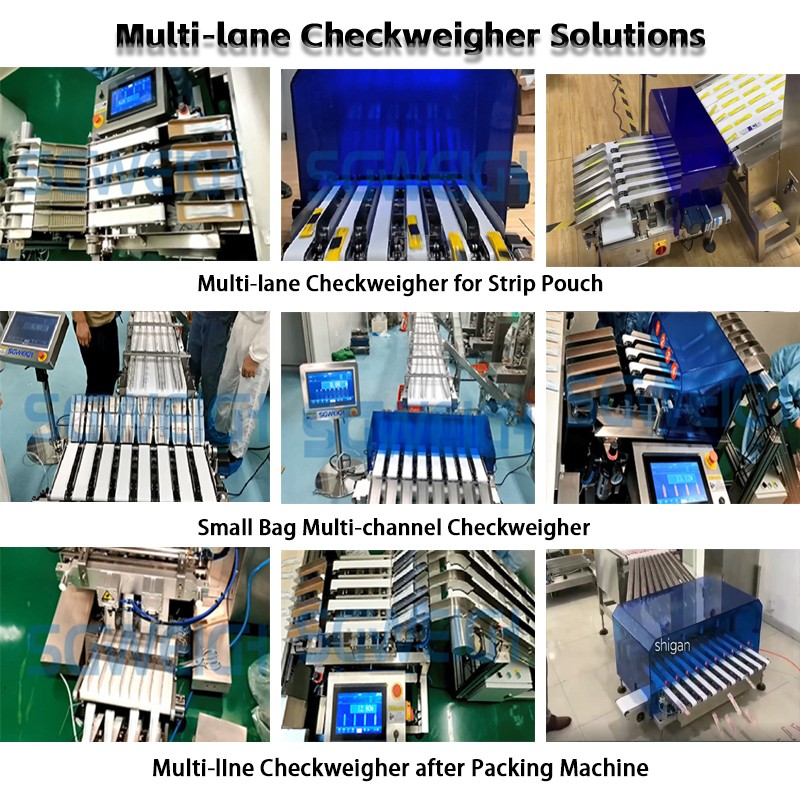

According to the production status and needs of users, Shanghai Shigan provides customers with suitable stick packaging multi-lane checkweigher models to ensure that the equipment can meet the requirements of actual application scenarios. Multi-lanes can be customized, such as 2 lanes, 4 lanes, 6 lanes, 8 lanes, etc. We have professional technicians who can provide you with multi-lane checkweigher solutions.
