100ml Multifunctional Automatic Shampoo Packing Machine Liquid Filling Mini Vertical Packing Machine Factory
The auto liquid filling packing machine produced in Shanghai Shigan is easy to operate, using PLC control, equipped with a touch screen man-machine interface control system, and can adjust parameters without stopping the machine; Servo motor motor control, double film pulling device, accurate film pulling, ensuring bag making effect; The packaging film of the shampoo vertical packing machine is suitable for a wide range of applications. The horizontal and vertical sealing sheet control of the machine can better adapt to multi-layer composite films, OPP/CPP PET/PE and other composite materials; Any OEM and customer design orders are welcome! If you are interested in our products, please feel free to contact us.

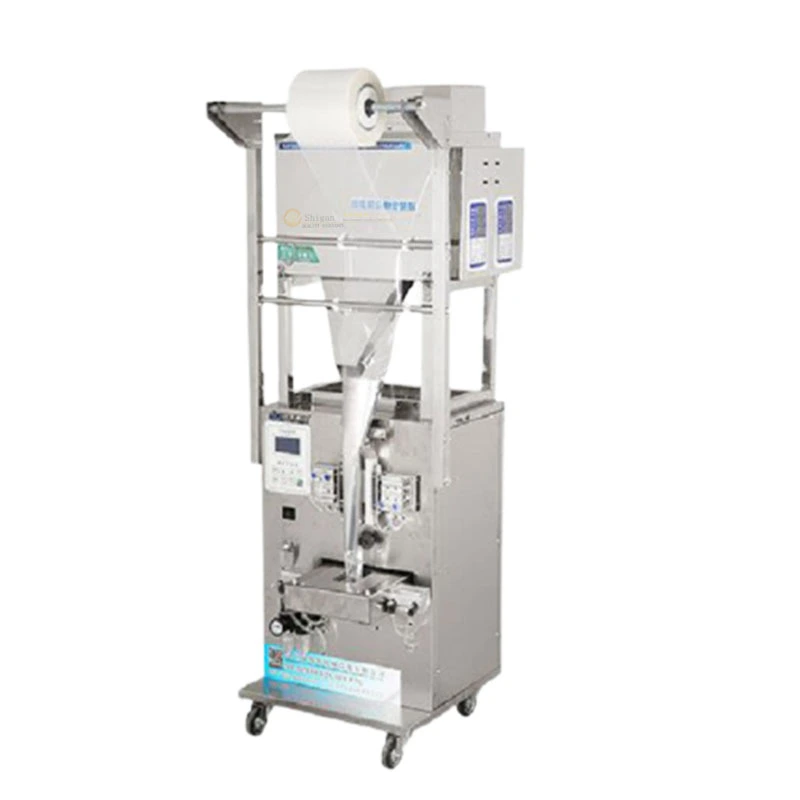

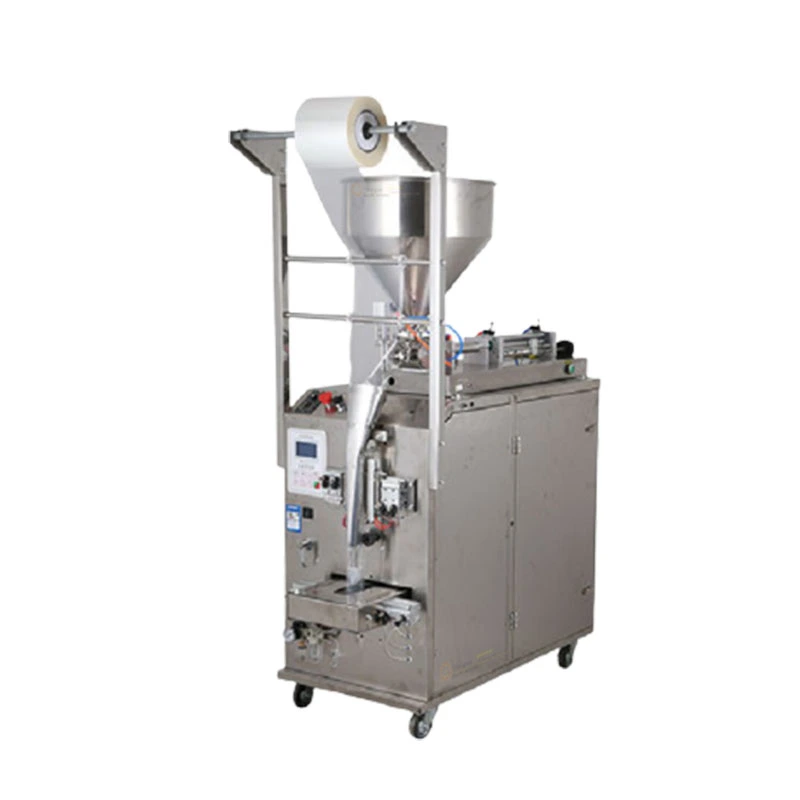

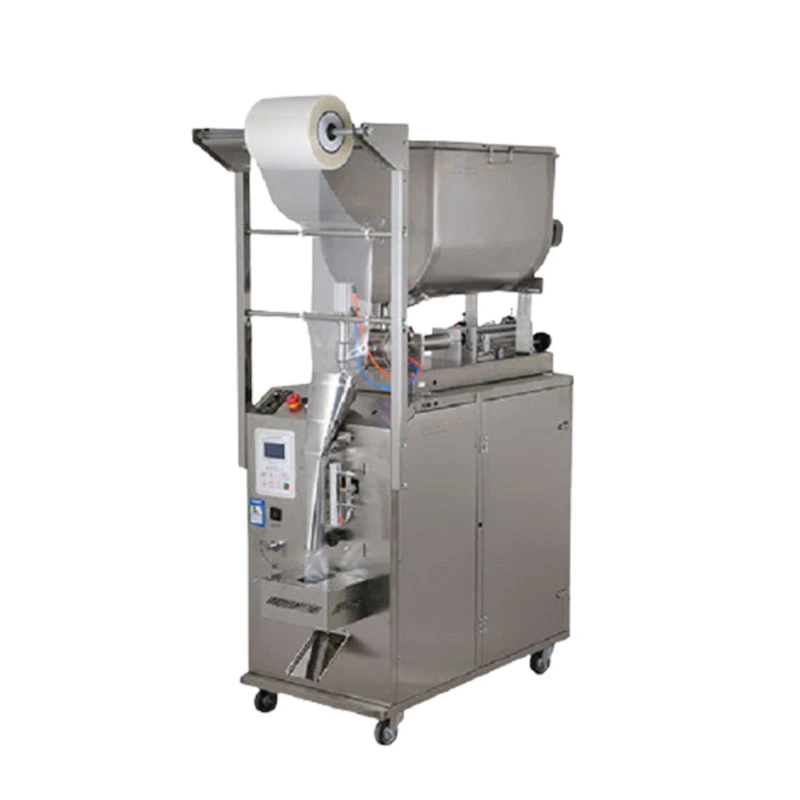

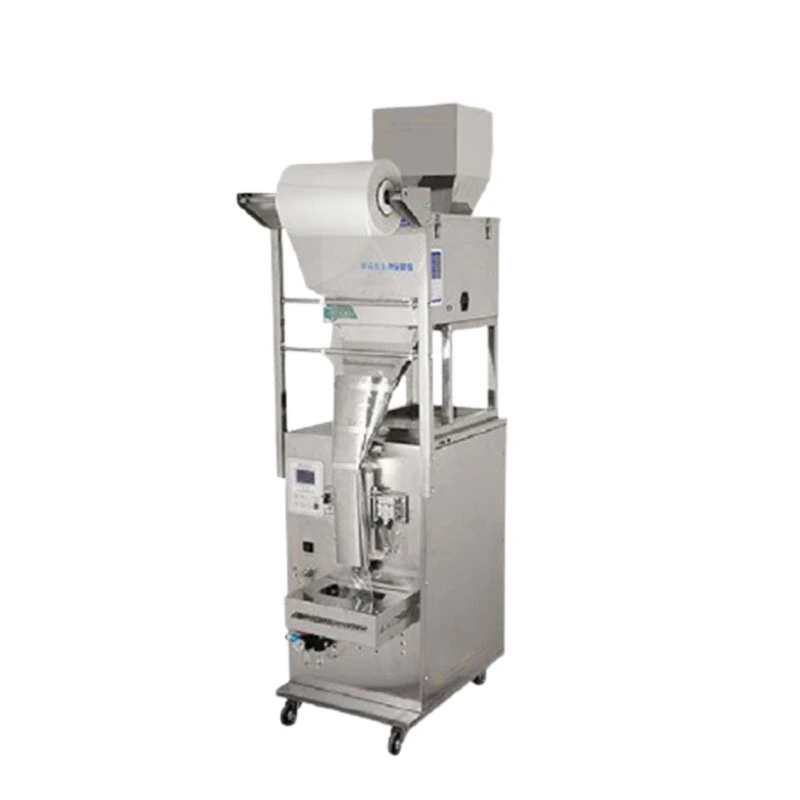

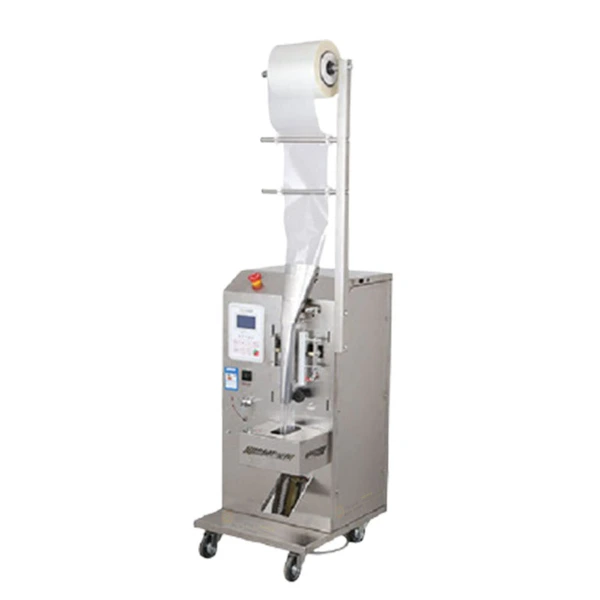

Oil liquid packing machine pictures
Metering range: 20-200 (bias metering, can be customized within 500ml of metering pump)
Bag size: 40-140mm wide and 40-140mm long (beyond the range, it can be customized to 200mm, and if it is longer or wider, it is necessary to replace the model K400Z)
Bag shape: The back seal is also called pillow seal (both ends of the bag are sealed and the middle of the back is sealed)
Packaging speed: 30-60 bags/minute (depending on the measurement requirements, the measurement is too large and the speed is slower)
Power supply voltage: 220V 50HZ
Overall power: 1.40KW
Metering method: pneumatic plunger pump
Operating Weight: 310KG
Overall dimension: 650X900X1740mm
Parameters are for reference only
We accept kinds of customized and logo of all of our products for customers .
If you interested ,please contact us！
If you want to know more related products, please sliding a mouse ?
More surprises waiting for you ~
1. This automatic packaging machine can automatically complete the functions of automatic measurement, automatic filling, automatic bag making (printable), sealing, cutting, and other functions for fixed packaging of products.
2. Adopting advanced technology and humanized design, the PLC+5.7 "touch screen control system has a high degree of automation.
3. Self alarm, self shutdown, self diagnosis, safe and easy to use, fast maintenance, automatic display of packaging quantity, convenient for statistics of machine workload.
4. Adopting the working principle of heat sealing and film pulling, the motor controls the film output, and the bag pulling is fast and stable.
5. High sensitivity photoelectric inductive switch, which can automatically track and locate the printing cursor. When packaging materials with color labels, a complete trademark pattern can be obtained.
6. Integrated support frame is adopted for more convenient adjustment.
7. The complete machine is made of 304 stainless steel and aluminum alloy (in accordance with GMP standards).
This liquid filling vertical packing machine is composed of a fully automatic bag feeding packaging machine and a liquid and sauce filling machine. It is mainly applicable to the three side sealing, four side sealing, and back sealing packaging of various semi fluid liquids such as seasonings, oils, fruit juices, salad dressings, fruit jams, bath lotions, hand sanitizers, and so on.
Since its establishment, our company has been engaged in the research, development and production of fully automatic packaging equipment, and our products are exported to the international market. Our company has a good pre sales and after-sales service system. Founded in 2010, the company is located in Shanghai. After nearly ten years of development, relying on the continuous exploration, research and development of advanced technology, and the introduction of talent advantages, the company has continuously grown, rapidly becoming a leading enterprise in the automatic metering packaging machinery, food packaging machinery, agricultural, pharmaceutical, and chemical packaging machinery industries. Mainly engaged in the design and development of various non-standard customized packaging units for particles, powders, sauces, liquids, tea bags, and the entire production and transportation packaging line. The main products include: a series of assembly line packaging and testing equipment such as auto packing machine, multihead weigher packing machine,digital metal detectors, vertical packaging machines, premade bag packaging machines, multihead weighers, linear scales, weighing filling machine, check weigher and etc,.
1) Warranty period: 1 year. During this period, if there is any non human damage to them, we will provide spare parts for replacement free of charge.
2) Quality: Product quality will be strictly checked, and each machine will be tested before packaging to ensure that it can work properly.
3) Technical service: After the machine is sold out, we will always keep in touch with the customer. If you need any assistance on the machine, please do not hesitate to contact us.
4) Document Service: We provide instructions and videos to teach you how to use and test the machine.
5) Accessories: We provide spare parts at competitive prices after the warranty period.
