SG-JN Capsule and Tablet Check Weigher Machine Automatic Checkweigher for Pharmaceutical
Check weigher as known as checkweigher, check weighing machine, weight check machine, check weight machine, weight checker, weight sorting machine, weighing machine, and etc,.
The capsule and tablet check weigher can perform a full weight inspection on capsules and tablets of different quantity levels, quickly eliminating products that do not meet the weight requirements. The automatic checkweigher for pharmaceutical can also be used for sampling, weighing and testing during the production process, making it possible to increase the sampling quantity (all modules are sampled at once) and sampling frequency, thereby better controlling the weight of drug particles. For further information about our services, or if you would like one of our professionals to contact you, please do not hesitate to contact us.

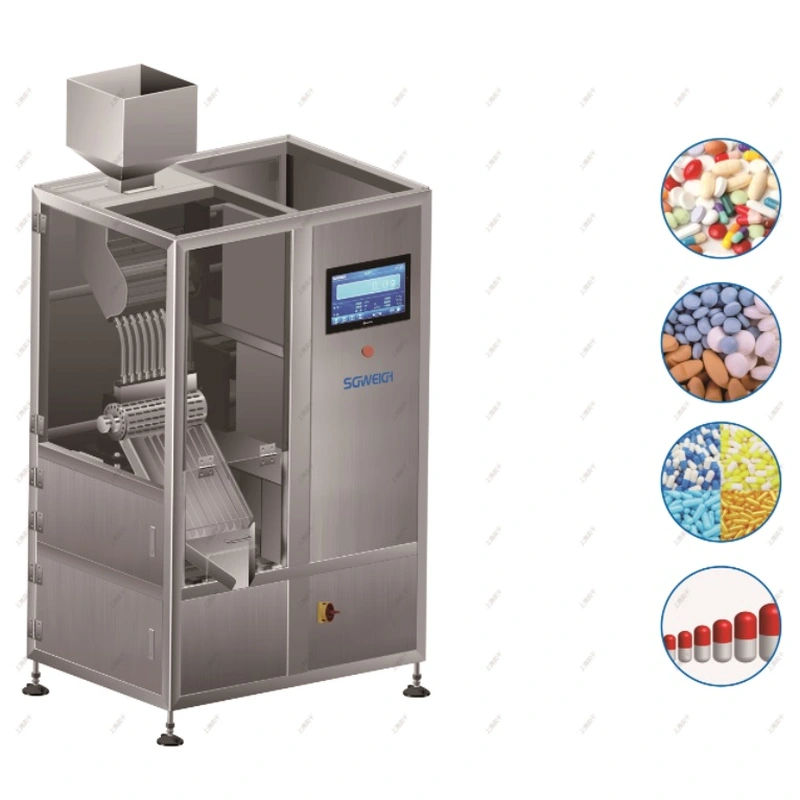

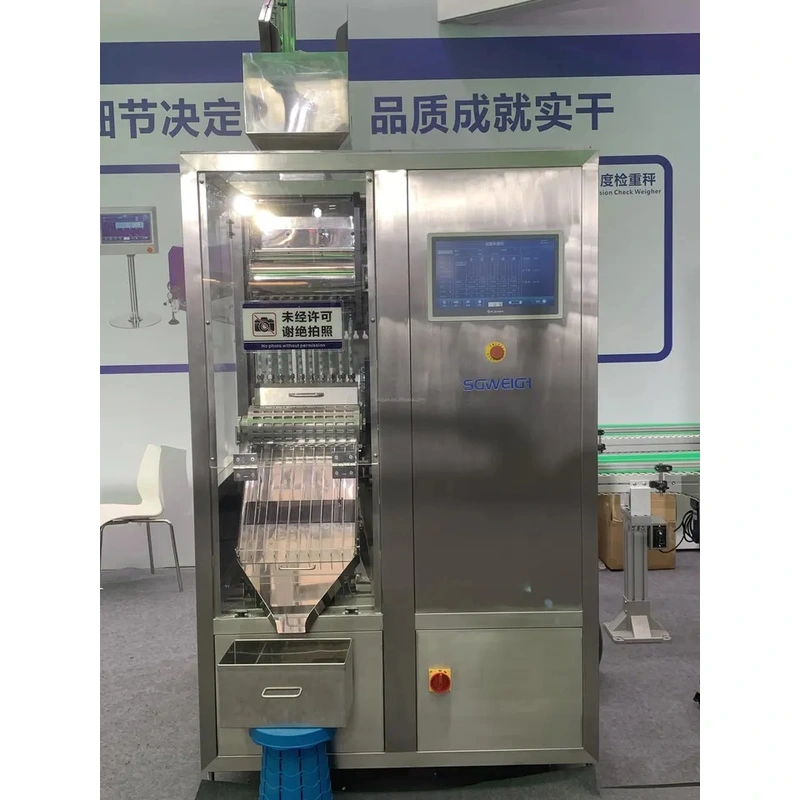

Capsule and tablet check weigher photos
Type SG-JN10
Weighing Range 5-2000mg
Display Scale: 0.1mg
Highest sorting accuracy: ±0.5mg
Product specification: capsule:00#-5#; Wafer:φ5.5-φ18mm; Thickness 3-12mm; Pill:φ5.5-φ12mm(other sizes or shapes subject to testing)
Highest sorting ability: 7.5W pcs/HR
Number of columns: 10
Powder Supply: AC -220V ±10% 50HZ
Compressed Air: 0.3-0.9Mpa
Use environment: The temperature change during use should be not exceed the range of 1°C/Humidity 30%-70%RH(but no condensation)
Machine Weight:350kg
Shell Material:SUS304 Stainless Steel
1. The optimal accuracy depends on the product conditions, and the maximum speed depends on the product size and conveyor speed.
2. The above machine specifications are standard specifications, dimensions, and other special requirements, and can be customized.
1. High precision measurement: Adopting high-precision electromagnetic balance weighing sensors, DSP high-speed signal processing systems, and military aviation level software algorithms, ensuring rapid measurement data, stable operation, and strong resistance to environmental interference.
2. Widely applicable: It can detect all types of capsules (such as 000 00 1 2 3 4 5 SA, SB, etc.) and conventional tablets.
3. Efficient working mode: Adopting a "unit expansion structure" and an "infinite parallel" working mode, a host can simultaneously control up to 1024 single machines, improving work efficiency.
4. Convenient mold replacement: The mold adopts a building block overlapping and positioning structure. When changing the capsule model, the mold can be quickly disassembled and positioned without error.
5. Universal molds: molds of adjacent capsule models are universal, such as 00 # and 0 #, 1 # and 2 #, and 3 # and 4 #, reducing the number of molds and equipment usage costs.
6. Small size: Small footprint, easy to move, and does not take up space.
7. Low fault design: With very few equipment failure points, it is easy to use, easy to operate and maintain, and has low maintenance costs in the later stage.
8. Flexible working mode: can be connected to production equipment or used offline on a single machine.
9. Data management function: production formula management call, rich data statistics, data storage, query, and printing functions.
10. Automatic sorting: preset qualified range, quickly and automatically sorting good and bad products.
11. Visual display: Ergonomic design, large-sized color touch screen, user-friendly operation interface, and intuitive chart display.
12. Real time monitoring: The human-machine interface synchronously displays the weight value of each channel, and visually displays the qualification of the current channel product in the form of a green and red histogram.
13. Innovative design: Three channel design for good products, defective products, and unchecked products, solving the emission problem of unchecked products during abnormal shutdown.
14. Fault warning: Automatic alarm for equipment faults, prompting alarm information.
15. Compliance: Compliant with 21CFR Part 11, Level 3 password, electronic record electronic signature, ensuring data integrity and facilitating audit tracking.
16. Rich interfaces: Supports peripheral interfaces such as Ethernet, USB, COM, and wireless WiFi, facilitating remote monitoring and networked data exchange.
Automatic checkweigher for pharmaceutical is suitable for production line testing of various capsules and tablets.
Shanghai Shigan Industrial Co., Ltd. was established in 2010 and is a leading high-tech company with over 13 years of experience in automatic check weighers and metal detectors. The main products include mautomatic check weighers, metal detectors, weighing labeling machines, checkweigher and metal detector combo, etc. Shanghai Shigan has its own research and development team, with many experienced engineers and workers designing and manufacturing metal detectors and weighing scales. Our products have been sold to many foreign countries and enjoy a reliable reputation among our customers.
Packaging
Film pack inside, Wooden case outside
Shipping
1. Upon receipt of payment, delivery date will be in 20-30 working days
2. By Air, by Sea or by Express (DHL, UPS, TNT, EMS, etc.)
A.Pre-sales
project design,performance introduction,technical agreement,contract signing,production testing and we can customized production according to your requirements.
B.In-sales
we will provide you with the latest process in the product assembly,packing and transportation.
C.Installation
1.We provide videos and instruction manual to show the process of installation.
2.We provide training for installation for free in our factory.
3.We can send technician to buyer's factory to install the machine and provide training service.
D.After-sales
1. For our machines, we will provide some spare parts and easy broken parts free of charge when delivering.
2.We will have one year free warranty period. During warranty period, if there is any malfunction for the machine, we will try our best to solve the problem within 24 hours. If there are some spare parts needed to be replaced, we will provide the spare parts for free. Beyond warranty, we will charge the cost price for spare parts.
