Online Single Pills Tablets Capsules Checkweigher with ±0.5mg Accuracy
Check weigher as known as checkweigher, check weighing machine, weight check machine, check weight machine, weight checker, weight sorting machine, weighing machine, and etc,.
The core part of the single pills tablets capsules checkweigher adopts high-precision weighing sensors and DSP fast single processing system, with high sensitivity, which can detect even a few milligrams of weight changes, achieve accurate weighing, and eliminate unqualified products. The mold of the online pharmaceutical capsule checkweigher adopts a stacked locking structure, which can be immediately disassembled and installed in place when the size of the capsule changes. You are welcome to contact us at any time for further information.

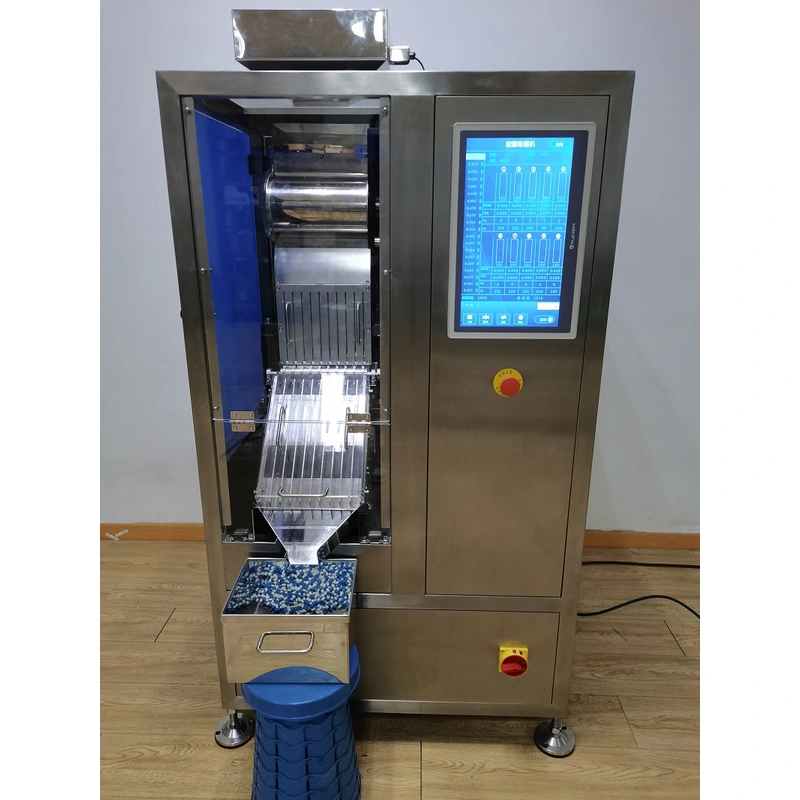

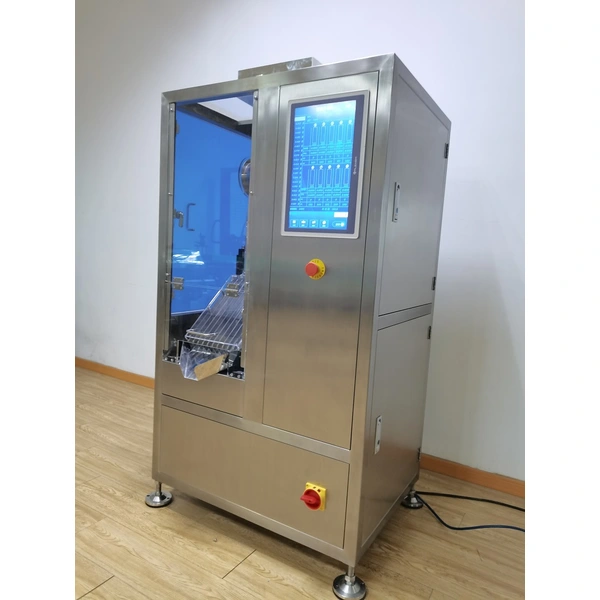

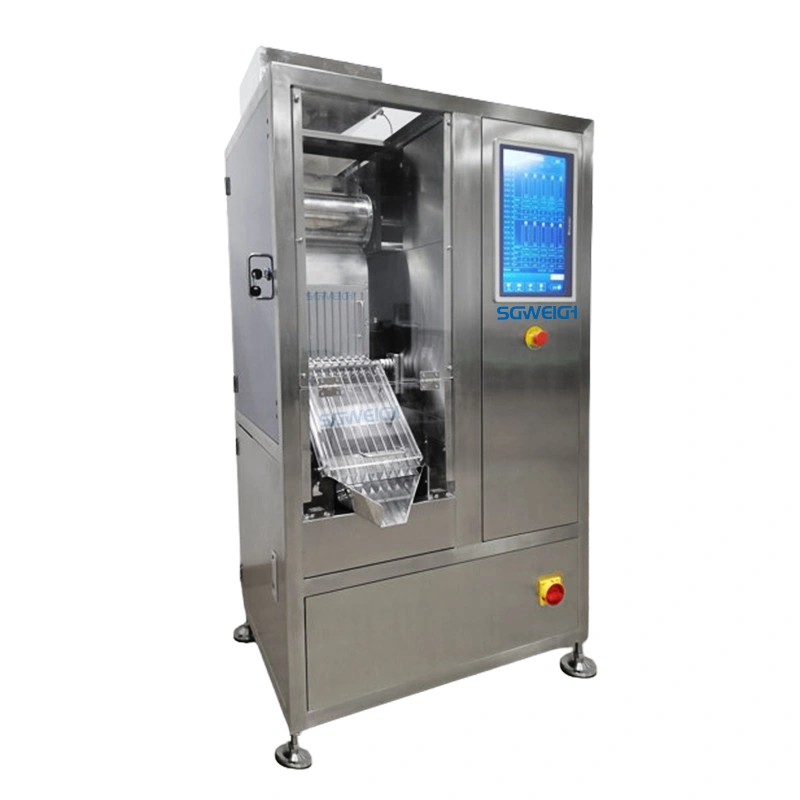

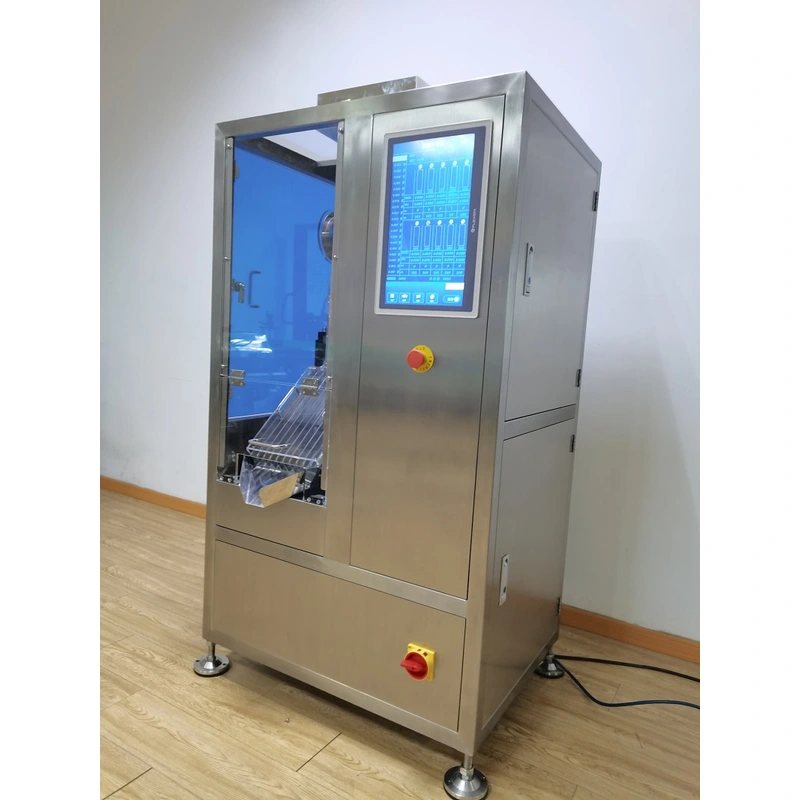

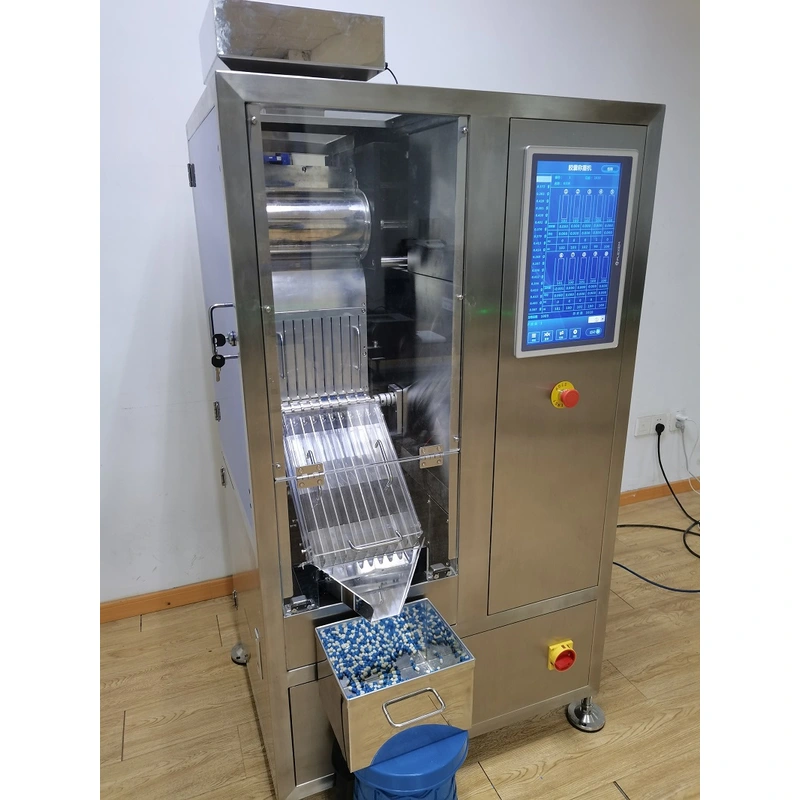

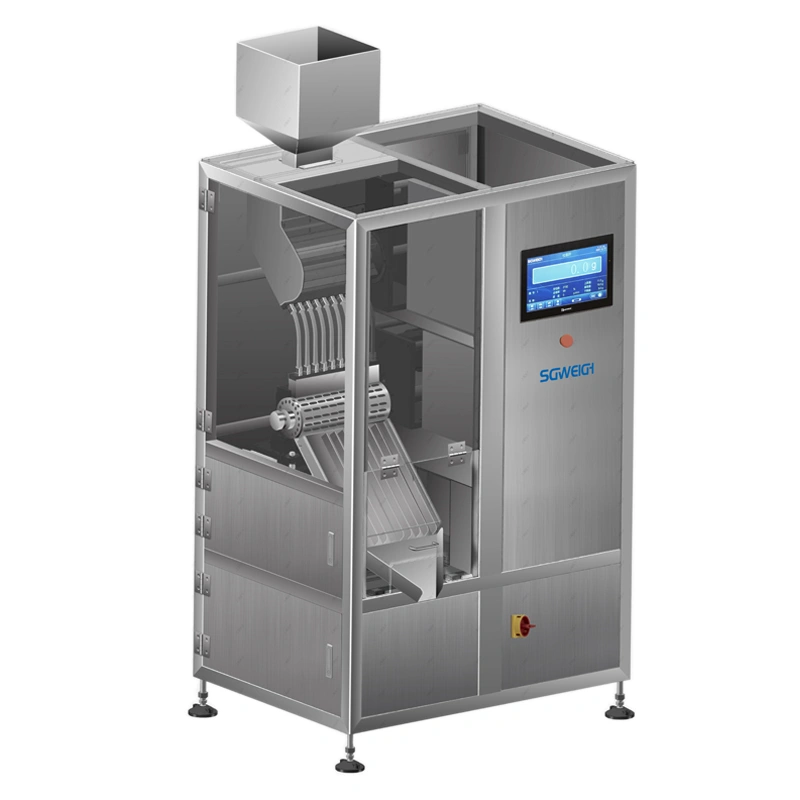

Single pills tablets capsules checkweigher photos
Type SG-JN30
Weighing Range 5-2000mg
Display Scale: 0.1mg
Highest sorting accuracy: ±0.5mg
Product specification: capsule:00#-5#; Wafer:φ5.5-φ18mm; Thickness 3-12mm; Pill:φ5.5-φ12mm(other sizes or shapes subject to testing)
Highest sorting ability: 23W pcs/HR
Number of columns: 30
Powder Supply: AC -220V ±10% 50HZ
Compressed Air: 0.3-0.9Mpa
Use environment: The temperature change during use should be not exceed the range of 1°C/Humidity 30%-70%RH(but no condensation)
Machine Weight:700kg
Shell Material:SUS304 Stainless Steel
1. The core part of the equipment adopts high-precision electromagnetic balance weighing sensors, DSP high-speed signal processing systems, and military aviation level software algorithms. The measurement data is fast, the operation is stable, and the ability to resist environmental interference is extremely strong;
2. Can detect all types of capsules such as SA and SB, as well as conventional tablets;
3. The "unit expansion structure" and "infinite parallel" working mode of the entire machine allow a host to control up to 1024 single machines at the same time, which can infinitely improve work efficiency. At the same time, selecting models based on work efficiency becomes extremely convenient;
4. The mold adopts a block type overlapping and positioning structure. When changing the capsule model, the mold can be quickly disassembled and positioned with bare hands without any errors;
5. The molds of adjacent capsule models are universal, such as 00 # and 0 #, 1 # and 2 #, 3 # and 4 #, to reduce the number of molds and lower equipment usage costs;
6. Small in size, not taking up space, easy to move;
7. Reasonable design, minimal equipment failure points, convenient use, simple operation and maintenance, and low maintenance costs in the later stage;
8. Flexible work, can be connected to production equipment for use, or can be used offline on a single machine;
9. Production formula management call, rich data statistics, data storage, query, and printing functions;
10. Set a qualified range and quickly and automatically sort good and bad products;
11. Ergonomic design, large-sized color touch screen, user-friendly operation interface, intuitive chart display;
12. The human-machine interface synchronously displays the weight value of each channel, and visually displays the qualification of the current channel product in the form of green and red histograms. The equipment synchronously lights up the indicator lights, making the detection process more intuitive;
13. The innovative three channel design of good products, defective products, and unchecked products solves the problem of emission of unchecked products during abnormal shutdown, leading to misjudgment;
14. Automatic equipment failure alarm, prompting alarm information;
15. Compliant with 21CFR Part 11, Level 3 password, electronic record electronic signature, ensuring data integrity and facilitating audit tracking;
16. Rich peripheral interfaces, Ethernet, USB, COM ports, wireless WiFi, facilitate remote monitoring and network data exchange.
Most of our products are customized according to specific project requirements.
If possible, please provide us with more detailed information about your project, such as materials, weight range, speed, accuracy, etc.
It is best for you to contact us in advance before placing an order.
Online capsule Checkweigher is possible to perform a full weight inspection on capsules and tablets of different quantity levels, and quickly eliminate products with weight defects.
Shanghai Shigan Industrial Co., Ltd. is located in Shanghai, China. We have obtained the CE certificate and are a leading manufacturer of automatic checkweighers and digital metal detection mechanisms in China. Since 2010, we have been operating the business of automatic checkweighers and digital metal detection mechanisms. Our various wautomatic checkweighers and digital metal detection mechanisms have been widely used in various fields around the world, such as food, supplies, industrial food, rubber products, groceries, etc. Our products enjoy a good reputation for their quality, reliability, and efficiency. To assist professional clients in marketing, we also provide OEM services and customized machine designs.
Main products
Capsule and Tablet Checkweigher
Checkweigher and Labeling Machine Combo
Checkweigher and Metal Detector Combo
The equipment will be securely fixed and then packed into wooden cases for protection during transportation.
Fast delivery guaranteed! The earliest delivery time is 15 days after payment.
1. Equipment installation and debugging: The company provides detailed operation manuals and free operation training to enable customers to proficiently master the usage methods of the equipment.
2. Technical Support: The company provides 7x24 hours of technical support, and customers can contact engineers at any time to solve any problems they encounter during use.
3. Accessories supply: The company provides original accessories to ensure the quality and stability of the accessories.
4. Quality assurance: The company is responsible for the products sold, ensuring that the quality and performance of the equipment meet industry standards.
5. One year warranty and lifelong maintenance
